SYSTEM OPERATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

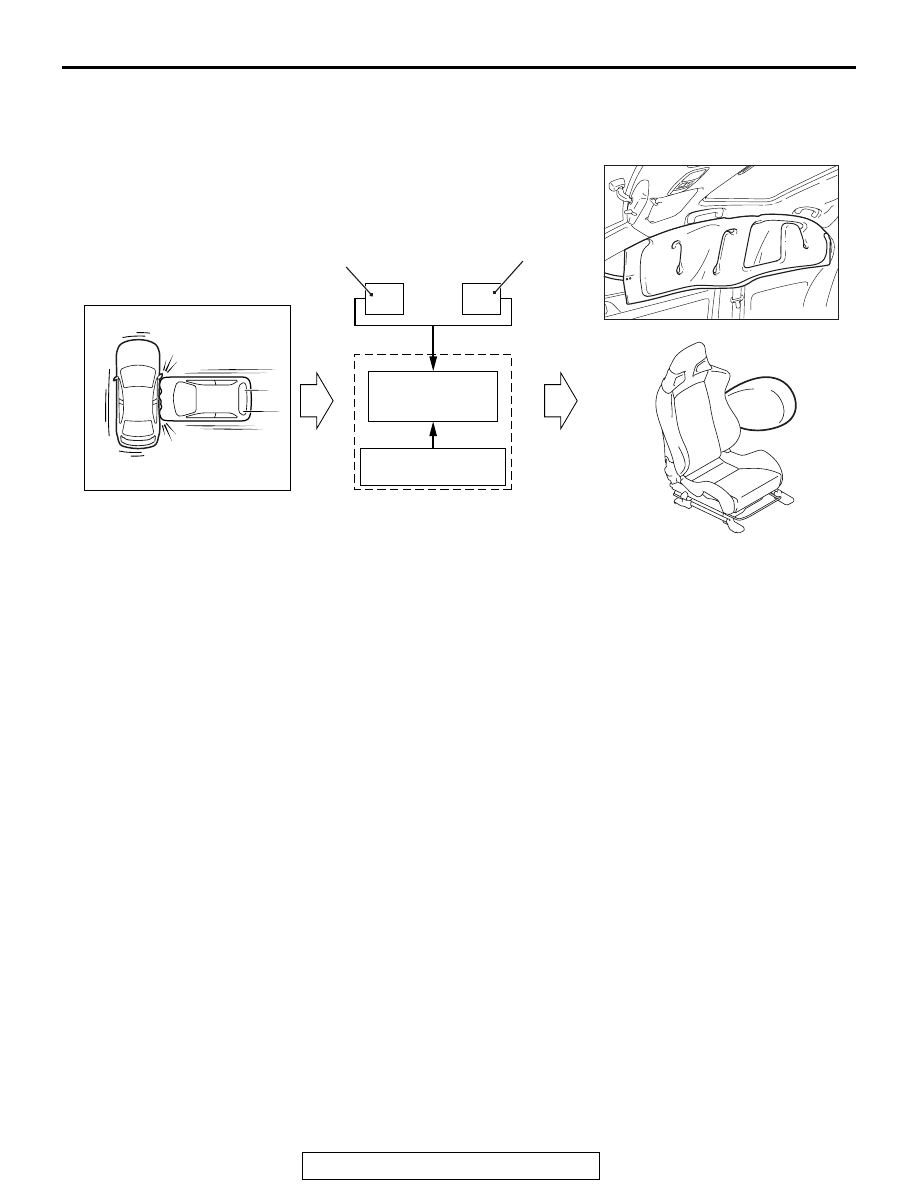

SIDE AND CURTAIN AIR BAGS

M2521000800357

SRS-ECU uses data of the side impact sensor and
G-sensor (in SRS-ECU) to calculate collision sever-
ity, during side collision. SRS-ECU judges necessity
of side-airbag and curtain air bag based on the cal-
culated collision severity.

AC709200

Side impact
sensor
(front: RH)

Side impact
sensor
(front: LH)

Shock
above a
certain
level

Ignition signal

Ignition judgment

G-sensor (Side-airbag,
curtain air bag)

SRS-ECU

Curtain air bag modules

Side-airbag modules

AB

Side impact against another vehicle

SYSTEM CONSTRUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

SYSTEM CONSTRUCTION

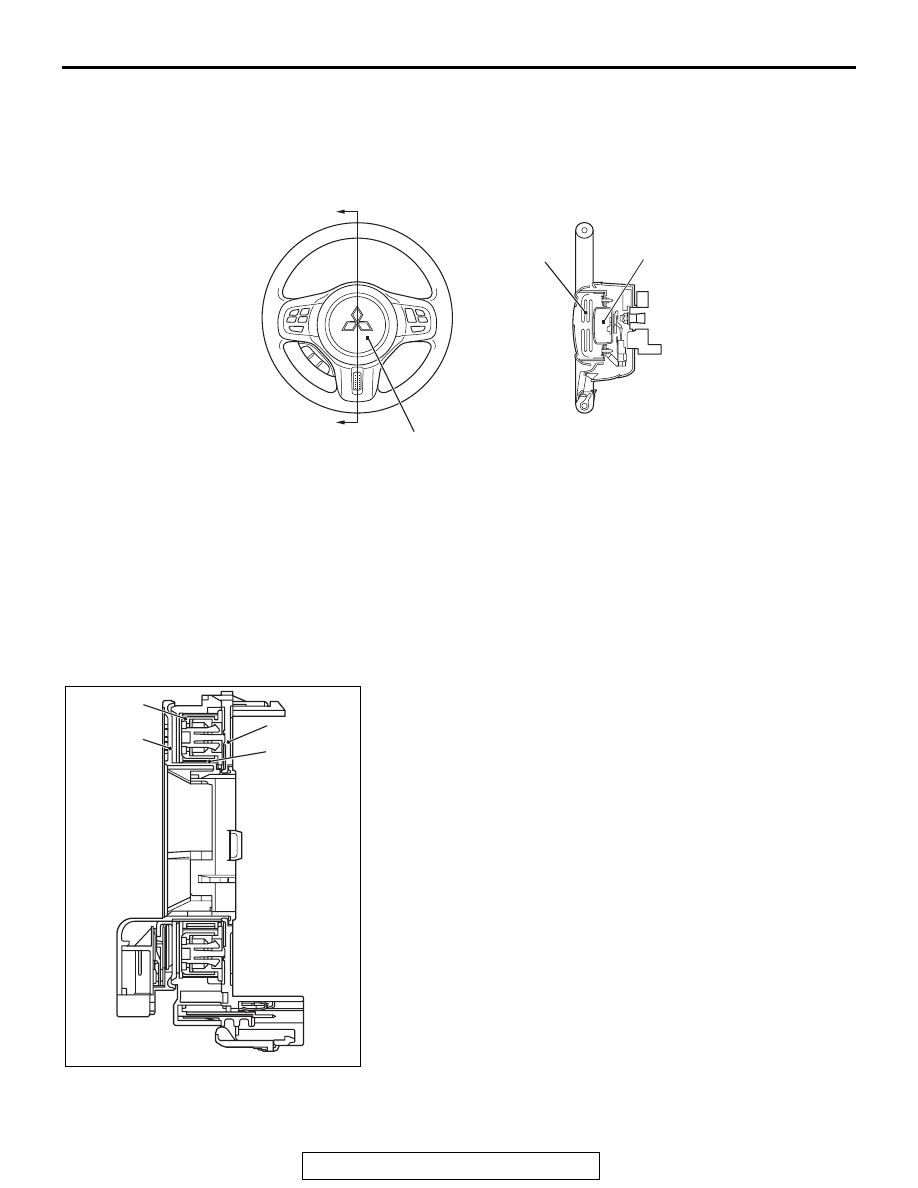

DRIVER'S SIDE AIR BAG MODULE

M2521002000539

The driver’s air bag module incorporates a
three-spoke steering wheel. The driver’s air bag
module is an assembly part consisting of an air bag,
inflator, and their fasteners. The air bag is made from
nylon and inflates by gas from the inflator. As a driver
is being pressed to the air bag, it deflates discharg-
ing gas from two vents at the rear of the air bag to

reduce the shock from the impact. The driver's air
bag deploys by changing its inflation pressure in two
steps. The inflator has two squib connectors to
deploy the air bag in two steps. For the inflator, the
gas which is harmless to the human body has been
adopted.

CLOCK SPRING

M2521001100083

The clock spring consists of a flat cable, rotator, stator, Roller,
etc. The flat cable is loosely wound in the case in coil-form.
One end is attached to the rotator and the other end is attached
to the stator. By turning the steering wheel, the clock spring
rotator turns along with the steering shaft. The flat cable is
wound or unwound by the rotator according to how the steering
wheel turns. It must be in the neutral position when assembling
the clock spring.
NOTE: For the clock spring centering procedures, refer to the
SERVICE MANUAL.

AC709202

A

A

AB

Section A - A

Inflator

Driver's air bag

Driver's air bag module

AC709130

Rotator

Flat cable

Stator

AB

Roller

SYSTEM CONSTRUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

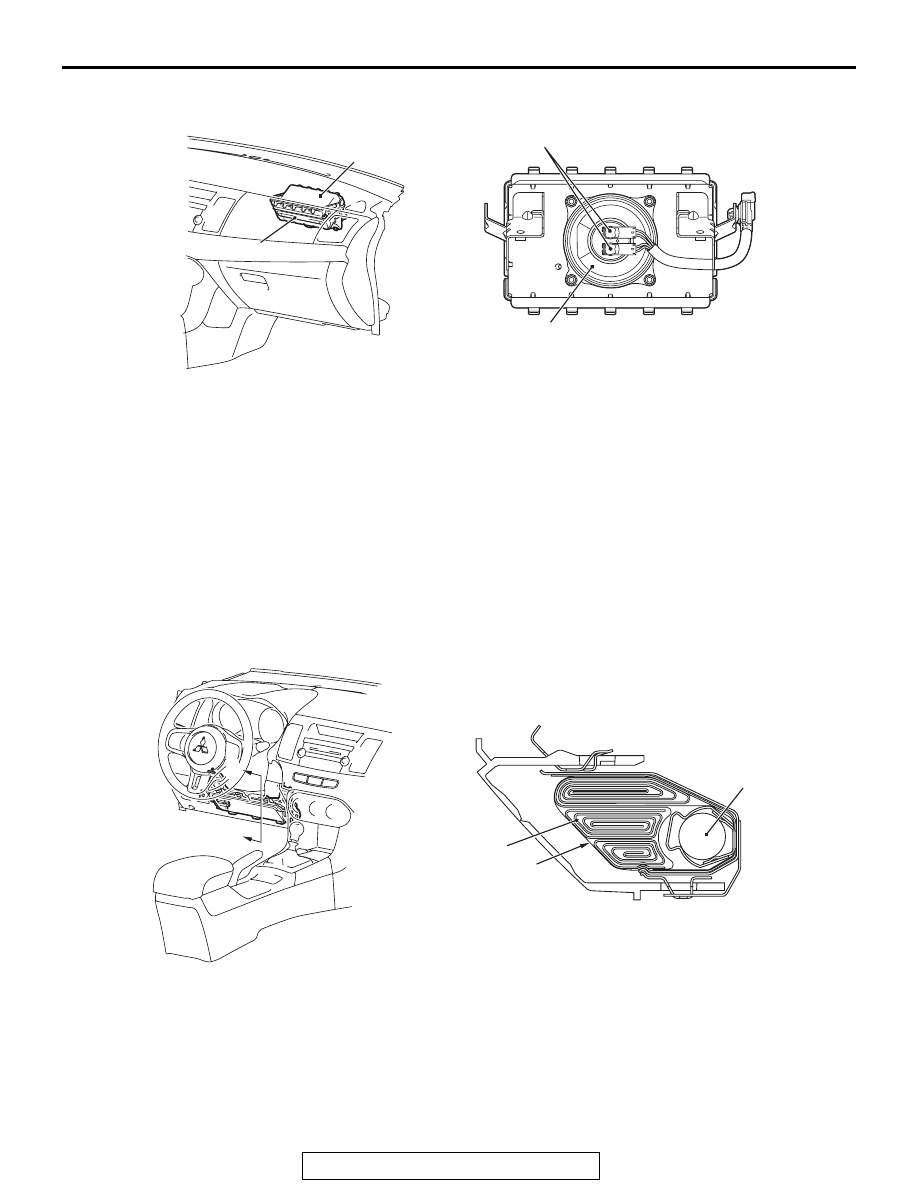

PASSENGER'S (FRONT) AIR BAG MODULE

M2521002100149

The passenger’s (front) air bag module consists of
an air bag, and their fasteners.
The air bag is made from nylon and inflates by the
gas from the inflator. As a passenger is being
pressed to the air bag, it deflates, discharging gas
from two vents at the side of the air bag to reduce the
shock from the impact.
The front passenger’s air bag deploys by changing
its inflation pressure in two steps.

The inflator has two squib connector to deploy the air
bag in two steps.
The front passenger air bag does not deploy at the
front passenger seat is not occupied and when the
occupant classification sensor in the front passenger
seat senses a weight on the seat of less than 66
pounds (30 kg).
For the inflator, the gas which is harmless to the
human body has been adopted.

KNEE AIR BAG MODULE

M2521002600070

The knee air bag consists of the air bag, inflator, and
fixing gear relating to those parts, and is installed
onto the instrument panel lower under the steering
column.
At the frontal collision, the knee air bag deploys by
the gas generated from the inflator to protect passen-
ger's feet (knee and leg). Like the air bag for frontal

collision, the knee air bag are made of nylon whose
inside is rubber-coated, and is folded up and housed
in a cover. Gas exhaust openings are provided at the
sewed sections of the air bag to reduce the impacts
on the passenger's feet at deployment.
For the inflator, the gas which is harmless to the
human body has been adopted.

AC609452

AC608598

Air bag module

Air bag

Squib connectors

Inflator

AB

AC709204

AC608525

AB

Section A-A

A

A

Inflator

Air bag

Cover

SYSTEM CONSTRUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

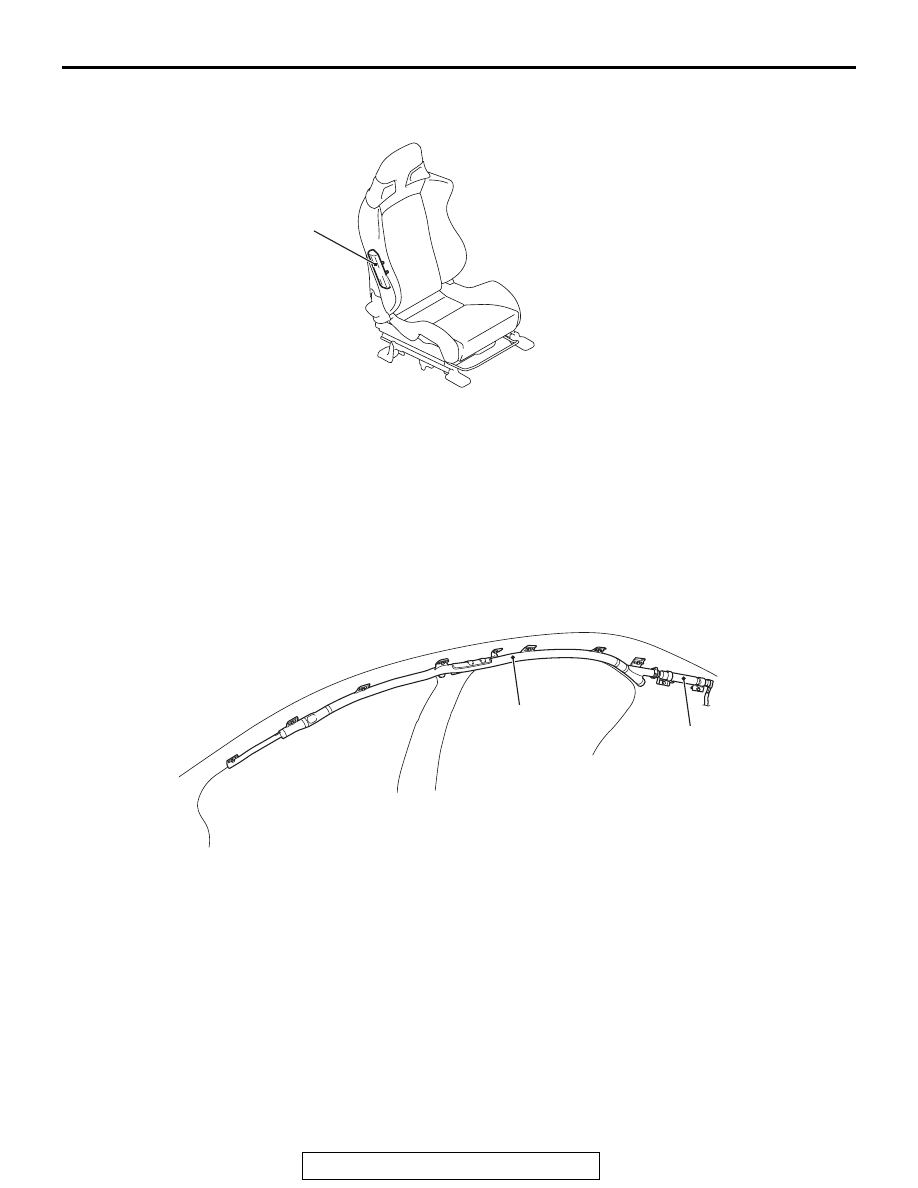

SIDE-AIRBAG MODULE

M2521004000364

The side-airbag module consists of an air bag, air
bag cover, inflator and their fasteners. The modules
are installed in the outer side supports of the driver’s
and front passenger’s seatbacks. The side-airbags
help protect the occupants regardless of the seat
position and seatback angle.

The side-airbag made of nylon fabric. The air bags
are compactly folded and stored under the cover. On
the side of the air bag, there are holes through which
gas is partially released to alleviate shock to the
occupant when the air bag is deployed. For the infla-
tor, the gas which is harmless to the human body has
been adopted.

CURTAIN AIR BAG MODULE

M2521000500312

The curtain air bag module consists of an air bag, an
inflator, and the fixing gear relating to those parts,
and is installed in the roof side sections (from the
driver's and the passenger's front pillars to the rear
pillars).

The air bag is made from nylon with the inside
coated with silicon, and housed in the roof side sec-
tions, folded up compactly.
For the inflator, the gas which is harmless to the
human body has been adopted.

AC709209

Air bag module

AB

AC608585

Curtain air bag module

Inflator

AB
