GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

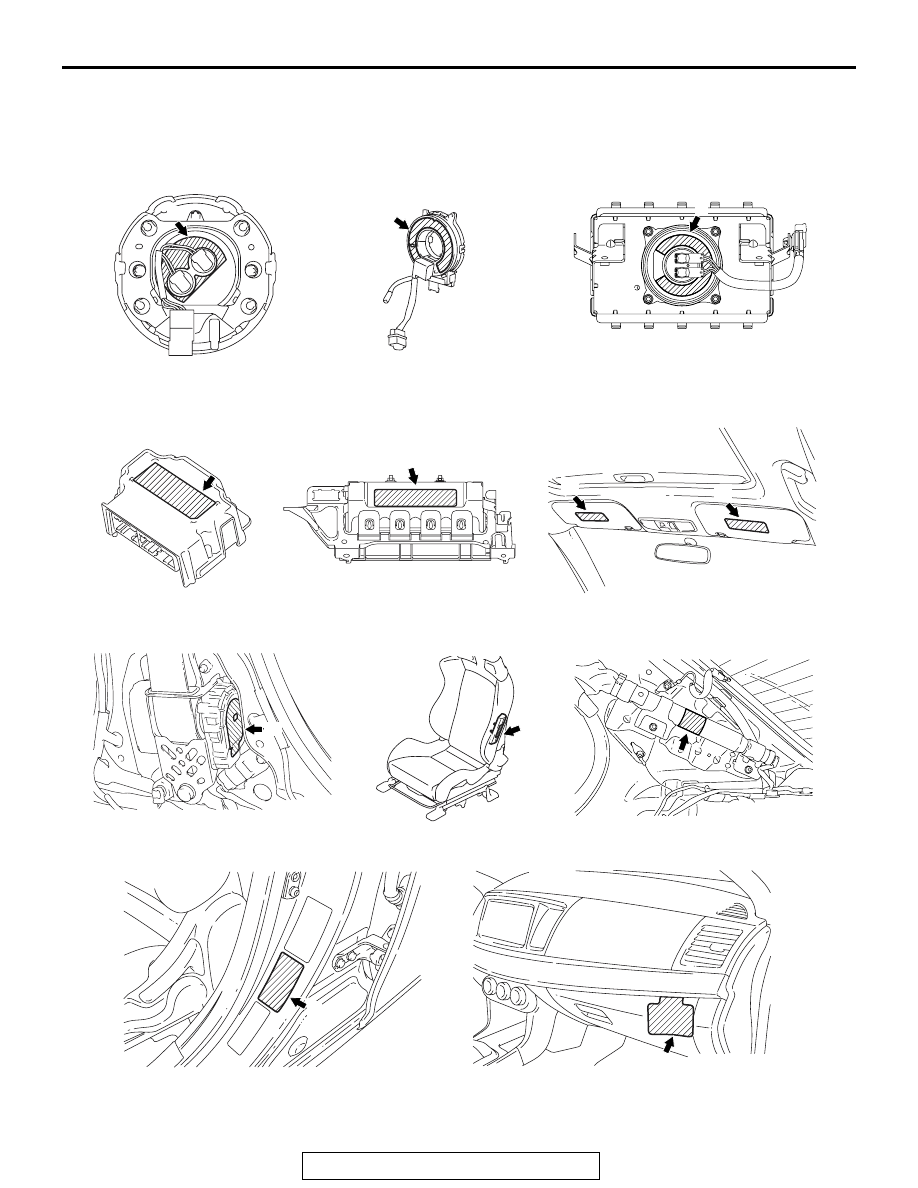

CAUTION LABELS

The labels indicating the precautions for handling and maintenance of SRS air bags and seat belt with
pre-tensioner are adhered to the locations shown in the above figures.

AC708203

AC506231

AC608562

AC608596

AC608655

AC608593

AC608592

AC608953

AC611162

AC706054

AC705080

Driver's air bag module

Clock spring

Sunvisor

Seat belt with pre-tensioner
(right and left)

D

B

SRS-ECU

Passenger's (front)
air bag module

A

E

F

I

Curtain air bag module
(right and left)

H

J

K

Glove box

AB

Knee air bag module

F

G

Side-airbag module
(right and left)

Center pillar (right and left)

C

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-8

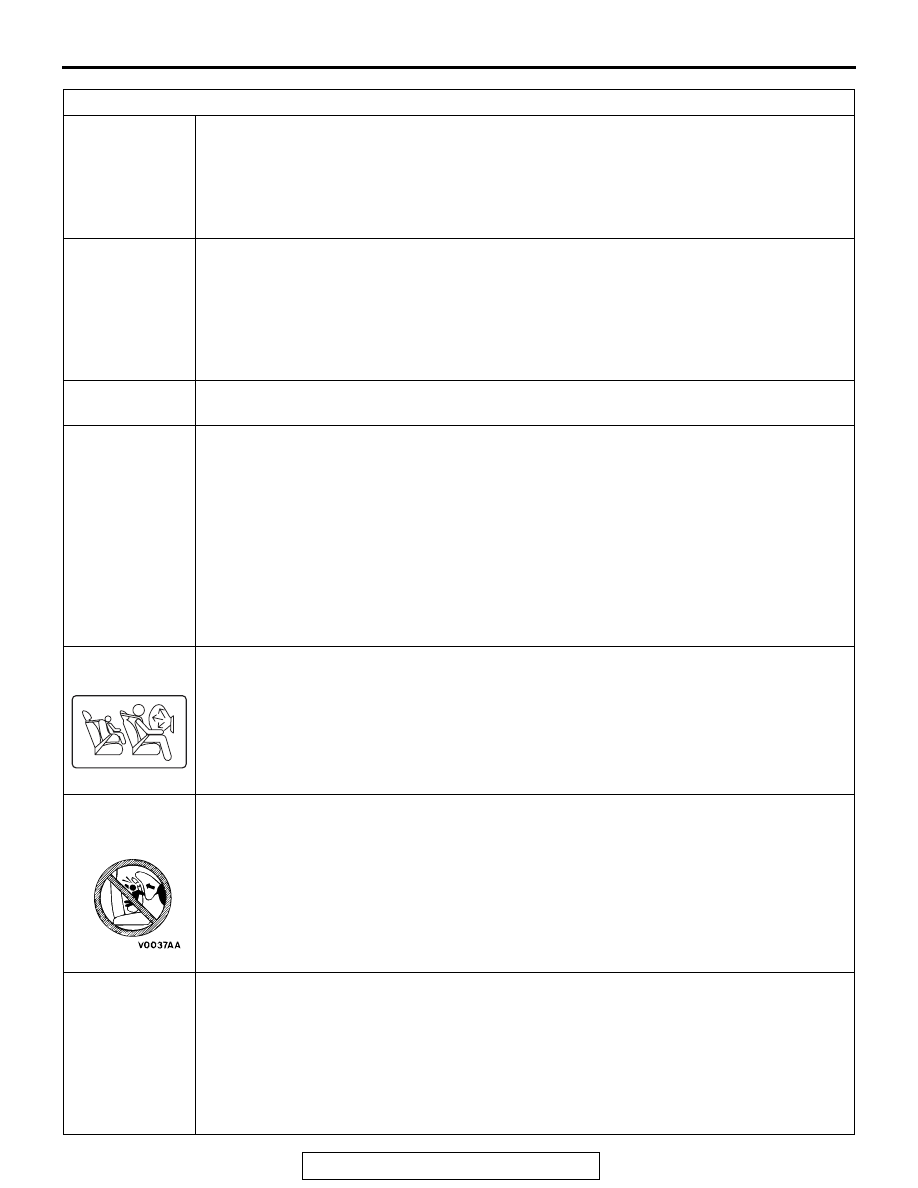

Label content
A, C

DANGER
FLAMMABLE EXPLOSIVE
DO NOT:
DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY; OR STORE AT HIGH
TEMPERATURE (93

°C OR HIGHER).

REFER TO WORKSHOP MANUAL FOR DETAILS.

B

CAUTION: SRS CLOCK SPRING
PLEASE DO NOT TURN EXCEPT WHEN REQUIRED.
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, PLEASE REPLACE ENTIRE UNIT
ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. ALIGNMENT OF
MODULES IS NECESSARILY WHEN THEY ARE ADJUSTED AND/OR INSTALLED
FOR THE ALIGNMENT PROCEDURES, FOLLOW THE SERVICE MANUAL
INSTRUCTIONS.

D

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECTIVE, REFER TO SERVICE MANUAL.

E

DANGER
FLAMMABLE EXPLOSIVE
SRS AIR BAG MODULE

• Do not disassemble or shock.

• Do not heat or incinerate.

• Do not contact with electricity or tester probes.

• Do not test or diagnose.

• Do not store in more than 200°F (93°C).

• Store the air bag cover is top.

• For information on handing, replacement, and disposal methods, refer to the service

manual.

F <EXCEPT
CANADA>

WARNING
EVEN WITH ADVANCED AIR BAGS

• Children can be killed or seriously injured by the air bag

• The back seat is the safest place for children

• Never put a rear-facing child seat in the front

• Always use seat belts and child restraints

• See owner’s manual for more information about air bags

F
<CANADA>

WARNING
DEATH or SERIOUS INJURY can occur

• Children 12 and under can be killed by the air bag.

• The BACK SEAT is the SAFEST place for children.

• NEVER put a rear-facing child seat in the front.

• Sit as far back as possible from the air bag.

• ALWAYS use SEAT BELTS and CHILD RESTRAINTS.

G

SEAT BELT PRETENSIONER CAUTION
THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR.
DANGER FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY

• DO NOT REMOVE. INSTALL IT INTO ANOTHER VEHICLE.

• SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.

• DO NOT DISMANTLE INCINERATE OR BRING INTO CONTACT WITH

ELECTRICITY.

AC306673

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-9

H

WARNING
SRS AIR BAG MODULE FLAMMABLE/EXPLOSIVE
TO AVOID SERIOUS INJURY:

• DO NOT REPAIR, DISASSEMBLE OR TAMPER.

• AVOID CONTACT WITH FLAME OR ELECTRICITY.

• DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.

• STORE BELOW 200°F (93°C).

• BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL

FOR IMPORTANT FURTHER DATA.

I

DANGER CONTAINS HIGH-PRESSURE GAS AND FLAMMABLE MATERIAL
To avoid injury, NEVER; [Repair, Disassembly, Incinerate, Bring into contact with
electricity, Install onto another vehicle or Store where the temperature is above 93

°C

(200

°F)] -See Repair Manual for details.-

J

SRS SIDE AIRBAG
WARNING
TO AVOID SERIOUS
INJURY OR DEATH:

• Do not lean against the door.

• Do not use seat covers.

See owner’s manual for more information

K <EXCEPT
CANADA>

This Vehicle is Equipped with Advanced Air Bags
Even with Advanced Air Bags
Children can be killed or seriously injured by the air bag.
The back seat is the safest place for children.
Never put a rear-facing child seat in the front.
Always use seat belts and child restraints.
See owner’s manual for more information about air bags.
Not to be removed except by owner.

K <CANADA>

WARNING
MISE EN GARDE
Children Can Be KILLED or INJURED by Passenger Air Bag
The back seat is the safest place for children 12 and under.
Make sure all children use seat belts or child seats.
Not to be removed except by owner.

Label content

SYSTEM OPERATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-10

SYSTEM OPERATION

ADVANCED AIR BAG AND SEAT BELT WITH PRE-TENSIONER

M2521000700435

• In case of a frontal collision, when the front

impact sensor inside the engine room and the
G-sensor inside SRS-ECU simultaneously detect
an impact that exceeds a certain threshold
(turned ON), SRS-ECU energizes the driver's
and passenger's (front) air bag modules (squibs),
knee air bag module (squib) and driver's and pas-
senger's seat belt pre-tensioners (squibs), thus
deploying the air bags and triggering the seat belt
pre-tensioners. Also, the advanced air bag has
been adopted to optimize the air bag deployment
control by adjusting the inflation pressure.

• The seat slide sensor to detect the driver's seat

position judges the deployment in two stages,
and deploys the driver's air bag.

• The occupant classification-ECU has been added

to recognize the passenger's seat occupant. The
occupant classification-ECU identifies the occu-
pant class based on the signals from weight sen-
sors, and sends the signal to SRS-ECU.

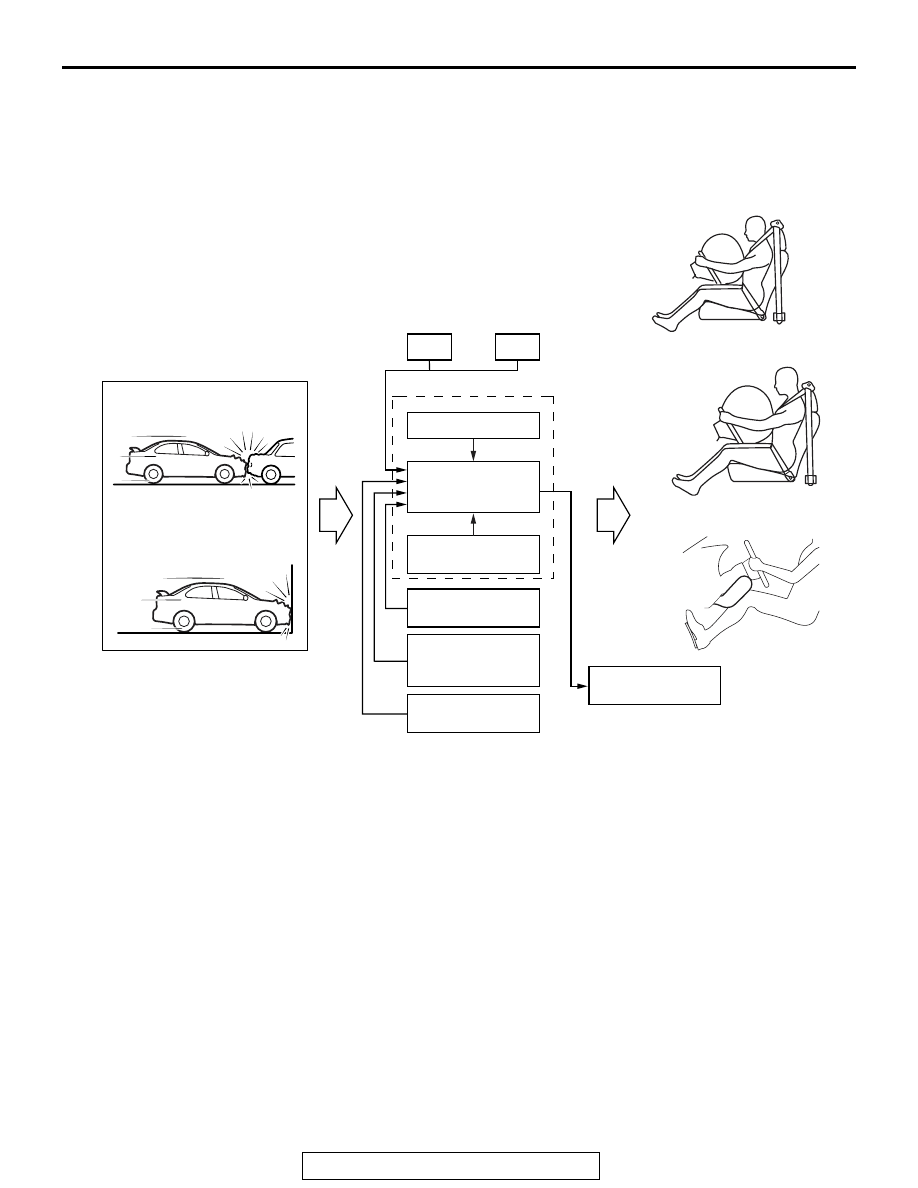

AC709101

G-sensor
(Front air bag)

Shock
above a
certain
level

Ignition signal

Frontal collision against
another vehicle

or
Frontal collision against a
solid surface

Front impact
sensor (LH)

Front impact
sensor (RH)

Ignition judgment

SRS-ECU

Dual stage air bags

<Only 1st stage>

<1st and 2nd stage>

Knee air bag
<driver's seat>

Seat belt switch

Air bag OFF
indicator light

Occupant
classification-ECU

AB

Seat slide sensor

Analog G-sensor
