Mitsubishi Evolution X. Manual - part 1260





AC605670AG

M

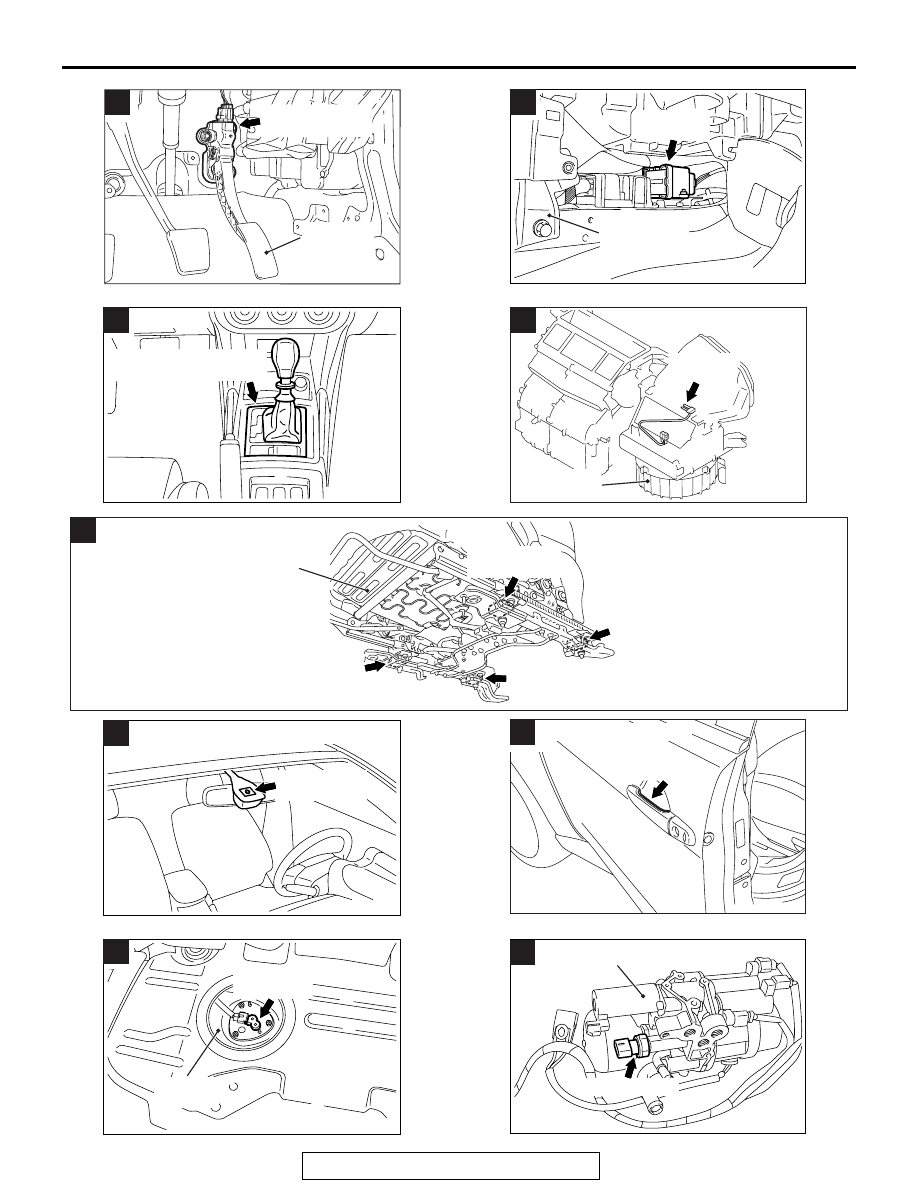

Accelerator pedal
position sensor

Accelerator
pedal

AC613534

AK

G and yaw
rate sensor

N

Center
reinforcement
(RH)

AC708725

AC

Shift lever (incorporating
shift lever position sensor)

O

<TC-SST>

AC607381AE

Fin thermo
sensor

P

Blower
assembly

AC709028

Q

AB

Weight sensor
(front: LH)

Weight sensor
(front: RH)

Weight sensor
(rear: RH)

Weight sensor
(rear: LH)

Front
passenger's
seat

AC612170

AE

R

Lighting
control sensor

<Vehicles with automatic light>

AC605683AE

S

Unlock sensor

<Vehicles with KOS>

AC702547

AC

Fuel level
sensor (sub)

T

Fuel tank
assembly

AC705487

AC

Hydraulic unit
assembly

U

Pressure sensor

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-11

AC708731

                 AB

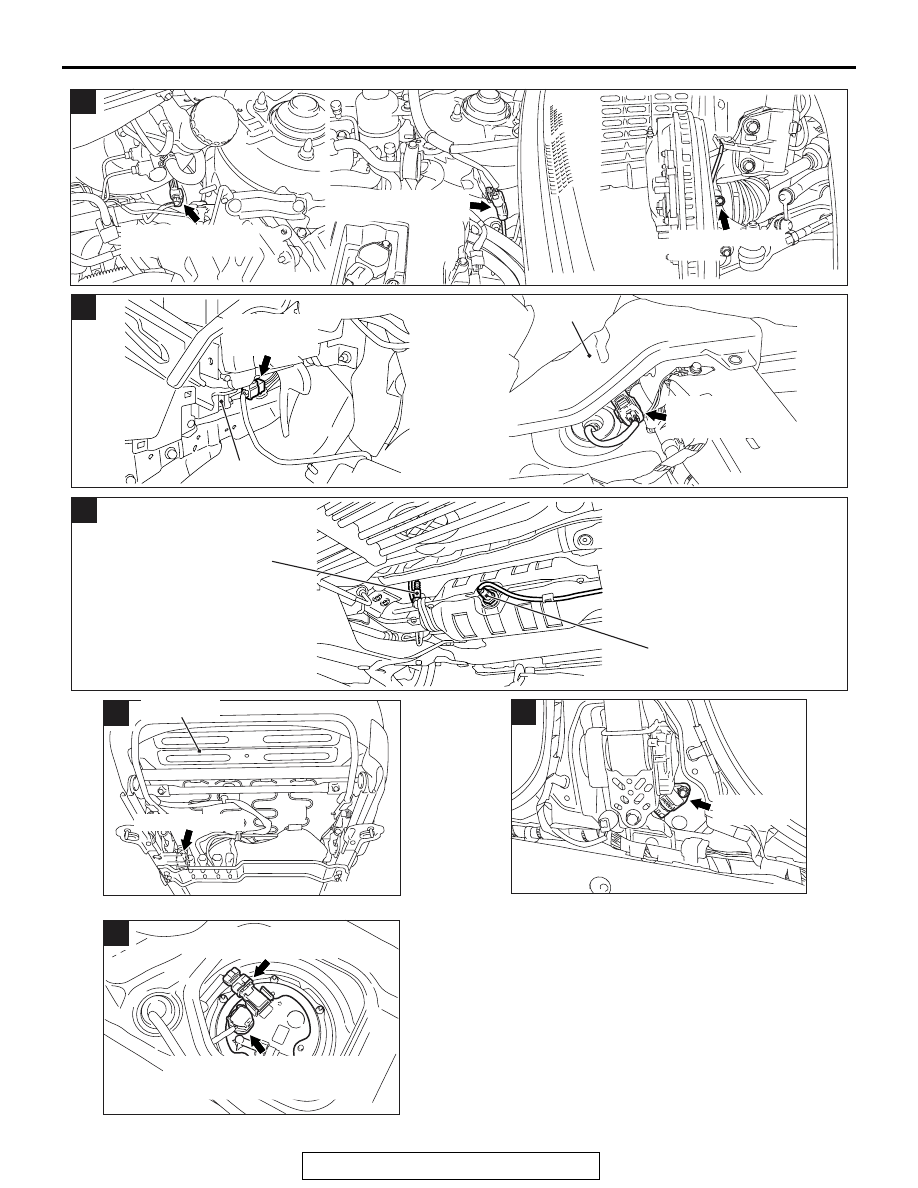

Front wheel speed
sensor (LH) connector

Front wheel speed
sensor (RH) connector

Front wheel speed
sensor

V

AC706040

AC

Heated oxygen
sensor (Front)
connector

Heated oxygen
sensor (Rear)
connector

W

SRS-ECU

Rear heater
duct

AC705477

AC

Heated oxygen
sensor (Front)

Heated oxygen
sensor (Rear)

W

AC709129AB

Driver's seat

Seat slide sensor

X

AC605684AN

Side impact
sensor

Y

AC605685AC

Fuel tank differential
pressure sensor

Fuel pump module (incorporating
fuel level sensor (main) and
fuel tank temperature sensor)

Z

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-12

AC706041AC

Rear wheel speed
sensor (LH) connector

Rear seat
belt (LH)

Rear wheel speed
sensor (RH) connector

a

Battery

Rear wheel
speed sensor

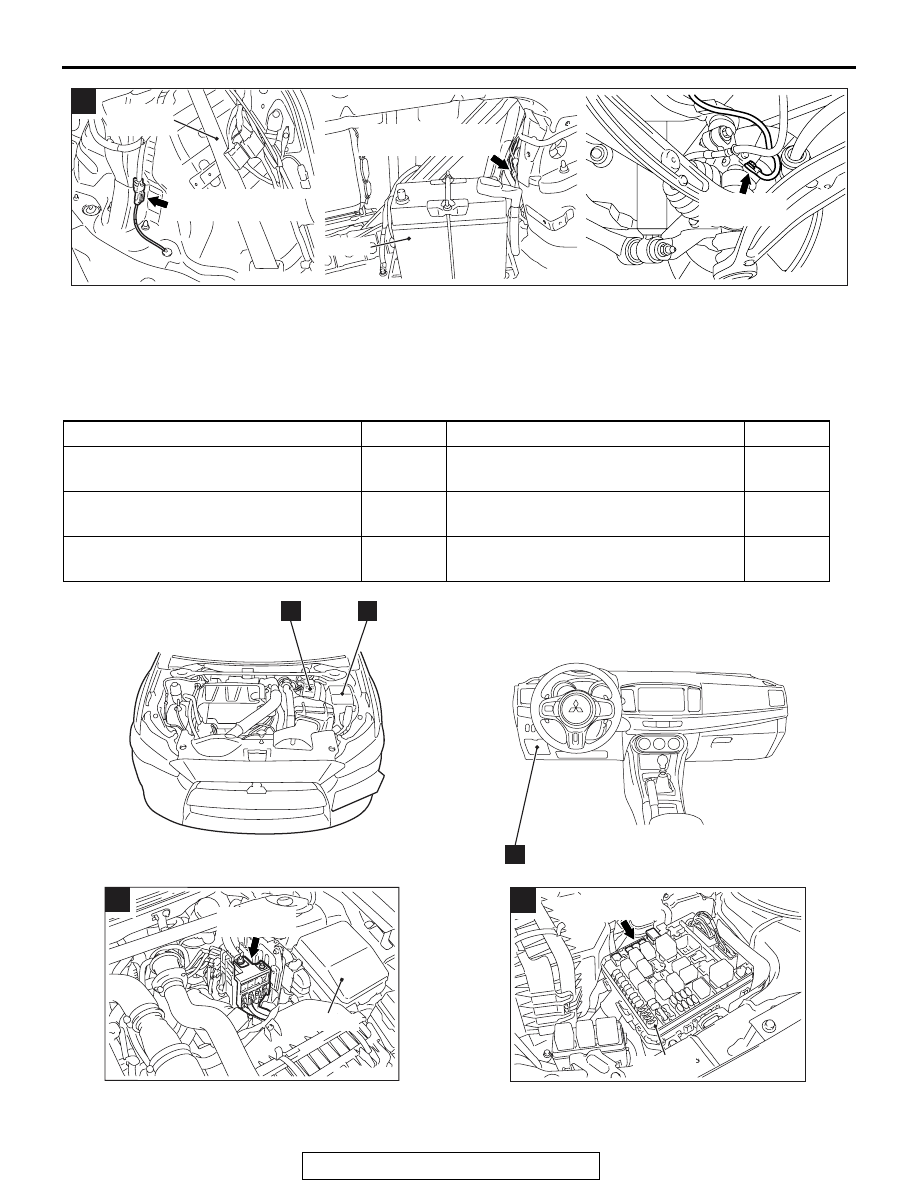

FUSIBLE LINK, FUSE AND IOD OR STORAGE CONNECTOR

TSB Revision

COMPONENT LOCATIONS

70-13

FUSIBLE LINK, FUSE AND IOD OR STORAGE

CONNECTOR

M1701000101189

Name

Symbol

Name

Symbol

Fuse Nos.1 to 23 and 30 to 32 (Relay
box in engine compartment)

B

Fusible link Nos.24 to 29 (Relay box in
engine compartment)

B

Fuse Nos.2 to 19 and and 22 to 25
(Passenger compartment)

C

Fusible link Nos.33 to 37 (Engine
compartment)

A

Fusible link Nos.1, 20 and 21
(Passenger compartment)

C

IOD or storage connector

B

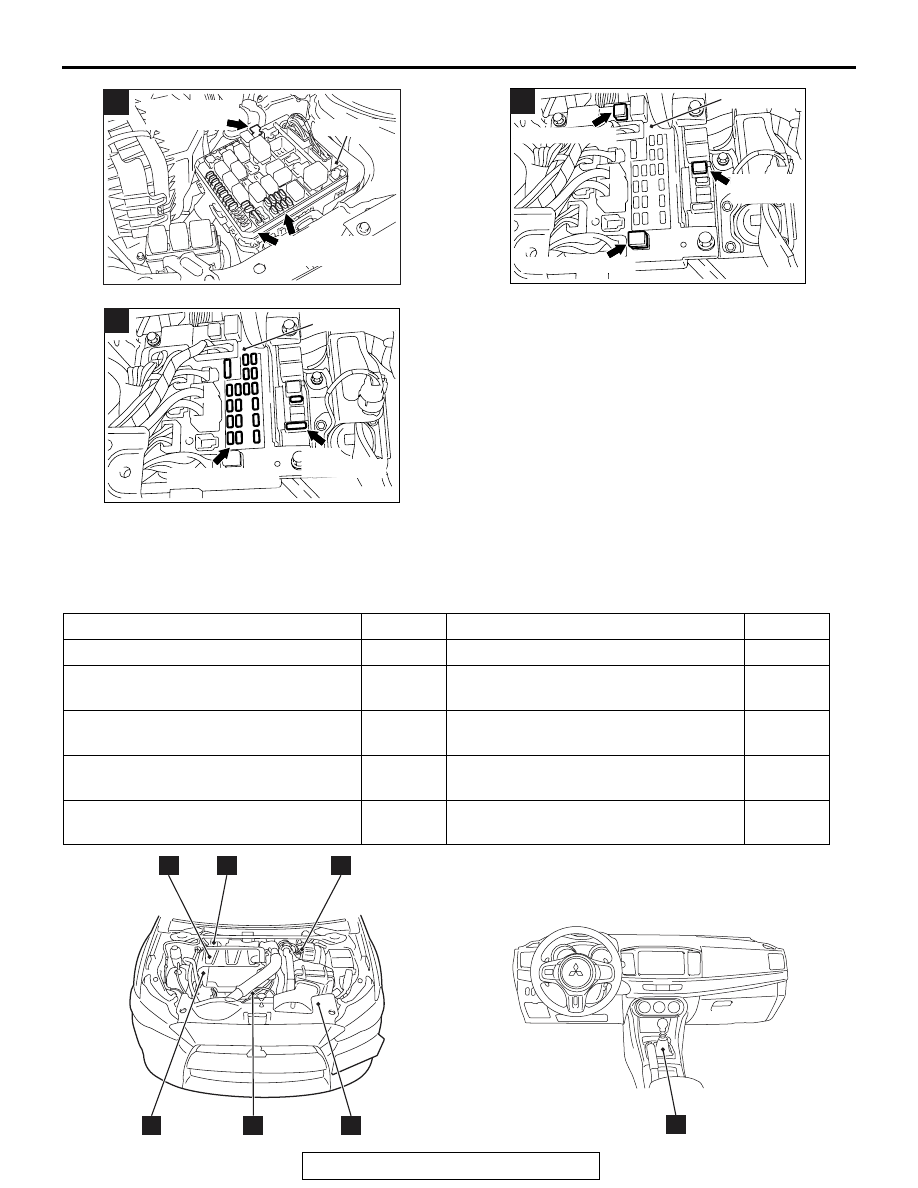

AC708720AF

A

B

C

AC708723AB

A

Fusible link
Nos.33 to 37

Relay box

AC705491AC

B

Fusible link
Nos.24 to 29

Relay box

AC708732AB

B

IOD or storage
connector

Relay box

Fuse Nos1 to 23,
and 30 to 32

AC605695

AE

Fusible link
No.21

Fusible link No.1

Fusible link No.20

C

ETACS-ECU

AC605696

ETACS-ECU

AB

Fuse Nos.2 to 19

Fuse
Nos.22 to 25

C

SOLENOID AND SOLENOID VALVE

TSB Revision

COMPONENT LOCATIONS

70-14

SOLENOID AND SOLENOID VALVE

M1701000801360

Name

Symbol

Name

Symbol

Evaporative emission purge solenoid

E

Intake oil feeder control valve

D

Evaporative emission ventilation
solenoid

I

Shift lever (incorporating shift lock
solenoid valve) <TC-SST>

G

Exhaust oil feeder control valve

A

Transaxle assembly (incorporating
solenoid valve) <TC-SST>

F

Hydraulic unit (incorporating ABS
solenoid valve)

B

Turbocharger wastegate solenoid 1

C

Hydraulic unit assembly (incorporating
direction valve and proportioning valve)

H

Turbocharger wastegate solenoid 2

C

AC708720AE

E

F

D

G

C

A

B
