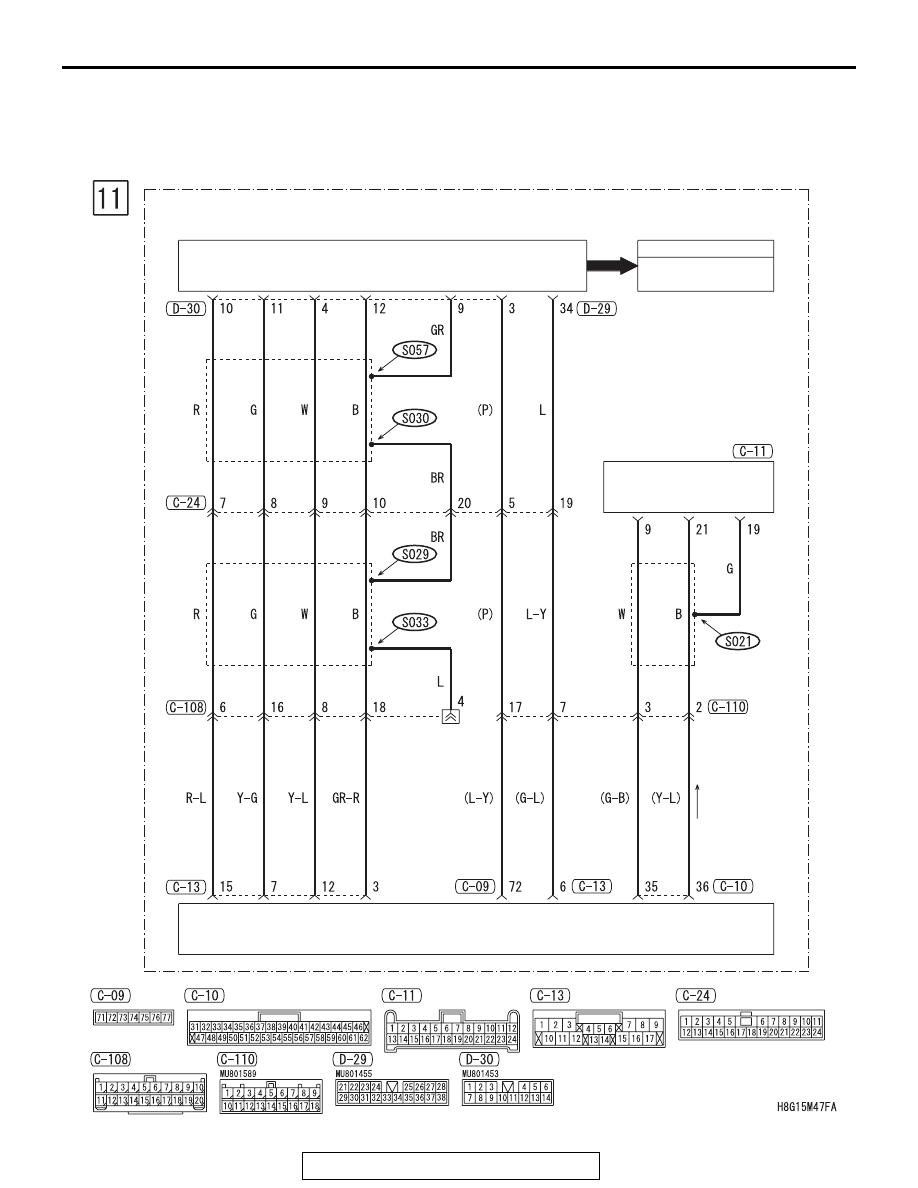

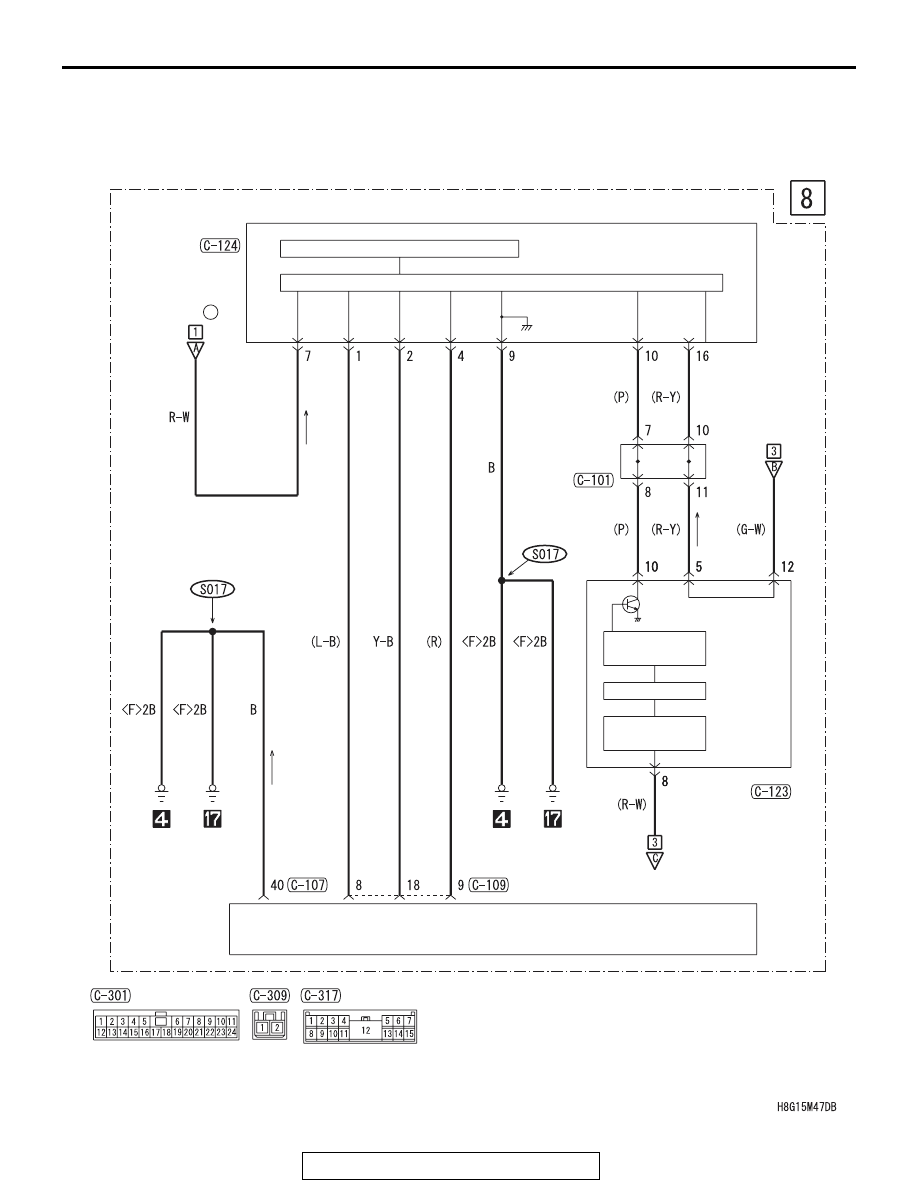

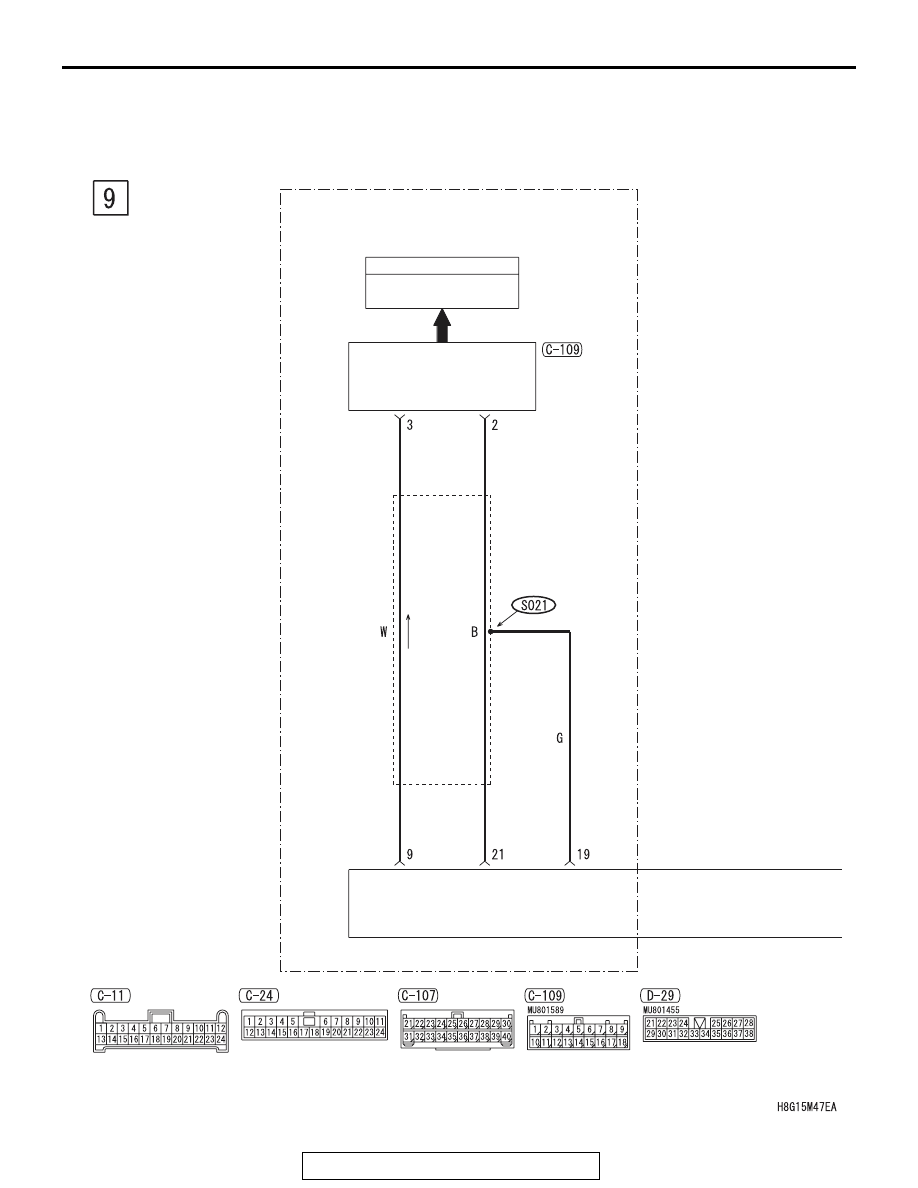

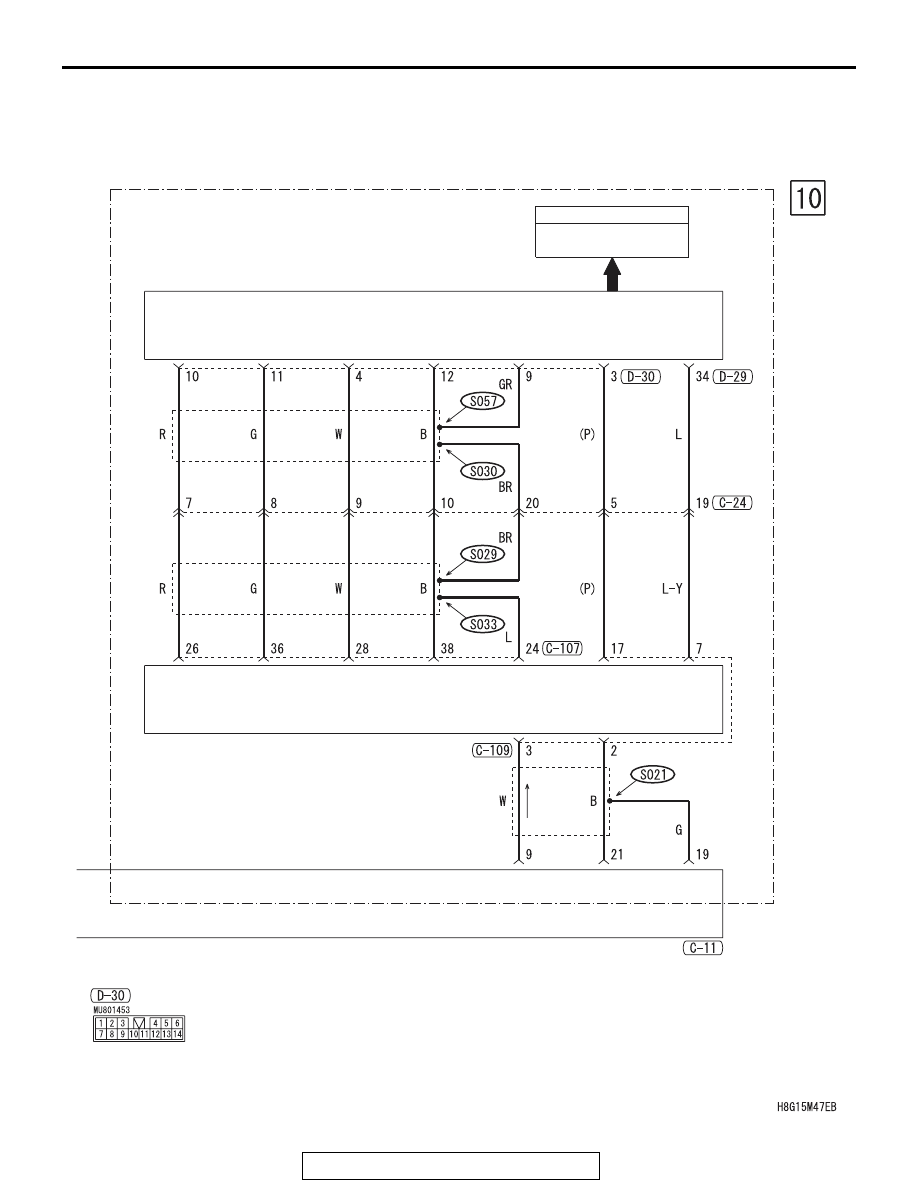

HANDS FREE SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-325

CENTER PANEL
UNIT

COMBINATION
METER

A/C CONTROL
PANEL

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

LCD PANEL (AUDIO, CLOCK)

AUDIO SWITCH PANEL

RADIO AND CD PLAYER

<VEHICLES WITHOUT MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)>

(FUSE     )

7

ETACS-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

JOINT
CONNECTOR
(1)

CPU

HANDS FREE SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-326

HANDS FREE SYSTEM (CONTINUED)

SPEAKER

OUTPUT SIGNAL

RADIO AND CD PLAYER

<VEHICLES WITHOUT MITSUBISHI
 MULTI-COMMUNICATION SYSTEM
 (MMCS) AND AUDIO AMPLIFIER>

HANDS FREE SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-327

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

SPEAKER

OUTPUT SIGNAL

AUDIO AMPLIFIER

RADIO AND CD PLAYER

<VEHICLES WITHOUT MITSUBISHI MULTI-COMMUNICATION
 SYSTEM (MMCS) WITH AUDIO AMPLIFIER>

HANDS FREE MODULE

HANDS FREE SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-328

HANDS FREE SYSTEM (CONTINUED)

SPEAKER

OUTPUT SIGNAL

AUDIO AMPLIFIER

MULTIVISION DISPLAY

HANDS FREE-ECU

<VEHICLES WITH MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)>
