Mitsubishi Evolution X. Manual - part 1217

WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-205

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

ASC-ECU

REMOTE CONTROLLED MIRROR

TSB Revision

CIRCUIT DIAGRAMS

90-206

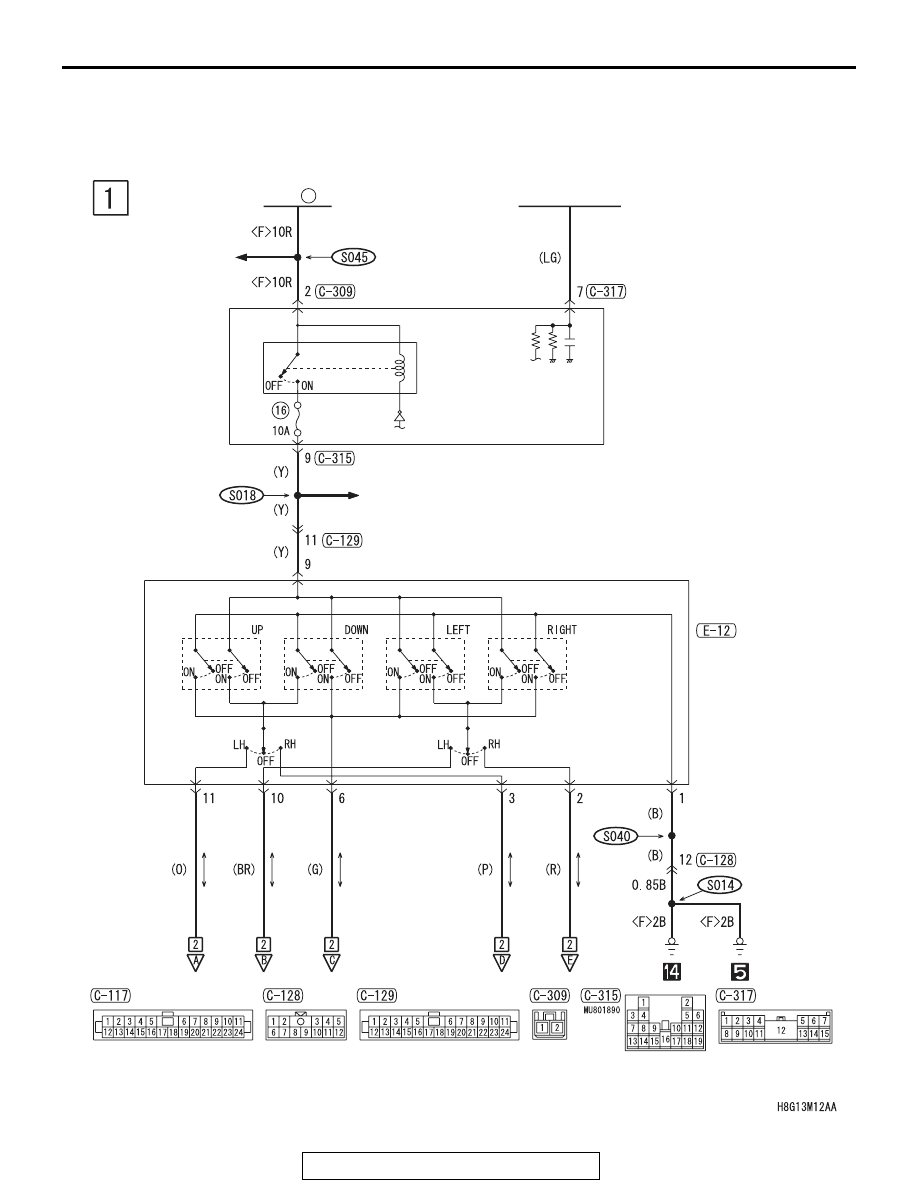

REMOTE CONTROLLED MIRROR

M1901006502416

FUSIBLE
LINK

37

REMOTE
CONTROLLED
MIRROR SWITCH

ACC
RELAY 2

IGNITION
SWITCH (ACC)

ETACS-
ECU

·AUDIO SYSTEM
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·TC-SST

REAR
WINDOW
DEFOGGER

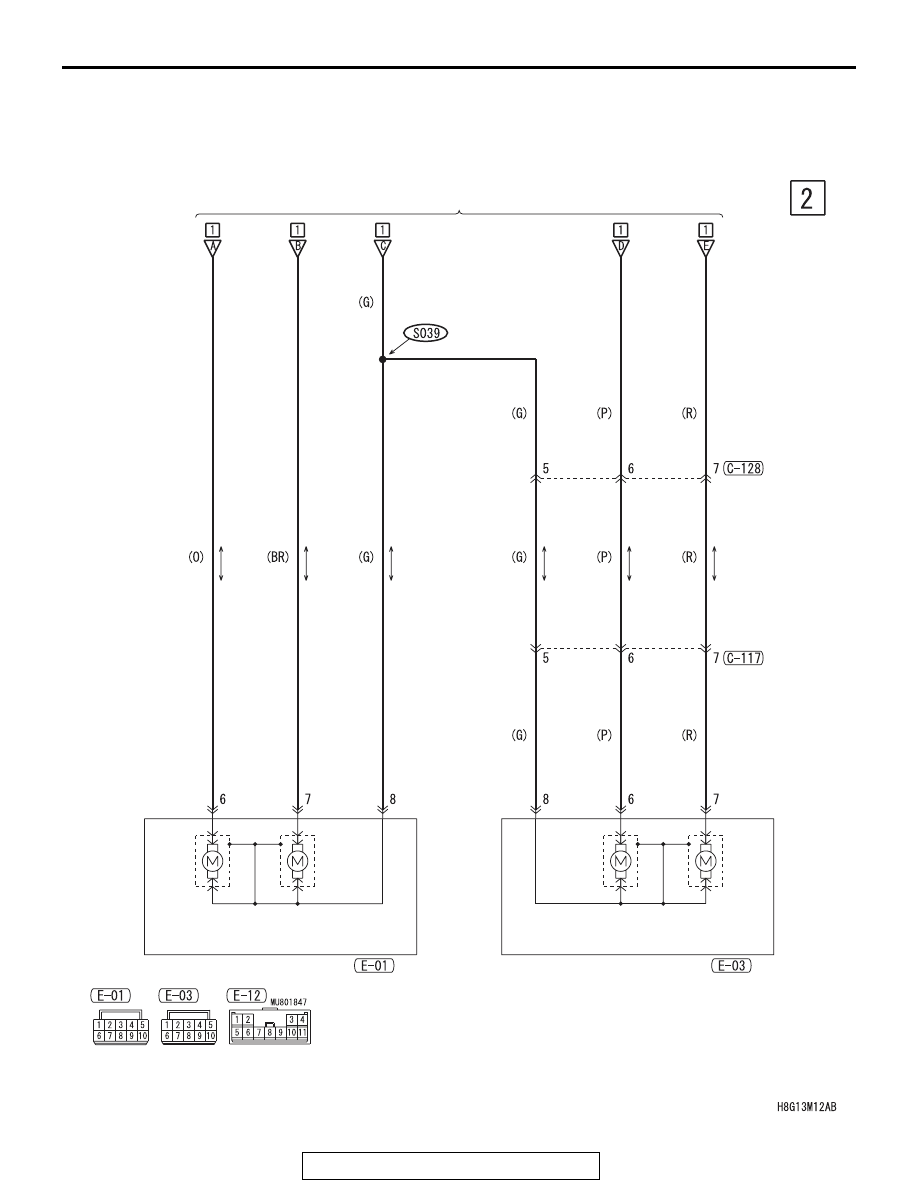

REMOTE CONTROLLED MIRROR

TSB Revision

CIRCUIT DIAGRAMS

90-207

DOOR MIRROR ASSEMBLY (LH)

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

DOOR MIRROR ASSEMBLY (RH)

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

REMOTE CONTROLLED
MIRROR SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

REAR WINDOW DEFOGGER

TSB Revision

CIRCUIT DIAGRAMS

90-208

REAR WINDOW DEFOGGER

M1901006401922

IGNITION
SWITCH (IG1)

IG1
RELAY

ETACS-ECU

REAR WINDOW
DEFOGGER
RELAY

INTERFACE
CIRCUIT

REAR
WINDOW
DEFOGGER
SWITCH

INTERFACE
CIRCUIT

POWER
SOURCE

CPU

REAR WINDOW
DEFOGGER

A/C
CONTROL
PANEL

RELAY BOX

PASSENGER
COMPARTMENT

FUSIBLE
LINK

34

FUSIBLE
LINK

37

JOINT
CONNECTOR
(2)

HEATED
SEAT

REAR
WINDOW
DEFOGGER
