DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT

TSB Revision

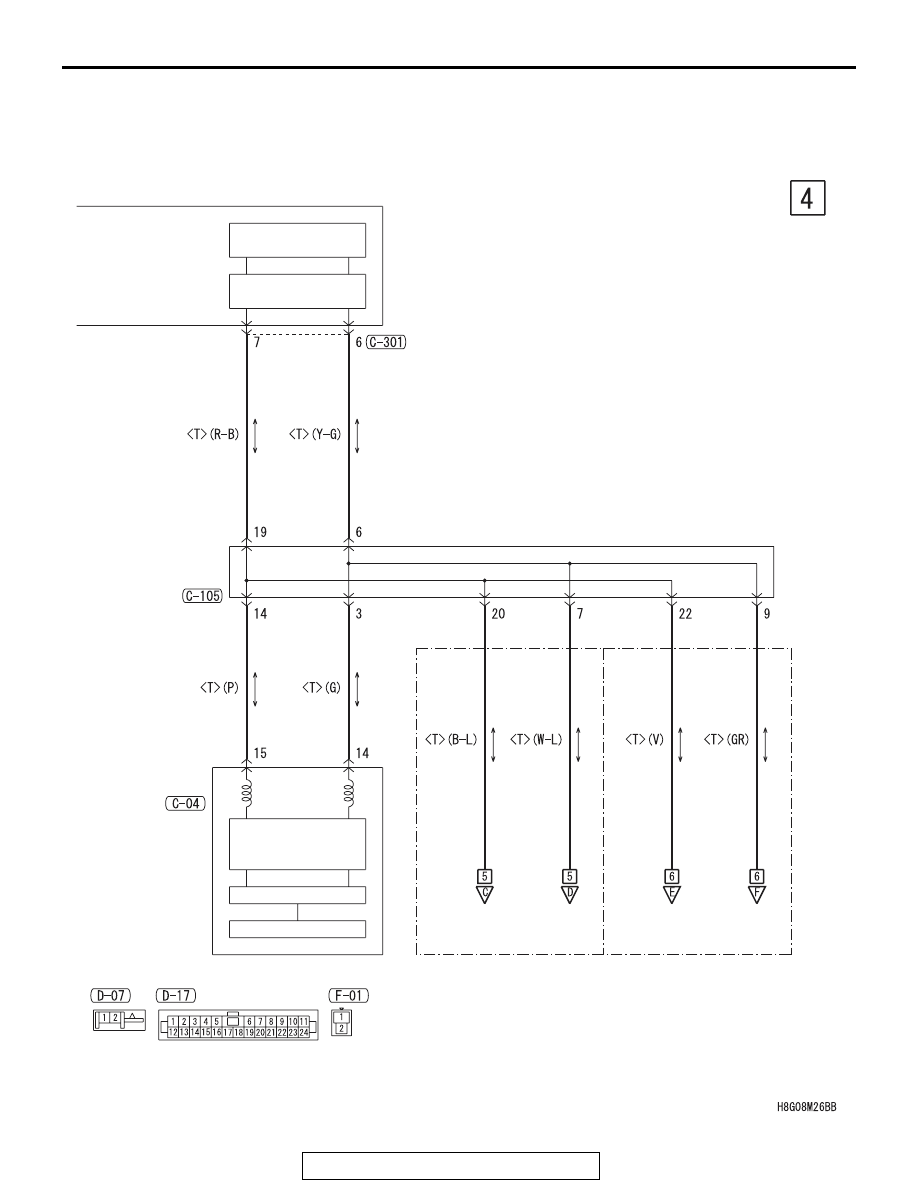

CIRCUIT DIAGRAMS

90-125

COMBINATION
METER

CPU

CAN
TRANSCEIVER
CIRCUIT

JOINT
CONNECTOR
(CAN1)

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

LCD (EACH DOOR)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

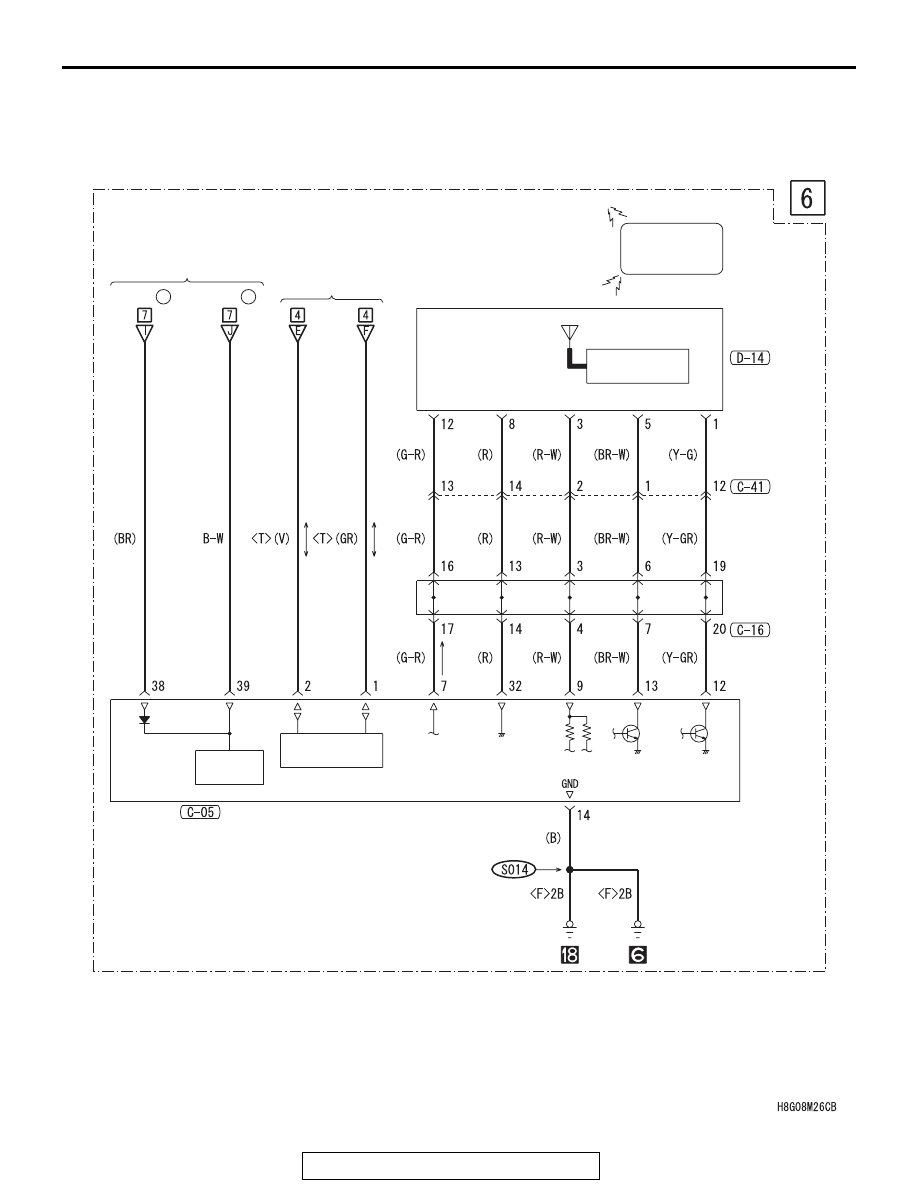

<VEHICLES WITHOUT KOS>

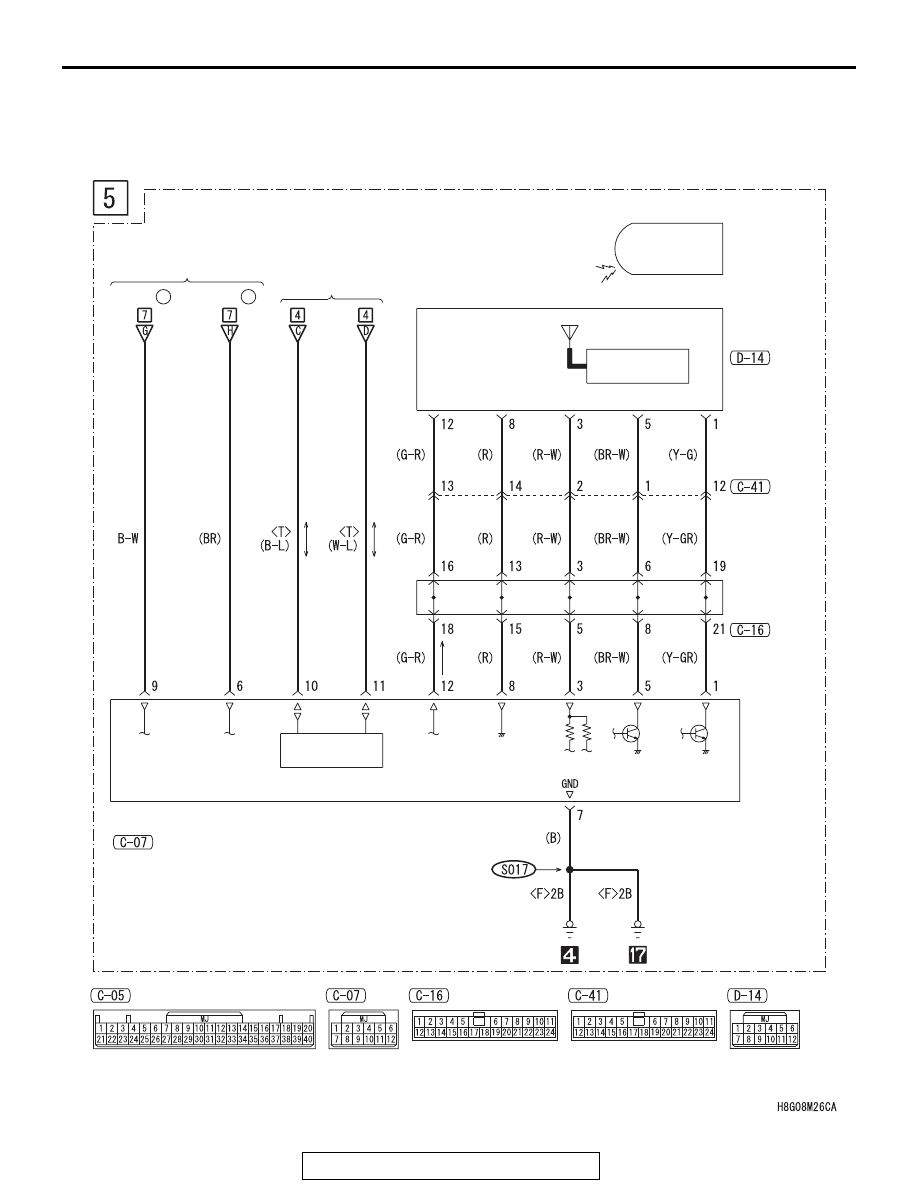

<VEHICLES WITH KOS>

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-126

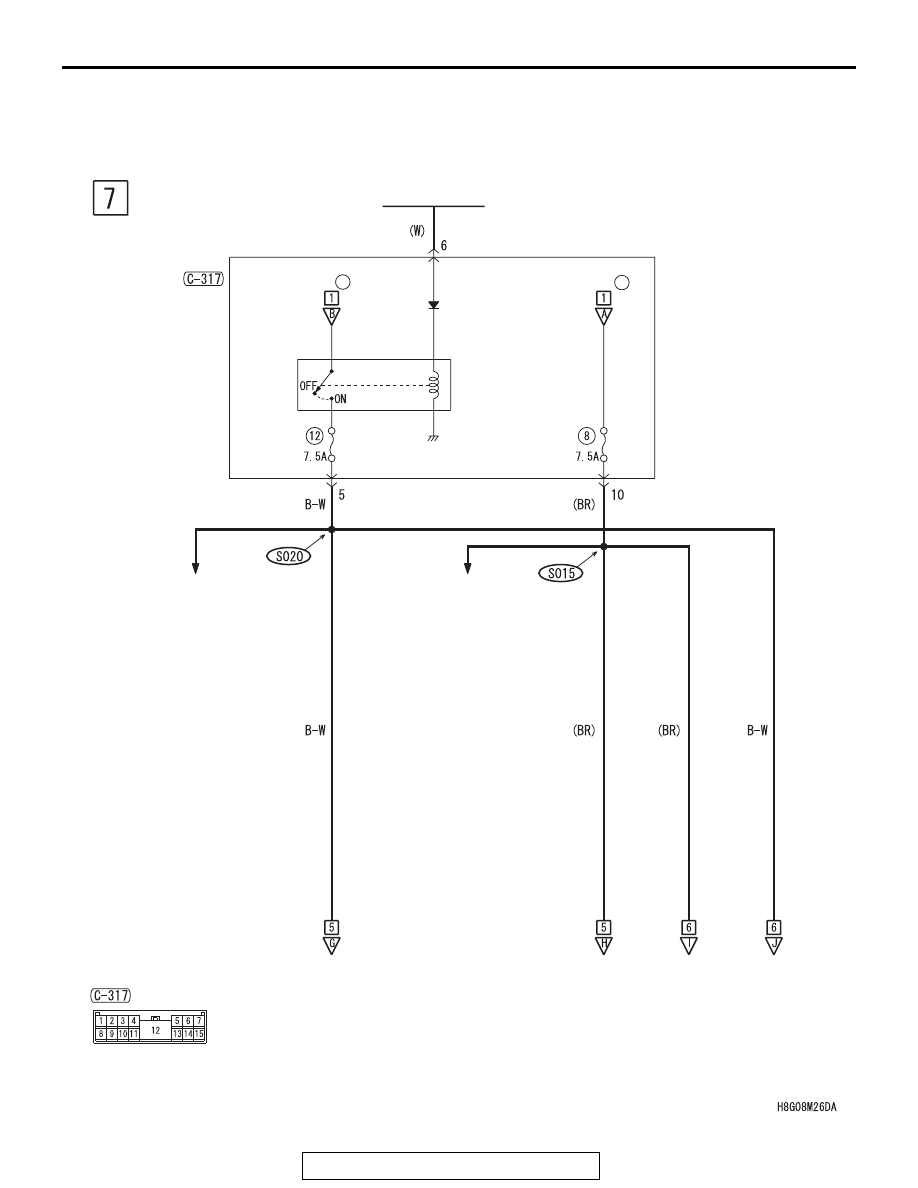

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT
(CONTINUED)

<VEHICLES WITHOUT KOS>

JOINT
CONNECTOR
(6)

RECEIVER

KEYLESS
ENTRY
TRANSMITTER

WIRELESS CONTROL
MODULE

CAN DRIVE
CIRCUIT

JOINT
CONNECTOR
(CAN1)

(FUSE     )

12

(FUSE     )

8

ETACS-ECU

RECEIVER
ANTENNA
ASSEMBLY

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-127

<VEHICLES WITH KOS>

JOINT
CONNECTOR
(6)

RECEIVER

KEYLESS
OPERATION
KEY

KOS-ECU

CAN DRIVE
CIRCUIT

JOINT
CONNECTOR
(CAN1)

(FUSE     )

8

(FUSE     )

12

ETACS-ECU

RECEIVER
ANTENNA
ASSEMBLY

POWER
SUPPLY

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-128

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT
(CONTINUED)

IGNITION
SWITCH (IG1)

ETACS-ECU

FUSIBLE
LINK

34

IG1
RELAY

(FUSE     )

30

RELAY BOX

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER
