Mitsubishi Evolution X. Manual - part 117

13B-1

GROUP 13B

FUEL SUPPLY

CONTENTS

GENERAL INFORMATION . . . . . . . .

13B-2

FUEL TANK  . . . . . . . . . . . . . . . . . . . .

13B-3

GENERAL INFORMATION

TSB Revision

FUEL SUPPLY

13B-2

GENERAL INFORMATION

M2134000101074

.

The fuel system consists of the following compo-
nents:

• Fuel rail

• MFI fuel rail pressure regulator

• Fuel injector

• Fuel tank assembly

• Fuel pump module

• Fuel level sensor (sub)

• Evaporative emission canister

SPECIFICATIONS

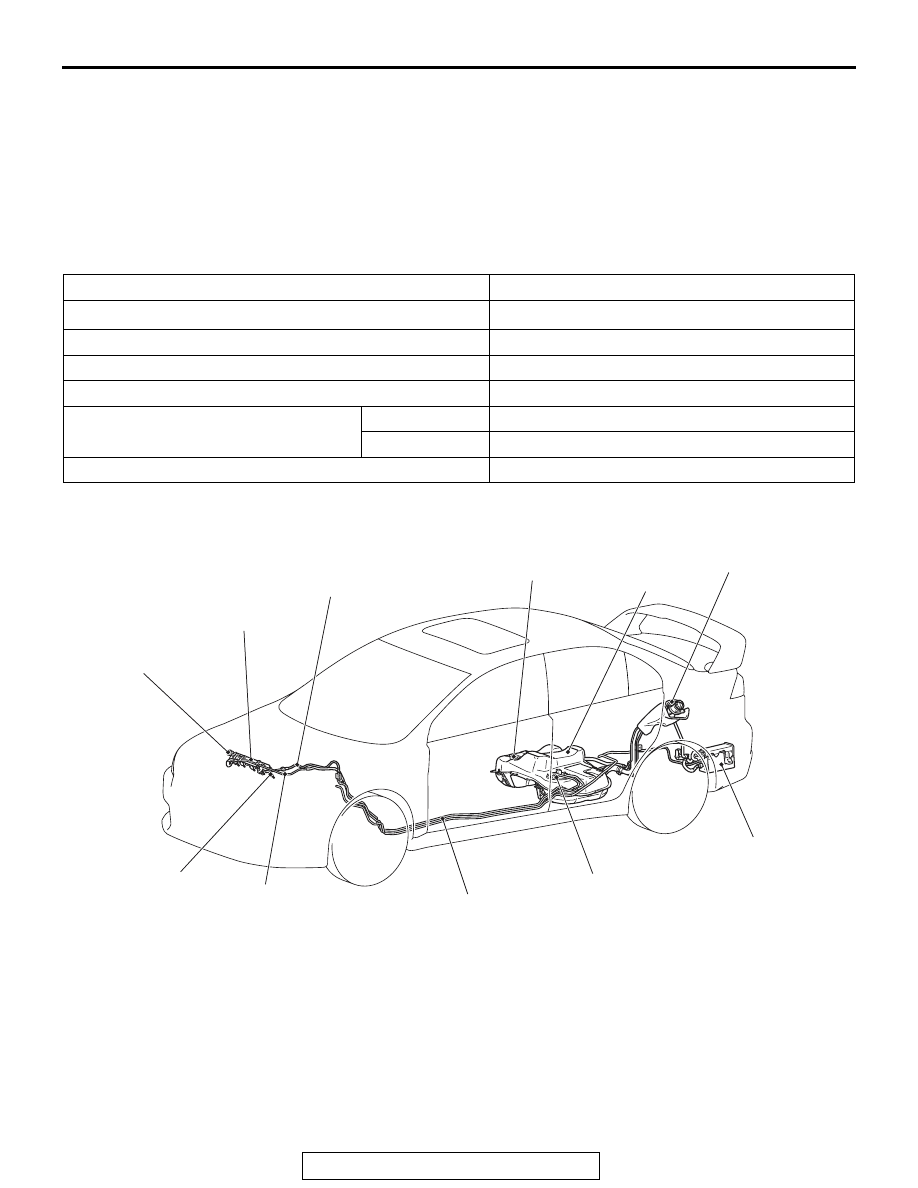

CONSTRUCTION DIAGRAM

This fuel system is designed with consideration for
global environment protection to ensure safety at a
collision, reduce weight, and improve reliability and
quality. The system has the following features.

• A quick-joint connector of a plastic tube is used

for the fuel high-pressure hoses in the engine
compartment to reduce the permeation of fuel
evaporative emission.

• The surface of underfloor fuel pipes is coated

with 1-mm thickness of plastic to improve resis-
tance to corrosion and chipping.

• The rubber boot is employed for the filler port

mounting part of fuel filler neck to protect fuel filler
neck in case of collision.

Item

Specification

Fuel tank capacity dm

3

 (gal)

55 (14.5)

Fuel pump type

Electric

Fuel filter type

Cartridge (incorporates fuel pump module)

Fuel pump pressure regulator pressure kPa (psi)

329 (47.7)

Fuel injector

Type

Elector-magnetic

Quantity

4

Evaporative emission control system

Canister

AC709107

Fuel rail

Fuel injector
return pipe

Fuel pipe

Fuel pump module

Evaporative
emission
canister

Fuel tank

AB

Fuel level sensor (sub)

Fuel high-pressure hose

MFI fuel rail
pressure regulator

Filler neck boots

Fuel injector

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-3

FUEL TANK

M2134001001070

.

The fuel tank assembly consists of the fuel pump
module, fuel level sensor, fuel tank, and others, and
offers the following features.

• The fuel tank is placed under the rear seat floor to

improve the safety upon impact.

• For the fuel tank, pre-coat alloy molten zinc steel

plate is adopted to the tank main body, which
does not contain tin alloy.

• The fuel tank safety valve is integrated in the fuel

tank which prevents fuel leaks when the vehicle
has leaned or rolled over, and a number of open-
ings and pipe joints on the fuel tank upper surface
has been reduced.

• A built-in fuel filter and fuel tank suction hose

have been adopted to offer support to the sad-
dle-type fuel tank.

The fuel pump module consists of the following com-
ponents:

• Fuel pump assembly

• Fuel gauge unit

• Fuel filter

• Fuel tank differential pressure sensor

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-4

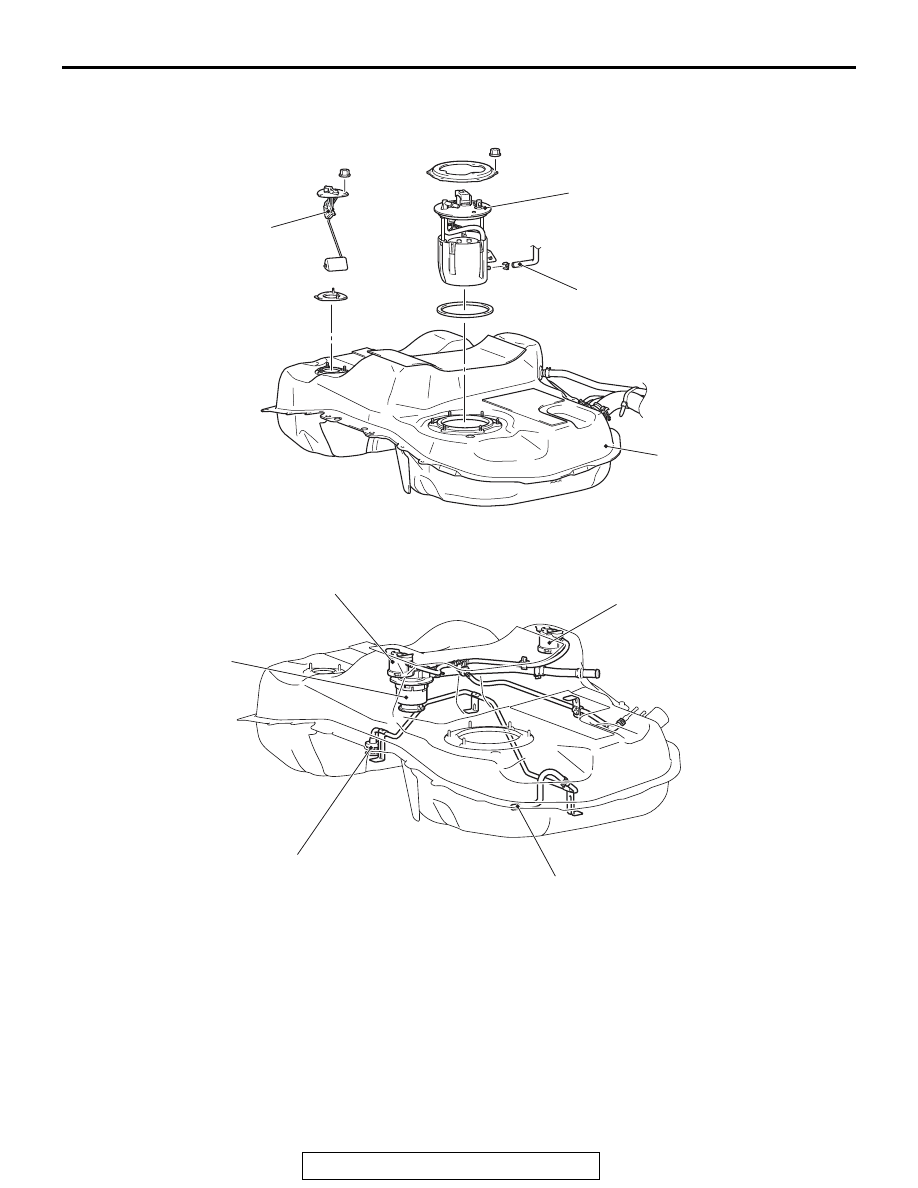

CONSTRUCTION DIAGRAM

AC709133

Fuel level sensor (sub)

Fuel pump module

Fuel tank suction hose

Fuel tank

AB

AC709134

Fuel tank suction hose

Leveling valve

In tank suction filter

AB

Fuel tank safety valve

Fuel tank safety valve
