Mitsubishi Evolution X. Manual - part 1162

AC708216

AC708214

AB

C-07
C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

C-17

C-19

C-18

C-20

C-21

C-22

C-25
C-26

C-28

C-27

C-29

C-30

C-33

C-31
C-32

C-36

C-35

C-34

C-38

C-37

C-24

C-23

Battery (+)
wiring harness

17

4

C-26

(2)

Cigarette lighter

C-27

(16)

Shift lever <TC-SST>

C-28

(9)

Heated seat switch

C-29

(4)

Floor wiring harness and console
wiring harness combination

C-30

(2)

No connection

C-31

(7-B)

Jumper connector <Vehicles without
steering wheel audio remote control
switch>

C-32

(7)

Jumper connector <Vehicles with
steering wheel audio remote control
switch>

C-33

(6)

Instrument panel wiring harness and
console wiring harness combination

C-34

(4-B)

Heated oxygen sensor (Front)

C-35

(10)

Selector lever assembly <TC-SST>

C-36

(32-Y)

SRS-ECU

C-37

(24-Y)

SRS-ECU

C-38

(6-B)

G and yaw rate sensor

C-39

(2-B)

Knee air bag module (squib)

C-40

(16-B)

Data link connector

C-41

(24)

Instrument panel wiring harness and
floor wiring harness combination

C-42

(20)

Instrument panel wiring harness and
floor wiring harness combination

C-43

(24-B)

Joint connector (4)

C-44

(4)

Spare connector

C-45

(6)

Front wiring harness and floor wiring
harness combination

C-46

(26)

S-AWC-ECU

C-47

(22)

Front wiring harness and floor wiring
harness combination

C-48

(4)

Stoplight switch

C-49

(2)

Clutch pedal position switch <M/T>

C-50

(24-B)

Joint connector (7)

C-51

(2)

Clutch interlock switch <M/T>

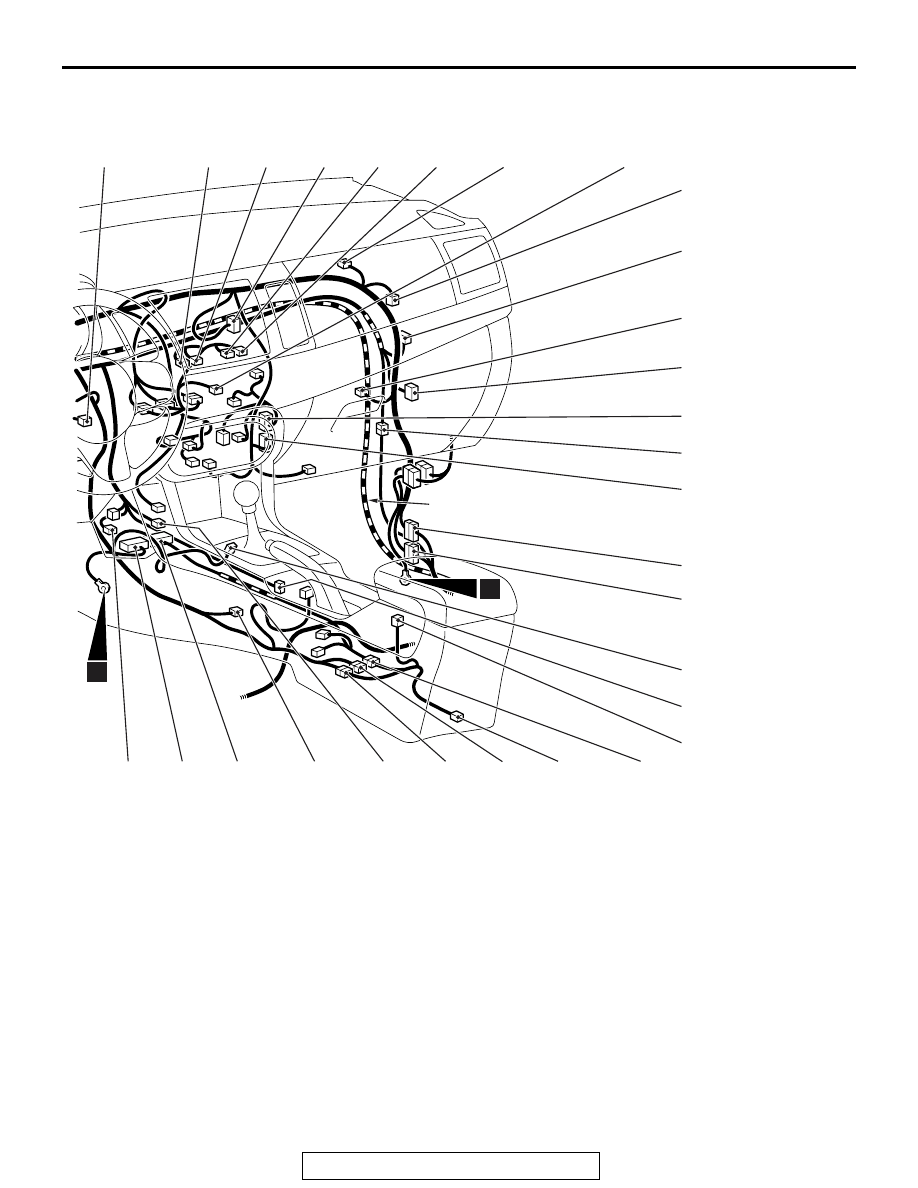

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-11

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-12

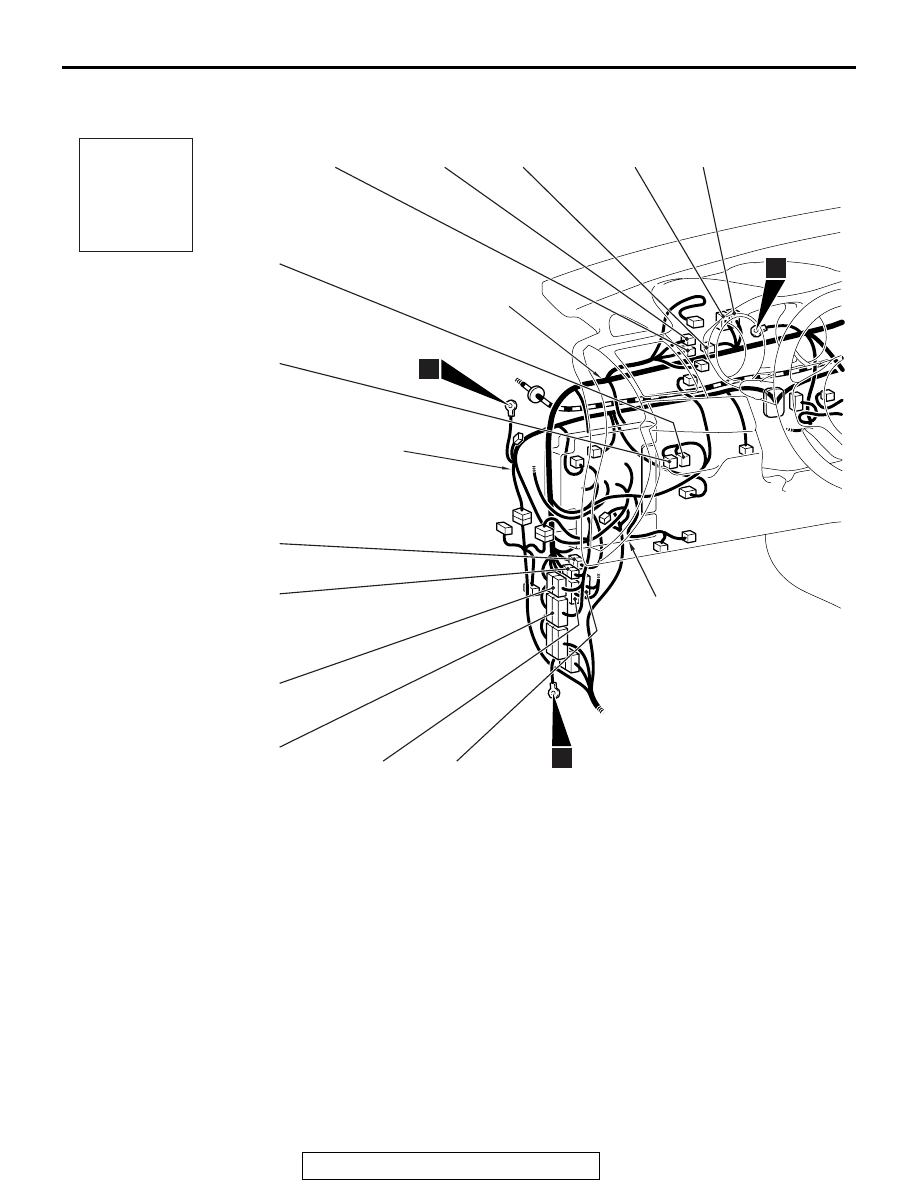

DASH PANEL (CONTINUED)

AC708215

AC708214

AC

ETACS-ECU

C-101

C-102

C-103

C-104

C-105

C-128

C-129

C-130

C-131

C-132

C-133

C-134

C-135

Connector
symbol

-101
thru
-136

C

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

6

Front wiring
harness

Instrument panel
wiring harness

19

18

C-101 (24-B)

Joint connector (1)

C-102 (12-B)

Joint connector (2)

C-103 (24-B)

Joint connector (3)

C-104 (24)

Joint connector (CAN2)

C-105 (24)

Joint connector (CAN1)

C-106 (24)

Instrument panel wiring harness and
multivision display wiring harness
combination <Vehicles with MMCS>

C-107 (20)

Radio and CD player <Vehicles
without MMCS>

C-108 (20)

Instrument panel wiring harness and
multivision display wiring harness
combination <Vehicles with MMCS>

C-109 (18)

Radio and CD player <Vehicles
without MMCS>

C-110 (18)

Instrument panel wiring harness and
multivision display wiring harness
combination <Vehicles with MMCS>

C-111 (5)

Outside/inside air selection damper
control motor

C-112 (5)

Mode selection damper control motor

C-113 (2)

Fin thermo sensor

C-114 (5)

Air mixing damper control motor

C-115 (2)

Blower motor

C-116 (12)

Instrument panel wiring harness and
front door wiring harness (RH)
combination

C-117 (24-BR) Instrument panel wiring harness and

front door wiring harness (RH)
combination

C-118 (2)

Radio antenna

AC708216

AC708214

C-136
C-106

C-107
C-108

AC

4

C-111

C-112

C-113

C-109
C-110

C-114

C-115

C-116

C-117

C-118

C-119

C-120

C-121

C-122

C-123

C-124

C-127

C-125
C-126

17

Battery (+)
wiring harness

C-119 (4)

Power transistor

C-120 (6)

AWC switch <Vehicles with steering
wheel audio remote control switch>

C-121 (3)

Inside transmission antenna assembly
(Front) <Vehicles with KOS>

C-122 (1-B)

Parking brake switch

C-123 (12)

A/C control panel

C-124 (16)

Center panel unit

C-125 (6-B)

Audio adapter <Vehicles without
MMCS>

C-126 (6-B)

Audio and video adapter <Vehicles
with MMCS>

C-127 (24)

Joint connector (CAN3)

C-128 (12)

Instrument panel wiring harness and
front door wiring harness (LH)
combination

C-129 (24-BR) Instrument panel wiring harness and

front door wiring harness (LH)
combination

C-130 (16-BR) Instrument panel wiring harness and

front wiring harness combination

C-131 (22)

Instrument panel wiring harness and
front wiring harness combination

C-132 (2)

Instrument panel wiring harness and
front wiring harness combination

C-133 (12)

Instrument panel wiring harness and
roof wiring harness combination

C-134 (6-GR)

Headlight leveling switch

C-135 (6)

ASC off switch

C-136 (24)

Spare connector (for navigation unit)

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-13

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-14

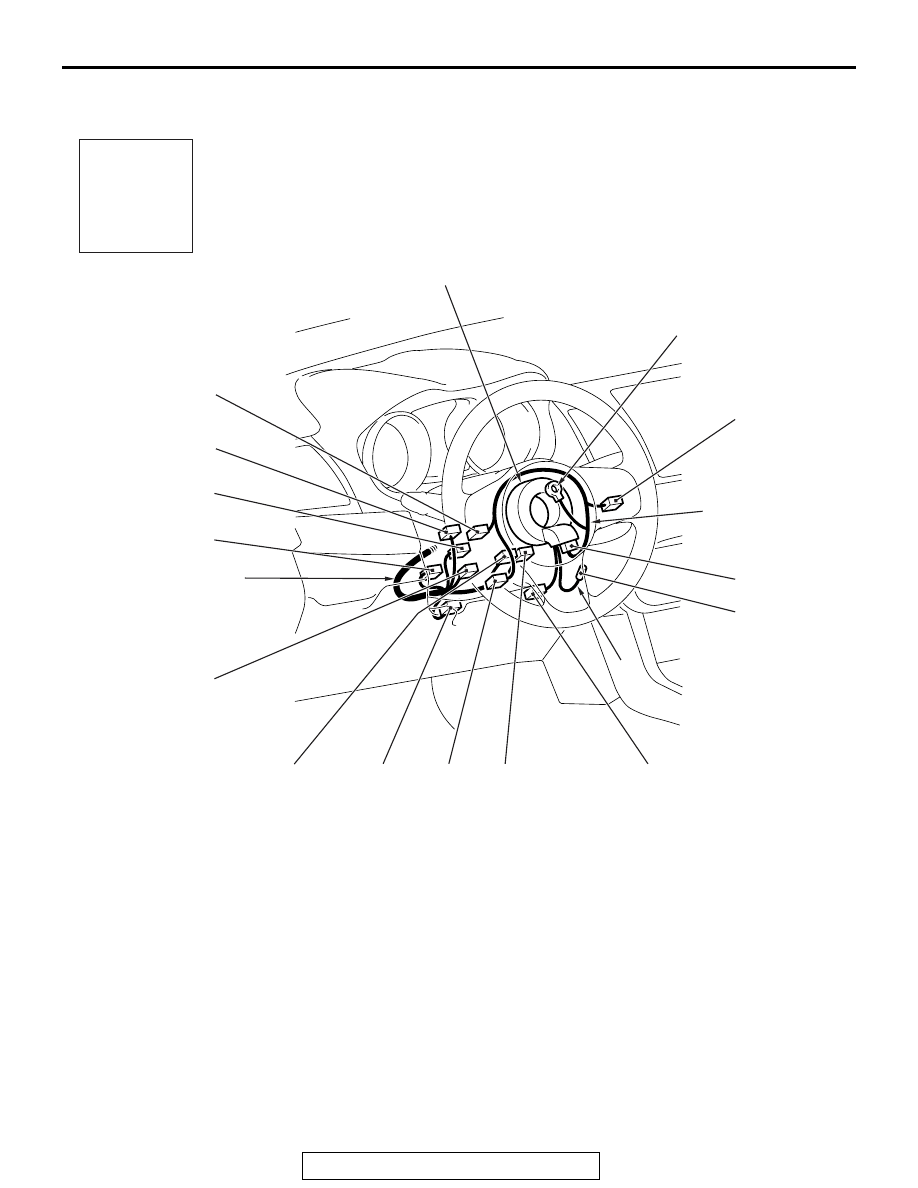

DASH PANEL (CONTINUED)

AC708217

AC704389

AC704964

Connector
symbol

-201
thru
-214

C

Steering column

Steering sub
wiring harness

Steering switch
grounding

Clock spring

Instrument panel
wiring harness

C-201

C-202

C-203

C-204

C-205

C-207

C-206

C-208

C-210

C-211

C-209

C-213
C-214

C-212

AB

Y

C-201 (4-L)

Auto-cruise control switch

C-202 (5)

Clock spring and steering sub wiring
harness combination

C-203 (1)

Horn switch

C-204 (4-Y)

Driver's air bag module (squib)

C-205 (6)

Clock spring

C-206 (4-Y)

Steering wheel voice control switch
<Vehicles with steering wheel audio
remote control switch>

C-207 (3)

Paddle shift switch <TC-SST>

C-208 (4-Y)

Clock spring

C-209 (5)

Steering wheel sensor

C-210 (6)

Ignition switch

C-211 (12)

Key reminder switch

C-212 (10)

Column switch

C-213 (5-R)

Steering wheel audio remote control
switch

C-214 (5-R)

AWC switch <Vehicles without
steering wheel audio remote control
switch>
