Mitsubishi Evolution X. Manual - part 1160





HOW TO READ CONFIGURATION DIAGRAMS

TSB Revision

CONFIGURATION DIAGRAMS

80A-3

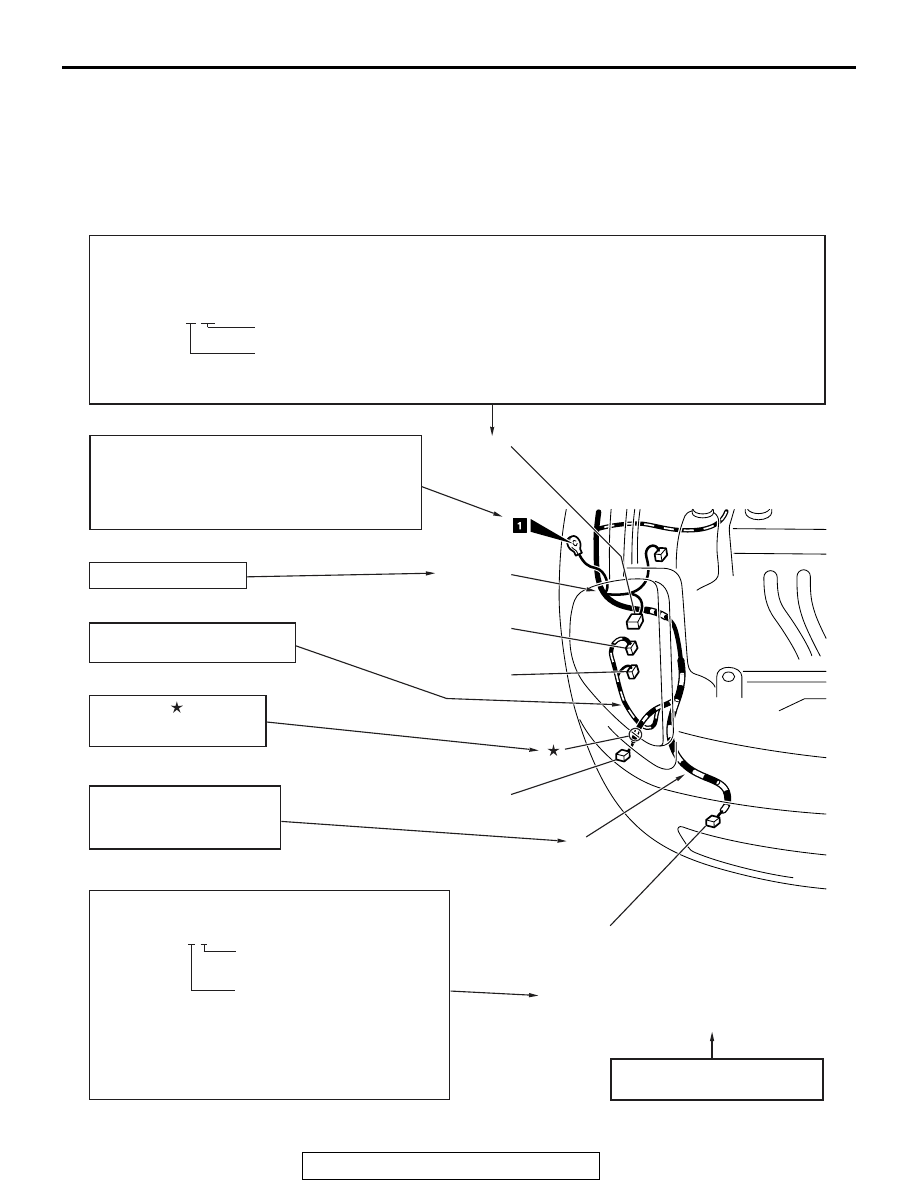

HOW TO READ CONFIGURATION DIAGRAMS

M1801000200555

The wiring harness diagrams clearly show the connector locations and harness configurations on actual vehi-
cles. Some variations are included in one configuration diagram. Accordingly, some diagrams may not be
applicable for individual vehicles.

AC208446

Denotes connector No.
The same connector No. is used throughout the circuit diagrams to facilitate connector location searches.
The first alphabetical symbol indicates the location site of the connector and a number that follows is the unique number.
Numbers are usually assigned to parts in clockwise order on the diagram.

       Example: A-19

Number specific to connector (serial number)

Connector location site symbol
A:  ENGINE COMPARTMENT

D:  FLOOR AND ROOF

B:  ENGINE AND TRANSAXLE

E:  DOOR

C:  DASH PANEL

F:  LUGGAGE COMPARTMENT

Denotes ground point.
Same ground number is used throughout circuit
diagrams to facilitate search of ground point.
Refer to GROUP 70 COMPONENT LOCATIONS
-GROUND MOUNTING LOCATIONS for details
of ground points.

Denotes the color of the tube
(If not specified, it is black).
R:  Red
Y:   Yellow

The number of connector pins and the connector color
(except milk white)* are shown for ease of retrieval.

       Example: (2-B)

          Connector color
          (milk white if no color is indicated)

          Number of connector pins

*: Typical connector colors
        B:   Black

BR: Brown

        Y:    Yellow

V:    Violet

        L:    Blue

O:   Orange

        G:   Green

GR: Gray

        R:   Red

NONE: Milk white

A-15 (2)             FOG LIGHT (RH)
A-16 (2-GR)       HORN (LOW)
A-17 (2-B)          HEADLIGHT (RH)
A-18 (2-B)          WINDSHIELD WASHER MOTOR
A-19 (2-GR)       DUAL PRESSURE SWITCH

Indicates the device to which the
connector is connected.

The mark            shows the
standard mounting position
of wiring harness.

AK

A-17

A-16

A-15

A-18

A-19

Y

Denotes a section covered by a
corrugated tube.

FRONT
WIRING
HARNESS
(RH)

Denotes harness name.

ENGINE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-4

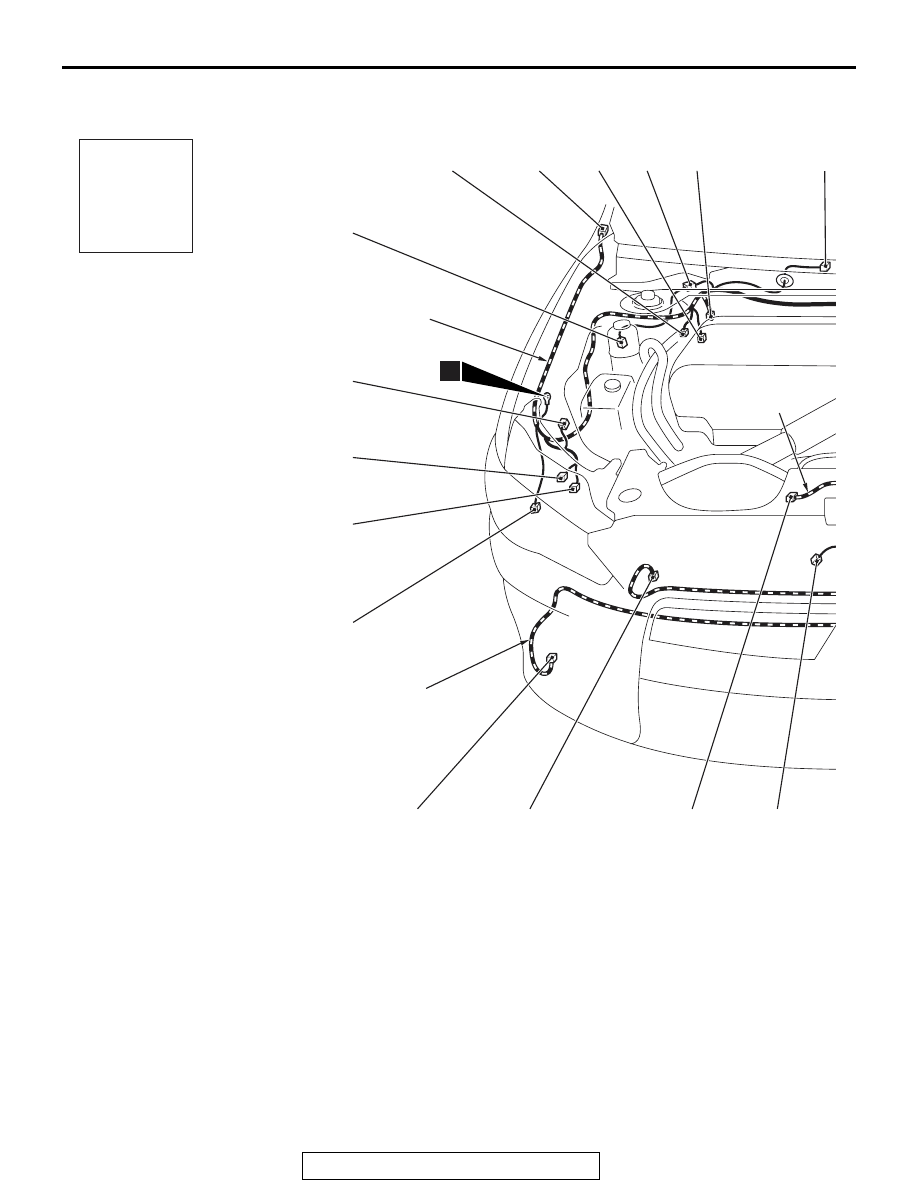

ENGINE COMPARTMENT

M1801000304242

AC708209

A-01

A-02

A-03

A-04

A-05

A-06

A-54

A-53

A-52

A-51

A-57

A-58

A-59

A-56

A-55

1

Front wiring
harness

Fog light wiring
harness

Connector
symbol

A

AB

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Front impact
sensor wiring
harness

A-01

(3-GR)

No connection

A-02

(2-B)

Side-turn signal light (RH)

A-03

(2-B)

Front wheel speed sensor (RH)

A-04

(1-B)

Front wiring harness and theft-alarm
horn sub wiring harness combination

A-05

(47-B)

ASC-ECU

A-06

(5-GR)

Windshield wiper motor

A-07

(4-GR)

Mass airflow sensor

A-08

(2-B)

Turbocharger wastegate solenoid 2

A-09

(2)

Brake fluid level switch

A-10

(2-BR)

Turbocharger wastegate solenoid 1

A-11

(2-B)

Front wheel speed sensor (LH)

A-12

(2-B)

Side-turn signal light (LH)

A-13

(22)

Front wiring harness and control
wiring harness combination

A-14

(24)

Joint connector (CAN4) <TC-SST>

A-15X (4)

Fog light relay

A-16X (4)

Horn relay

A-17X (4)

A/C compressor clutch relay

A-18X (4)

Theft-alarm horn relay

A-20X (4)

No connection

A-21X (4)

Headlight relay (High)

A-22X (4)

Throttle actuator control motor relay

A-24X (4)

Daytime running light relay

A-25X (4)

Injector relay

A-26X (4)

Electric pump relay

A-27X (4)

Fuel pump relay 1

A-28X (4)

Starter relay

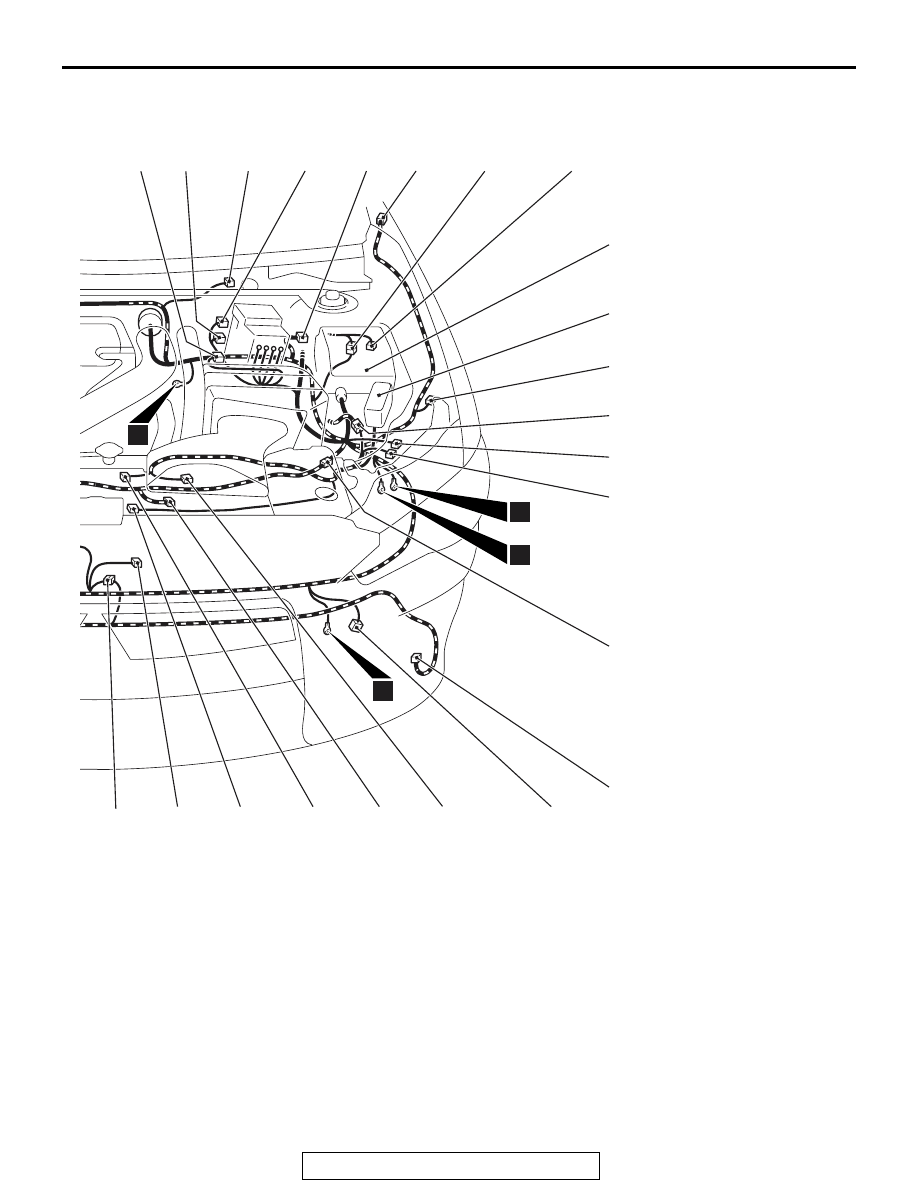

AC708210

AC704767

A-07

A-09

A-10

A-11

A-12

A-13

A-14

A-40

A-38

A-39

A-35X
A-36X
A-37X

A-41

A-43

A-15X A-16X A-17X A-18X
A-20X A-21X A-22X A-24X
A-25X A-26X A-27X A-28X
A-29X A-34X

A-49

A-50

A-48

A-47

A-45

A-46

A-44

AB

A-08

15

16

5

A-42

12

A-29X (4)

Headlight relay (Low)

A-34X (4)

MFI relay

A-35X (4)

Radiator fan relay

A-36X (4)

Condenser fan relay

A-37X (5)

Fan control relay

A-38

(4-B)

Spare connector

A-39

(6-B)

Front wiring harness and control
wiring harness combination

A-40

(12-B)

Headlight assembly (LH)

A-41

(6-B)

Headlight assembly (LH)

A-42

(4-B)

Front wiring harness and front impact
sensor wiring harness combination

A-43

(2-B)

Fog light (LH)

A-44

(1-B)

Horn (High)

A-45

(2-B)

Radiator fan motor

A-46

(2-Y)

Front impact sensor (LH)

A-47

(2-B)

Condenser fan motor

A-48

(2-B)

Hood switch

A-49

(2-B)

Ambient air temperature sensor

A-50

(2-B)

Front wiring harness and fog light
wiring harness combination

A-51

(1-B)

Horn (Low)

A-52

(2-Y)

Front impact sensor (RH)

A-53

(3-B)

A/C pressure sensor

A-54

(2-B)

Fog light (RH)

A-55

(2-B)

No connection

A-56

(6-B)

Headlight assembly (RH)

A-57

(12-B)

Headlight assembly (RH)

A-58

(2-B)

Fuel pump circuit resistor

A-59

(1-B)

Theft-alarm horn

ENGINE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-5

ENGINE AND TRANSAXLE

TSB Revision

CONFIGURATION DIAGRAMS

80A-6

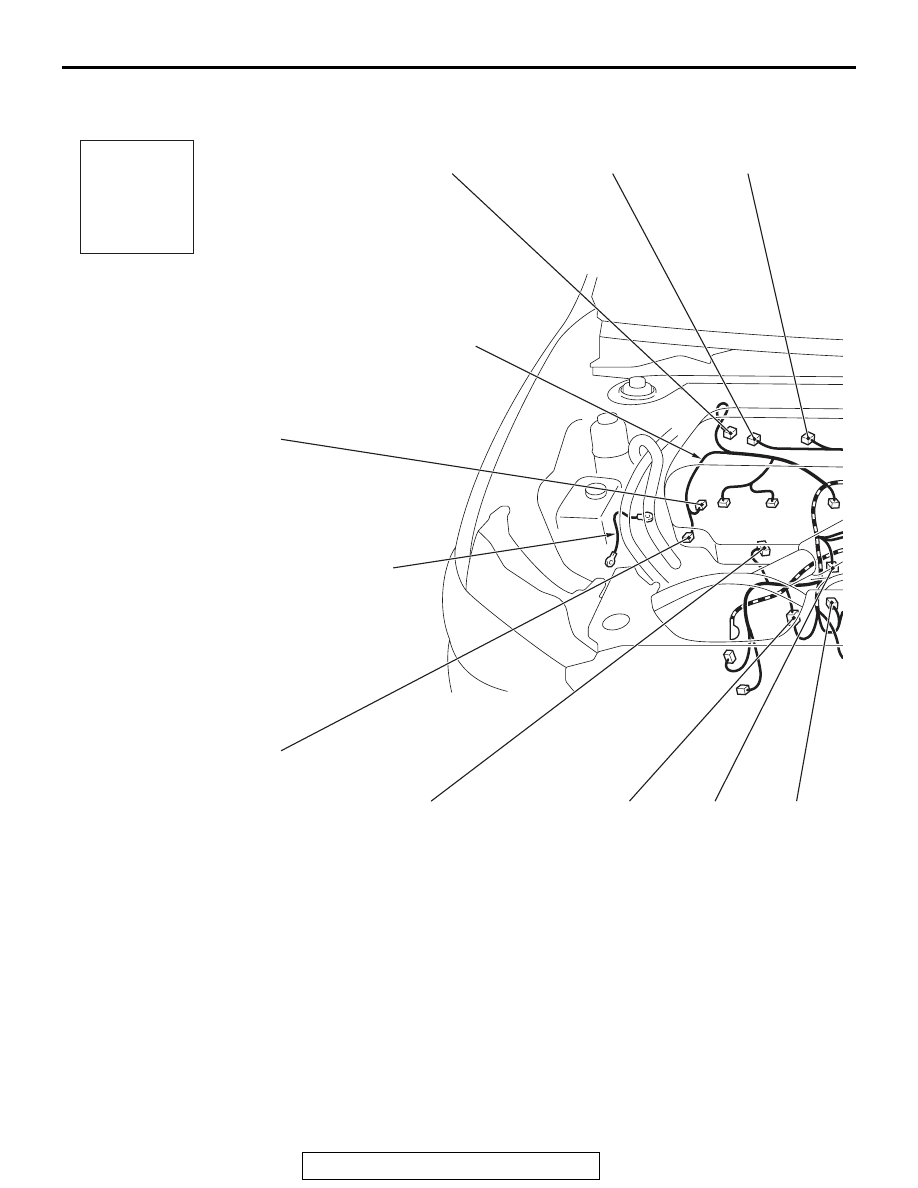

ENGINE AND TRANSAXLE

M1801000403075

AC708212

AC704769

Control wiring
harness

Grounding
cable

B-01

B-02

B-03

AB

B-17

B-16

B-15

B-18

B-19

B-20

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Connector
symbol

-01
thru
-20

B

B-01

(2)

Exhaust oil feeder control valve

B-02

(4-GR)

Ignition coil 1

B-03

(4-GR)

Ignition coil 2

B-04

(4-GR)

Ignition coil 3

B-05

(3-GR)

Exhaust camshaft position sensor

B-06

(4-GR)

Ignition coil 4

B-07

(3-GR)

Intake camshaft position sensor

B-08

(2-B)

Engine coolant temperature sensor

B-09

(64-GR) Engine control module

B-10

(48-GR) Engine control module
