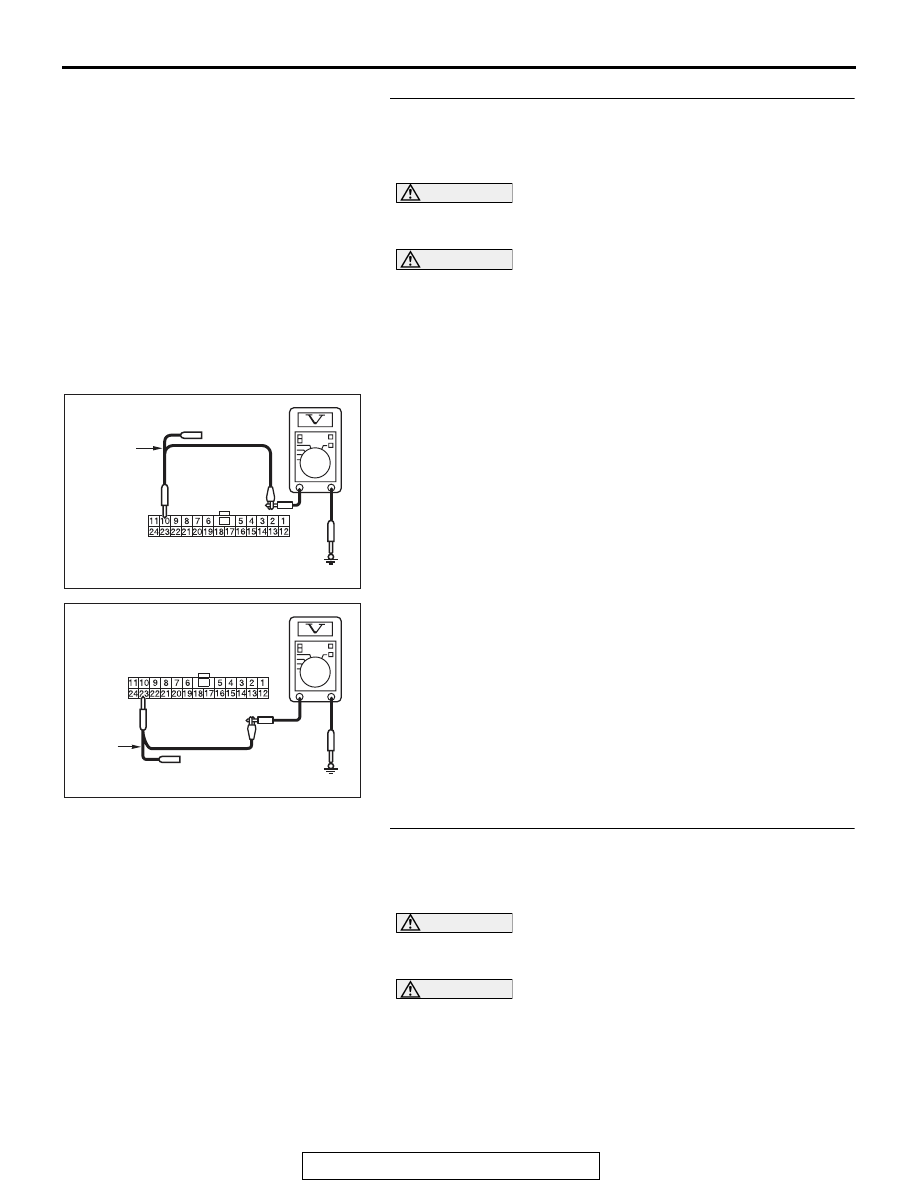

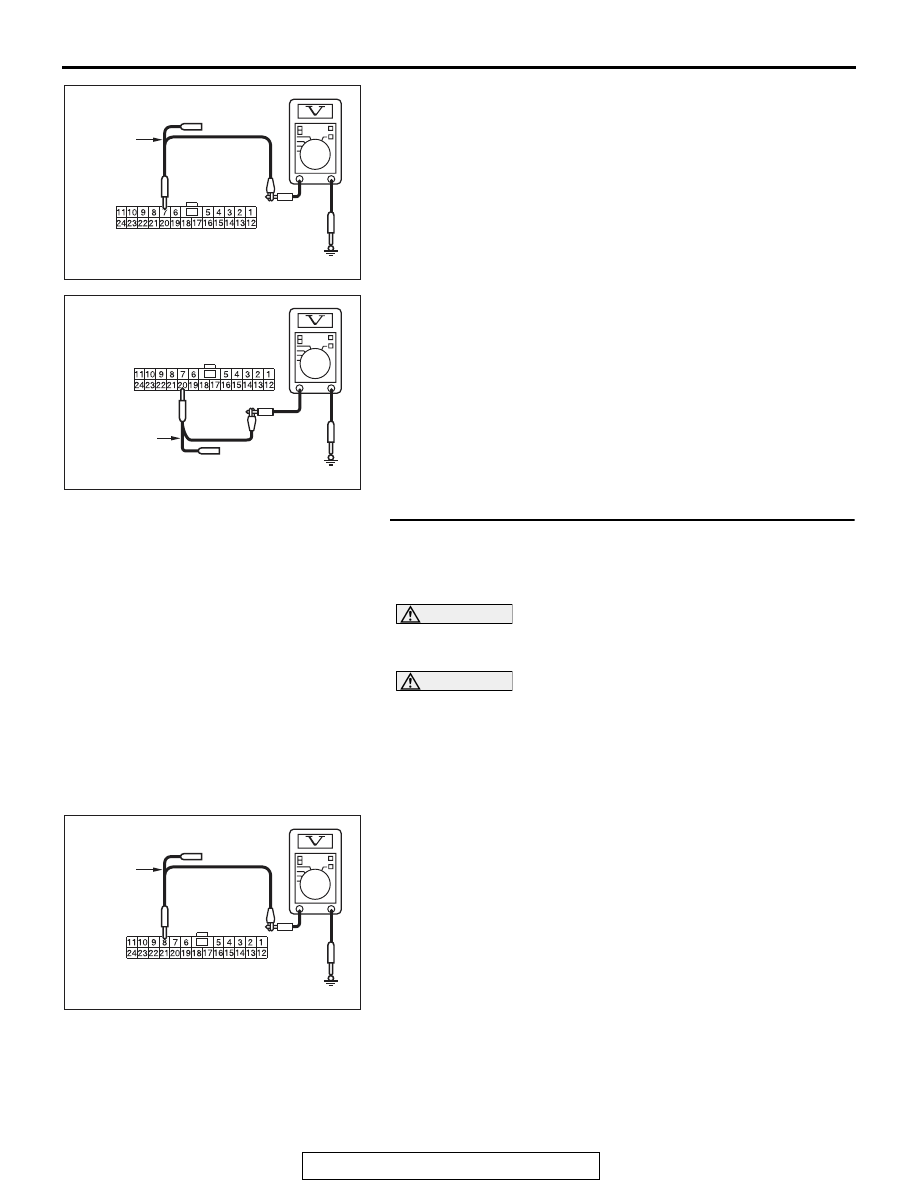

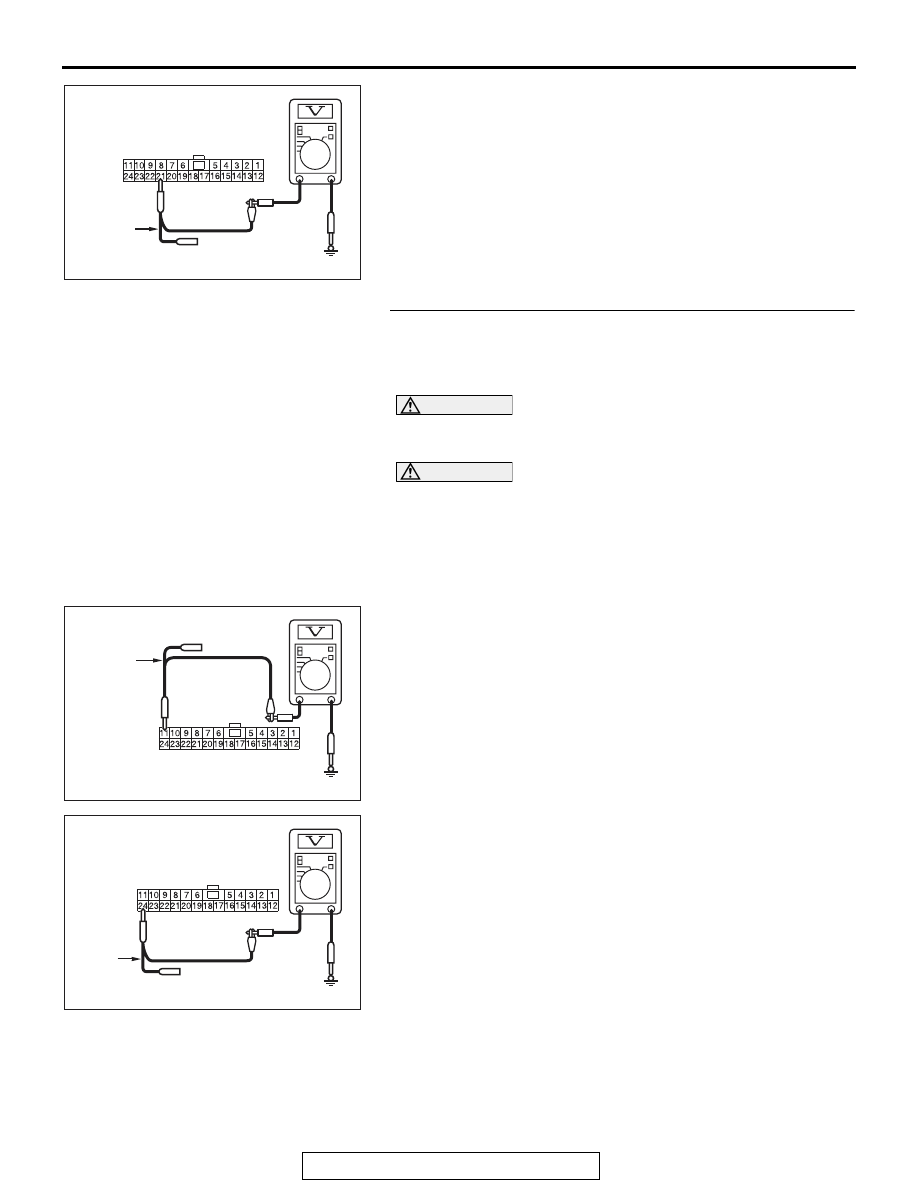

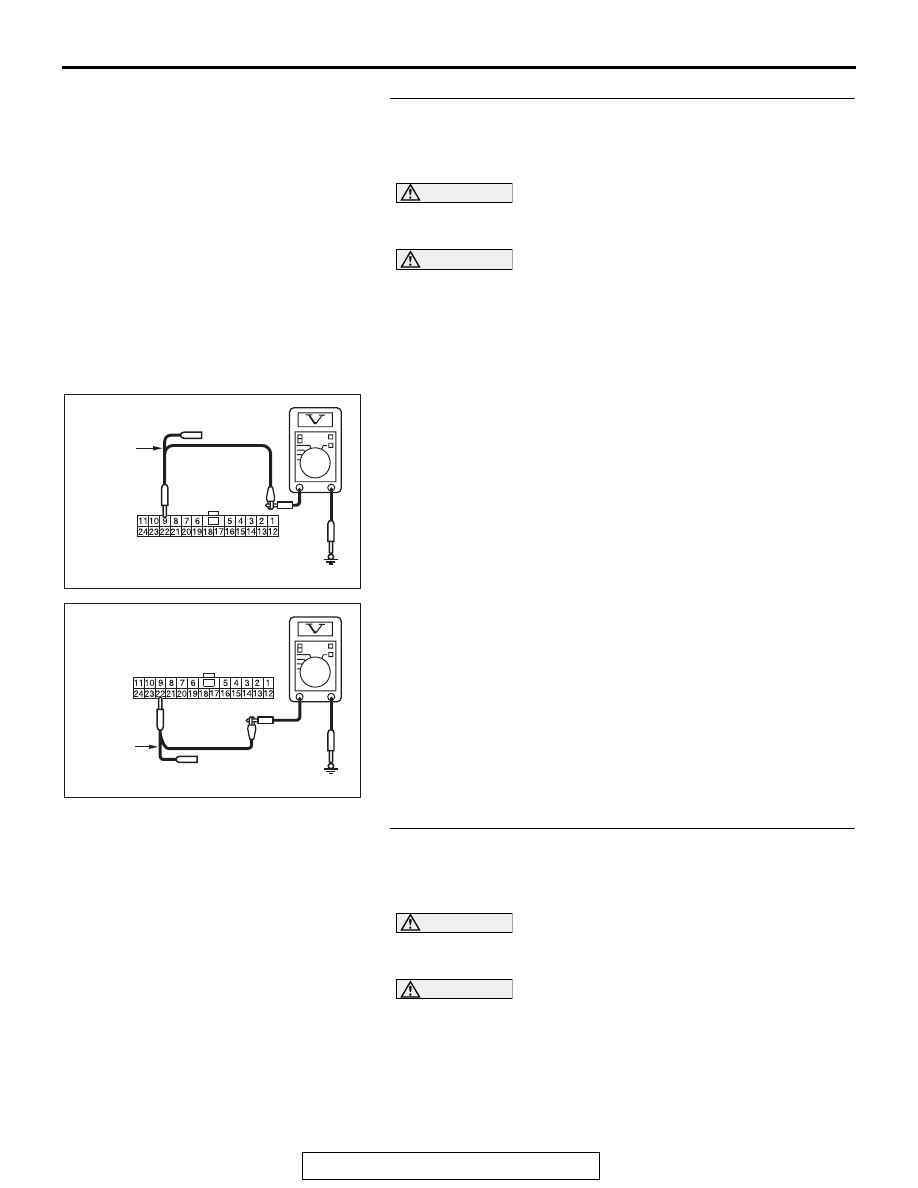

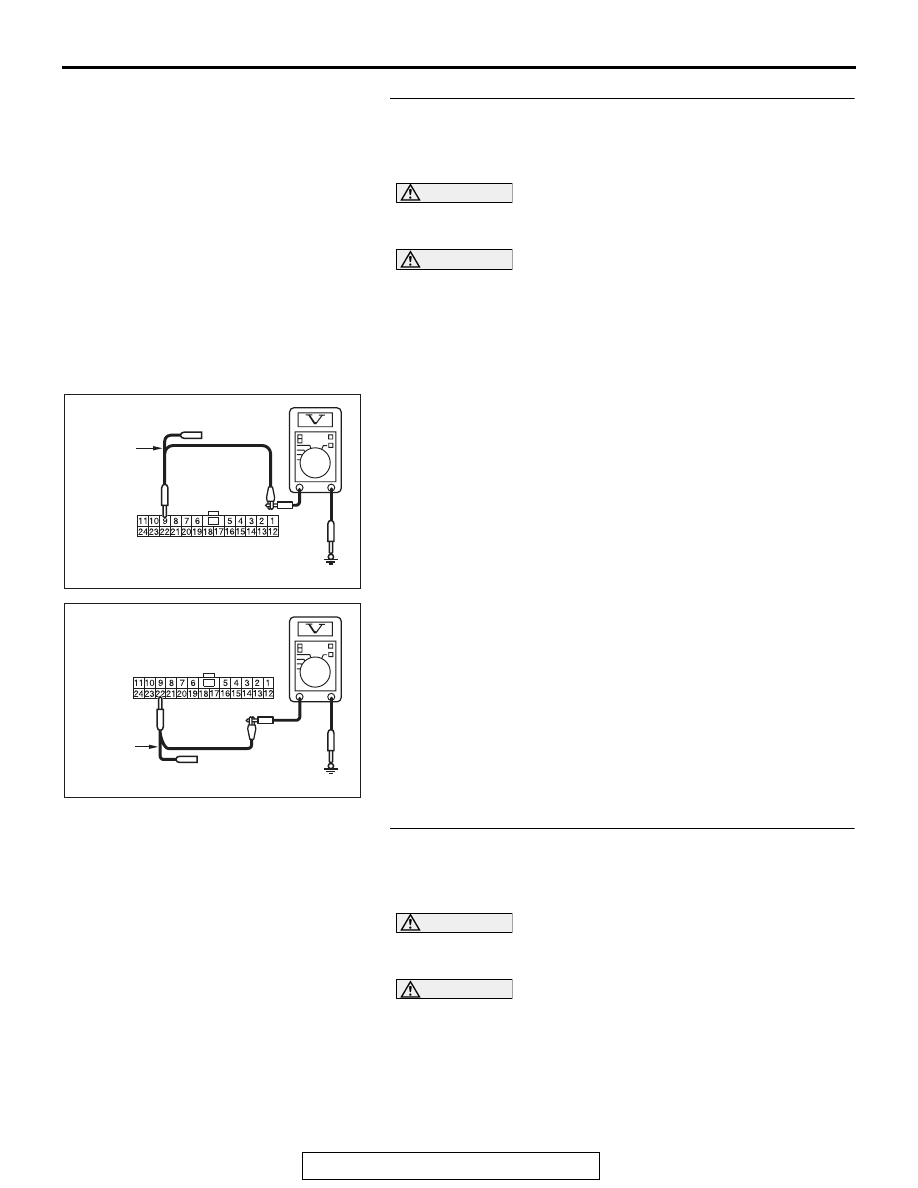

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-167 STEP 14. Check the wiring harness between joint CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect joint connector (CAN1), and measure the voltage at the wiring harness side of joint connector (2) Turn the ignition switch to the ON position. terminal 9 and body ground. OK: 4.7 volts or less (4) Measure the voltage between joint connector (CAN1) terminal 22 and body ground. OK: 4.7 volts or less Q: Do all the voltages measure 4.7 volts or less? YES : Go to Step 16. STEP 15. Check the wiring harness between joint CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect joint connector (CAN1), and measure the voltage at the wiring harness side of joint connector (2) Turn the ignition switch to the ON position. AC608178 TEST Harness side: C-105 BJ AC608178 Harness side: C-105 BK TEST |
