DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-159

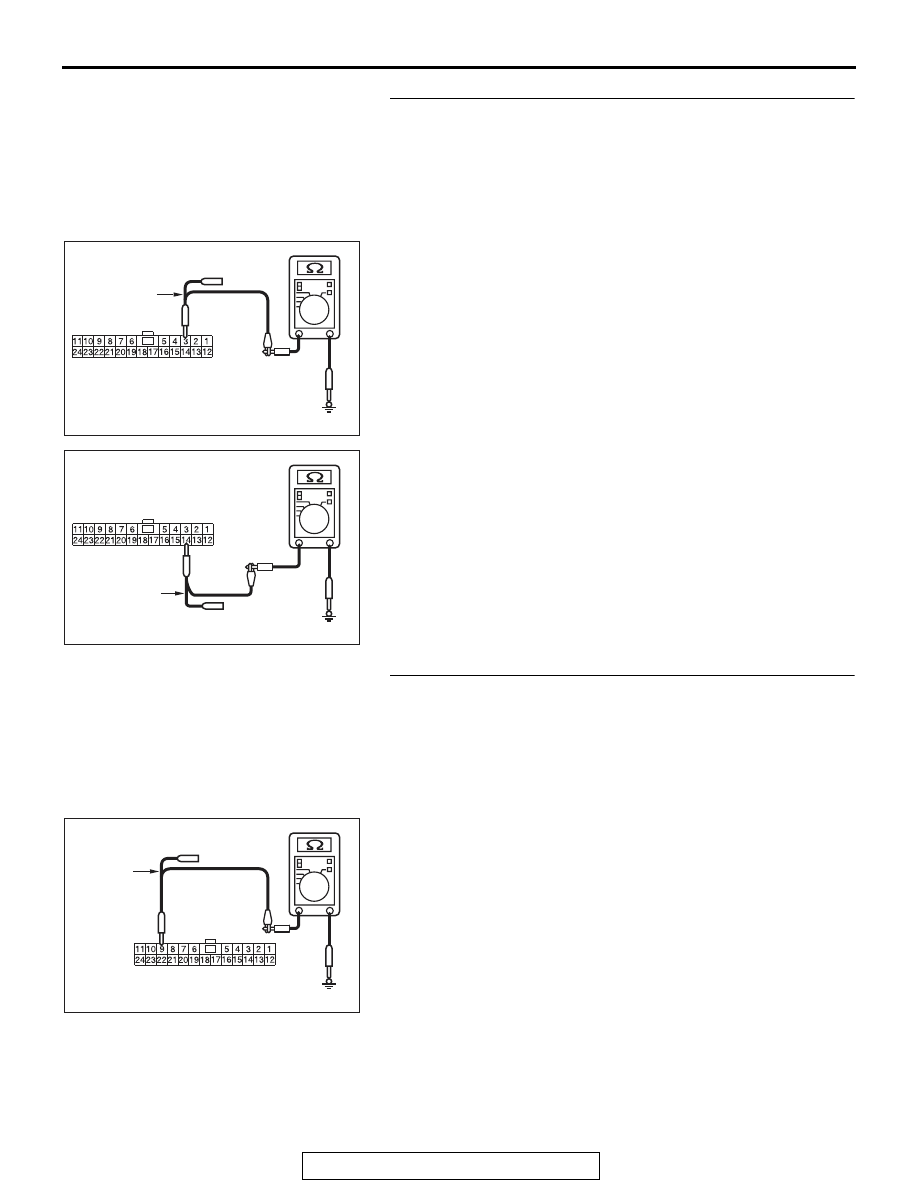

STEP 2. Check the wiring harness between joint connector
(CAN1) C-105 and combination meter connector C-04 for a
short to ground. Measure the resistance at joint connector
(CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 3 and body ground.

OK: 1 kilo ohm or more

(3) Measure the resistance between joint connector (CAN1)

terminal 14 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES <vehicles with KOS> : Go to Step 3.
YES <vehicles with WCM> : Go to Step 4.
NO (vehicles with KOS or WCM) : Go to Step 24.

STEP 3. Check the wiring harness between joint connector
(CAN1) C-105 and KOS-ECU connector C-05 for a short to
ground. Measure the resistance at joint connector (CAN1)
C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 9 and body ground.

OK: 1 kilo ohm or more

AC608179

TEST
HARNESS

Harness side: C-105

BY

AC608179

Harness side: C-105

BZ

TEST
HARNESS

AC608179

TEST
HARNESS

Harness side: C-105

CA

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-160

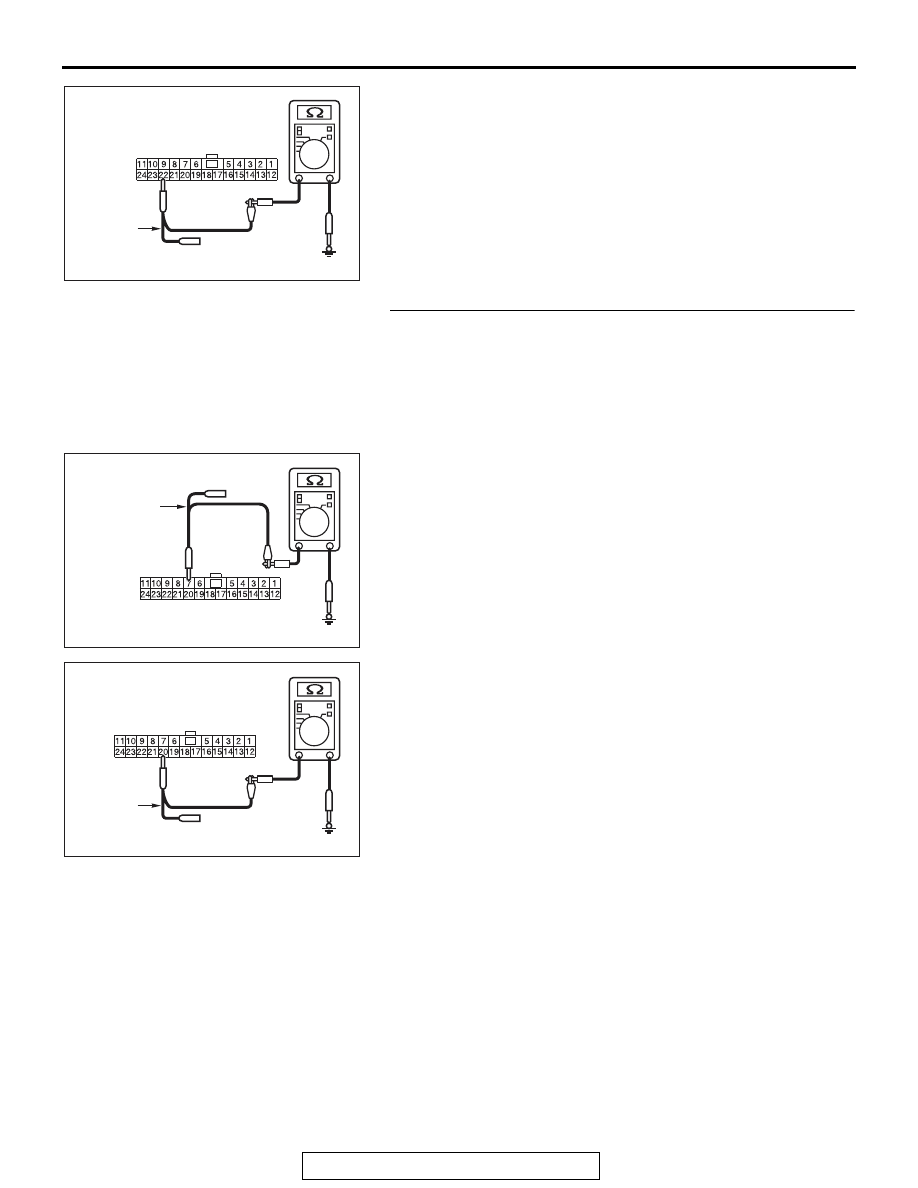

(3) Measure the resistance between joint connector (CAN1)

terminal 22 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES : Go to Step 5.
NO :  Go to Step 25.

STEP 4. Check the wiring harness between joint connector
(CAN1) C-105 and WCM connector C-07 for a short to
ground. Measure the resistance at joint connector (CAN1)
C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 7 and body ground.

OK: 1 kilo ohm or more

(3) Measure the resistance between joint connector (CAN1)

terminal 20 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES : Go to Step 5.
NO :  Go to Step 26.

AC608179

Harness side: C-105

CB

TEST
HARNESS

AC608179

TEST
HARNESS

Harness side: C-105

CC

AC608179

Harness side: C-06

CD

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-161

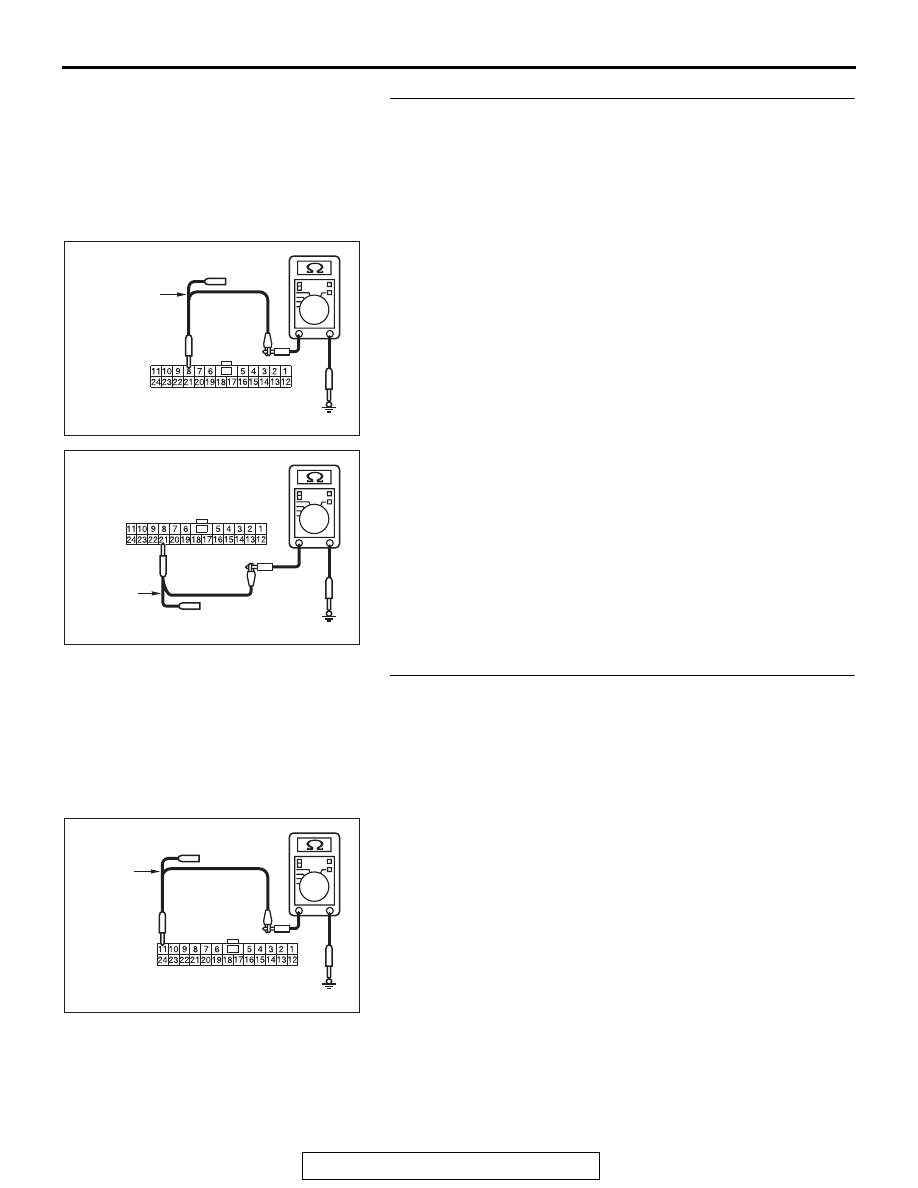

STEP 5. Check the wiring harness between joint connector
(CAN1) C-105 and SRS-ECU connector C-37 for a short to
ground. Measure the resistance at joint connector (CAN1)
C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 8 and body ground.

OK: 1 kilo ohm or more

(3) Measure the resistance between joint connector (CAN1)

terminal 21 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES : Go to Step 6.
NO :  Go to Step 27.

STEP 6. Check the wiring harness between joint connector
(CAN1) C-105 and occupant classification-ECU connector
D-39-2 for a short to ground. Measure the resistance at
joint connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 11 and body ground.

OK: 1 kilo ohm or more

AC608179

TEST
HARNESS

Harness side: C-105

CE

AC608179

Harness side: C-105

CF

TEST
HARNESS

AC608179

TEST
HARNESS

Harness side: C-105

CG

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-162

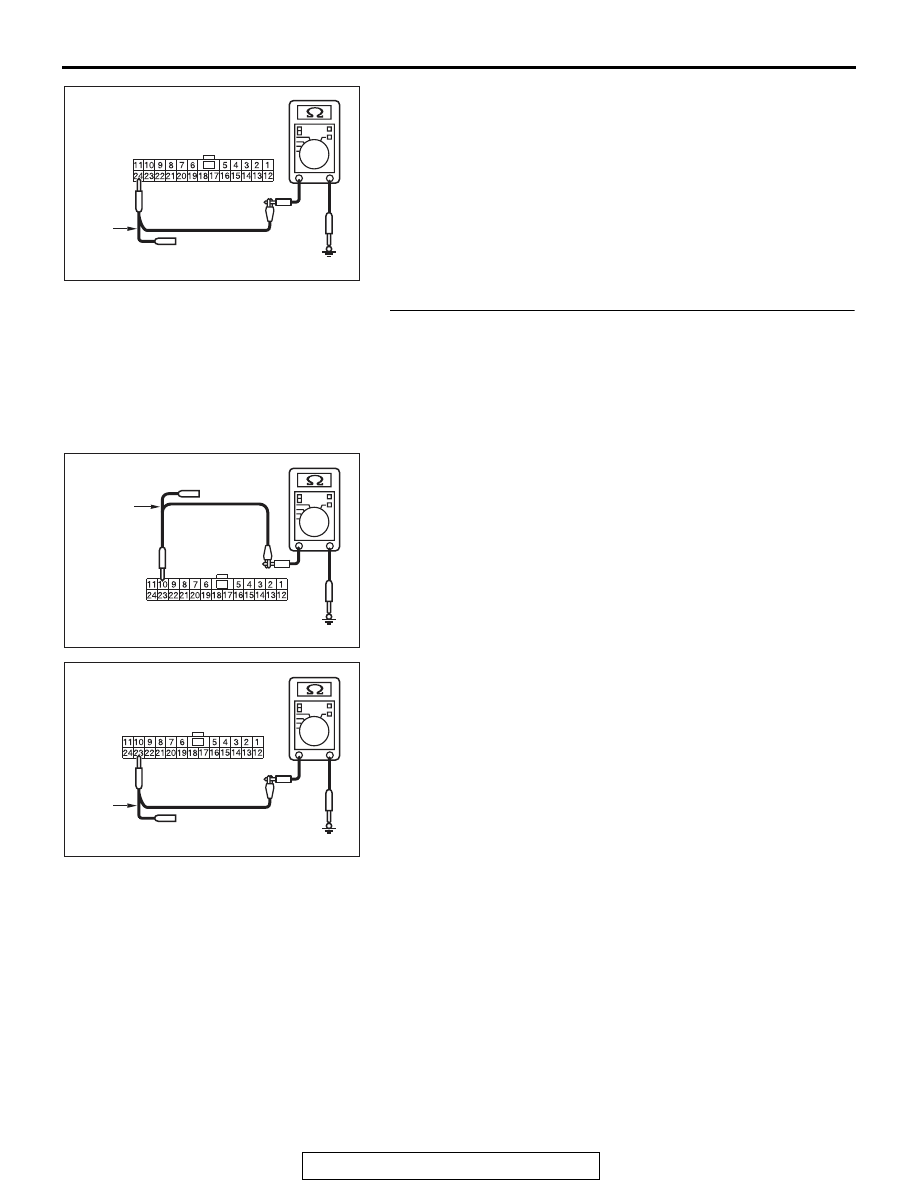

(3) Measure the resistance between joint connector (CAN1)

terminal 24 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES (vehicles without hands free system) : Go to Step 8.
YES (vehicles with hands free system) : Go to Step 7.
NO  :  Go to Step 28.

STEP 7. Check the wiring harness between joint connector
(CAN1) C-105 and hands free module connector C-11 for a
short to ground. Measure the resistance at joint connector
(CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 10 and body ground.

OK: 1 kilo ohm or more

(3) Measure the resistance between joint connector (CAN1)

terminal 23 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES : Go to Step 8.
NO :  Go to Step 29.

AC608179

Harness side: C-105

CH

TEST
HARNESS

AC608179

TEST
HARNESS

Harness side: C-105

CI

AC608179

Harness side: C-105

CJ

TEST
HARNESS
