SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-573

SUBWOOFER <VEHICLES WITH 9 SPEAKER 7
POSITION SYSTEM>

To the trunk room, a 25-cm dual voice coil subwoofer and a
20-liter subwoofer sealed box are installed. The punched
sound with dynamic deep bass and rhythm can be played back.

ON-VEHICLE SERVICE

SPEAKER TEST <VEHICLES WITH RADIO AND
CD PLAYER>

M1544100500191

SPEAKER CONNECTION CHECK MODE

.

Enter the speaker connection check mode according to the fol-
lowing steps:
1. Turn the Ignition switch to the "ACC" or "ON" position and

switch off the radio and CD player.

2. Press the following buttons in that order within sixty seconds

from step (1).

(1)  [CH1] button
(2) Rewind button
(3) Fast-forward button
(4)  [CH6] button

AC608344AB

Subwoofer

Trunk room

AC609154

AD

[CH1] button

[CH6] button

Fast-forward button

Rewind button

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-574

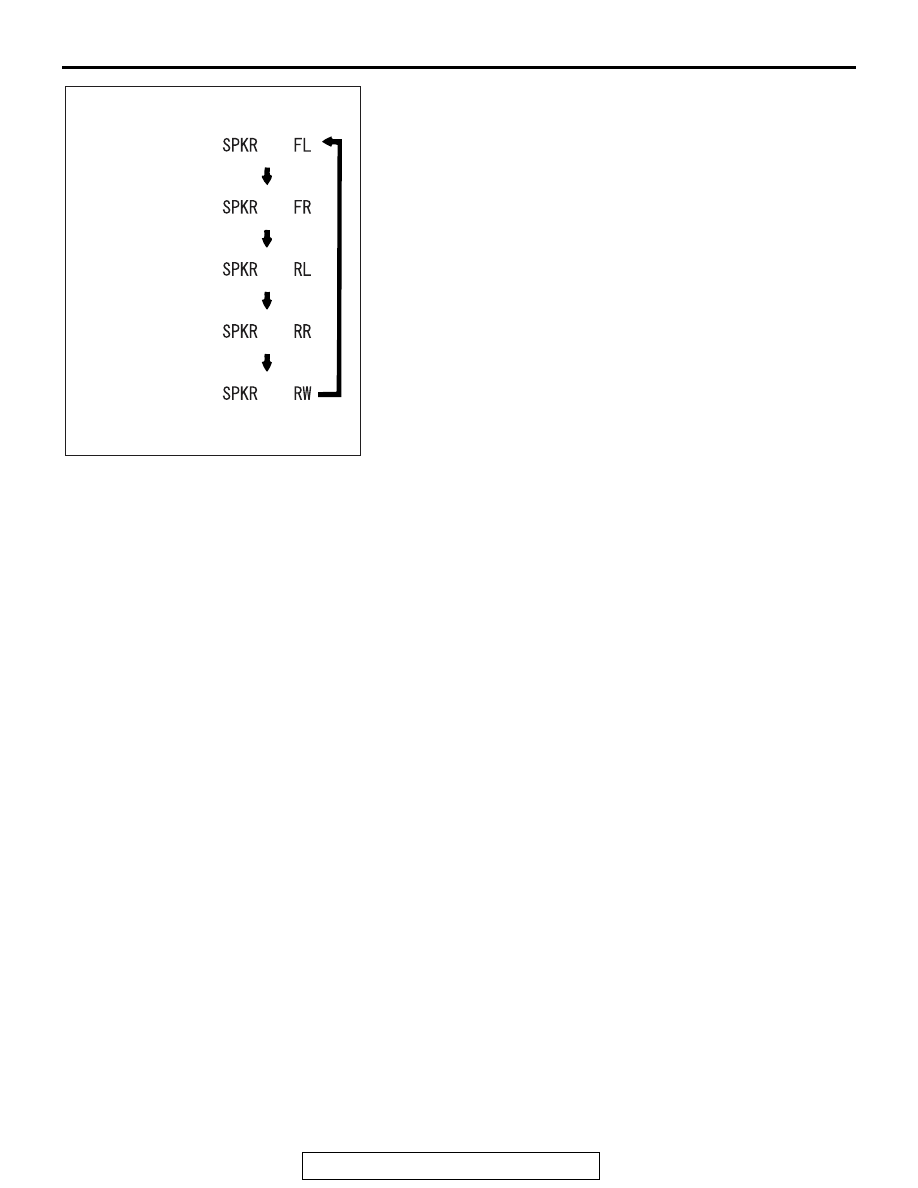

3. Check that the speaker, which is displayed on the center

panel display, sounds (If the [CH6] button is pressed, the
speaker will be changed).

NOTE: The display of "FL", "FR", "RL", "RR","RW"blinks.
4. If a button other than the [CH6] button is pressed, or the

ignition switch is turned to "LOCK" (OFF) position, you will
exit from the speaker connection check mode.

.

BUZZ NOISE CHECK MODE

Inserting a CD during the speaker connection check mode
shifts the mode to the buzz noise check mode, and the buzz
noise sound of each speaker can be checked.
As with the speaker connection check mode, press the [CH6]
button to switch the output speaker of the buzz noise check
sound.
Check that the buzz noise sound is output from the output
speaker of buzz noise check sound.
NOTE: "SPKR" is displayed as "BUZZ" during buzz noise
check mode.

AC701315

<Front door speaker
   and tweeter (LH)>

<Front door speaker
  and tweeter (RH)>

<Rear door
  speaker (LH)>

<Rear door
  speaker (RH)>

AC

<Display>

<Subwoofer:
   vehicles with
       audio amplifier>

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-575

SPEAKER TEST <VEHICLES WITH MMCS>

M1544100500209

Refer to

P.54A-369

REMOVAL AND INSTALLATION

M1544100300205

DOOR SPEAKER

REMOVAL SERVICE POINT

.

 <<A>> REMOVAL OF FRONT DOOR SPEAKER
AND REAR DOOR SPEAKER

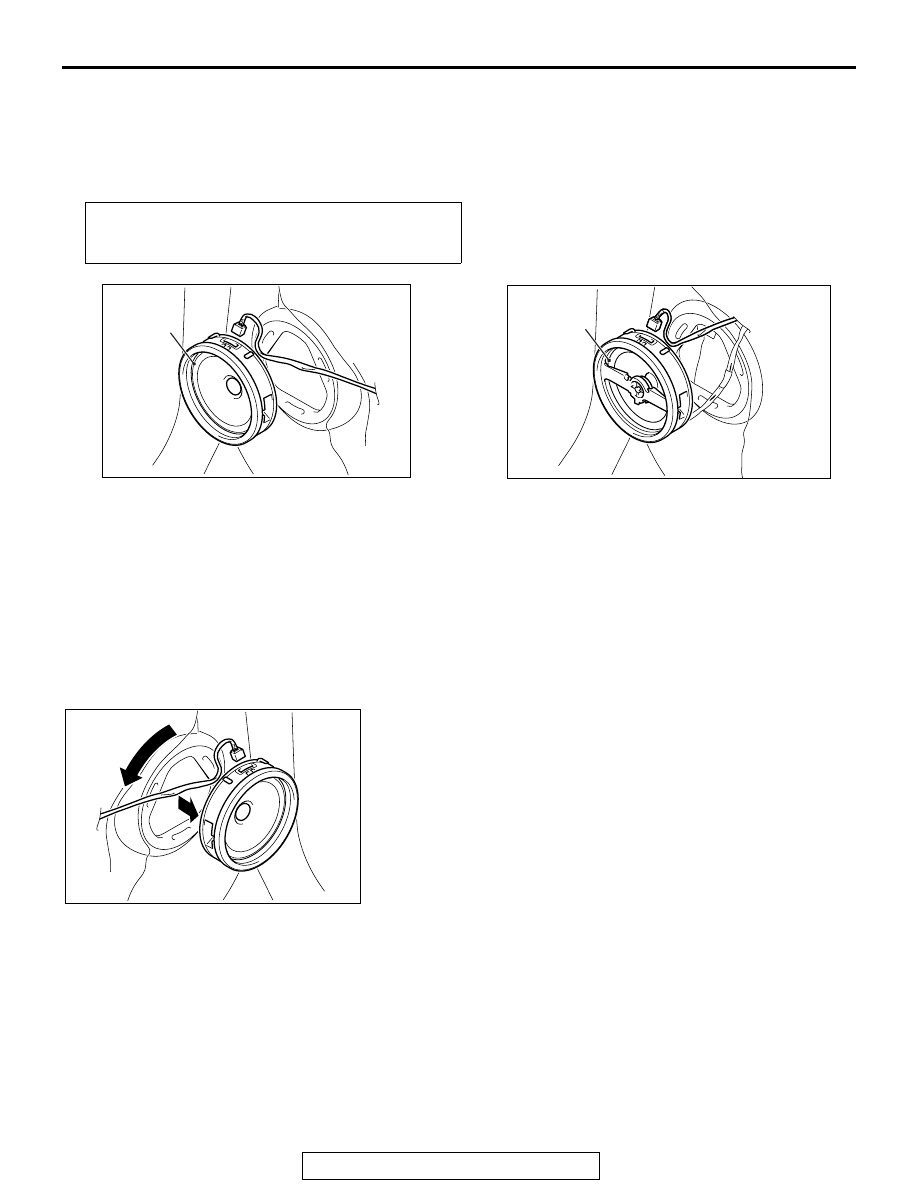

Disconnect the connector, and remove by twisting as shown in
the figure.

Pre-removal Operation
Learning of the power window fully closed position (Refer to
GROUP 42A

− Door, On-vehicle service

P.42A-117

).

AC506847

AC506846

AC507216

1

2

AB

Front Door Speaker Removal
Steps

•

Front door trim (Refer to GROUP
52A

− Door Trim

P.52A-15

).



<<

A

>>

1.

Front door speaker

Rear Door Speaker Removal
Steps

•

Rear door trim (Refer to GROUP
52A

− Door Trim

P.52A-15

).



<<

A

>>

2.

Rear door speaker

AC507244

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-576

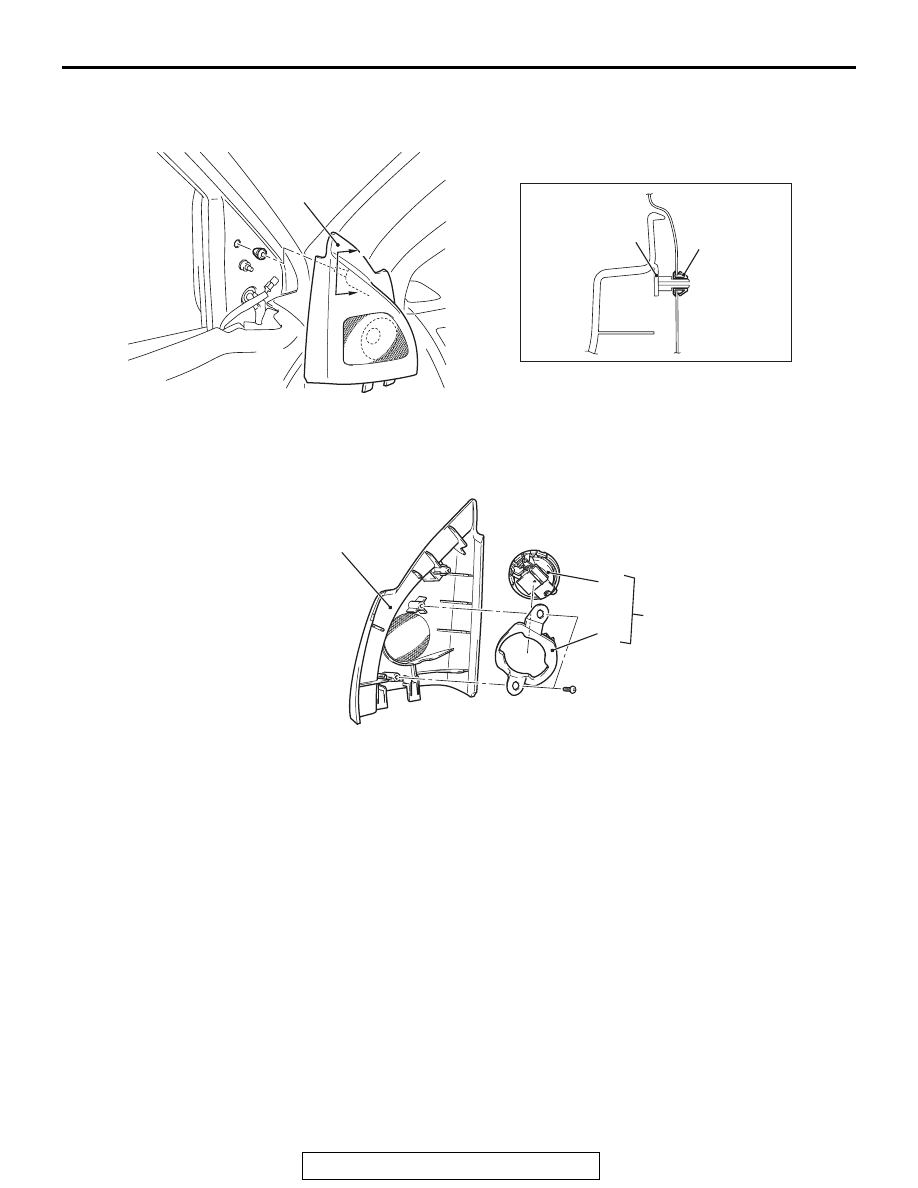

TWEETER

AC608780

1

1

AB

 Section A – A

Clip

A

A

AC608782

3

4

5

AB

2

Removal Steps

1.

Front door sash trim assembly

2.

Tweeter bracket and Tweeter

3.

Tweeter bracket

4.

Tweeter

5.

Front door sash trim

Removal Steps (Continued)
