SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-565

ON-VEHICLE SERVICE

HOW TO READ SIRIUS ID

M1544018300021

READ THE SIRIUS ID DIRECTLY FROM THE
SATELLITE RADIO TUNER.

When the SIRIUS ID (12 digits) cannot be displayed by operat-
ing the multivision display, or radio and CD player, it can be
read directly by the satellite radio tuner.
1. Remove the satellite radio tuner. Refer to

P.54A-565

.

2. Read the SIRIUS ID (12 digits) from the satellite radio tuner.

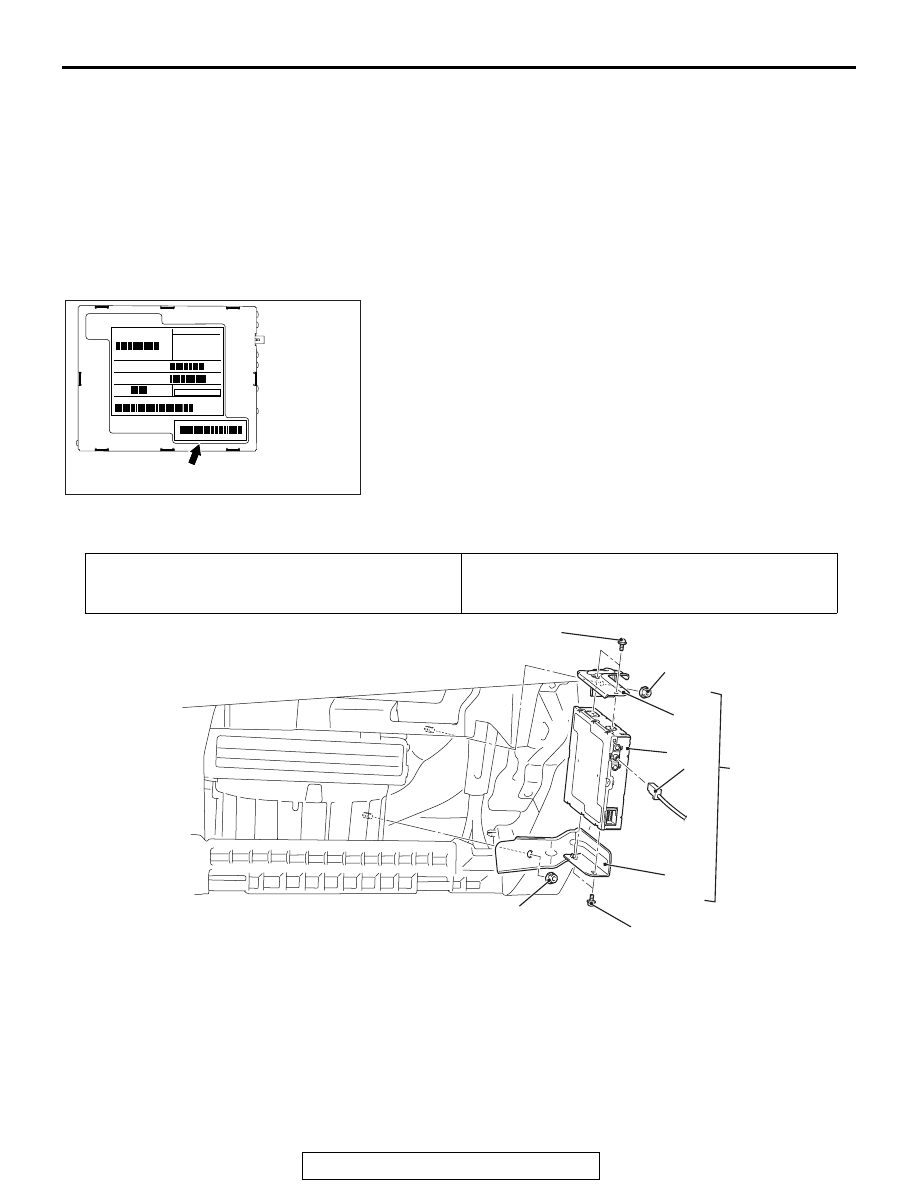

REMOVAL AND INSTALLATION

M1544016100043

SIRIUS

12V

NEG.CROUND

FREQUENCY  RANGE

MADE IN JAPAN

MODEL NO.

SERIAL NO.

TA CODE

POPN CODE

Sirius ID

XXXXXXXXXXXX

AC613541

*

*

SIRIUS ID

AB

Pre-removal operation
• Removal of glove box, bottom cover (Refer to GROUP

52A

− Glove Box

P.52A-6

.)

Post-installation operation
• Installation of glove box, bottom cover (Refer to GROUP

52A

− Glove Box

P.52A-6

.)

AC608845AB

13 ± 2 N·m
111 ± 22 in-lb

2

1

4

5

3

1.0 ± 0.5 N·m
9 ± 4 in-lb

1.0 ± 0.5 N·m
9 ± 4 in-lb

13 ± 2 N·m
111 ± 22 in-lb

Removal Steps

1.

Satellite radio tuner connector

2.

Satellite radio tuner assembly

3.

Audio equip bracket (upper)

4.

Audio equip bracket (lower)

5.

Satellite radio tuner

Removal Steps (Continued)

ANTENNA

TSB Revision

CHASSIS ELECTRICAL

54A-566

ANTENNA

GENERAL INFORMATION

M1544200500024

The roof antenna has been adopted for the radio.
The antenna base incorporates the radio amplifier.
When the satellite radio tuner is installed, the
antenna base that also corresponds to the satellite
radio is installed.

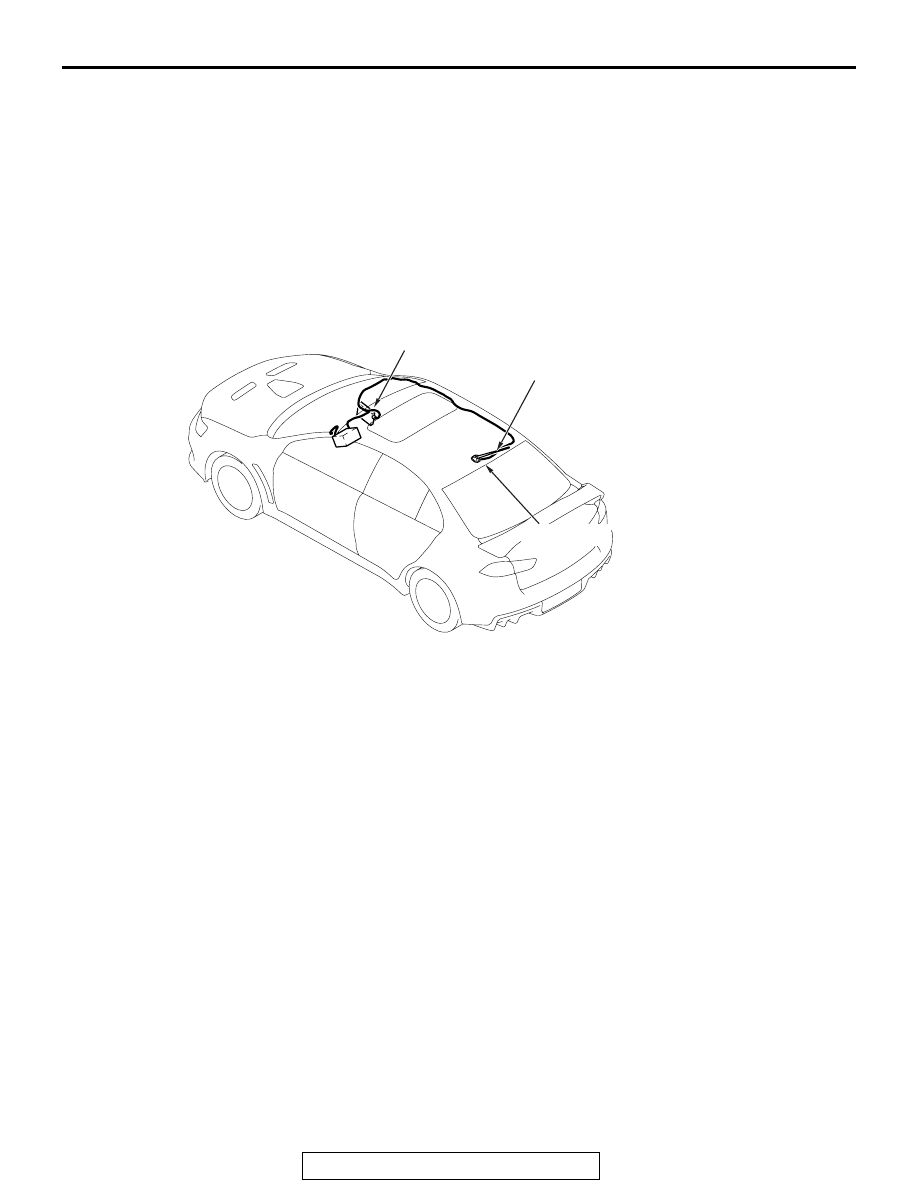

CONSTRUCTION DIAGRAM

AC708816

Roof antenna (for radio)

Satellite radio tuner (Vehicles with satellite radio)

Antenna base

AB

ANTENNA

TSB Revision

CHASSIS ELECTRICAL

54A-567

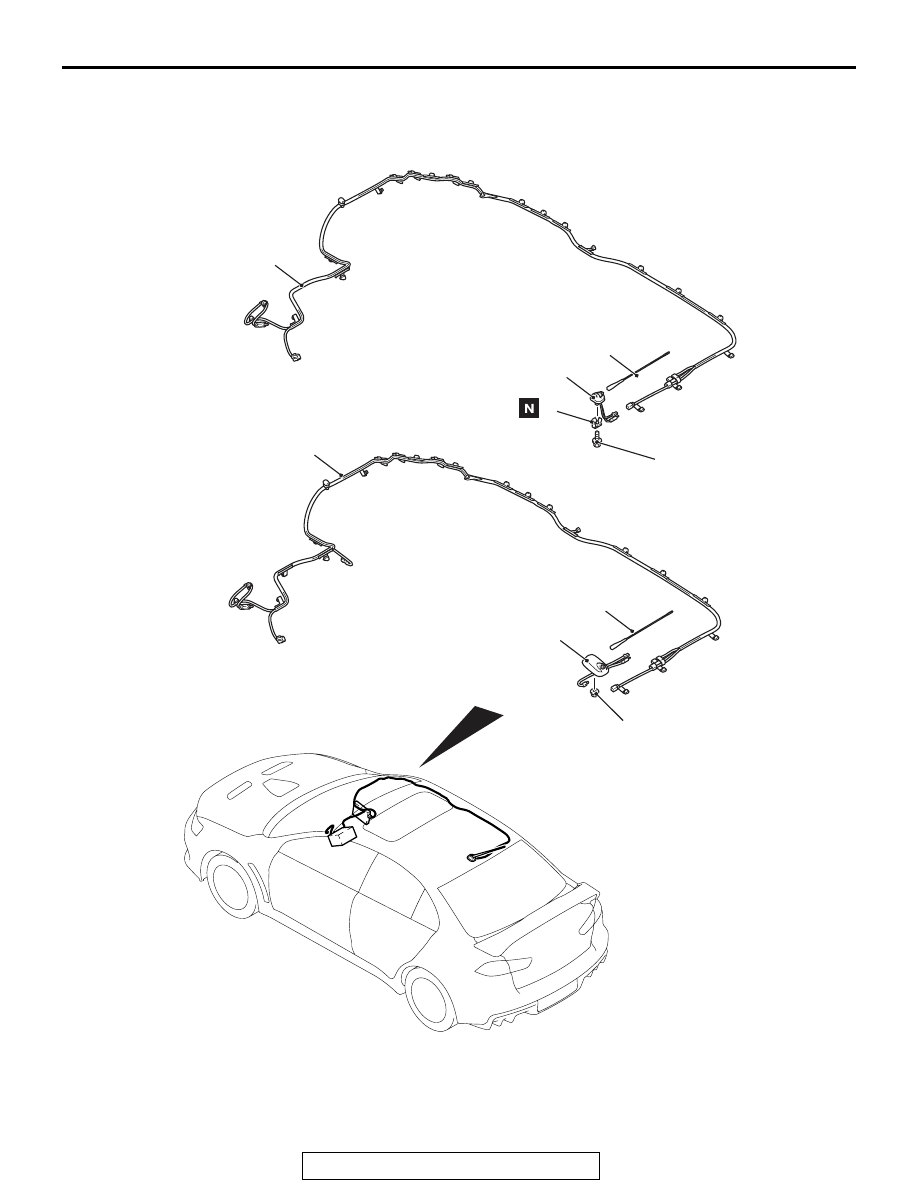

REMOVAL AND INSTALLATION

M1544200200294

AC708876

1

1

3

3

4

4

5.0 ± 1.0 N·m
44 ± 9 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

AB

<Vehicles with
  satellite radio tuner>

2

Removal Steps

1.

Antenna rod

•

Headlining (Refer to GROUP 52A

−

Headlining

P.52A-17

).

2.

Antenna spring <Vehicles without
satellite radio tuner>

3.

Antenna base

Removal Steps (Continued)

AMPLIFIER

TSB Revision

CHASSIS ELECTRICAL

54A-568

AMPLIFIER

GENERAL INFORMATION

M1544000100390

The 8-ch high-power audio amplifier with integrated DSP (total
maximum output of 650 W) equipped with the front seat (left
side) has been combined with the 9-speaker 7-position system,
adopting the Rockford Fosgate

® premium sound system. The

audio amplifier offers the clear treble without distortion.

•

Radio and CD player (Refer to

P.54A-364

). <Vehicles with radio

and CD player>

•

Multivision display assembly (Refer
to

P.54A-364

). <Vehicles with

MMCS>

•

Glove box cover (Refer to GROUP
52A

− Glove Box

P.52A-6

).

•

Rear side roof energy absorption
box (RH) <Vehicle with
sunroof>(Refer to GROUP 52A

−

Headlining

P.52A-17

).

4.

Antenna feeder

Removal Steps (Continued)

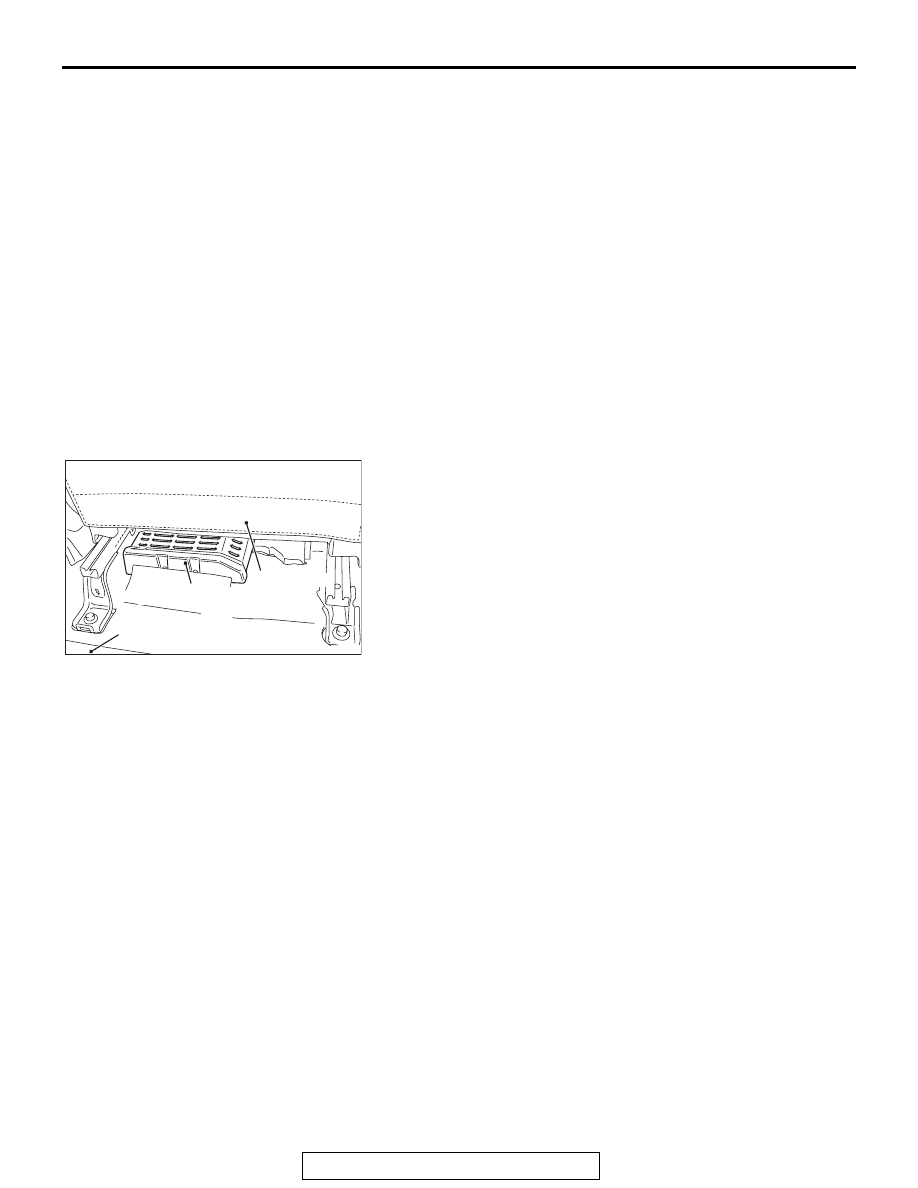

AC608321AD

Front seat
(left side)

Audio amplifier

Rear seat
