Mitsubishi Evolution X. Manual - part 105

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-23

TONE ALARM

M2545500600181

Using its own signal or signal sent via CAN commu-
nication, the combination meter sounds the inte-
grated tone alarm.

SEAT BELT REMINDER FUNCTION

When the driver's seat belt is released

1. When the ignition switch is turned ON, the driver's seat belt

indicator illuminates and the alarm sounds for 6 seconds.

2. 60 seconds after the ignition switch is turned ON, if the vehi-

cle speed exceeds 5 mph (8 km/h), the driver's seat belt
indicator illuminates and blinks for 90 seconds. The alarm
sounds simultaneously with the blinks of the indicator.

3. On Step 2 completion, if the seat belt is not fastened when

the vehicle speed changes from 2 mph (3 km/h) to 5 mph (8
km/h), the indicator illuminates and blinks again and the
alarm sounds again.

When the front passenger's seat belt is released

1. When the ignition switch is turned ON, the front passenger's

seat belt indicator illuminates for 6 seconds, regardless of
whether the front passenger's seat belt is fastened or
released. The alarm does not sound.

2. 60 seconds after the ignition switch is turned ON, the front

passenger's seat belt reminder operates the same manner
as for the driver's seat belt that is released, but the alarm
does not sound.

Item

Relating ECU

Seat belt reminder function

Combination meter

Paddle shift cancel prohibition tone alarm <TC-SST>

TC-SST-ECU

Theft-alarm function

ETACS-ECU

Keyless operation key reminder tone alarm function <vehicles with KOS> KOS-ECU
Ignition key reminder tone alarm function

ETACS-ECU

Light reminder tone alarm function

ETACS-ECU

Door-ajar warning tone alarm function

ETACS-ECU

Freeze warning tone alarm

ETACS-ECU

Parking brake reminder tone alarm function

Combination meter

Multi information display interrupt display tone alarm

Combination meter

ETACS-ECU customization function tone alarm

ETACS-ECU

A/C operation tone alarm

A/C-ECU

Audio operation tone alarm

Radio and CD player or audio
visual navigation unit

Multi information meter switch operation tone alarm

Combination meter

Turn-signal light tone alarm function

ETACS-ECU

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-24

PADDLE SHIFT CANCEL PROHIBITION TONE
ALARM <TC-SST>

When the paddle shift switch is operated, the tone alarm
sounds.

THEFT-ALARM FUNCTION

When the theft-alarm function is activated, the tone alarm
sounds.

KEYLESS OPERATION KEY REMINDER TONE
ALARM FUNCTION <VEHICLES WITH
KOS>/IGNITION KEY REMINDER TONE ALARM
FUNCTION

With the ignition switch in the LOCK (OFF) position, when the
driver's door is opened with the ignition key inserted into the
ignition key cylinder or the keyless operation key left in the
vehicle, the tone alarm sounds.

LIGHT REMINDER TONE ALARM FUNCTION

With the ignition switch in the LOCK (OFF) position, when the
driver's door is opened with the tail light switch remaining ON,
the tone alarm sounds.

DOOR-AJAR WARNING TONE ALARM FUNCTION

With the ignition switch in the ON position, when any of the
doors (except trunk) is opened and the vehicle speed informa-
tion sent via the CAN communication is 5 mph (8 km/h) or
more, the tone alarm sounds.

FREEZE WARNING TONE ALARM

When the ignition switch is in the ON position, if the ambient
temperature is at 37

°F (3°C) or below, the tone alarm sounds.

PARKING BRAKE REMINDER TONE ALARM
FUNCTION

With the ignition switch in the ON position, if the parking brake
has not been reset (parking brake switch: ON), and when the
vehicle speed information transmitted via CAN communication
is 5 mph (8 km/h) or more, the tone alarm sounds.

MULTI INFORMATION DISPLAY INTERRUPT
DISPLAY TONE ALARM

When the interrupt display is displayed on the multi information
display because of alarms, the tone alarm sounds.

ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54A-25

ETACS-ECU CUSTOMIZATION FUNCTION TONE
ALARM

When entering into the customize mode of ETACS-ECU func-
tions or when the customization is executed, the tone alarm
sounds in each case.

A/C OPERATION TONE ALARM, AUDIO
OPERATION TONE ALARM

According to the tone alarm sounding request signal which is
received when the A/C, radio and CD player or MMCS is oper-
ated, the tone alarm sounds.

METER INFORMATION SWITCH OPERATION
TONE ALARM

When the meter information switch or rheostat switch is oper-
ated, the tone alarm sounds.

TURN-SIGNAL LIGHT TONE ALARM FUNCTION

The tone alarm sounds in synchronization with the turn signal
light operation.

ACCESSORY SOCKET

GENERAL INFORMATION

M2544400200365

The plug-in type accessory socket has been installed for the
convenient use of accessories. This accessory socket can be
replaced to the cigar lighter as an option.
Accessory socket has been added to the front floor console.
The maximum load is 120 W when a single accessory socket is
used

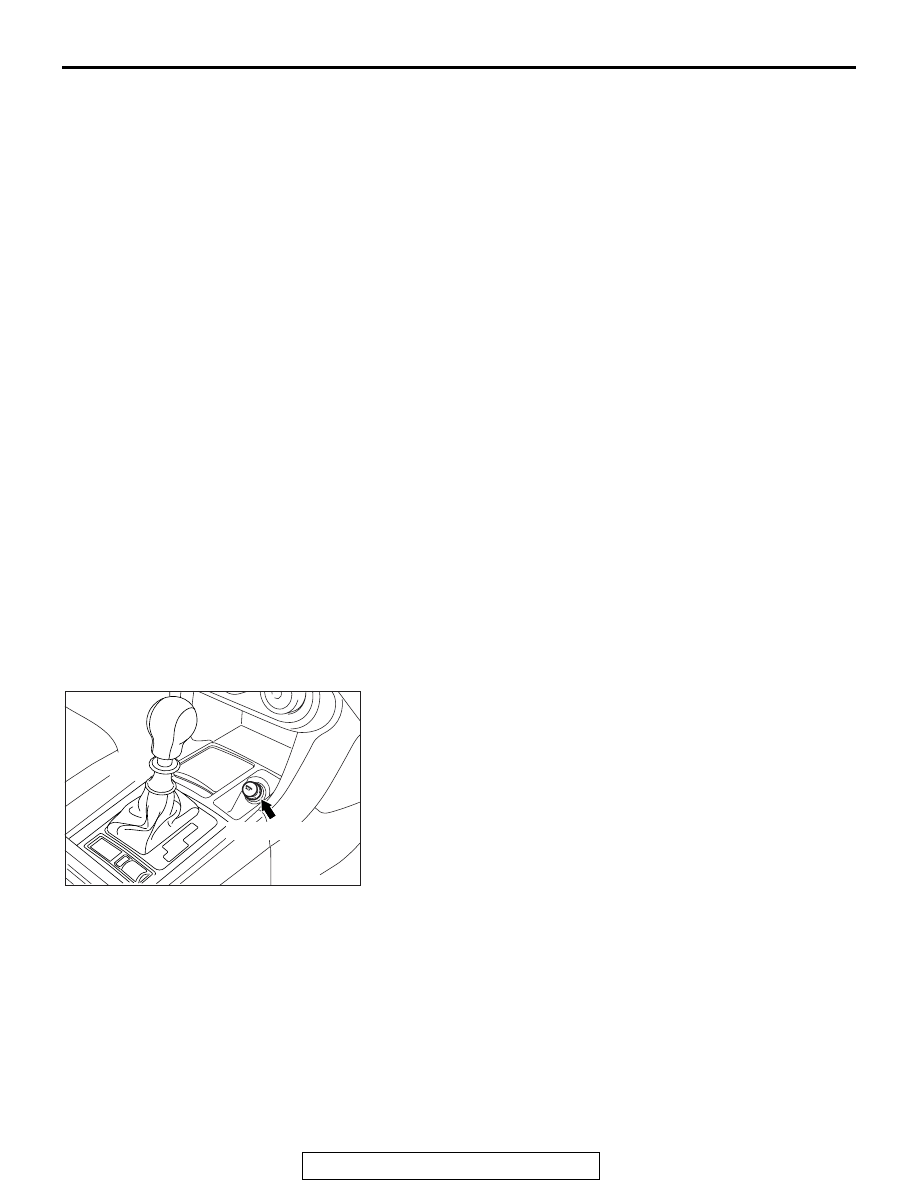

AC706142AB

Accessory socket

COLUMN SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-26

COLUMN SWITCH

GENERAL INFORMATION

M2546100200058

Column switch has a function to ensure the driver's
safety during frontal collision of vehicle.

FUNCTION

If the column switch is moved to the front of the vehi-
cle and hit on the instrument panel or meter bezel by
the frontal collision of vehicle, the steering wheel is
moved to the front of the vehicle because the right
and left levers fall down, ensuring the driver's safety.
In addition, the column switch secures the rigidity
that the levers do not fall down by the normal opera-
tion, however, it cannot be reused after the deforma-
tion.

AUDIO AND NAVIGATION SYSTEM

GENERAL INFORMATION

M2547000100079

• For Mitsubishi multi-communication system

(MMCS), the multivision display (7-inch liquid
crystal display of wide 2 DIN size) with hard disk
drive (30 gigabyte) is established.

• The audio and video adapter which allows

connection of audio-visual devices has been
established to the center tray.

• Two types of radio and CD player, or CD changer

built-in type radio and CD player have been
established.

• On the steering wheel spoke, the steering wheel

voice control switch and steering wheel audio
remote control switch are established.

• When the satellite radio tuner is equipped, the

SIRIUS

™ satellite radio broadcast becomes

available for listening.

• The hands-free cellular phone system has been

established.

• Using the combination of audio amplifier and

9-speaker 7-position system, Rockford Fosgate

premium sound system has been adopted.

• For vehicles with 9-speaker 7-position system,

seven speakers (4 speakers, 2 tweeters, 1 sub-
woofer) are arranged at optimum positions.

• The pole antenna has been adopted for the radio.

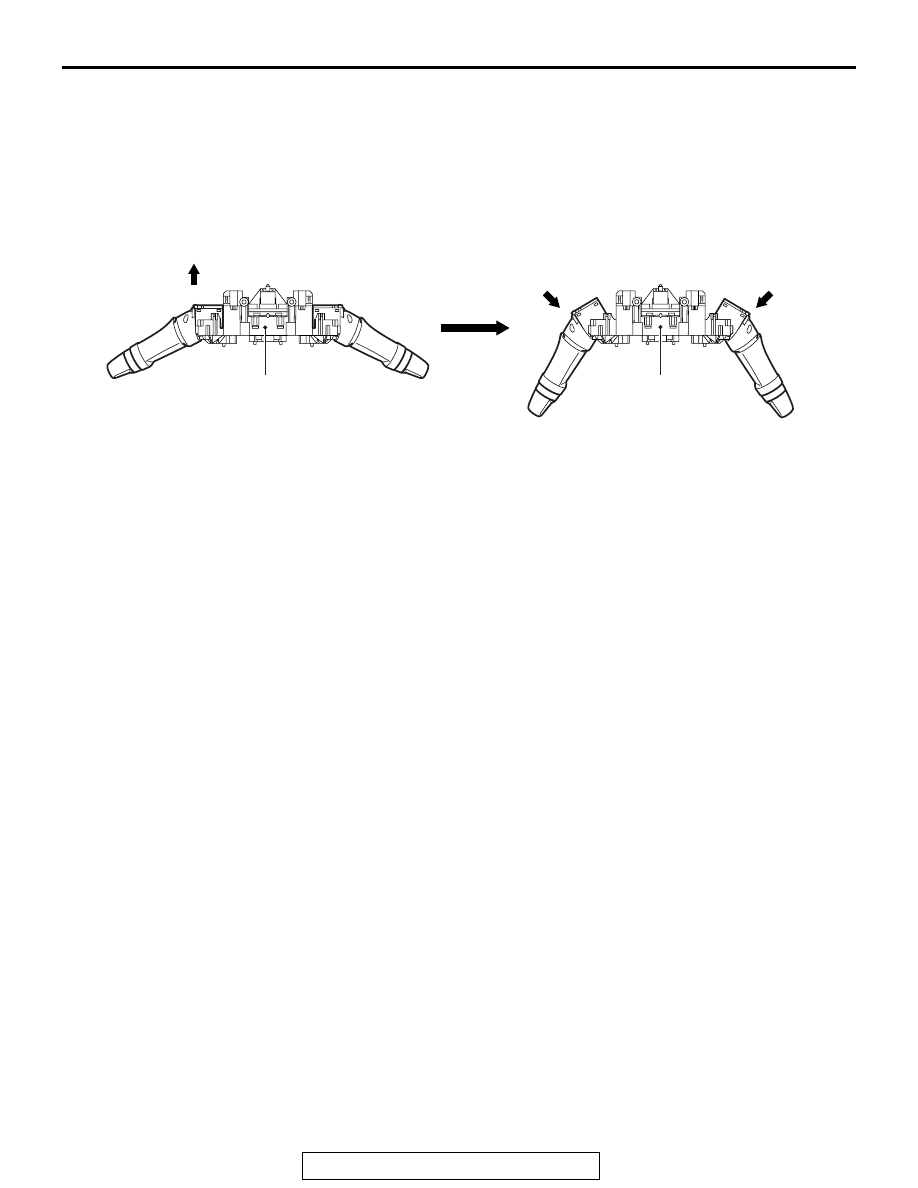

AC603959 AB

Collision load

Column switch

Front of vehicle
