Mitsubishi Evolution X. Manual - part 104





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-19

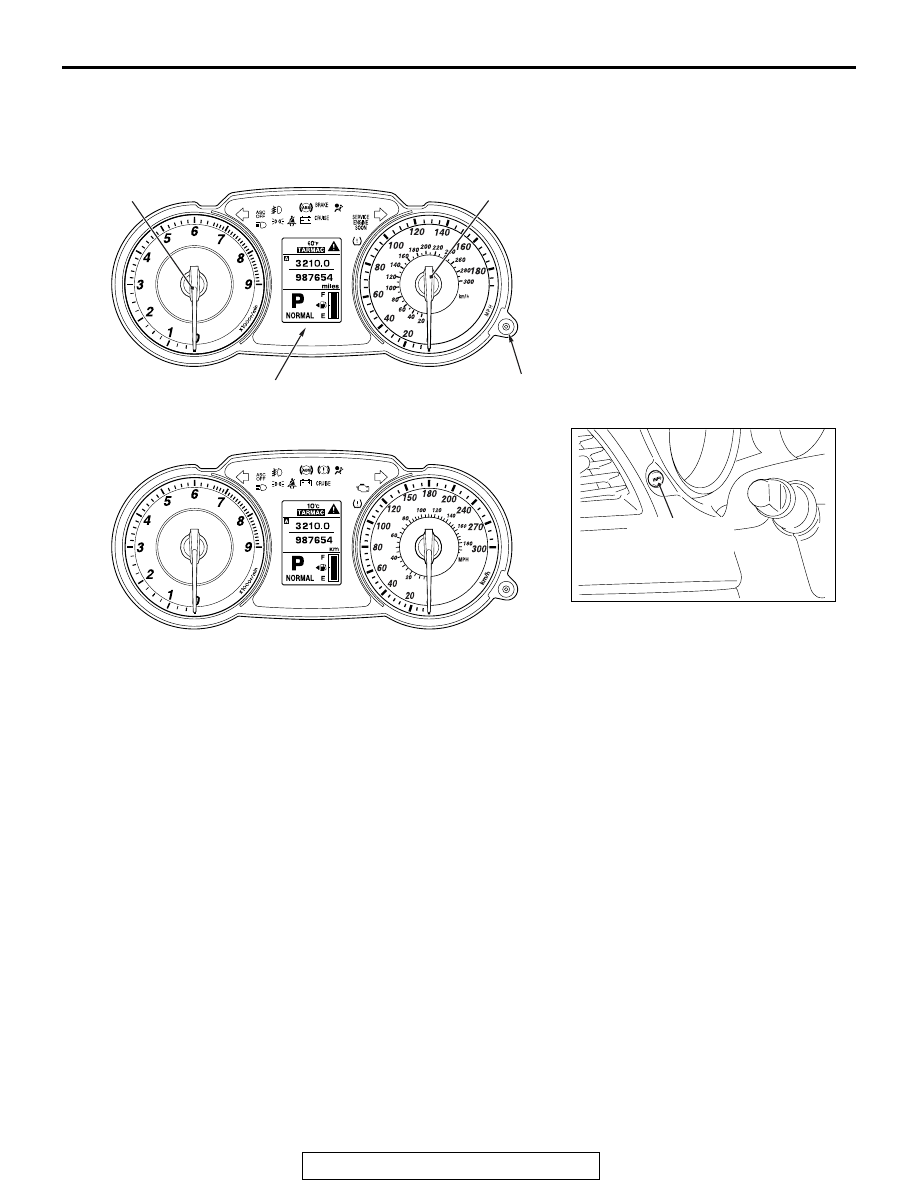

CONSTRUCTION DIAGRAM

AC708965

<Vehicles for USA>

<Vehicles for CANADA>

Rheostat switch

Multi information display

Tachometer

Speedometer

AB

Multi information
meter switch

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-20

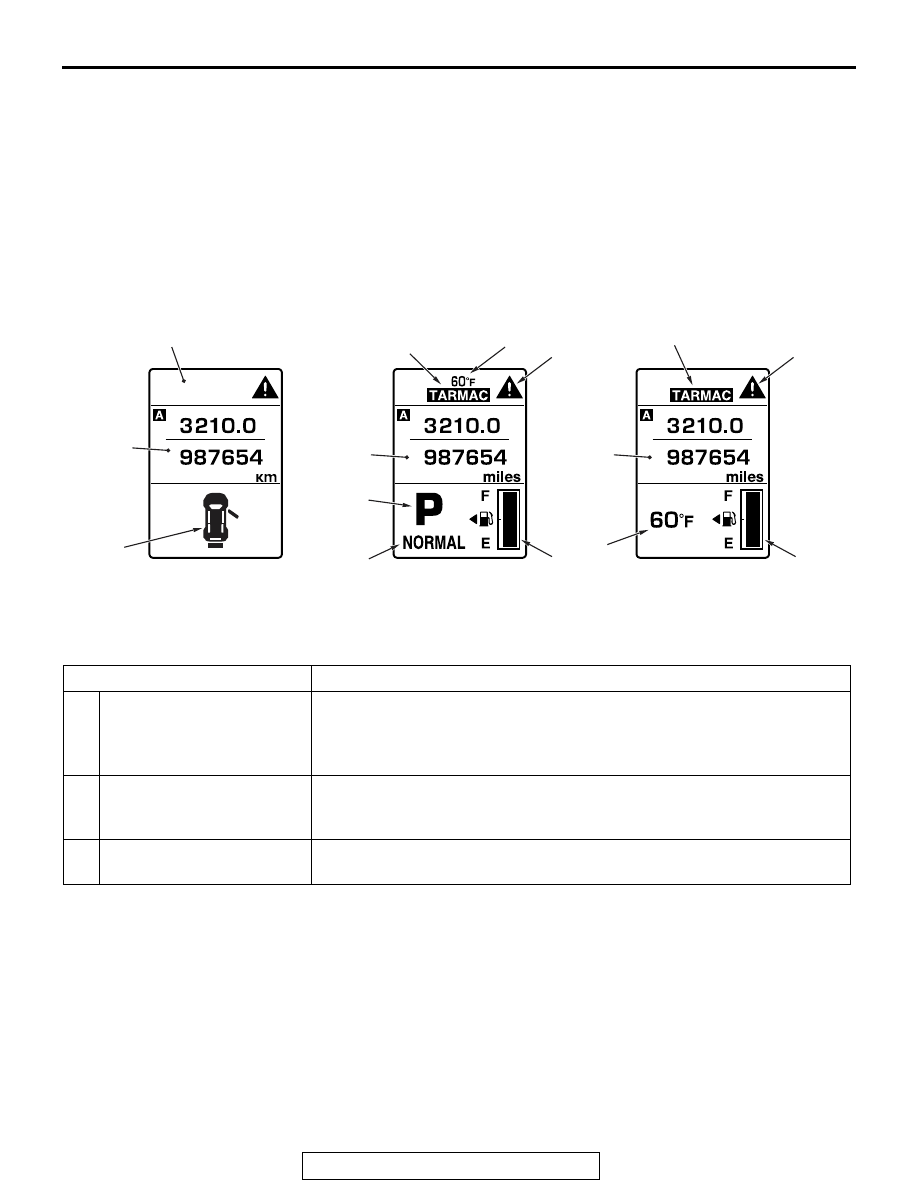

MULTI INFORMATION DISPLAY

M2545500500195

The multi information display can display the follow-
ing items: Warnings, odometer and trip meter, ser-
vice reminder information, engine coolant
temperature, remaining fuel amount, ambient tem-
perature, TC-SST control mode <TC-SST>, S-AWC
or ACD control mode, shift lever position <TC-SST>,
average and instantaneous fuel consumption, possi-

ble cruising distance, average vehicle speed, S-AWC
control level display, meter illuminance, and others.
Displayed contents can be switched by operating the
multi information meter switch. Also, the displayed
language or unit on the multi information display can
be changed from the function setting screen.

WHEN THE IGNITION SWITCH IS LOCK (OFF) POSITION (DISPLAYED WHEN ANY OF THE DOORS IS
OPENED OR WHEN THE MULTI INFORMATION METER SWITCH IS OPERATED.)

Item

Content

1

Caution mark display
screen

When warnings are displayed on the interrupt display screen, pressing
the meter information switch turns off the warning display and displays
the caution mark. Caution mark is displayed also when two or more
alarms occur simultaneously.

2

Information screen/interrupt
display screen

The odometer and trip meter or service reminder information will be
displayed. Also, appropriate contents are displayed when a warning is
issued.

3

Door-ajar warning display
screen

Displays the door or trunk lid that is open.

AC708969

<TC-SST>

<M/T>

AB

1

2

3

4

5

6

4

6

7

8

9

10

7

5

10

When the ignition switch is LOCK (OFF) position

When the ignition switch is ON position

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-21

WHEN THE IGNITION SWITCH IS ON POSITION

SERVICE REMINDER FUNCTION

Displays the periodic inspection timing based on the
predetermined schedule. With the inspection timing
coming up (warning start point of the warning criteria
is achieved), when the ignition switch is turned to ON
position, the service reminder function displays
"PERIODIC INSPECTION" for 4 seconds to inform
the inspection timing. When the "PERIODIC
INSPECTION" achieves the warning end point of
warning criteria, it will be turned off by the scan tool
MB991958 special function or the multi information
meter switch special operation

*

.

NOTE: The service reminder function is disabled at
shipment. If any of the following conditions is met,
the function becomes available. When delivering the
vehicle to the customer, enable the service reminder
function, and check that the schedule is "NAS 20".

.

The ignition switch is turned to "ON" while press-
ing the multi information meter switch.

The driving distance of the odometer reaches
100 km or 60 miles.

NOTE: Using the scan tool MB991958 special func-
tions or the multi information meter switch special
operation

*

, the schedule can be changed and the

service reminder function can be made unavailable.
NOTE:

*

: For details about the multi information

meter switch special operation, refer to the Service
Manual.

Item

Content

4

S-AWC control mode/ACD

control mode display

screen

Displays the S-AWC or ACD control mode.

5

Outside temperature
display screen

Displays the ambient temperature.

6

Caution mark display
screen

When warnings are displayed on the information screen, pressing the

meter information switch turns off the warning display and displays the

caution mark. Caution mark is displayed also when two or more alarms

occur simultaneously.

7

Information screen/interrupt
display screen

• A screen changes in following order by operating multi information

meter switch.
1. Odometer/trip odometer A (Trip meter is reset when the switch is

pressed and held.)

2. Odometer/trip odometer B (Trip meter is reset when the switch is

pressed and held.)

3. Service reminder (when service reminder function is effective)
4. Engine coolant temperature display
5. Possible cruising distance display
6. Average fuel efficiency, average vehicle speed, instantaneous fuel

consumption

7. S-AWC control level display
8. Function setting screen (Screen shifts to the setting screen when

the switch is pressed and held.)

9. Redisplay of a warning display screen (When warning is issued.)

•  Also, appropriate contents are displayed when a warning is issued.

8

Shift lever position display
screen

Displays the shift lever and gear position.<TC-SST>

9

TC-SST control mode
display screen

Displays the TC-SST control mode operating status.<TC-SST>

10 Fuel remaining display

screen

Displays the remaining fuel amount.

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-22

SCHEDULE TABLE

NOTE: For schedule, "JPN", "GCC", "EU" and "AUS"
can also be selected. However, the using shall be for
"NAS" only.

WARNING CRITERIA (WARNING START AND END POINTS)

Schedule

Contents of schedule

NAS 10

Elapsed time (month)

Every 6 elapsed months

Driving distance (miles)

Every 7,500 miles of driving distance

Driving distance (km)

Every 12,000 km of driving distance

NAS 11

Elapsed time (month)

Every 3 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

Driving distance (km)

Every 6,000 km of driving distance

NAS 20 (initial
setting)

Elapsed time (month)

Every 5 elapsed months

Driving distance (miles)

Every 5,000 miles of driving distance

Driving distance (km)

Every 8,000 km of driving distance

NAS 21

Elapsed time (month)

Every 4 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

Driving distance (km)

Every 6,000 km of driving distance

Optional INT

The optional schedule can be set. (Only scan tool can be set.)

OFF Display

Without function. "OFF" is displayed on the odometer/tripmeter.

Function OFF

Without function (Only scan tool can be set.)

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning start
point

Warning end
point

Warning start
point

Warning end
point

Warning start
point

Warning end
point

− 15 days

+15 days

− 500 km

+500 km

− 300 miles

+300 miles
