SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-545

DTC U0151: SRS-ABG CAN timeout

CAUTION

• If DTC U0151 is set, be sure to diagnose the

CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from SRS-ECU cannot be received, the
satellite radio tuner sets DTC U0151.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

−16 volts (data from

ETACS-ECU), power supply fuse is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nication with SRS-ECU cannot be established for
2,500 ms or more, the satellite radio tuner deter-
mines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The satellite radio tuner may be defective

• The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-537

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

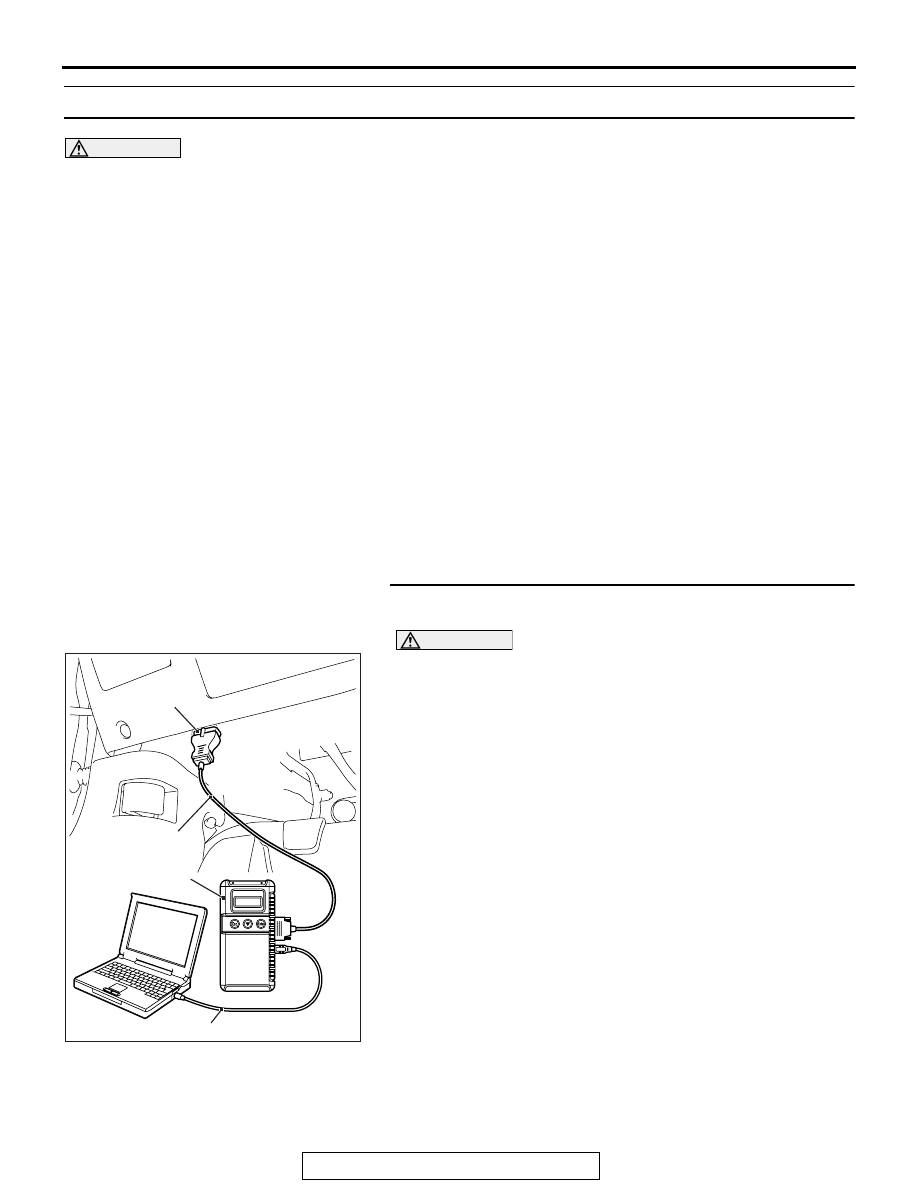

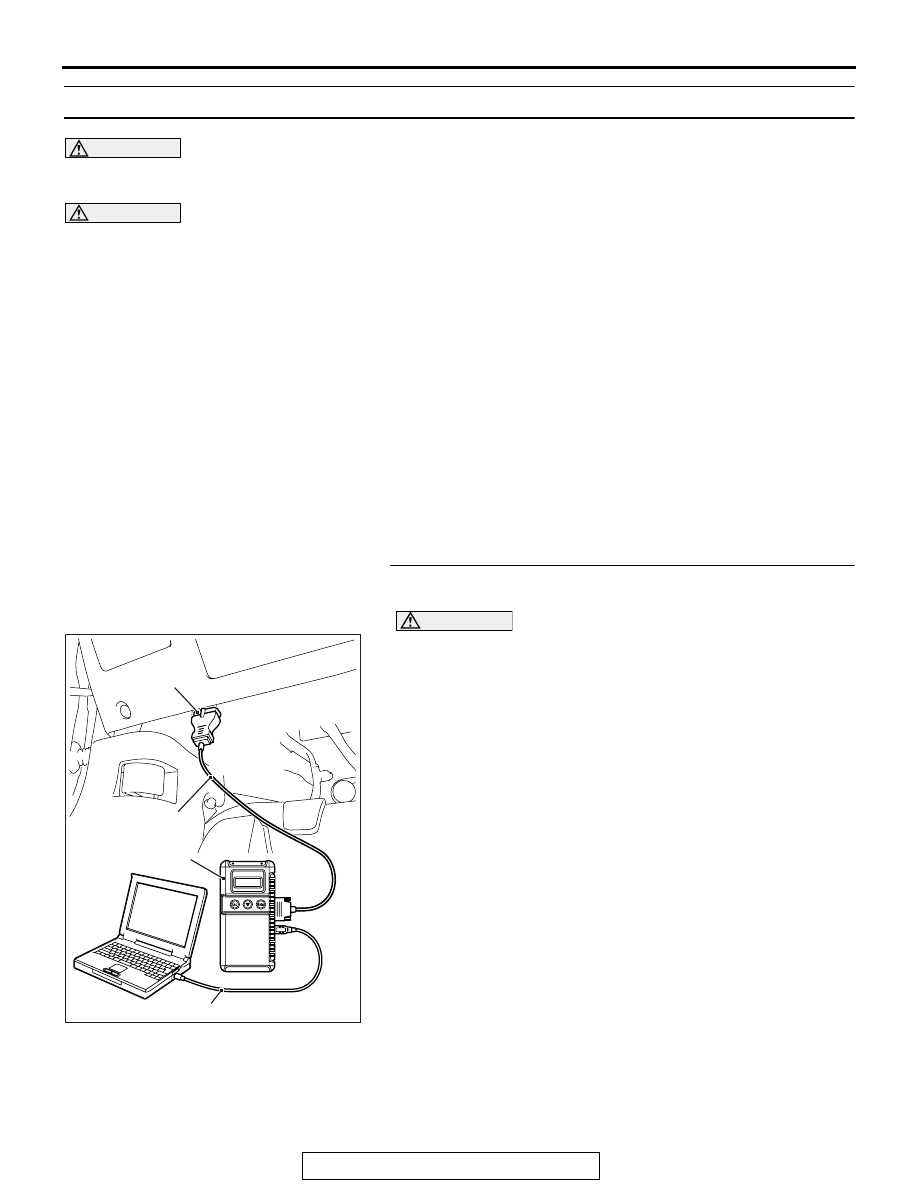

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-546

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code
Check again if the DTC is set to the SRS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the SRS (Refer to GROUP 52B,

Troubleshooting

P.52B-31

).

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the satellite radio tuner.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

DTC U0154: OCM CAN timeout

CAUTION

If DTC U0154 is set, be sure to diagnose the CAN
bus line.

CAUTION

When replacing the ECU, always check that the
communication circuit is normal.

.

DIAGNOSTIC FUNCTION

When the signals from occupant classification-ECU
cannot be received, the satellite radio tuner sets DTC
U0154.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nications with occupant classification-ECU cannot be
established for 2,500 ms or more, the satellite radio
tuner determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective.

• The satellite radio tuner may be defective.

• The occupant classification-ECU may be defec-

tive.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-547

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-537

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 2. Using scan tool MB991958, read the occupant
classification-ECU diagnostic trouble code.
Check if DTC is set to the occupant classification-ECU.
Q: Is the DTC set?

YES : Troubleshoot the SRS (Refer to GROUP 52B,

Diagnosis

P.52B-297

).

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the satellite radio tuner.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-548

DTC U0155: Meter CAN timeout

CAUTION

If DTC U0155 is set in the satellite radio tuner,
diagnose the CAN main bus line.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

DIAGNOSTIC FUNCTION

When the signals from combination meter cannot be
received, the satellite radio tuner sets DTC U0155.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse is OK, or odometer
value is 80.5 km (50 miles) or more, and the commu-
nications with combination meter cannot be estab-
lished for 2,500 ms or more, the satellite radio tuner
determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective.

• The satellite radio tuner may be defective.

• The combination meter may be defective.

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-537

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
