SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-537

DIAGNOSIS

INTRODUCTION TO SATELLITE RADIO
DIAGNOSIS

M1544004700361

ERROR CODE (SIRIUS SATELLITE RADIO)

The display displays the error codes if an abnormality related to
the satellite radio is detected. (Refer to

P.54A-283

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1544016500041

Refer to GROUP 00, Troubleshooting contents

P.00-7

DIAGNOSIS FUNCTION

M1544013200193

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

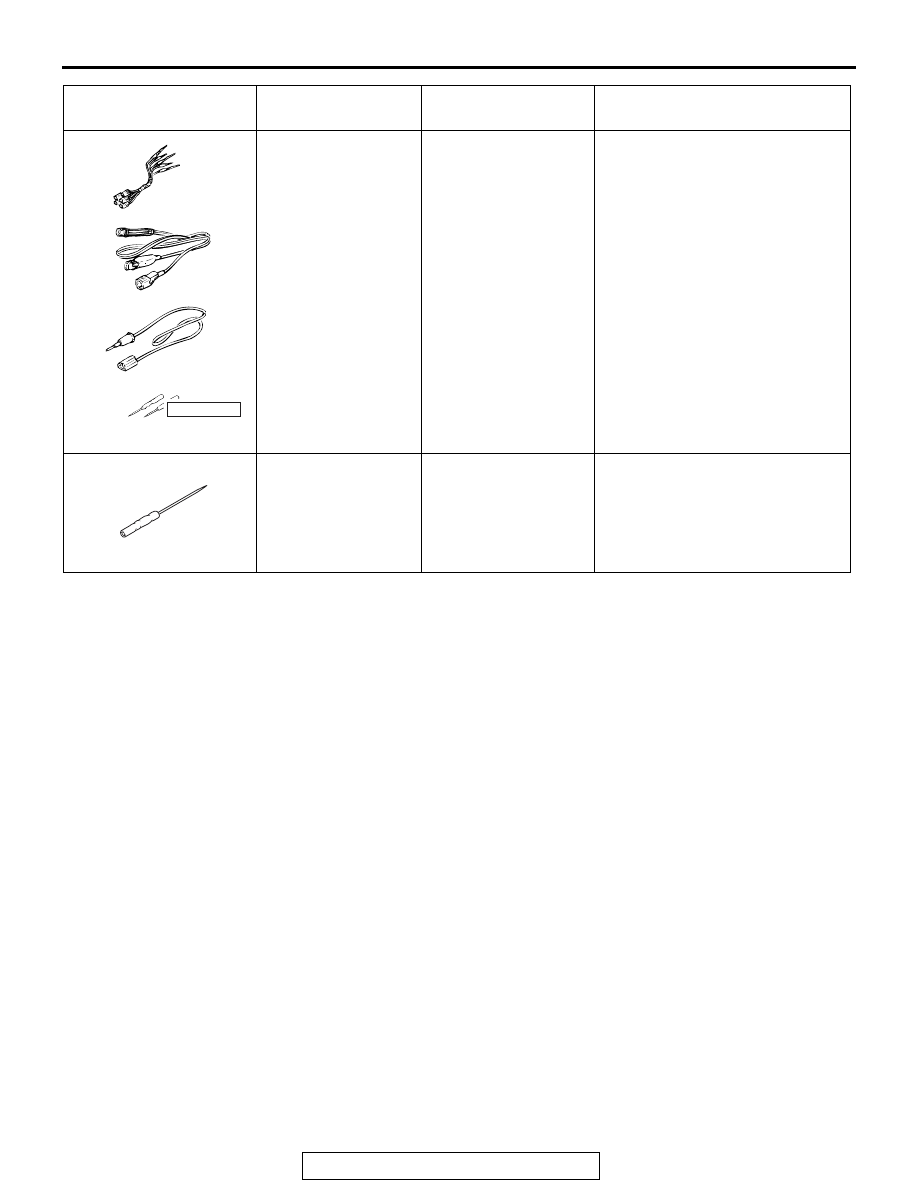

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

General service tool
(jumper)

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector

Tool

Tool number and
name

Supersession

Application

MB991223

DO NOT USE

MB992006

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-538

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

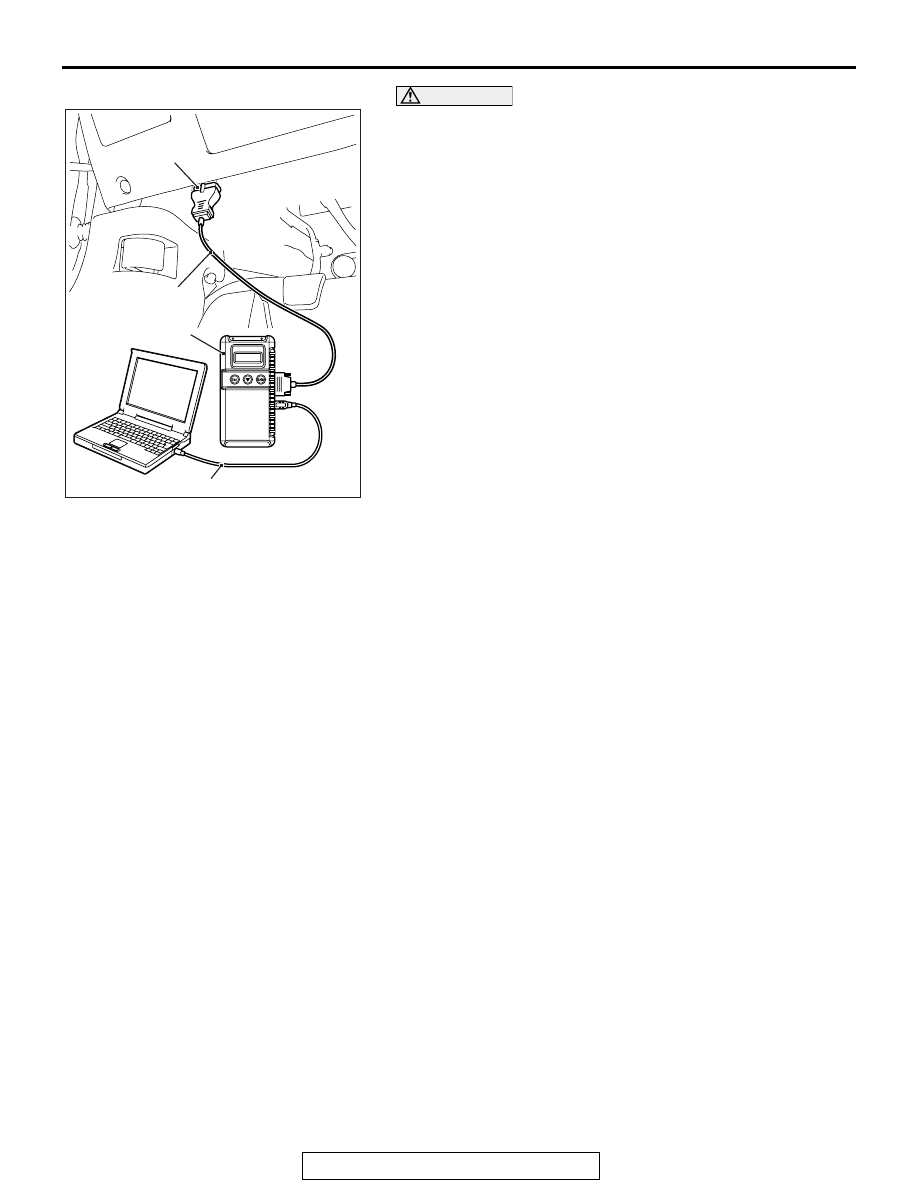

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the scan tool system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "Meter" from "System List," and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code."
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

AC608435

Data link connector

MB991827

MB991824

MB991910

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-539

HOW TO DIAGNOSE THE CAN BUS LINES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again

that it matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

8. Select the "OK" button.
9. When the optional equipment screen is displayed, choose

the one which the vehicle is fitted with, and then select the
"OK" button.

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using scan
tool MB991958.

When detecting fault and storing the diagnostic trou-
ble code, the ECU connected to CAN bus line
obtains the data before the determination of the diag-
nostic trouble code and the data when the diagnostic
trouble code is determined, and then stores the ECU
status of that time. By analyzing each data from scan
tool MB991958, the troubleshooting can be per-
formed more efficiently. The displayed items are as
the table below.

Display item list

Item No.

Item name

Data item

Unit

Odometer

Total driving distance after the diagnostic trouble
code is generated

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

Accumulated minute Cumulative time for current malfunction of

diagnostic trouble code

min

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-540

DIAGNOSTIC TROUBLE CODE CHART

M1544012900229

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B2222: Radio receiver internal fail

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, always diagnose the CAN
bus lines.

CAUTION

Before replacing the satellite radio tuner, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

TROUBLE JUDGMENT

When the ignition switch is ON and the system volt-
age is from 10 V to 16 V (data from ETACS-ECU), if
the satellite radio tuner receives abnormal status by
signal conditioning 10 times consecutively, DTC
B2222 is stored.

COMMENTS ON TROUBLE SYMPTOM

The satellite radio tuner or CAN bus line may have a
problem.

PROBABLE CAUSES

• The satellite radio tuner may be defective.

• The CAN bus line may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)
