STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-529

STEP 2. Check clock spring connector C-202 and C-205 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are clock spring connector C-202 and C-205 in good

condition?
YES :
Go to Step 3.
NO :  Repair or replace the damaged component (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). The steering wheel audio remote control

switch should work normally.

STEP 3. Check the clock spring.
Check whether the clock spring is in good condition (Refer to
GROUP 52B, Driver’s air bag module and clock spring

P.52B-392

).

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the clock spring.

STEP 4. Check multivision display connector C-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multivision display connector C-10 in good

condition?
YES :
Go to Step 5.
NO :  Repair or replace the damaged component (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). The steering wheel audio remote control

switch should work normally.

STEP 5. Check the wiring harness between multivision
display connector C-10 (terminal 43, 59) and clock spring
connector C-205 (terminal 2, 3).
NOTE: Also check intermediate connector C-108, C-32 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-108, C-32 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

• Check the communication lines for open or short circuit.

Q: Is the wiring harness between multivision display

connector C-10 (terminal 43, 59) and clock spring
connector C-205 (terminal 2, 3) in good condition?
YES :
Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-530

STEP 6. Check steering wheel audio remote control switch
connector C-213 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Is steering wheel audio remote control switch

connector C-213 in good condition?
YES :
Go to Step 7.
NO :  Repair or replace the damaged component (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). The steering wheel audio remote control

switch should work normally.

STEP 7. Check the wiring harness between steering wheel
audio remote control switch connector C-213 (terminal 2,
4) and clock spring connector C-202 (terminal 5, 4).

• Check the communication lines for open or short circuit.

Q: Is the wiring harness between steering wheel audio

remote control switch connector C-213 (terminal 2, 4)
and clock spring connector C-202 (terminal 5, 4) in good
condition?
YES :
Go to Step 8.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 8. Retest the system
Check whether you can operate the multivision display by
using the steering remote control.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the multivision display.

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-531

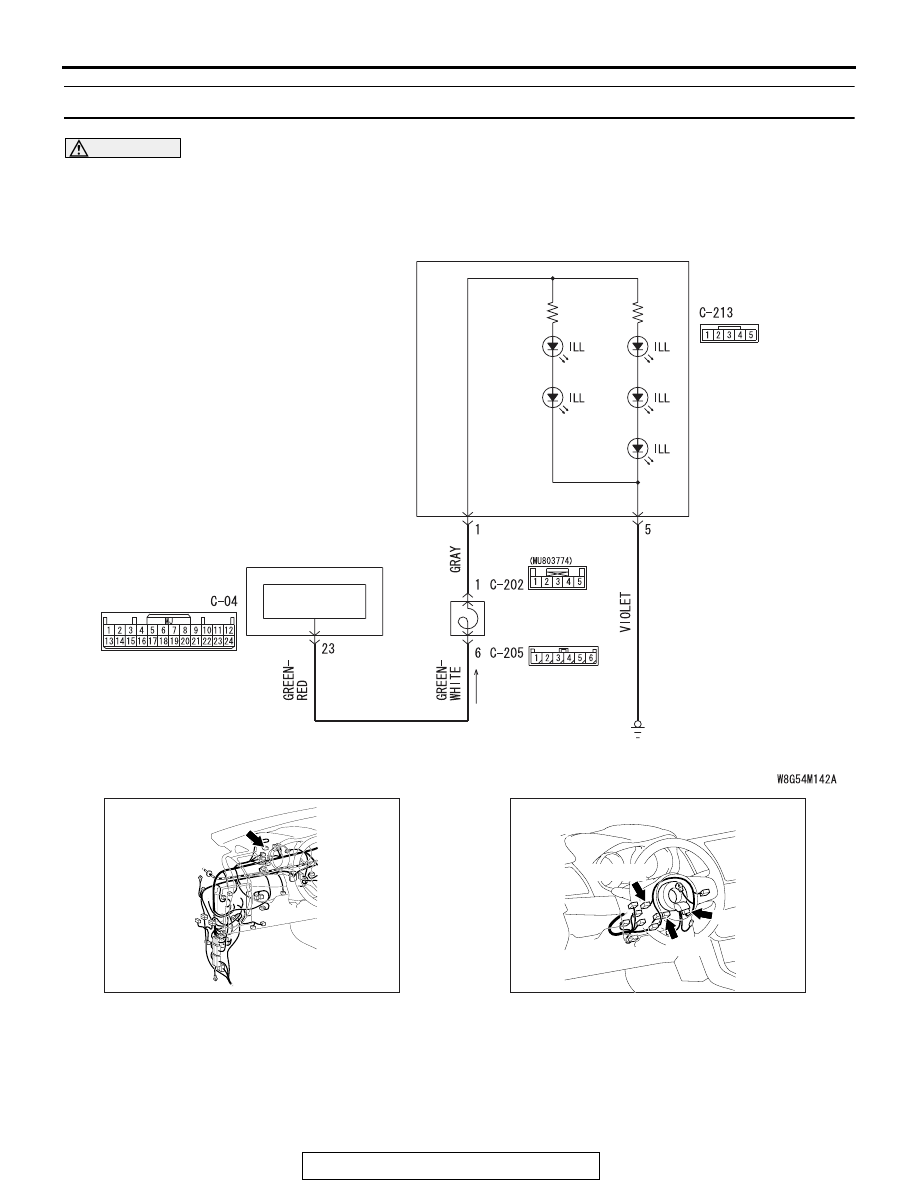

Inspection Procedure 3: Steering wheel audio remote control switch illumination does not come on.

CAUTION

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communi-
cation circuit are normal.

.

Steering Wheel Audio Remote Control Switch Illumination Circuit

CLOCK
SPRING

INTERFACE
CIRCUIT

COMBINATION
METER

STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH

AC708950

Connector: C-04

AR

AC708953AF

Connectors: C-202, C-205, C-213

C-205

C-202

C-213 (R)

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-532

TECHNICAL DESCRIPTION (COMMENT)

The power supply circuit to the steering wheel audio
remote control switch, the steering wheel audio
remote control switch, the combination meter, or the
clock spring may be defective.

.

TROUBLESHOOTING HINTS

• The steering wheel audio remote control switch

may be defective.

• The clock spring may be defective.

• Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

STEP 1. Check the combination metre.
Check whether the combination meter works normally.
Q: Does the combination meter operate normally?

YES : Go to Step 2.
NO :  Diagnose the combination meter (Refer to

P.54A-28

).

STEP 2. Check steering wheel audio remote control switch
connector C-213 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Is steering wheel audio remote control switch

connector C-213 in good condition?
YES :
Go to Step 3.
NO :  Repair or replace the damaged component (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

).

STEP 3. Check the wiring harness between steering wheel
audio remote control switch connector C-213 (terminal 5)
and ground.

• Check the ground wire.

Q: Is the wiring harness between steering wheel audio

remote control switch connector C-213 (terminal 5) and
ground in good condition?
YES :
Go to Step 4.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 4. Check clock spring connectors C-202 and C-205
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are clock spring connectors C-202 and C-205 in good

condition?
YES :
Go to Step 5.
NO :  Repair or replace the damaged component (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

).
