HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-517

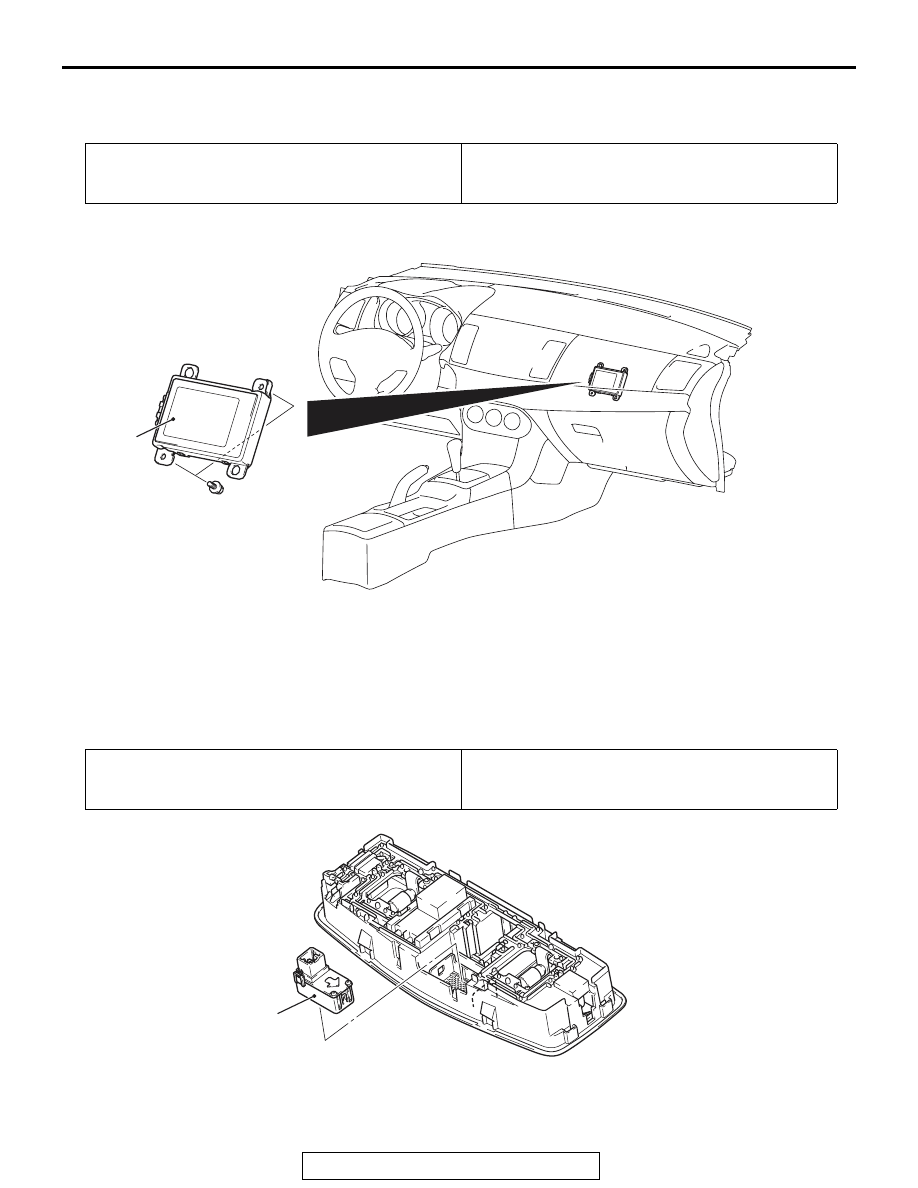

REMOVAL AND INSTALLATION

M1544401000112

HANDS FREE MODULE

MICROPHONE UNIT

Pre-removal operation
• Removal of glove box upper cover (Refer to GROUP 52A

− Glove Box Assembly

P.52A-6

.)

Post-installation operation
• Installation of glove box upper cover (Refer to GROUP

52A

− Glove Box Assembly

P.52A-6

.)

AC709148

1

AB

Hands Free Module Removal
Step

1.

Hands free module

Pre-removal operation
• Removal of front dome light assembly (Refer to GROUP

54A

− Dome light

P.54A-259

)

Post-installation operation
• Installation of front dome light assembly (Refer to GROUP

54A

− Dome light

P.54A-259

)

AC606269

ZC6027270000

1

AB

Microphone Unit Removal Step

1.

Microphone unit

HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-518

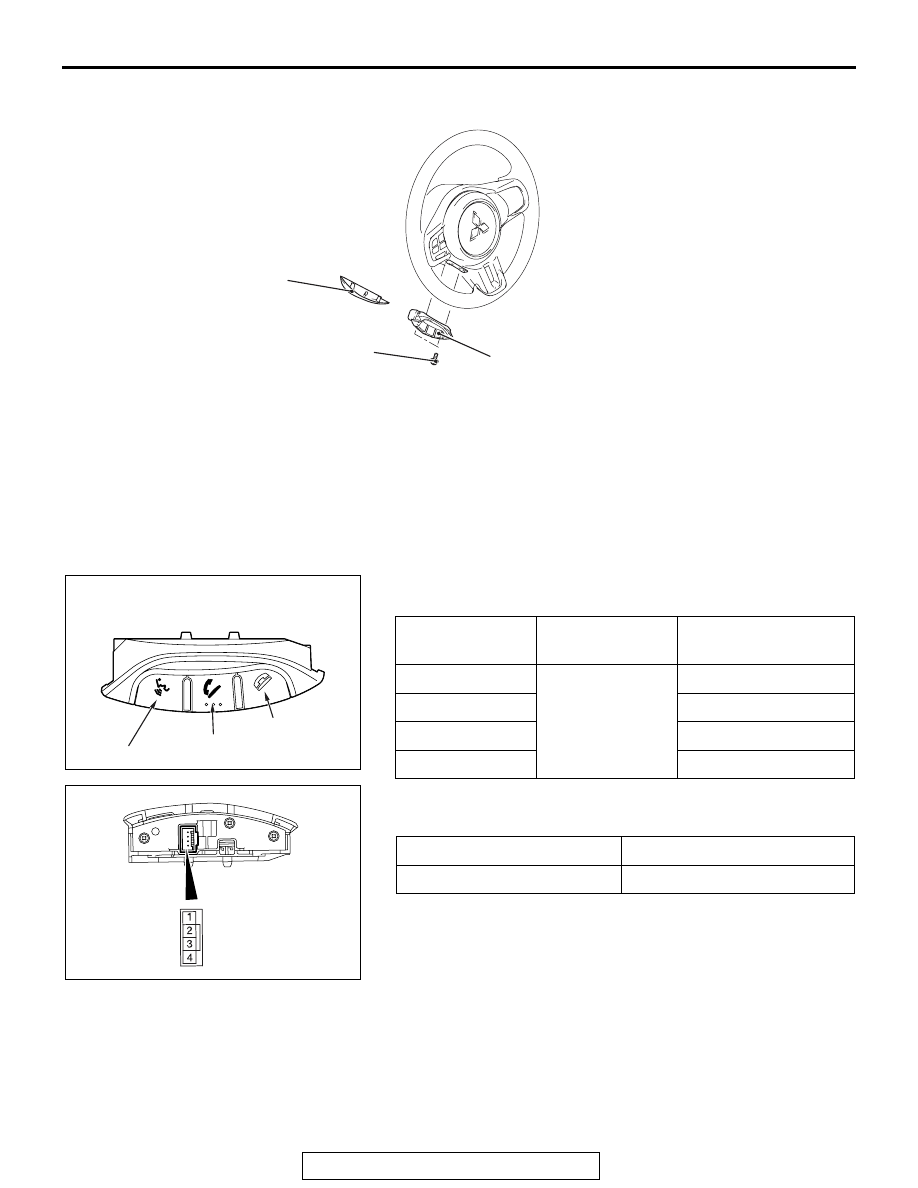

STEERING WHEEL VOICE CONTROL SWITCH

STEERING WHEEL VOICE CONTROL SWITCH
CONTINUITY CHECK

M1544401100108

Use an ohmmeter to measure the resistance value between the
terminal.

Checks whether there is a continuity between terminal No.4
and 1.

AC709152

1

2.5 ± 0.5 N·m
23 ± 4 in-lb

AB

2

Steering Wheel Voice Control
Switch Removal Step

1.

Steering wheel voice control switch
cover

2.

Steering wheel voice control switch

Switch position

Tester
connection

Measurement value

No push

2

− 3

Approximately 74 k

Ω

"Speech" switch

Approximately 1.5 k

Ω

"Pick-up" switch

Approximately 3.3 k

Ω

"Hang-up" switch

Approximately 6.0 k

Ω

Tester connection

Specified condition

4

− 1

Continuity exists (2

Ω or less)

AC705504

“Speech" switch

“Pick-up" switch

“Hang-up" switch

AC706169

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-519

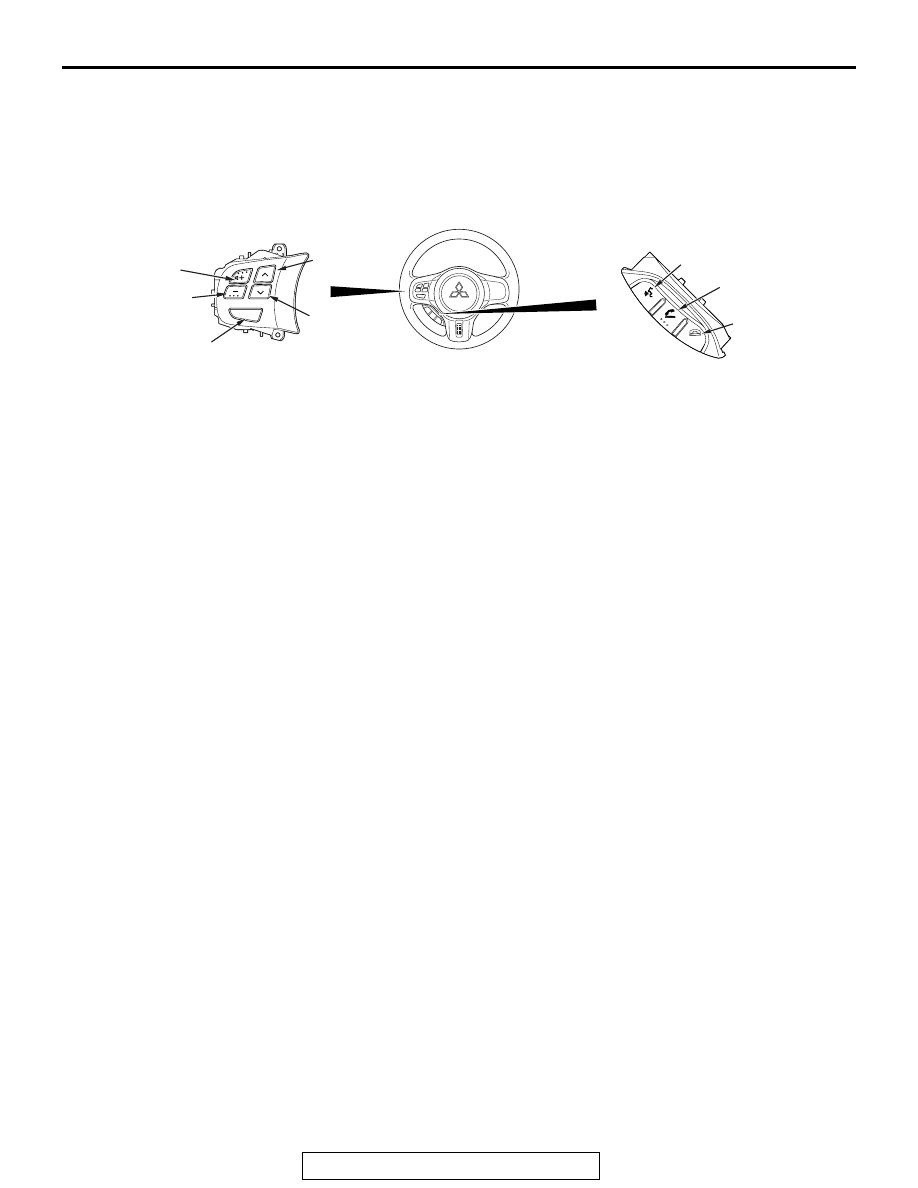

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

GENERAL INFORMATION

M1544000100419

On the steering wheel spoke, the steering wheel
audio remote control switch and steering wheel voice
control switch have been established.

.

STEERING WHEEL AUDIO REMOTE
CONTROL SWITCH

With the steering wheel audio remote control switch,
the sound volume adjustment, mode changeover,
CD track up/down and other operation of multivision
display, radio, and CD player are available.

.

STEERING WHEEL VOICE CONTROL
SWITCH

With the steering wheel voice control switch, the
hands free cellular phone system can be oper-
ated.(Refer to

P.54A-455

.)

AC705510AB

MODE

<Steering wheel audio remote control switch>

“VOL up” switch

“CH up”
switch

“CH down”
switch

“Mode” switch

“VOL down”
switch

“Speech”
 switch

“Pick-up”
 switch

“Hang-up”
 switch

<Steering wheel voice control switch>



STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-520

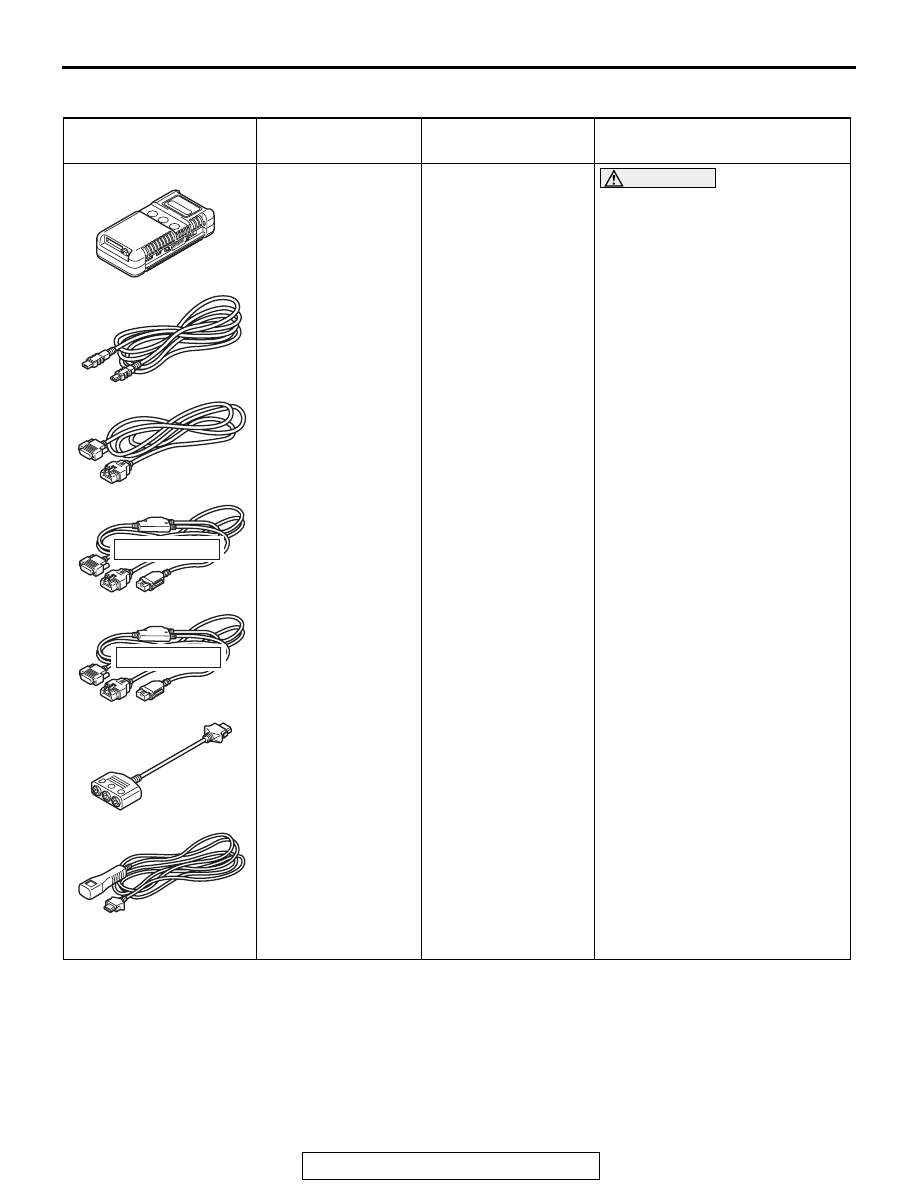

SPECIAL TOOLS

M1544000600566

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics or data list
check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE
