HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-513

STEP 3. Check the wiring harness between hands-free
module connector C-11 (terminal 15) and ground.

• Check the ground wires for open circuit.

Q: Is the wiring harness between hands free module

connector C-11 (terminal 15) and ground in good
condition?
YES : Replace the hands free module. The system should

communicate with the hands free module normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 4. Check the wiring harness between hands free
module connector C-11 (terminal 13) and fusible link (36).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check ETACS-ECU connectors C-307 and C-317
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connector C-307 or
C-317 is damaged, repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between hands-free module

connector C-11 (terminal 13) and fusible link (36) in
good condition?
YES : Replace the hands free module. The system should

communicate with the hands free module normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

ON-VEHICLE SERVICE

PAIRING A CELLULAR PHONE OR DELETING A PHONE

M1544403700010

NOTE:

.

•

Several Bluetooth

™

 cellular phones may not be

compatible with the hands free-ECU

•

A maximum of seven Bluetooth

™

cellular phones

can be registered.

•

 The hands free cellular phone system can not be
used when a battery of Bluetooth

™

cellular phone

was exhausted.

HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-514

PAIRING A CELLULAR PHONE

.

1. Shift the selector lever to "P" (parking) position <TC-SST> or

shift lever to "N" (neutral) position <M/T> and pull the
parking brake lever.

2. Turn the ignition switch to "ACC" or "ON" position.
3. Press the "Speech" switch.
4. Say "Setup."
5. Say "Pairing options."
6. The voice guide will say "Do you want to Pair a phone,

delete a phone or list paired phones?"

7. Say “Pair a phone.”
8. The voice guide will say "Please say a 4-digit pin number."
9. Say a 4 digit number. The 4 digit number will be registered

as a pin number for the phone.

• When the confirmation function is on, the system will con-

firm whether the number said is acceptable. Answer "Yes"
to go Step 10. Say "No" to return to pin number selection.

NOTE:

.

•

The pin number entered here is only used for the Blue-
tooth

™

 connection certification. It is any 4-digit number

the user would like to select.

•

Remember the pin number as it needs to be keyed into
the phone later in the pairing process.

•

Depending on the selected Bluetooth

™

 connection set-

tings, entry of the paring code may be required each time
the Bluetooth

™

 cellular phone attempts to connect to the

hands free cellular phone system. Refer to your cellular
phone owner's manual for connection defaults and set-
tings.

10.The voice guide will say “Start pairing procedure on phone.

See phone’s manual for instructions.” Refer to the owner’s
manual for your cellular phone and enter into the phone the
pin number that was registered in Step 9.

11.When the hands free cellular phone system finds a

Bluetooth

™ cellular phone, the voice guide will say "Please

say the name of the phone after the beep."

12.After you hear the beep, name the phone by saying a name

of your preference.
NOTE:

.

•

When the hands free cellular phone system cannot rec-
ognize the Bluetooth

™

 cellular phone, the pairing pro-

cess will end and the system will beep and then return to
normal status.

•

Try the pairing process again after reconfirming whether
or not the Hands free cellular phone system supports
your Bluetooth

™

 compatible cellular phone.

13.The voice guide will say "Assign a priority level between 1

and 7. 1 is the highest priority."

14.Say a number between 1 and 7 to set a priority level for the

cellular phone.

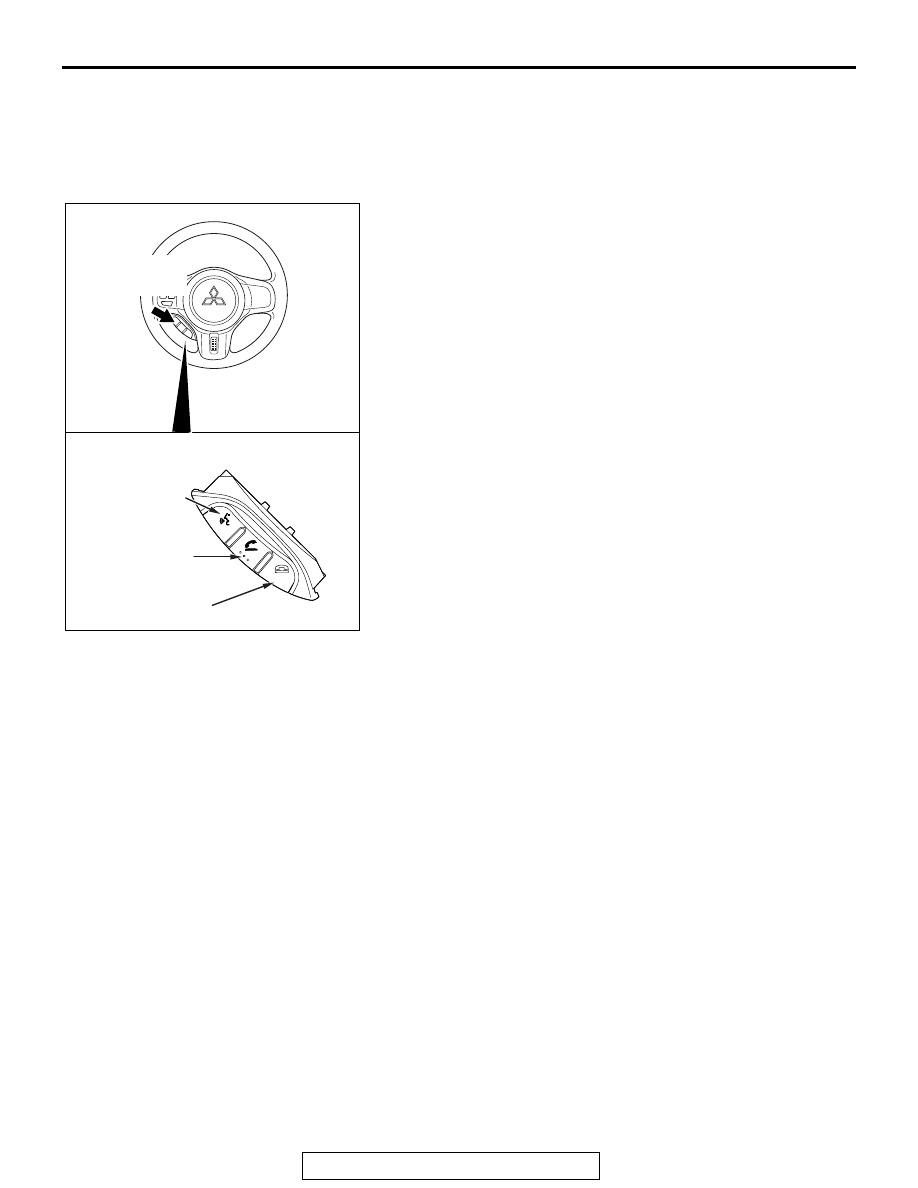

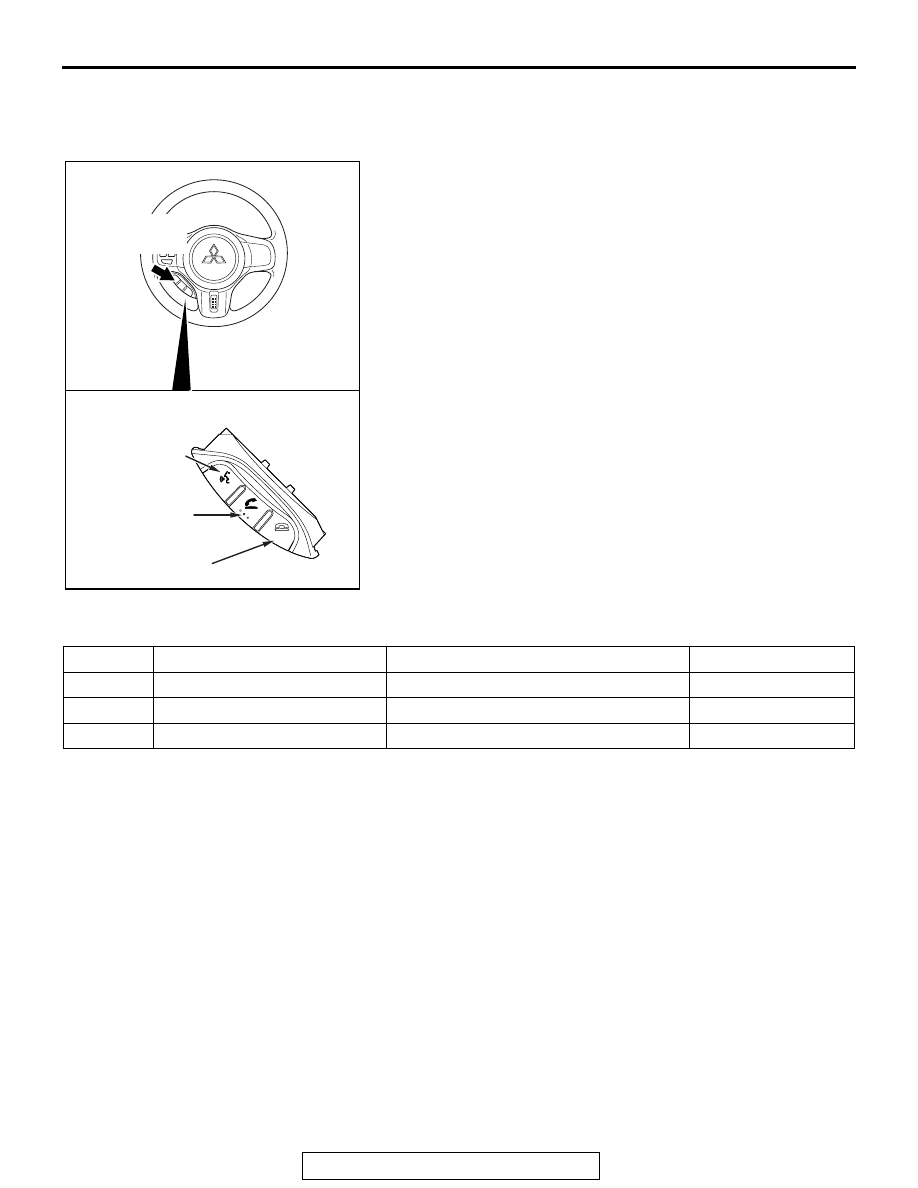

AC709135

“Speech”
 switch

“Pick-up”
 switch

“Hang-up”
 switch



Steering
voice control
switch

 wheel



HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-515

• If you selected a priority level that has already been set for

a different phone, the hands free cellular phone system will
ask you whether you wish to overwrite that priority level. To
overwrite the priority level, answer "Yes." Answer "No" to
return to the priority level selection in Step 13.

15.After the voice guide says "<phone tag> set to priority

<priority>," the hands free cellular phone system will start
the pairing process. Wait a moment for the pairing process
to complete.

• When the confirmation function is "ON", the hands free cel-

lular phone system will confirm the assigned phone name
and priority again. Answer "Yes" to go to next step, or
answer "No" to return to the priority level selection in Step
13.

16.When the pairing process is completed, the voice guide will

say "Pairing Complete." The hands free cellular phone
system will then beep and the voice recognition mode will be
deactivated.

DELETING A PHONE

1. Turn the ignition switch to "ACC" or "ON" position.
2. Press the "Speech" switch.
3. Say “Setup.”
4. Say “Pairing options”
5. The voice guide will say “Do you want to Pair a phone,

delete a phone or list paired phones?”

6. Say “Delete a phone.”
7. After the voice guide says "Please say," it will read out each

priority number and phone name pair in order, starting with
the phone that has the highest priority level (from 1 to 7).
After it completes reading all pairs, the voice guide will say
"or all."

8. Say the priority number of the phone that you want to delete

from the hands free cellular phone system. If you want to
delete all paired phones from the hands free cellular phone
system, say "All."

9. For confirmation purposes, the voice guide will say

"Removing <phone tag> (all) is this correct?" Answer "Yes"
to delete the phone(s). If you answer "No," the voice guide
will ask "Which phone please?" Say again the priority
number of the phone that you want to delete from the hands
free cellular phone system.

10.When the phone deletion process is completed, the voice

guide will say "Deleted." The hands free cellular phone
system will then beep and the voice recognition mode will be
deactivated.

• If the phone deletion process fails for some reason, the

voice guide will say "Delete failed." The hands free cellular
phone system will then beep and the voice recognition
mode will be deactivated. Start over again from Step 1.

HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-516

ERASE THE PASSCODE

M1544403800028

.

The 4-digit passcode set by security function can be erased by
operating the hang-up switch.
1. Turn the ignition switch to the "ON" or "ACC" position, and

check if the radio and CD player, or the multivision display is
activated.

2. Check that the hands free cellular phone system is not in

voice recognition mode.

3. Press and hold the hang-up switch for approximately 2

seconds (1.5 seconds or more).

4. Within approximately 10 seconds after performing step 3,

press and hold the hang-up switch for approximately 2
seconds (1.5 seconds or more) twice again.

NOTE: Even if the passcode is erased, guidance such as voice
guide is not provided.
5. After the operation, check if the lock with the passcode is

unlocked. If the lock is not unlocked, repeat from step 2.

SERVICE DATA

M1544401300016

AC709135

“Speech”
 switch

“Pick-up”
 switch

“Hang-up”
 switch



Steering
voice control
switch

 wheel



Item No.

Scan tool display

Check condition

Normal condition

1

RV switch

When the "Speech" switch is pushed

ON

2

On hook switch

When the "Hang-up" switch is pushed

ON

3

Off hook switch

When the "Pick-up" switch is pushed

ON
