Mitsubishi Evolution X. Manual - part 89





GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-5

Main components and functions

Parts name

Functional description

KOS-ECU

Controls KOS by using the following inputs/outputs and
communications.

• Input from the unlock sensor and lock switch on each door,

input from the push switch on the IG knob

• Communications with ETACS-ECU, ECM or ASC-ECU and

combination meter via CAN

• Wire communication with the steering lock unit

• Wireless communication with the keyless operation key via

the receiver antenna module, receiver antenna assembly
and interior/exterior transmitter antennas

• Output to the outer tone alarm

Steering lock (incorporates push switch
and steering lock unit)

The steering lock has two unlocking mechanisms; a mechanical
mechanism that uses an emergency key and an electrical
mechanism. In the electrical unlocking mechanism, the steering
lock communicates with KOS-ECU via wire, and when
requested by KOS-ECU, the steering lock unlocks for two
seconds.

Keyless operation key (incorporates
emergency key)

• The keyless operation key receives signals sent from each

interior/exterior transmitter antenna, certifies the keyless
operation key ID code, calculates the key ID, and sends the
reply data signal to KOS-ECU via the receiver antenna
assembly. The lock button, unlock button, and trunk lid
button operations of keyless operation key transmit signals
to KOS-ECU via the receiver antenna assembly.

• If two or more keyless operation keys registered in

KOS-ECU respond at the same time, their signals would
interfere. To avoid this interference, each signal from
KOS-ECU is given the priority

*1

 data, and the keyless

operation keys respond in accordance with this priority.

Lock switch

Driver's door

Locks all the doors when a driver carrying the keyless operation
key presses the lock switch on the front door outside handle.

Front passenger's
door

Unlock sensor

Driver's door

The unlock sensors incorporated in the driver’s front door
outside handles unlock driver’s the door when a driver carrying
the keyless operation key pulls the driver’s door outside handle.

Front passenger's
door

The unlock sensors incorporated in the passenger's front door
outside handles unlock all the doors when a driver carrying the
keyless operation key pulls the front door outside handle.

Trunk lid opener switch

By pressing the trunk lid opener switch on the trunk lid while
he/she is carrying the keyless operation key, the trunk lid is
unlocked.
NOTE: With the locking of trunk lid, the locking is performed
mechanically when the trunk lid is closed.

Exterior transmitter
antenna assembly

Driver's side

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key. (For the transmission
area, refer to Operation Manual

− Door Entry Function

P.42B-8

.)

Front passenger's
side

GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-6

NOTE:

*1

: When registering the keyless operation

keys, KOS-ECU numbers each key (1 to 4) in the
order they are registered (initial priority). This priority
is renewed each time the doors are locked/unlocked
and the IG knob is pressed. For example, when only
keys 1 and 3 have responded to the signal sent from

KOS-ECU, the new priority of the keys would be
1-3-2-4. When keys 3 and 4 have responded, then
the priority of the keys becomes 3-4-1-2.
NOTE:

*2

: Illuminates for tire pressure warning.

Flashes for about 1 minute and then continuously
illuminated for TPMS malfunction warning.

Interior transmitter
antenna assembly

Front

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key. (For the transmission
area, refer to Operation Manual

− Engine Start Function

P.42B-17

.)

Rear

Antenna & tone
alarm assembly

Exterior transmitter
antenna assembly
(trunk lid)

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key. (For the transmission
area, refer to Operation Manual

− Door Entry Function

P.42B-8

.)

Outer tone alarm

The outer tone alarm sounds when:

• The doors are locked or unlocked by the door entry function.

• The lock switch on the keyless operation switch is pressed

when the IG knob is in the "LOCK" (OFF) position and the
push switch is in other than the "ON" position.

• The lock switch is pressed on the keyless operation key from

inside the car.

• The lock switch on the keyless operation key is pressed

when the door is ajar.

Receiver antenna module

Receives the keyless operation key ID data which is necessary
for the engine start using the emergency key, and then sends
the data to KOS-ECU.

Receiver antenna assembly

Receives the operation signals from the lock/unlock buttons,
trunk lid button, and panic button on the keyless operation key
as well as the keyless operation key ID data which is necessary
for engine start and the tire pressure signal from the TPMS
transmitter. Then, sends the data to KOS-ECU.

TPMS transmitter

Measure tire pressure directly, then send radio frequency signal
to receiver antenna assembly.

Combination meter (Multi information
display, TPMS warning light)

Communicates with KOS-ECU via CAN. Receives the warning
request or warning information from KOS-ECU, activates

*2

 the

warning light. Warning symbol and message is additionally
displayed on the multi information display

ETACS-ECU

Communicates with KOS-ECU via CAN. By the door
lock/unlock request, trunk open request, or panic alarm request
from KOS-ECU, ETACS-ECU outputs the lock/unlock signal,
trunk open signal, or panic alarm signal. When the door
lock/unlock signal is output, ETACS-ECU flashes or illuminates
the turn signal light and dome light to notify that the lock/unlock
operation is performed.

ECM

Communicates with KOS-ECU via CAN. Permits/inhibits the
engine starting and controls the engine operation. Send
atmospheric pressure data.

ASC-ECU

Communicates with KOS-ECU via CAN. Sends the vehicle
speed data.

Parts name

Functional description

GENERAL INFORMATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-7

.

System configuration

AC709150

Steering unit

KOS-ECU

Push switch

Steering lock unit

Unlock sensor and
lock switch
(Driver's side door)

Unlock sensor and
lock switch
(Passenger's side door)

Trunk lid opener switch

Outer tone alarm

Receiver
antenna
module

ETACS-ECU

ECM

ASC-ECU

Combination meter
(Multi information display, TPMS warning light)

Interior transmitter
antenna assembly

Exterior transmitter
antenna assembly

Front

Rear

Driver's side

Passenger's side

Trunk lid

Low
frequency
signal

Low
frequency
signal

Low
frequency
signal

Radio
frequency
signal

Keyless operation key

Lock/Unlock/Trunk lid button

Emergency key

Indicator light

Panic button

Dome light,
Ignition key cylinder
illumination light

Horn

Door lock actuator

Trunk lid latch

Turn-signal light

TPMS transmitter

Front tire (LH)

Front tire (RH)

Rear tire (LH)

Rear tire (RH)

Antenna

CPU

Transmission
circuit

Pressure
sensor

ACC.
sensor

Battery

AB

CAN-B
communi-
cation

CAN-C comm-
unication

Receiver antenna
assembly

Radio
frequency
signal

Key reminder switch

Head light,
Tail light

SYSTEM OPERATION

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-8

SYSTEM OPERATION

DOOR ENTRY FUNCTION

M2421009100228

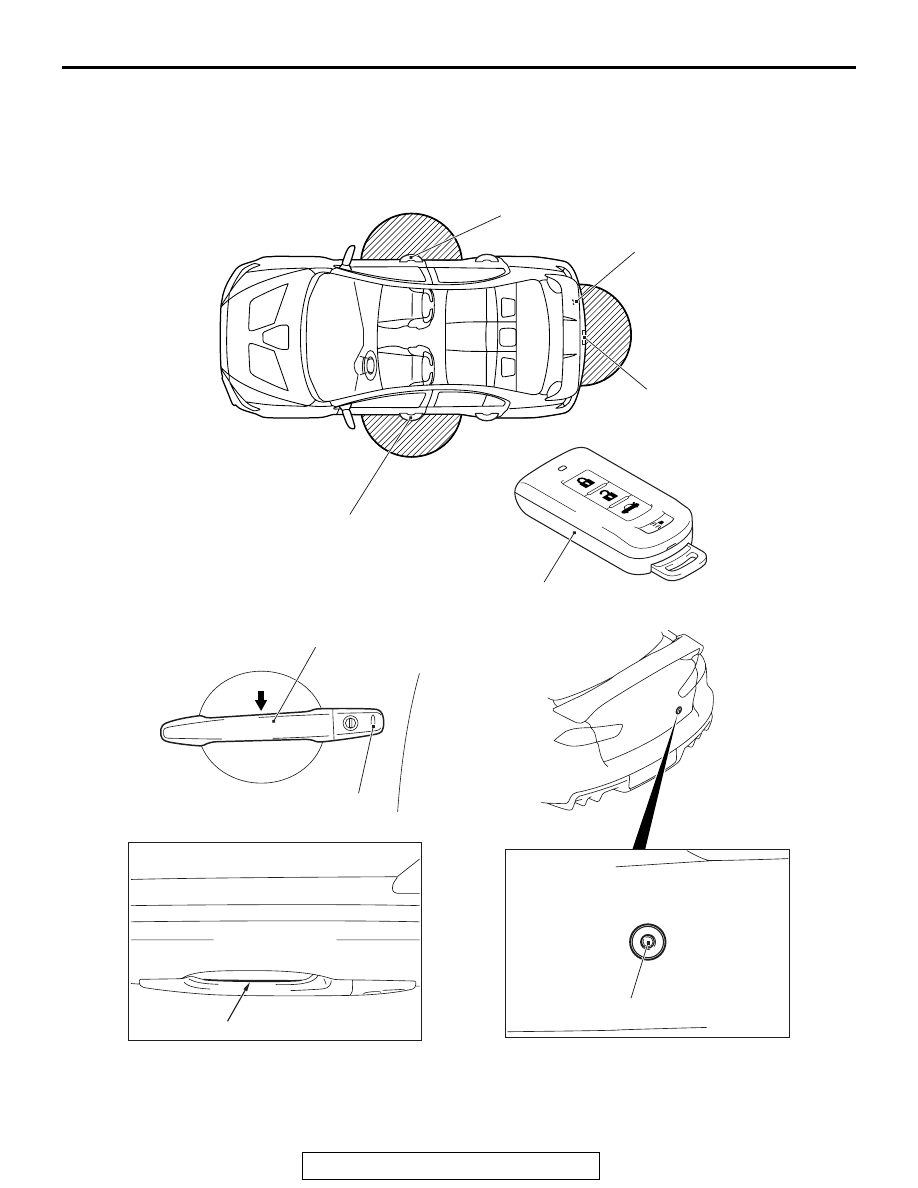

DESCRIPTION OF CONSTRUCTION AND OPERATION

.

AC708737

AC608093

AC708643

AB

Front door outside handle (passenger's side)

Front door outside handle (driver's side)

Trunk lid opener switch

Antenna and buzzer assembly

<Vehicles outside area>

Keyless operation key

AC705753

AC505250

AC609034

AC505249

AC703154

AC

A

Lock switch

Trunk lid opener switch

Unlock sensor

Front door outside handle (driver's side, passenger's side)

View A
