MAIN BODY

TSB Revision

BODY

42A-7

STEERING ABILITY

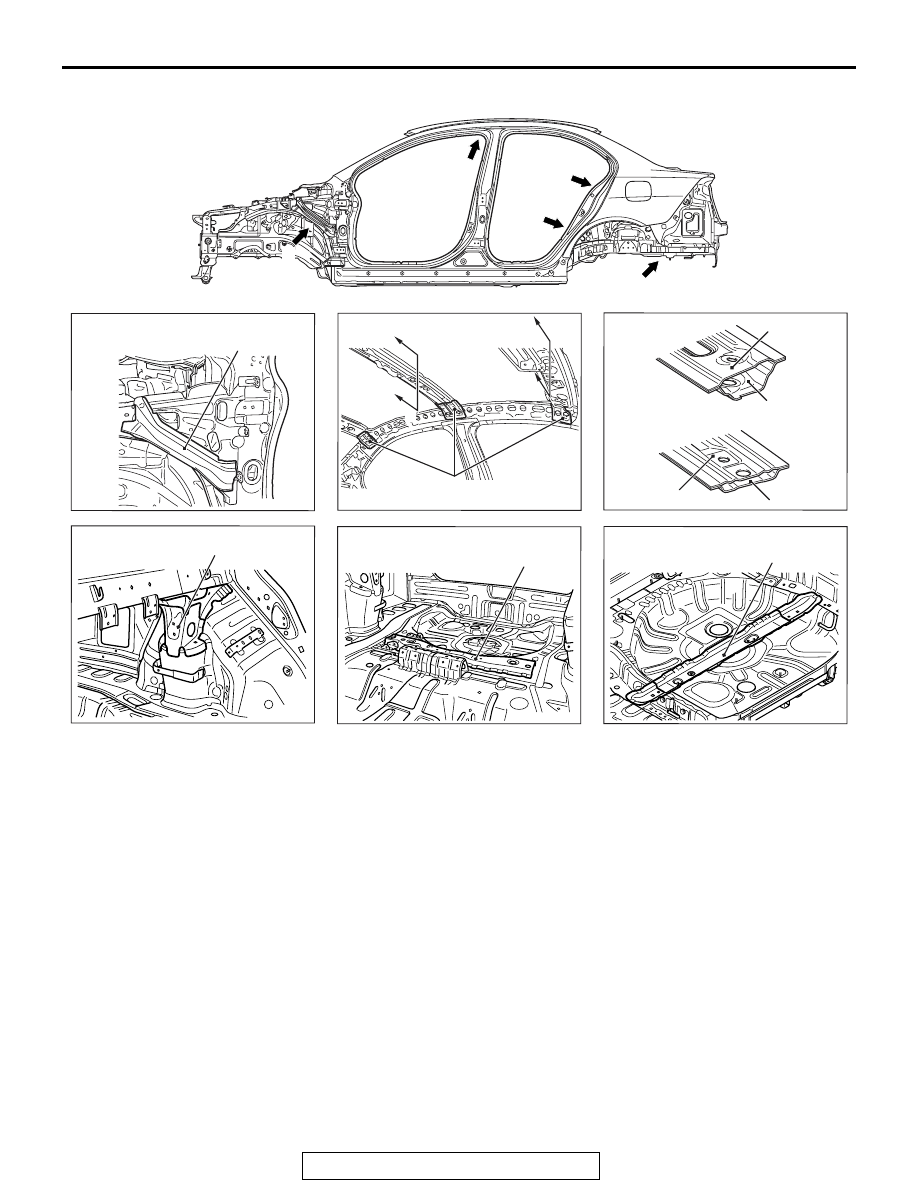

1. Rigidity was heightened and driving stability was

improved by bonding the fender shield frame
upper outer and front pillar by the upper frame to
front pillar brace.

2. Rigidity was heightened and driving stability was

improved by bonding the roof bow and roof rail
and the roof side rail inner by the roof rail exten-
sion.

3.  The closed section structure has been adopted

for the roof rail front and roof bow center to
heighten rigidity, improve driving stability, and to
reduce vibration and noise.

4. A rear shelf lower brace is used to connect the

spring house middle panel and rear shelf upper
brace, so that the body rigidity, handling stability,
and riding comfort are improved.

5. The rear floor crossmember upper has been

adopted in order to strengthen the body rigidity,
improving the steering ability and riding comfort,
and suppressing the vibration and noise.

6. The rear floor rear end crossmember has been

straightened in order to strengthen the body rigid-
ity, improving the steering ability and riding com-
fort, and suppressing the vibration and noise.

AB701021AB

1

2

A

A

4

5

2

4

5

1

3

Section A - A

6

6

Upper frame to
front pillar brace

Roof rail
front upper

Roof rail
front lower

Roof rail extension

Rear shelf lower brace

Rear floor crossmember
upper

Rear floor rear end
crossmember

Section B - B

Roof bow
center upper

Roof bow
center lower

B

B

MAIN BODY

TSB Revision

BODY

42A-8

QUIETNESS

M2420004000717

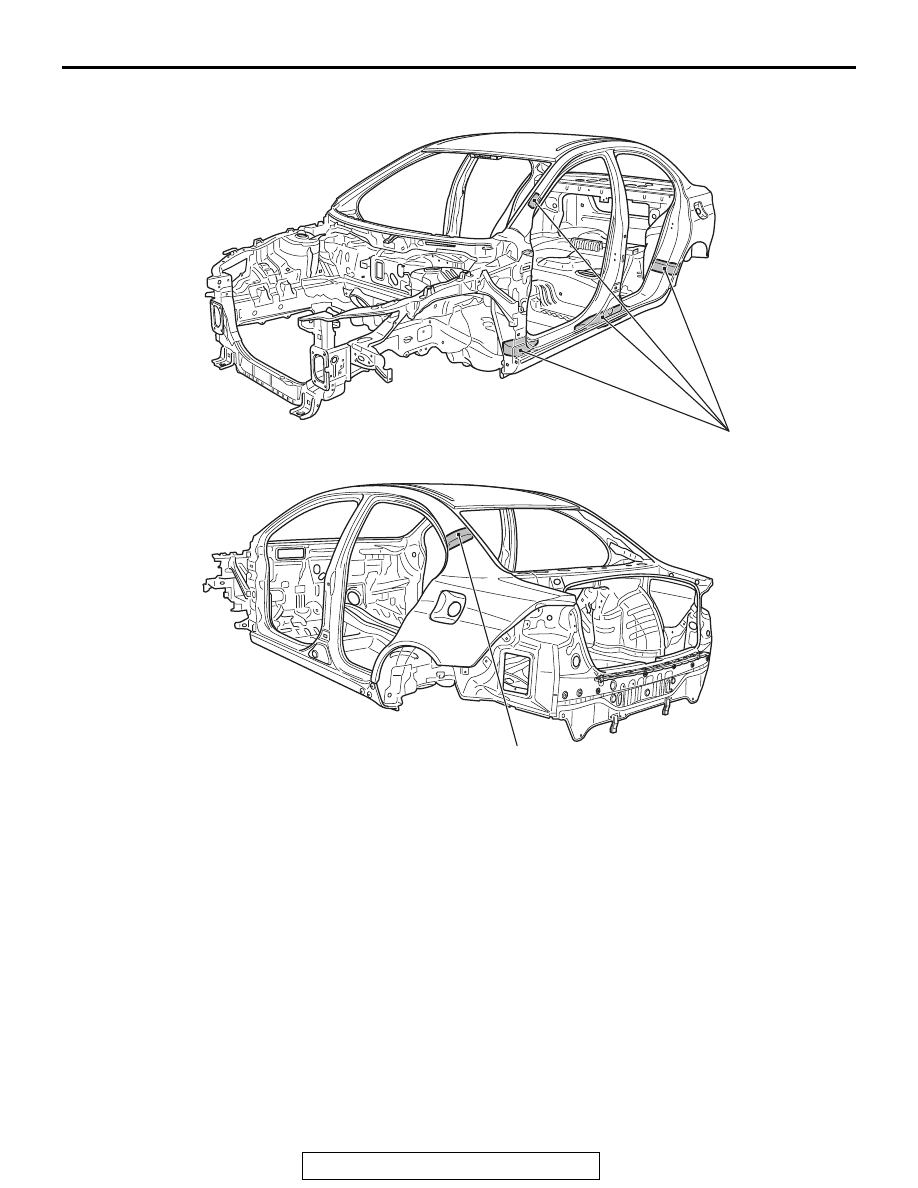

The front pillar upper and lower, center pillar lower,
rear pillar and the wheel house arch inside have
been filled with the sound dampening foam material
to reduce noise.

AB700801AB

Sound dampening foam material

Sound dampening foam material

MAIN BODY

TSB Revision

BODY

42A-9

BODY COLOR CHARTS

M2420005001661

Check the vehicle’s body color code, and then use
this body color chart to determine the refinishing
paint supplier from which the color can be pur-
chased.

NOTE:

.

•

The coating film structure indicates top coating only (2S: 2 coat solid,2M: 2 coat metallic, 2P: 2 coat pearl ).

•

For painting, inner panel colors should be similar to the outer panel colors.

Color

Color
code

Color number Color name

Coating film
structure

Composition of
film

SILVER

A31

CMA10031

Cool Silver Metallic

2M

Metallic

MEDIUM
PURPLISH GRAY

A39

CMA10039

Medium Purplish Gray Mica 2P

Metallic +
Interferenced
Pearl

DARK GRAY

D06

CMD10006

Lightning Blue Mica

2P

Interferenced
Pearl

DARK GRAY

U02

CMU10002

Phantom Black Pearl

2P

Interferenced
Pearl

WHITE

W37

CMW10037

White Solid

2S

Solid

RED

P26

CMP10026

Red Metallic

2M

Metallic

HOOD, FENDER AND ROOF

TSB Revision

BODY

42A-10

HOOD, FENDER AND ROOF

M2420001400170

PANEL

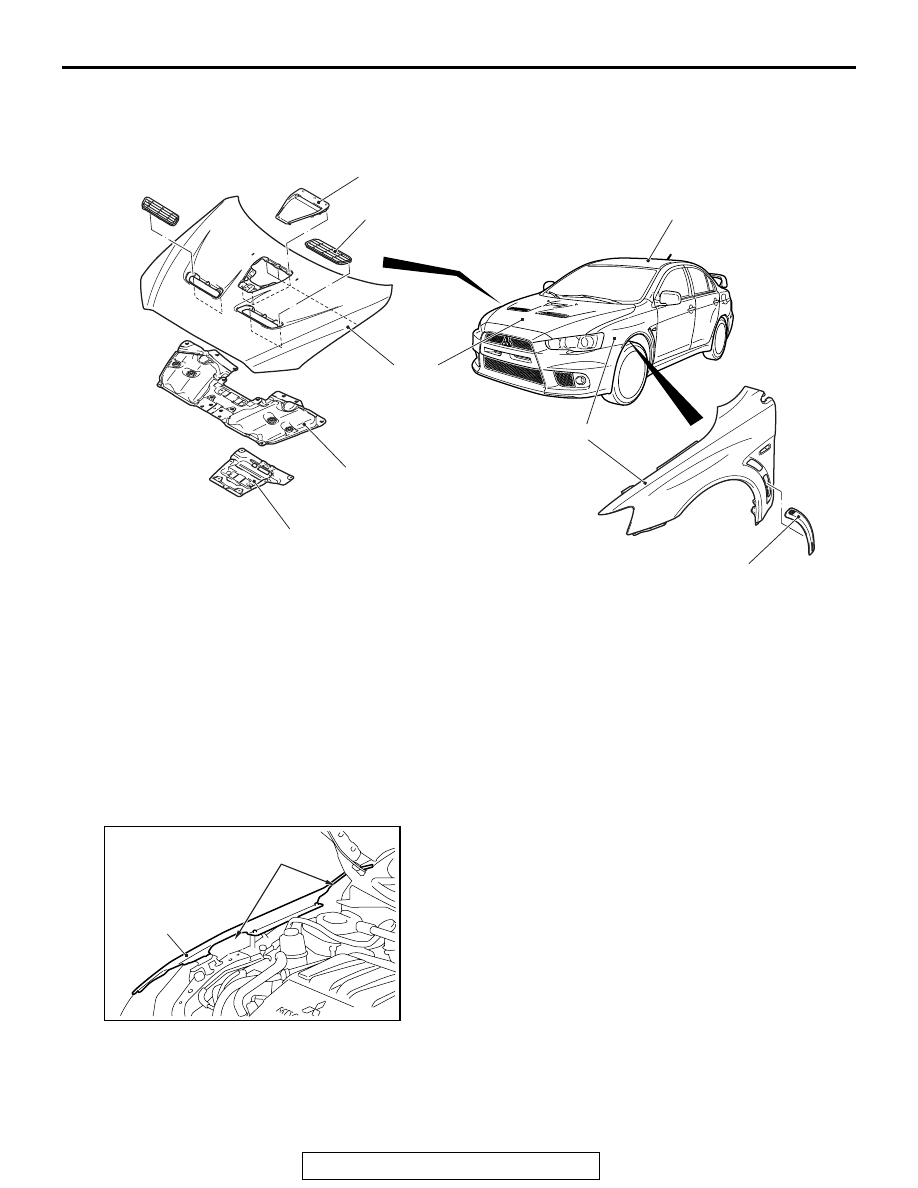

• The aluminum hood panel, fender panel, and roof

panel <vehicles without sunroof> have been
adopted to reduce the vehicle weight.

• The hood air inlet garnish has been mounted to

the back of hood center in order to cool around
the turbocharger and to emphasize sporty image.

• The hood air outlet garnish has been mounted to

left and right of hood front in order to emit heat
from inside the engine compartment.

• To inside the hood, the hood insulator A has been

mounted to protect the hood air inlet garnish from
the turbocharger heat, and the hood insulator B
to block the heat from inside the engine compart-
ment.

• The front fender garnish has been mounted to the

fender in order to emit heat from the engine com-
partment and to emphasize sporty image.

Energy absorbing structure

An energy absorbing zone has been established in
between the fender and body frame to secure the
space for shock absorption, reducing a risk of injury
to a pedestrian's head area upon a collision.

AC708418

AC708675AB

Roof

Hood

Hood insulator A

Hood insulator B

Fender

Front fender garnish

Hood air inlet garnish

Hood air outlet garnish

AC706150 AB

Fender

Energy-absorbing zone
