34-1

GROUP 34

REAR SUSPENSION

CONTENTS

GENERAL INFORMATION . . . . . . . .

34-2

GENERAL INFORMATION

TSB Revision

REAR SUSPENSION

34-2

GENERAL INFORMATION

M2340000101185

The low mount multi link suspension has been
adopted.
There are the following features.

.

IMPROVEMENT IN SUSPENSION

POSITIONING RIGIDITY

• The arm layout has been optimized. (Each arm

support span has been widened.)

• The rigidity of the arm installation part has been

improved. (Better rigidity of crossmember, addi-

tion of trailing arm bracket)

.

IMPROVEMENT IN CORNERING

PERFORMANCE

• The 18-inch low-aspect ratio tire has been

equipped, the wheel tread has been widened,

and the suspension rigidity has been improved,

for better cornering performance and cornering

limit.

• By adopting the non-linear coil spring, the suffi-

cient wheel stroke has been secured, and the

cornering stability not affected by the road condi-

tion has been obtained.

• Cornering performance has been optimized by

selecting the stabilizer diameter.

.

IMPROVEMENT IN STROKE FEELING

• The numbers of pillow ball bush and ball joint on

the arm installation part have been increased for

the better road-holding quality of the suspension.

.

IMPROVEMENT IN DAMPING FEELING

• The shock absorber, which is arranged on the

same axle for the coil spring, has been mounted

with a knuckle for better absorber efficiency.

• The shock absorber installation angle has been

optimized.

.

IMPROVEMENT IN QUALITY

• The Bilstein shock absorber and the Eibach coil

spring

*

 have been established.<GSR: optional

equipment, MR: standard equipment>
NOTE:

*

: The Eibach coil spring has widely been

adopted in the motor sport field; sports vehicles in
Europe, F1, WRC, etc.

.

IMPROVEMENT IN ALIGNMENT
ACCURACY

• Arms have been installed to the lattice cross-

member, and the rear suspension has been bro-
ken down into sub assembly for the better
alignment accuracy.

.

WEIGHT SAVING

• The aluminum forged upper arm, trailing arm,

and control link have been adopted for weight
reduction and high rigidity.

• The light weight lower arm made with a steel pipe

has been employed.

.

HEXAVALENT CHROMIUM-FREE
COMPONENT

• Hexavalent chromium has been eliminated from

bolts and nuts.

.

LEAD-FREE COMPONENT

• The lead-free grease has been adopted for the

ball joint.

SPECIFICATIONS

NOTE:

*

: Optional equipment

Item

GSR

MR

Rear suspension type

Multi-link

Wheel alignment

Camber

− 1°

− 1°

Toe-in mm (in)

3

± 2 (0.12 ± 0.08)

3

± 2 (0.12 ± 0.08)

Coil spring

Wire diameter mm (in)

11 (0.4)

11 (0.4)

Mean diameter of coil
mm (in)

79

− 87 (3.1 − 3.4)

79

− 87 (3.1 − 3.4)

Free length mm (in)

352 (13.9), 357 (14.0)

*

357 (14.0)

GENERAL INFORMATION

TSB Revision

REAR SUSPENSION

34-3

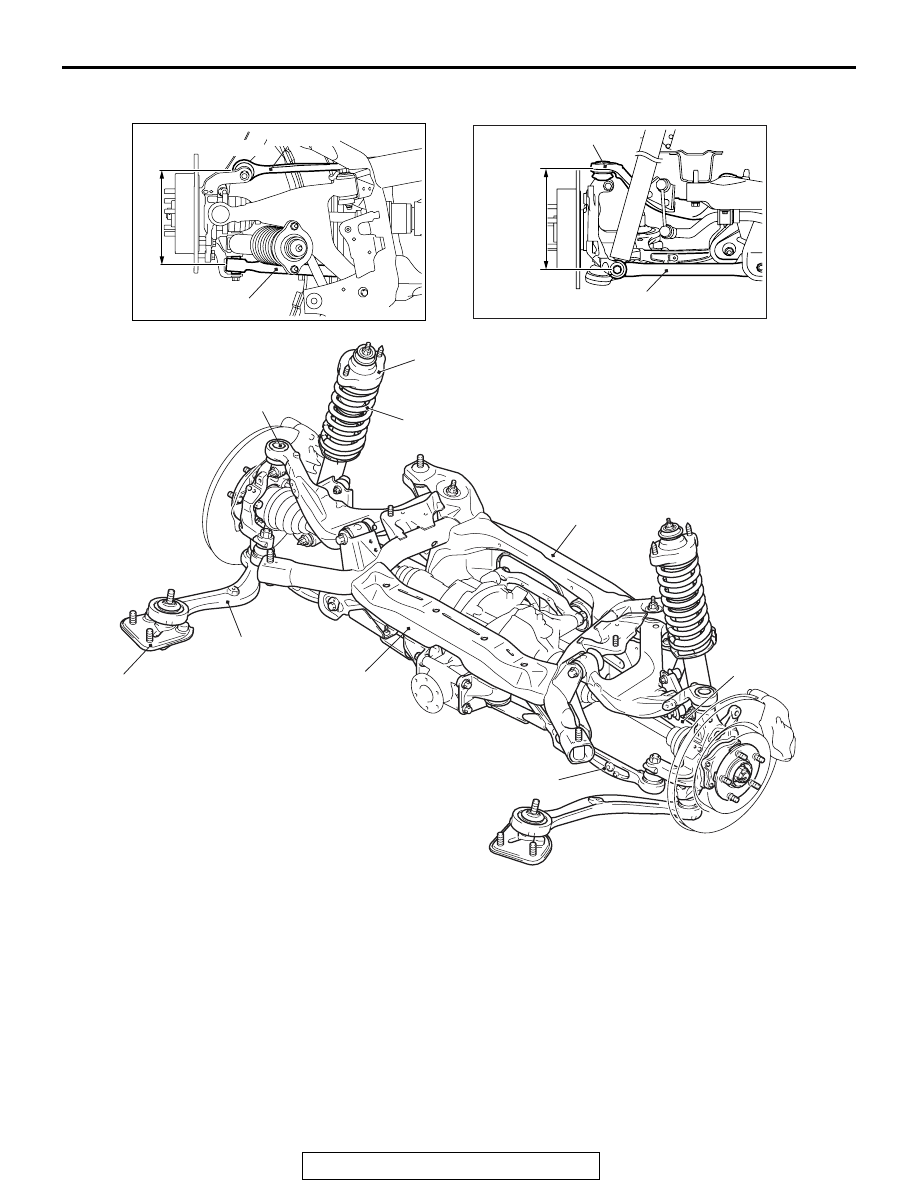

CONSTRUCTION DIAGRAM

AC710561AB

AC704736

Trailing arm assembly

Trailing arm bracket

Rear suspension
crossmember

Upper arm

Shock absorber assembly

Nonlinear coil spring

Stabilizer bar

Lower arm

Control link

Lower arm

Enlargement
of vertical span

Lower arm

Control link

Enlargement of
anteroposterior span

AC704737

Upper arm
