HOW TO USE THIS MANUAL

TSB Revision

GENERAL

00-2

HOW TO USE THIS MANUAL

M2000029001030

ABBREVIATIONS

The following abbreviations are used in this manual
for classification of model types.
MFI: Multiport fuel injection, or engines equipped

with multiport fuel injection.

PCM: Powertrain control module

M/T:Indicates manual transaxle, or models equipped

with manual transaxle.

AWD:Indicates 4-wheel-drive vehicles.
Keyless Operation System (KOS):Free-hand

Advanced Security Transmitter (F.A.S.T.-key)

SWS: Simplified wiring system
A/C: Air conditioning.

TARGETS OF DEVELOPMENT

M2000004001624

As a globally acclaimed, high-performance AWD
sport sedan, the new LANCER EVOLUTION has
embodied a high-dimensional balance of high ath-
letic performance and driving comfort. The basic per-
formance has been enhanced to improve the driving

quality. At the same time, with its high capabilities
which allow a full control as well as with its sporty
and superior interior and exterior appearances, it
pursues to offer a new driving fun and a joy of owner-
ship.

PRODUCT FEATURES

M2000005000828

STYLING

With a foundation on sporty and functional interior
and exterior appearances, variations are available to
match various user needs.

DRIVING PERFORMANCE

• Turbocharger is adopted to the newly developed

aluminum block engine, improving the super-
charging response.

• Power performance has been greatly enhanced

from the conventional LANCER EVOLUTION,
improving marginal performance, and realizing
new driving and riding quality.

COMFORT

• Adoption of new platform has significantly

improved comfort including riding feel and vibra-
tion.

• Newly developed twin clutch sportronic shift

transmission (TC-SST) has been adopted.

1. The clutch and gear shift operation are auto-

matically controlled, reducing the power
transfer loss and achieving the ideal starting
acceleration.

2. Sporty, straight type shift pattern has been

adopted, and the operating power at each
shift position have been properly tuned,
ensuring the firm and smooth operation feel.

3. The sport mode (6-speed) has been installed

to allow manual shifting according to the
driver's intention.

SAFETY

• 18-inch ventilated disk brake is adopted to the

front brake, improving the brake basic perfor-
mance.

•  Traction control (TCL) function is integrated to

ASC, improving the preventive safety.

• Low mount multi-link suspension has been newly

developed which corresponds to the impact
safety body RISE.

TECHNICAL FEATURES

TSB Revision

GENERAL

00-3

TECHNICAL FEATURES

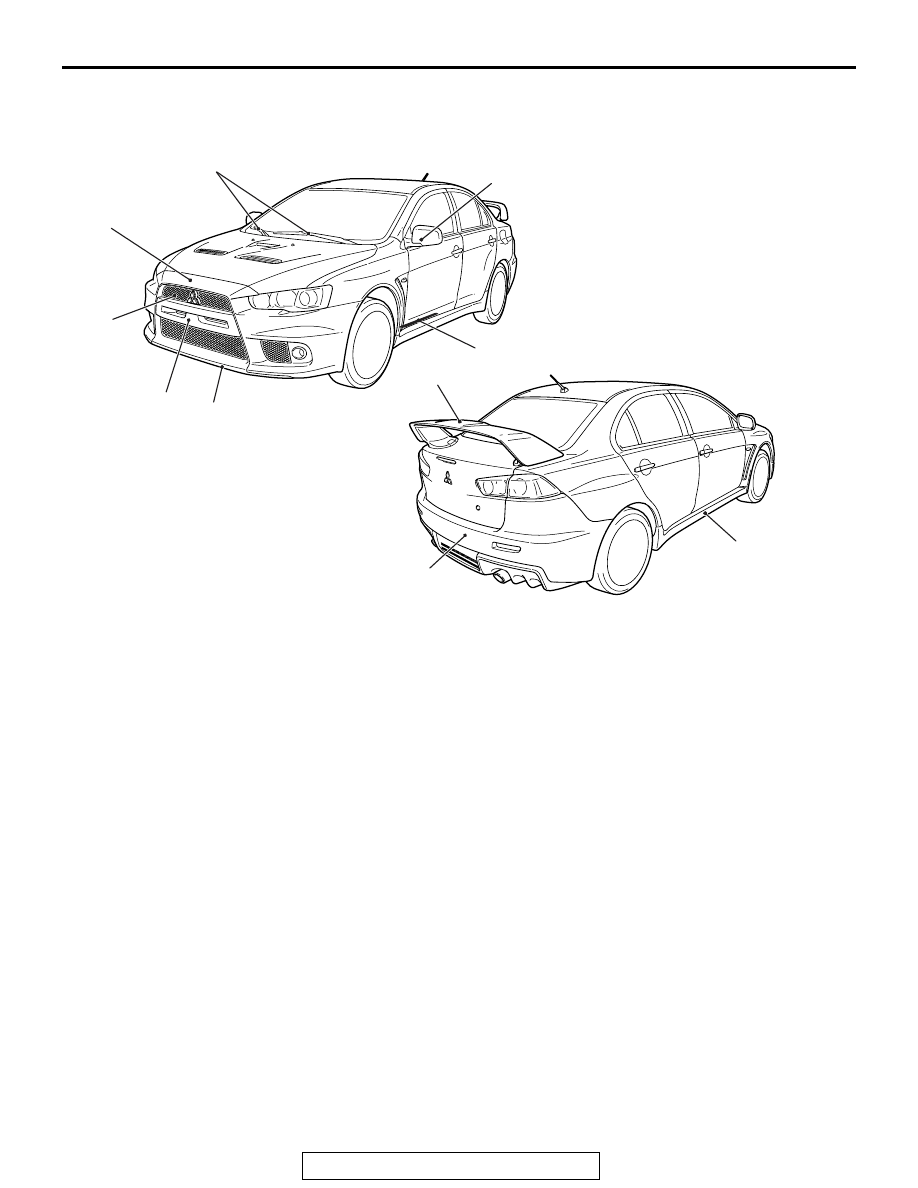

EXTERIOR

M2000017001260

.

BETTER APPEARANCE

1. Specially-shaped upper section of front bumper

emphasizes the front mask, and decreases the
air resistance.

2. Mesh type radiator grille gives a sleek front mask

and sporty image.

3. Large front bumper appealing the robust front

mask

4. Large rear bumper extending to side body

.

BETTER AERODYNAMIC
CHARACTERISTICS

5. Air dam skirt panels
6. Side air dams
7. Rear spoiler

.

BETTER USER-FRIENDLINESS

8. Electric remote-controlled door mirrors

.

BETTER PRODUCT PACKAGE

9. Vehicle speed sensitive intermittent time variable

windshield wiper

10. Rain sensitive intermittent time variable wind-

shield wiper

11. Installation of exclusive front step plate to side sill

<MR>

AC708418

2

8

5

4

AB

1

3

11

9,10

7

6

TECHNICAL FEATURES

TSB Revision

GENERAL

00-4

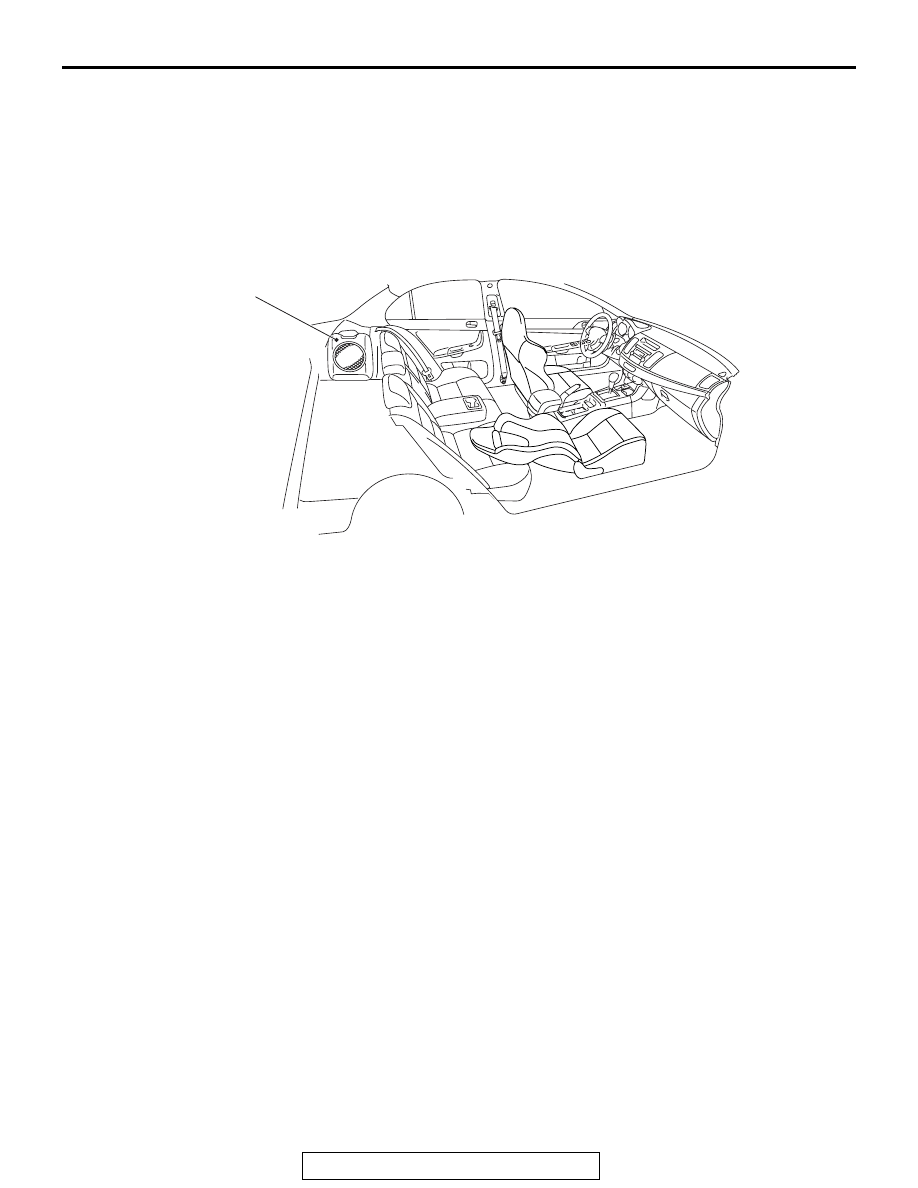

INTERIOR

M2000018001337

DESIGN FEATURES

The functional cockpit heightens the driving concen-
tration, and its sporty and high quality interior sym-
bolizes the new-generation global AWD sport sedan.
Various measures have been taken actively to pro-
tect the environment and recycle resources.

Quality improvement

• Spartan, black monotone interior

• Full interior trim

Usability improvement

• Armrest (floor console, rear seat, front door trim

<MR>, rear door trim <MR>)

• Cup holder (floor console, rear seat armrest)

• Bottle holder (front door trim)

Convenient storage

• Glove box

• Card holder (glove box)

• Floor console box

• Door pocket (front door trim, rear door trim)

Safety improvement

• Front and rear collision protection seat mecha-

nism (front seat)

• ISO-FIX lower anchor (rear seat outside)

• Upper tether anchor (rear shelf)

• ELR 3-point seat belt (driver’s seat)

• ELR/ALR 3-point seat belt (front passenger, rear)

• Seat belt retractor with a driver's side preten-

sioner and force limiter

• Seat belt retractor with a passenger’s side pre-

tensioner and force limiter

• Headliner energy absorption rib <Vehicles with-

out curtain air bag>

Consideration for the optimum driving position

• Seat slide adjustment (front)

• Reclining adjustment (front)

Comfort equipment

• Rockford Fosgate ® premium sound system

• Steering wheel audio remote control

Measures for resource recycling

1. Aggressively use PP materials that are easy to

recycle and easy to stamp material symbols on
the plastic (resin) parts.

2. Reduction of chemical material (formaldehyde

*

,

organic solvent)

NOTE:

*

: Clear and colorless, toxic, irritating odor

AC708567

Subwoofer (left side only)
< Vehicles with Rockford Fosgate
premium sound system>

AB

TECHNICAL FEATURES

TSB Revision

GENERAL

00-5

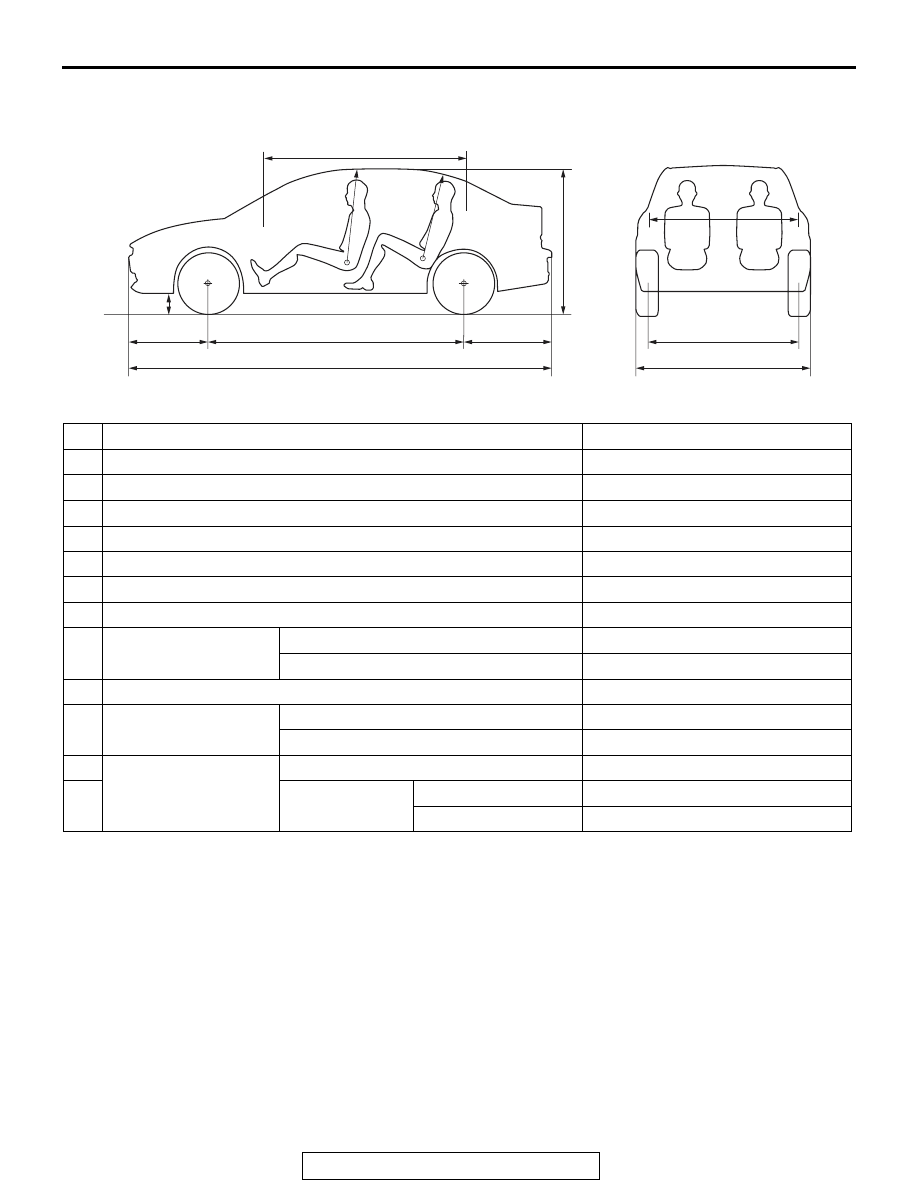

BODY DIMENSIONS AND SPACIOUS CABIN

M2000019000348

AC705060

1

2

3

4

5

7

8

10

11

12

AE

6

9

No. Item

Dimension

1

Overall length mm (in)

4,495 (177.0)

2

Front overhang mm (in)

910 (35.8)

3

Wheelbase mm (in)

2,650 (104.3)

4

Rear overhang mm (in)

935 (36.8)

5

Overall height mm (in)

1,480 (58.3)

6

Ground Clearance mm (in)

135 (5.3)

7

Overall width mm (in)

1,810 (71.3)

8

Tread mm (in)

Front

1,545 (60.8)

Rear

1,545 (60.8)

9

Interior effective length mm (in)

2,030 (79.9)

10

Interior room  mm (in) Front seating

1,470 (57.9)

Rear seating

1,350 (53.1)

11

Head room mm (in)

Front seating

970 (38.2)

12

Rear seating

Right and Left seat

895 (35.2)

Center seat

860 (33.6)
