AUTO-CRUISE CONTROL SYSTEM

TSB Revision

ENGINE AND EMISSION CONTROL

17-6

SYSTEM FUNCTIONS

.

SET FUNCTION

1. During driving with the vehicle speed range from

approximately 40 to 200 km/h (25 to 125 mph),
press and release the "COAST/SET" switch.

2. The vehicle speed when the "COAST/SET" switch

is released is memorized. Thereafter, the constant
speed driving is performed at that vehicle speed.

3. When the "COAST/SET" switch is operated

during the driving with the vehicle speed of
approximately 200 km/h (125 mph) or more, the
constant speed driving will not be performed.

.

COAST FUNCTION

1. When the "COAST/SET" switch is continuously

pressed for approximately 0.5 second or longer
during constant speed driving, the throttle valve
becomes fully closed while the switch is pressed,
and the vehicle is decelerated.

2. When the "COAST/SET" switch is released, the

vehicle speed at that time is now memorized.
Thereafter, the constant speed driving is
performed at that vehicle speed.

3. Also when the "COAST/SET" switch is pressed

for less than approximately 0.5 second, the
vehicle is decelerated approximately 1.6 km/h (1
mph) from the vehicle speed of constant speed
driving, and the decelerated vehicle speed is now
memorized. Thereafter, the constant speed
driving is performed at that vehicle speed.

4. When the "COAST/SET" switch is continuously

pressed and the vehicle speed is decelerated to
approximately 40 km/h (25 mph) or less, the set
function and coast function are cancelled, and the
constant speed driving is cancelled.

.

RESUME FUNCTION

1. When the "CANCEL" switch is pressed or the

brake pedal is depressed during the constant
speed driving, it cancels the constant speed
driving.

2. Subsequently, when the "ACC/RES" switch is

pressed during driving with the vehicle speed of
approximately 40 km/h (25 mph) or more, the
constant speed driving is performed with the
vehicle speed memorized at the last cancellation
of constant speed driving.

.

ACCELERATOR FUNCTION

1. When the "ACC/RES" switch is continuously

pressed for approximately 0.5 second or more
during constant driving, it accelerates the vehicle
with specified acceleration while the switch is
pressed.

2. Then, when the "ACC/RES" switch is released,

the vehicle speed at that time is now memorized.
Thereafter, the constant speed driving is
performed at that vehicle speed.

3. Also, when the "ACC/RES" switch is pressed for

less than approximately 0.5 second, the vehicle is
accelerated approximately 1.6 km/h (1 mph) from
the vehicle speed of constant speed driving, and
the accelerated vehicle speed is now memorized.
Thereafter, the constant speed driving is
performed at that vehicle speed.

4. It is possible to keep pressing the "ACC/RES"

switch until the vehicle speed is accelerated to
approximately 200 km/h (125 mph) or above.
However, after the "ACC/RES" switch is released,
the vehicle speed of approximately 200 km/h (125
mph) becomes the newly memorized vehicle
speed. Thereafter, the constant speed driving is
performed at that speed.

.

CANCEL FUNCTION

When any of the following conditions are satisfied,
the constant speed driving will be cancelled.

• The cruise control system is stopped by the

pressing the "ON OFF" switch.

• The "CANCEL" switch is pressed.

• The brake pedal is depressed.

• The clutch pedal is depressed <M/T>.

• The shift lever is shifted to the "N" position

<TC-SST>.

• TC-SST drive mode is set to the "SPORT" mode

and "S-SPORT" mode <TC-SST>.

• The vehicle speed becomes approximately 40

km/h (25 mph) or less.

• The vehicle speed is reduced approximately 15

km/h (9 mph) or more from the speed at which
the constant speed driving was started.

• An abnormality occurs in the vehicle speed sig-

nal.

• The engine coolant temperature becomes abnor-

mally high.

• The ASC is operated.

• An abnormality occurs to the ECM.

• An abnormality occurs to the TC-SST-ECU

<TC-SST>.

• An abnormality occurs to the CAN communica-

tion.

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-7

.

FAIL-SAFE FUNCTION

When any of the following conditions are satisfied,
the cruise control system function is stopped until the
system returns to normal. Also, when any of the con-
ditions are satisfied during the constant speed driv-
ing, the constant speed driving is cancelled
immediately.

• An abnormality occurs to the cruise control

switch.

• An abnormality occurs to the stoplight switch.

When any of the following conditions are satisfied,
stop the vehicle once and turn the ignition switch to
"LOCK" (OFF). Otherwise, even when the system
returns to normal, the cruise control system function
will continue to be stopped. Also, when any of the
conditions are satisfied during the constant speed
driving, the constant speed driving is cancelled
immediately.

• ECM abnormality

• Vehicle speed signal abnormality

• TP sensor abnormality

• APP sensor abnormality

.

DIAGNOSIS FUNCTION

• The diagnostic trouble code check is possible

with the "CRUISE" indicator light.

• To facilitate the system check, check the service

data output with the scan tool.

NOTE: For diagnostic items, service data output
items, and check method, refer to the Service Man-
ual.

EMISSION CONTROL

GENERAL INFORMATION

M2171000101295

The following changes have been made to the con-
trols of the 2.0L engine provided on the LANCER
EVOLUTION-IX.

Improvement / Additions

Remark

Rear exhaust system is applied.

Performance of exhaust gas after-treatment right
after engine starts is improved due to early warm up.

Exhaust gas recirculation (EGR) system is
discontinued.

System is simplified.

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-8

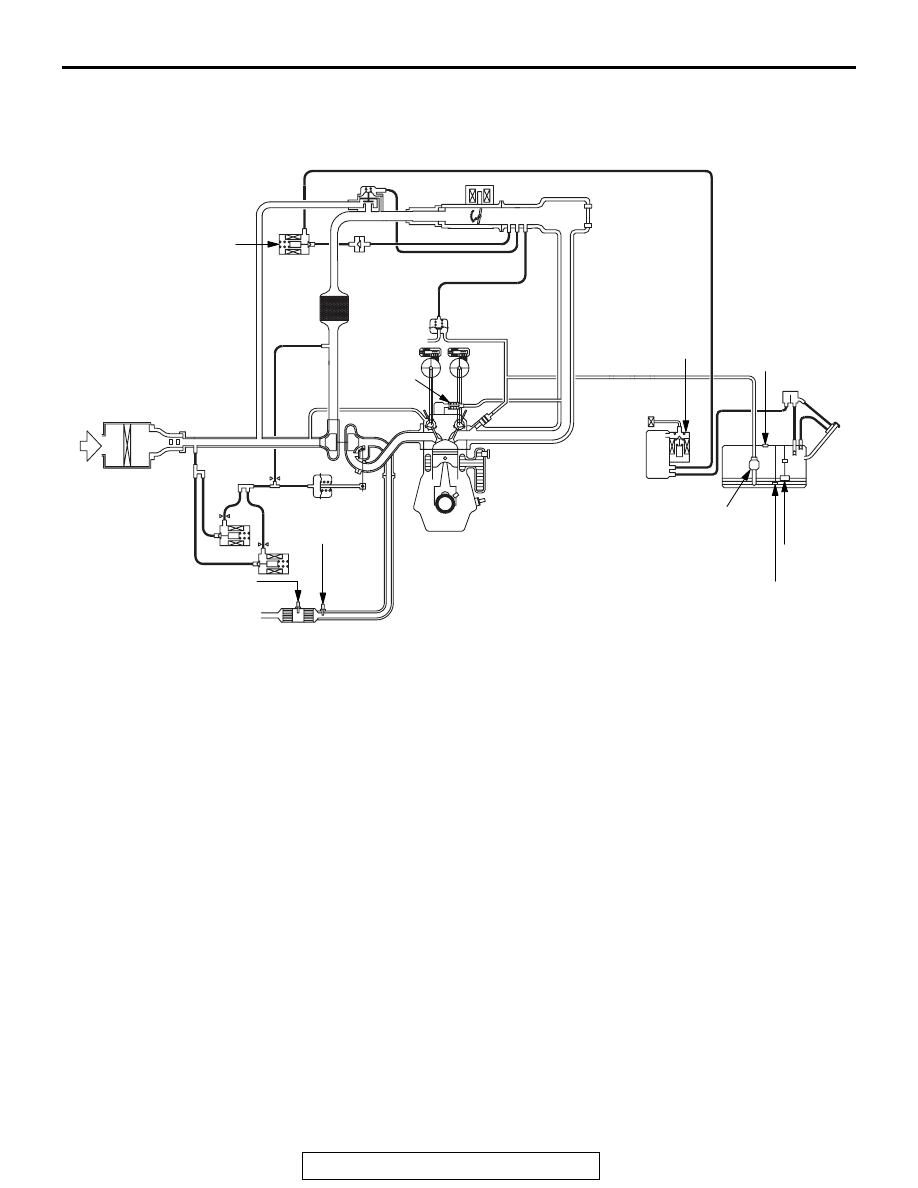

SYSTEM CONFIGURATION DIAGRAM

AK703841

Fuel level
sensor

Evaporative emission
purge solenoid

Fuel tank
temperature
sensor

Fuel tank differential
pressure sensor

Fuel pressure
regulator

Heated oxygen sensor (rear)

Heated oxygen
sensor (front)

Fuel pump

Fuel tank

Evaporative
emission
canister

Evaporative emission
ventilation solenoid

AB

Check valve

Positive
crankcase
ventilation
valve

Three-way
catalytic converter

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-9

Exhaust gas cleaning devices list

System

Objective / Function

Composition parts

Crankcase ventilation system

HC decrease
Re-combustion of blow-by gas.

Positive crankcase ventilation
(PCV) valve

Evaporative emission control
system

HC decrease
Re-combustion of fuel vapor gas.

• Canister

• Evaporative emission purge

solenoid

Emission
reduction
systems

Air-fuel ratio
feedback control

Decrease of CO, HC and NOx
Controls air-fuel ratio of air-fuel
mixture to become theoretical
air-fuel ratio (about 14.7), which is
when the 3-way catalytic
converter's cleaning performance
is best. It also controls optimum
fuel supply based on coolant
temperature, driving conditions
etc.

• ECM

• Mass airflow sensor

• Injectors

• Heated oxygen sensor

• Crankshaft position sensor etc.

Catalytic
converter

Decrease of CO, HC and NOx
It facilitates oxidation of CO and
HC and reduction of NOx so that
all 3 component gases are
cleaned simultaneously.

Monolith catalyst
