NOTES

21-1

GROUP 21

CLUTCH

CONTENTS

GENERAL INFORMATION . . . . . . . .

21-2

GENERAL INFORMATION

TSB Revision

CLUTCH

21-2

GENERAL INFORMATION

M2210000100676

The dry single plate diaphragm spring type is
adopted to the clutch, and the hydraulic type is used
for the control system.The clutch is a dry single-disc,
diaphragm type; hydraulic pressure is used for the
clutch control.

In order to enhance safety at the engine start, an
interlocking switch is equipped with the clutch pedal,
preventing the engine from starting when the clutch
pedal is not depressed.Also, the turnover spring is
adopted to reduce the pedal force.

SPECIFICATIONS

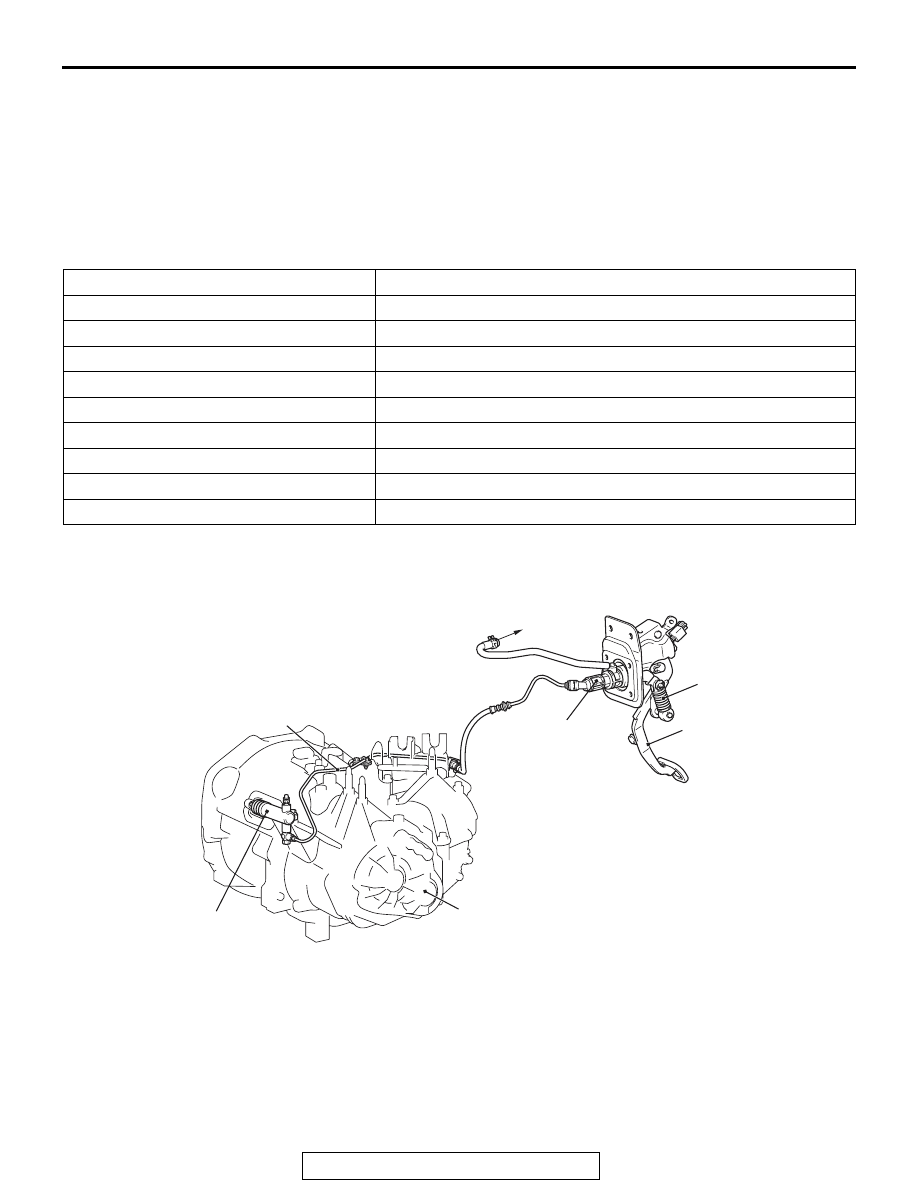

CONSTRUCTION DIAGRAM

Item

Specification

Transmission model

W5M6A

Clutch disc type

Dry single plate type

Clutch disc facing diameter OD x ID mm

240

× 160

Clutch cover type

Diaphragm spring type

Clutch cover setting load N

9,320

± 750

Control system

Hydraulic type

Release cylinder size mm

20.64

Master cylinder ID mm

15.87

Clutch fluid

DOT 3 or DOT4

AC709625 AB

Clutch release
cylinder

Clutch pedal
assembly

Clutch tube assembly

Clutch master
cylinder

To brake fluid
reservoir

Transaxle assembly

Turn over spring

17-1

GROUP 17

ENGINE AND

EMISSION

CONTROL

CONTENTS

ENGINE CONTROL . . . . . . . . . . . . . .

17-2

GENERAL INFORMATION. . . . . . . . . . . . .

17-2

AUTO-CRUISE CONTROL SYSTEM

17-3

GENERAL INFORMATION. . . . . . . . . . . . .

17-3

CONSTRUCTION AND OPERATION  . . . .

17-5

EMISSION CONTROL  . . . . . . . . . . . .

17-7

GENERAL INFORMATION . . . . . . . . . . . . .

17-7

CRANKCASE VENTILATION SYSTEM  . . .

17-10

EVAPORATIVE EMISSION CONTROL



SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . .

17-11

EMISSION REDUCTION SYSTEMS. . . . . .

17-12
