Mitsubishi Evolution X. Manual - part 43

QUARTER INNER

TSB Revision

WELDED PANEL REPLACEMENT

3-42

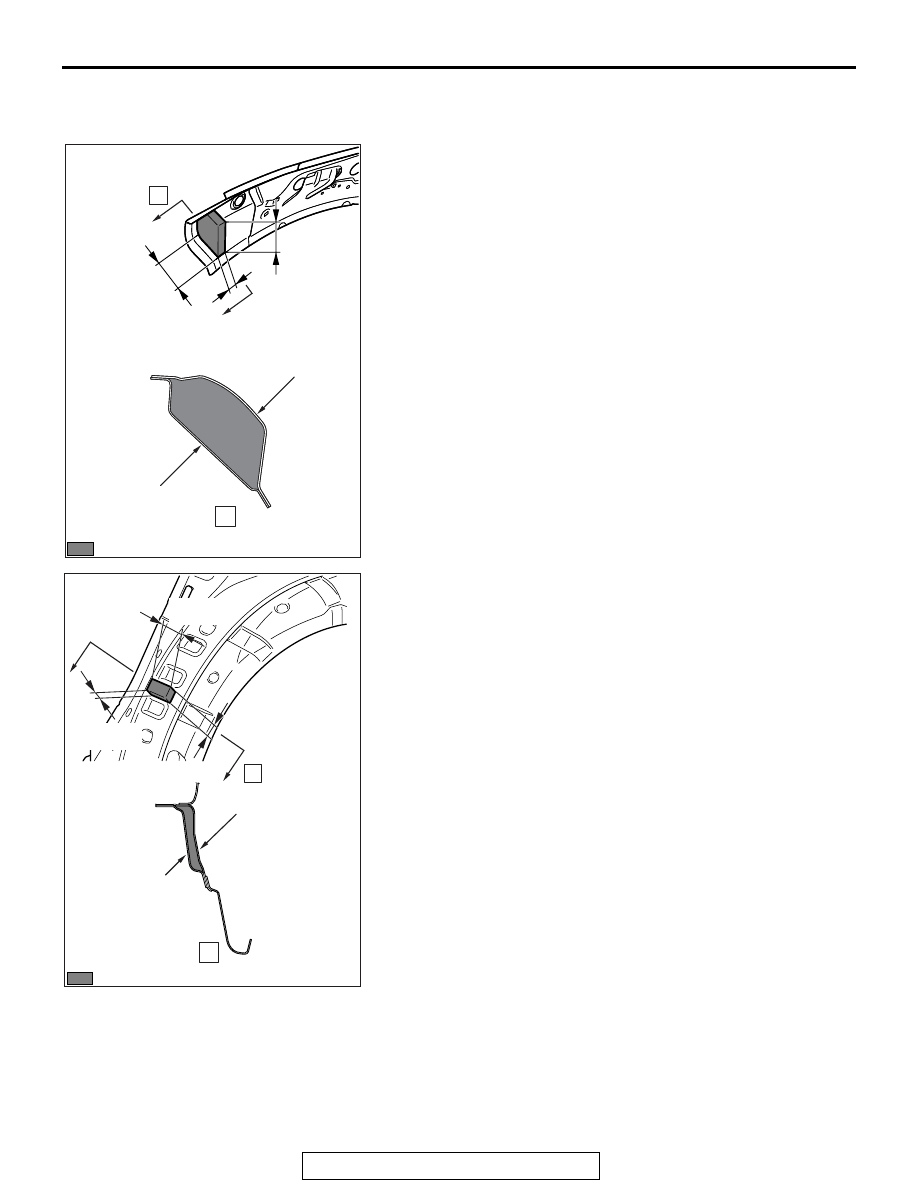

NOTE ON REPAIR WORK

.

INSTALLATION

1. When installing the new quarter panel inner, machine the

body loose panel cushion (MR535301 or MR435765) as
shown and apply it to the body side to prevent the sound
dampening foam material from dropping when the material
is filled into the rear pillar in the next process.

2. When installing the new rear pillar reinforcement lower

parts, machine the body loose panel cushion (MR535301 or
MR435765) for replacement as shown and apply it to the
body side because the sound dampening foam material
cannot be filled into the rear pillar reinforcement lower.

AB601339

AB

A

A

Quarter panel inner

 : Body loose panel cushion

Roof side rail
reinforcement rear

125 mm

(4.92 in)

70 mm

(2.75 in)

20 mm

(0.787 in)

AB601339

AB700899

AB

A

A

Quarter panel inner

 : Body loose panel cushion

Rear pillar
reinforcement lower

20 mm

(0.787 in)

85 mm

(3.35 in)

40 mm

(1.57 in)

QUARTER INNER

TSB Revision

WELDED PANEL REPLACEMENT

3-43

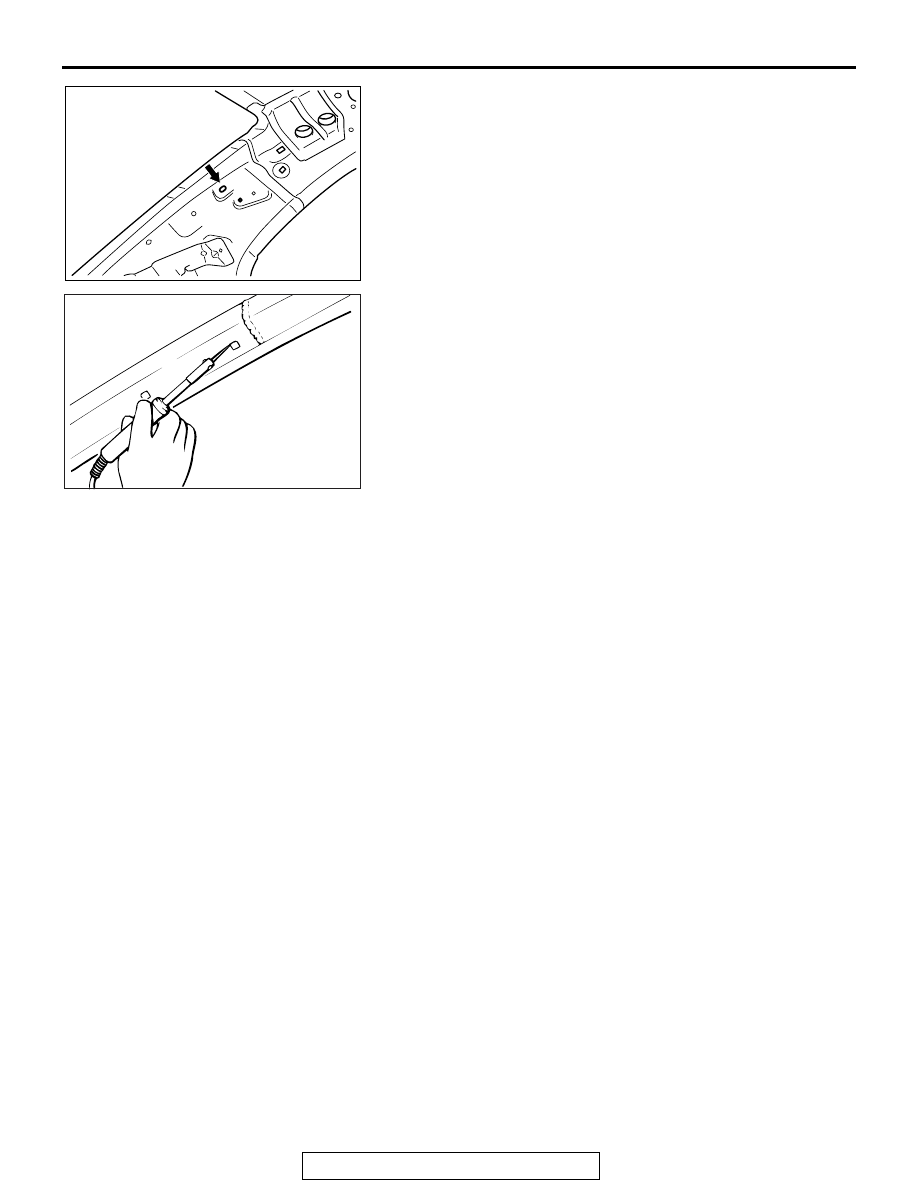

3. Assemble the rear quarter panel inner, bolt and tape the

hole and flange with aluminum tape, then fill the hole with
sound dampening foam material as shown in the figure of
the instructions.

Sound dampening foam material: 3M

™ AAD ULTRA-

PRO Panel foam-Yellow

4. Wait 2 hours after filling the sound dampening foam material

to remove the bolt and aluminum tape, then melt the sound
dampening foam material with a soldering gun so a clip, etc.
can thoroughly be inserted in the hole filled with sound
dampening foam material.

AB601338

AB

AB100787

QUARTER INNER (PARTIAL REPLACEMENT)

TSB Revision

WELDED PANEL REPLACEMENT

3-44

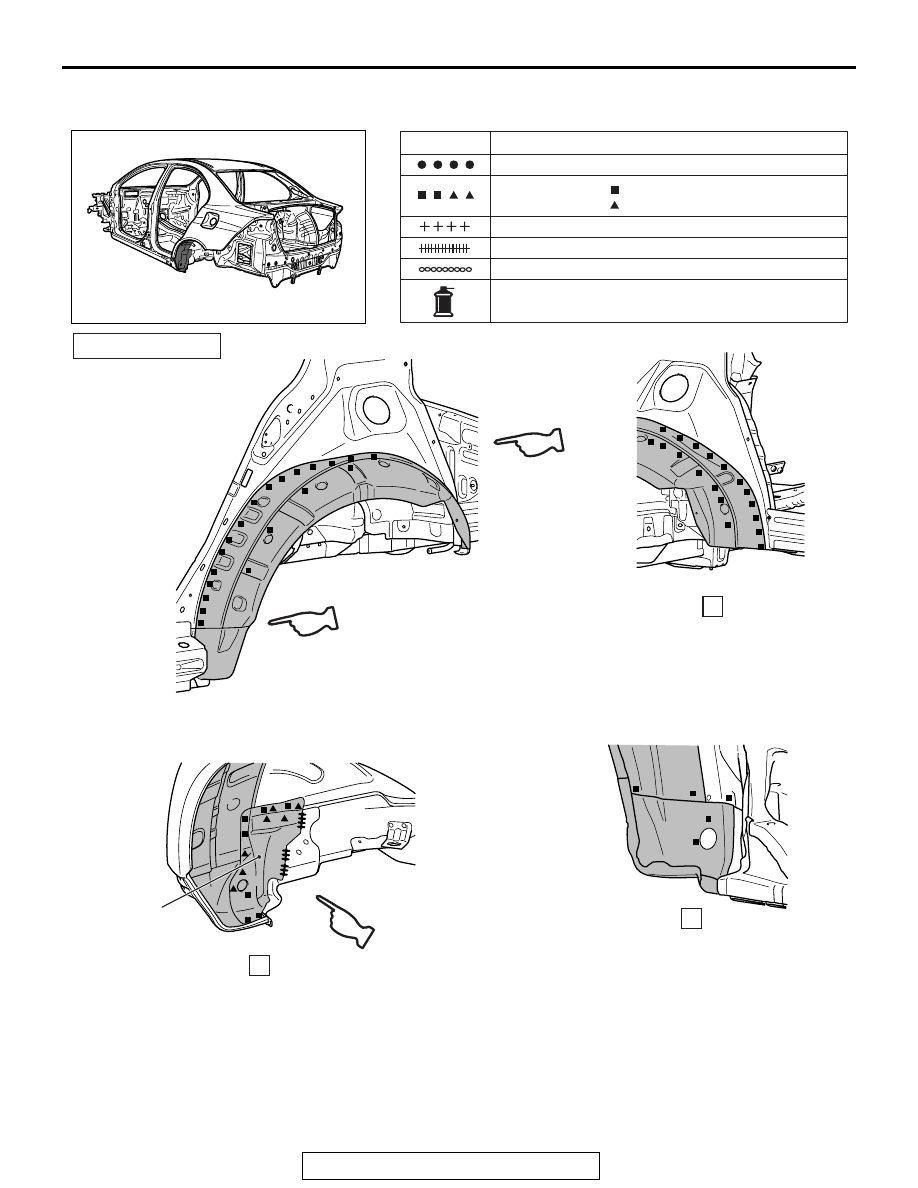

QUARTER INNER (PARTIAL REPLACEMENT)

M4030000200127

NOTE:

.

•

Refer to the Quarter Outer Section on

P.3-29

 for the welding points with the quarter outer.

•

Refer to the Quarter Inner Section on

P.3-39

 for the welding points with the rear pillar reinforcement and

the rear pillar reinforcement lower.

AB700946

Spot welding

MIG plug welding

: indicates two panels to be welded

: indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations

(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB

AB700972

C

A

B

REPAIR WELDS

A

B

C

AB

(With the rear wheel house
panel front lower outer removed)

Rear wheel house
panel front lower outer

(With the rear pillar reinforcement and the rear pillar reinforcement lower removed)

QUARTER INNER (PARTIAL REPLACEMENT)

TSB Revision

WELDED PANEL REPLACEMENT

3-45

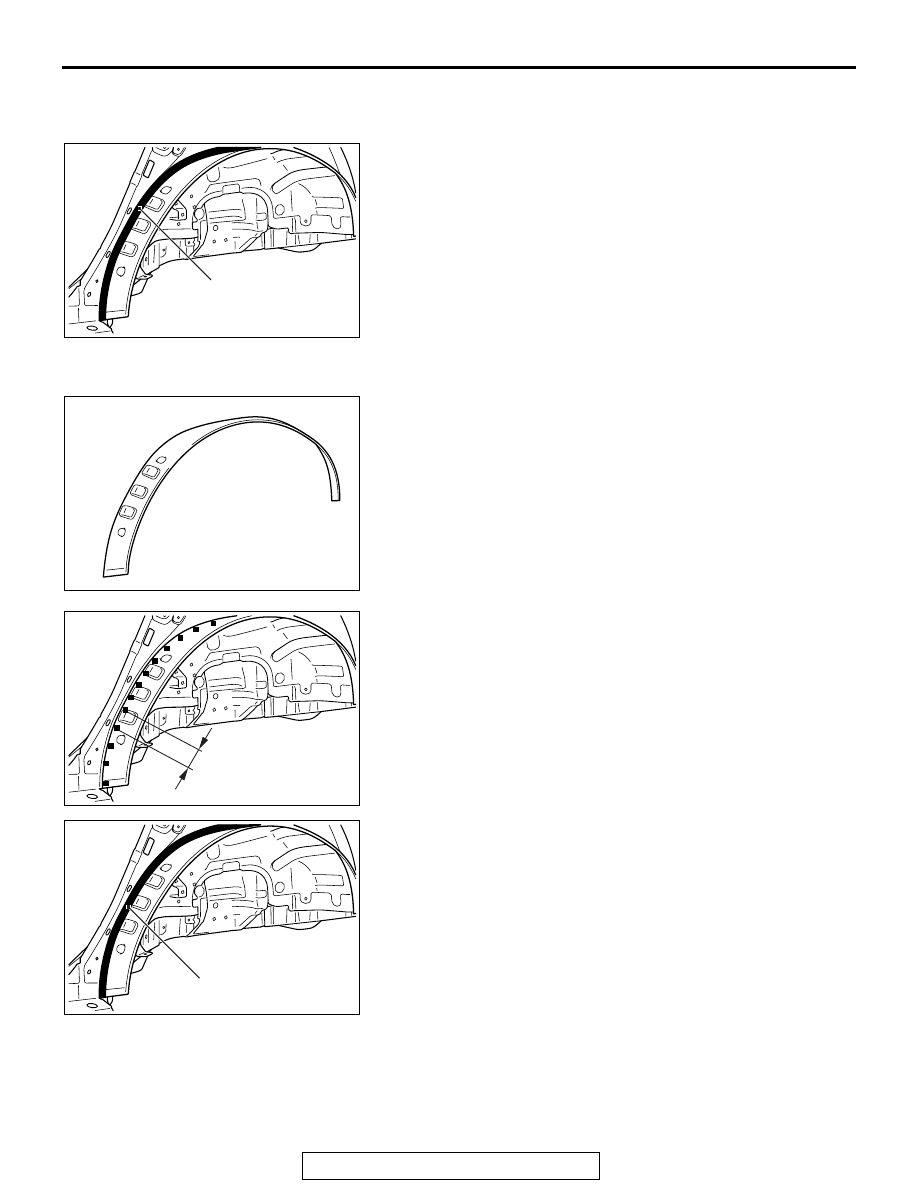

NOTE ON REPAIR WORK

.

REMOVAL

1. Adhere tape along the wheel arch of the quarter inner panel

as shown in the figure of the instructions, use the tape as a
guide so about 20 mm (0.79 inch) of the flange remains,
then cut and remove.

.

INSTALLATION

1. For the new quarter panel inner parts, cut the wheel arch

end are so that it overlaps with the flange on the body-side.

2. Overlap, assemble and weld the quarter panel inner with the

body-side flange. Weld at a pitch of 40 mm (1.57 inches).

3. Weld the quarter panel inner then apply a body sealing in

the area shown in the figure of the instructions.

AB700987AB

Tape

AB700986 AB

AB700988

40 mm (1.57 in)

AB

AB700987

AC

Body sealing
