Mitsubishi Lancer Evolution X. Manual - part 639





TRANSAXLE

TSB Revision

TWIN CLUTCH SST OVERHAUL

22D-13

4. Tighten the bolts to the specified torque.

Tightening torque: 6.0 ± 1.0 N⋅ m (53 ± 8 in-lb)

.

>>C<< OIL PAN ASSEMBLY INSTALLATION

1. Completely degrease the oil pan assembly installation

surface on the transaxle side.

2. Remove the gasket from the oil pan assembly, and

completely degrease the groove of the oil pan assembly
(gasket installation area) and the gasket. Then, install the
gasket to the groove of the oil pan assembly.

CAUTION

When installing the oil pan assembly, pay attention to
avoid damage to the connector and the O-ring installed to
the connector.
3. Tighten the screws to the specified torque in the order

shown in the figure.

Tightening torque: 10 ± 1 N⋅ m (89 ± 8 in-lb)

.

>>D<< NEEDLE ROLLER BEARING
INSTALLATION

1. Insert the needle roller bearing and ensure that the lock is

closed completely.

.

AK900330

AC807528AC

1

2

3

4

5

6

7

8

9

10

11

AK900349

TRANSAXLE

TSB Revision

TWIN CLUTCH SST OVERHAUL

22D-14

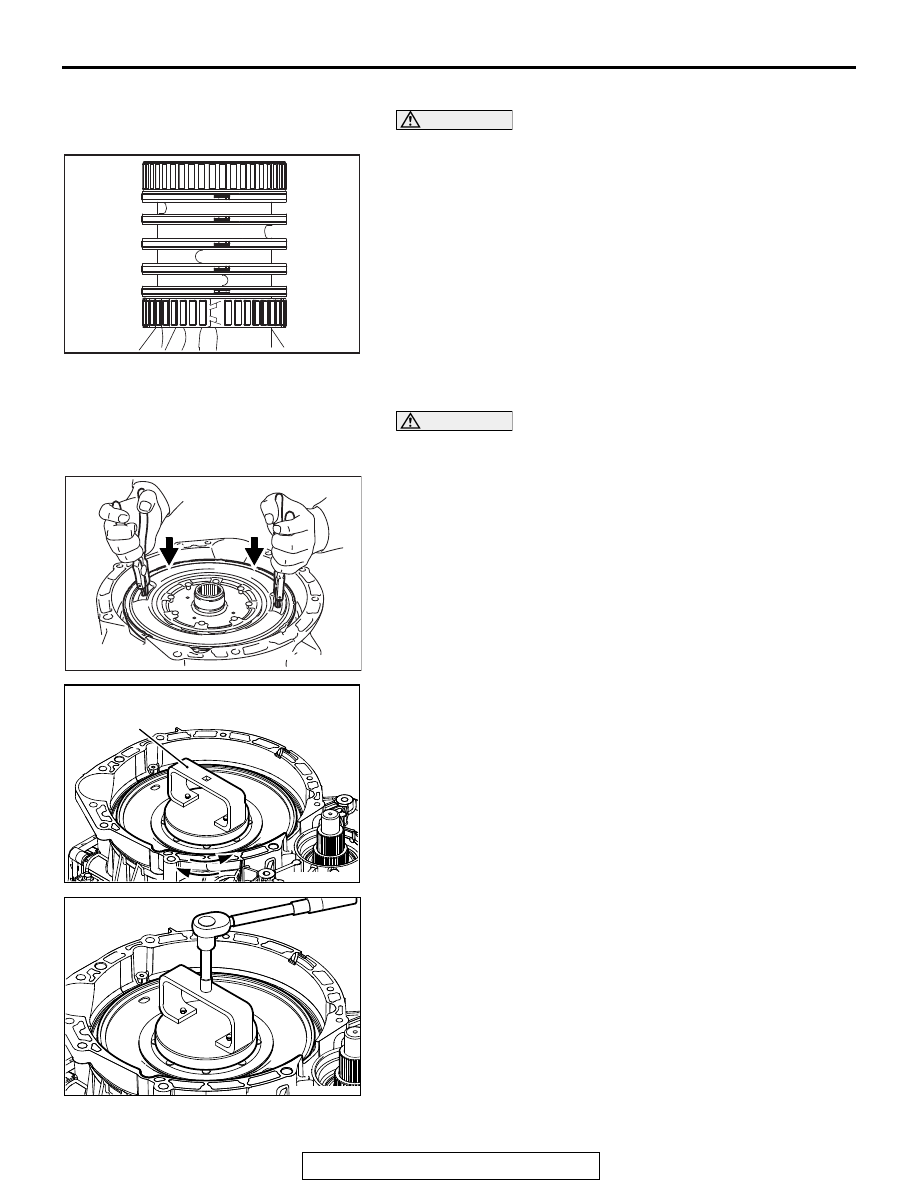

>>E<< SEAL RING INSTALLATION

CAUTION

Do not expand the seal ring more than necessary.
1. Insert the seal ring.
2. Ensure that the lock is closed completely and it is seated flat

into its position.

.

>>F<< CLUTCH ASSEMBLY INSTALLATION

CAUTION

Pay attention to the clutch assembly not to touch the seal
ring and needle bearing.
1. Put down the clutch assembly in the vertical direction to

carefully install it.

2. Align the four pins of the special tool, clutch remover &

installer (MB992332), with the four holes of the clutch
assembly to set the special tool, clutch remover & installer
(MB992332), to the clutch assembly.

3. Rotate the clutch assembly in the axial direction to insert the

pins into all four clutch disks in the clutch assembly.

4. Rotate the clutch assembly clockwise to install it.

Tighten it to the specified torque.

Tightening torque: 7.5 ± 1.0 N⋅ m (66 ± 8 in-lb)

.

AK900348

AK900283

AG

AK900459

AF

MB992332

AK900460

TRANSAXLE

TSB Revision

TWIN CLUTCH SST OVERHAUL

22D-15

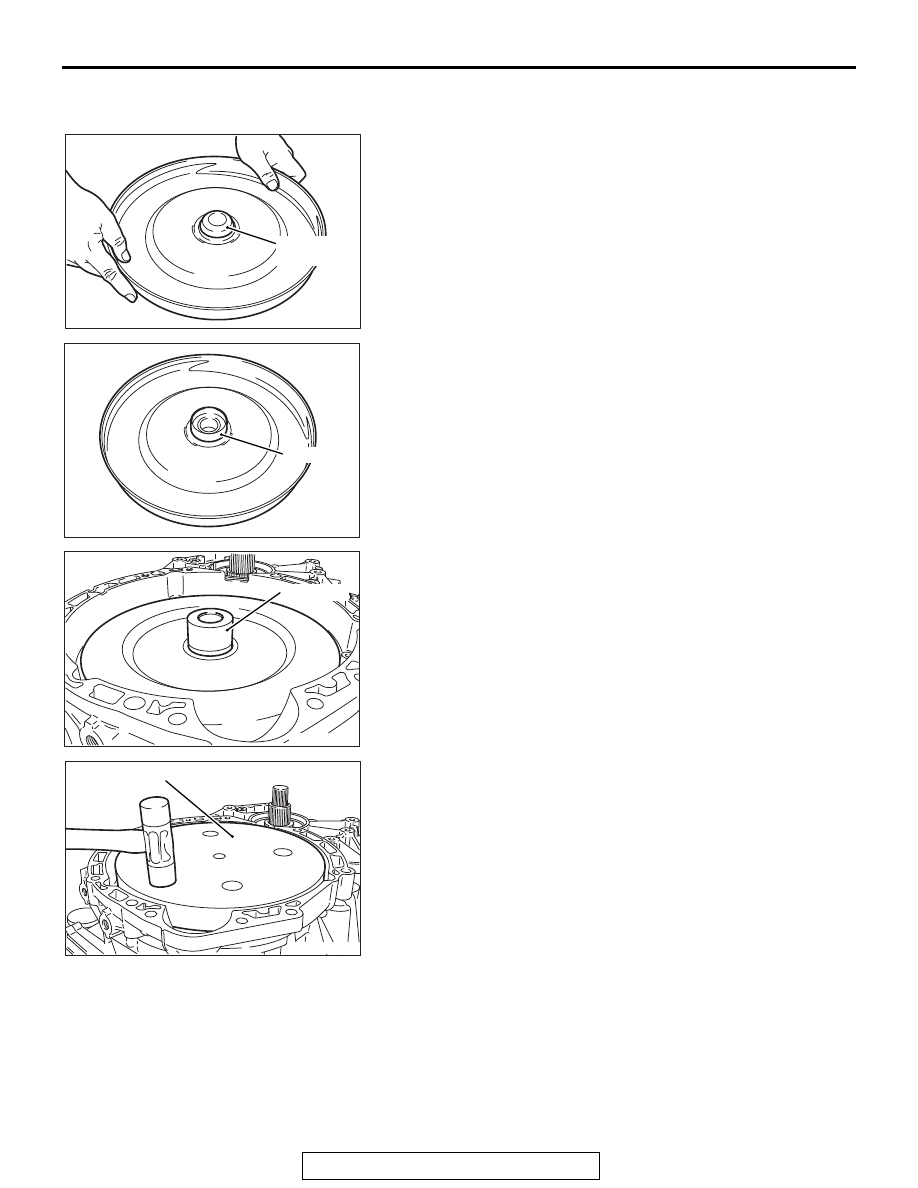

>>G<< SEAL COVER BRACKET AND SEAL
COVER INSTALLATION

1. Install the seal cover to the special tool MB992324 and

MB992325.

2. Remove the special tool MB992324 from MB992325.

3. Install the seal cover to the transaxle case. Remove the

special tool MB992325.

4. Use special tool MB992323 to install the seal cover to the

transaxle.

AK802294

MB992324
MB992325

AC

AK802295

MB992325

AC

AK802296

MB992325

AC

AK802297

MB992323

AC

TRANSAXLE

TSB Revision

TWIN CLUTCH SST OVERHAUL

22D-16

5. Install the seal cover bracket.

Confirm that it is not shaky.

6. Tighten the seal cover bracket mounting bolt to the specified

torque.

Tightening torque: 10 ± 1 N⋅ m (89 ± 8 in-lb)

.

>>H<< TRANSAXLE CASE OIL SEAL (LH)
INSTALLATION

1. Apply the transaxle oil to the special tool MB992311.

Insert the oil seal to the special tool MB992311.

2. Use special tool MB992310 to install the oil seal to the

transaxle.

.

>>I<< TRANSAXLE CASE OIL SEAL (RH)
ASSEMBLY INSTALLATION

1. Apply the transaxle oil to the special tool MB992313.

Insert the oil seal to special tool MB992313.

AK802298

AK802287

AC

MB992311

AK802288

MB992310

AC

AK802299

MB992313

AC
