ON-VEHICLE SERVICE

TSB Revision

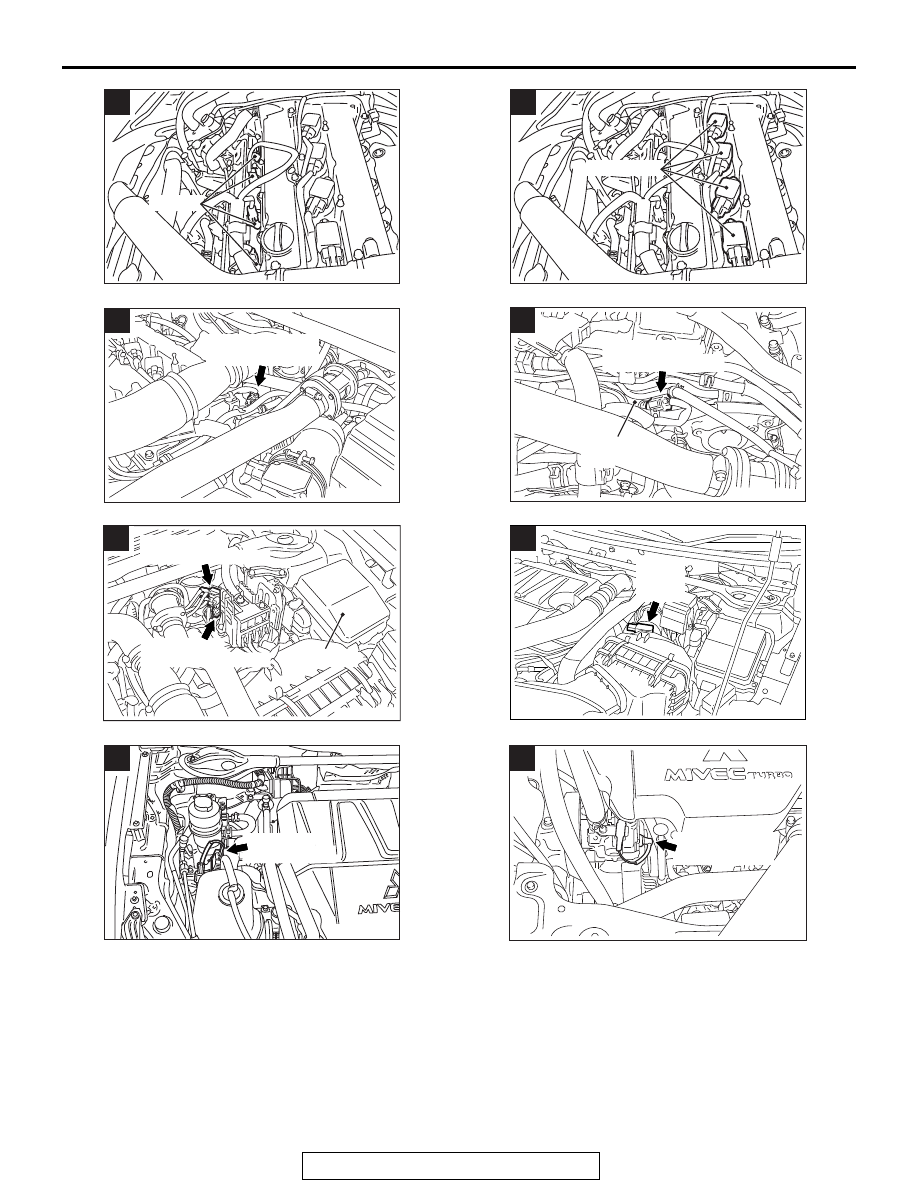

MULTIPORT FUEL INJECTION (MFI)

13A-861

AK704054AB

C

Injector

AK704055AB

D

Ignition coil

AK704056AB

E

Exhaust camshaft
position sensor

AK704057AB

F

Engine coolant
temperature sensor

Thermostat
case

AK704058 AB

Turbocharger
wastegate solenoid 1

G

Relay box

Turbocharger
wastegate solenoid 2

AK704059

H

AB

Mass
airflow
sensor

AK704767AB

I

Fuel pump
circuit resistor

AK704061AB

Power steering
pressure switch

J

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-862

AK704062 AB

K

Manifold absolute
pressure sensor

AK704063

AB

Intake air
temperature
sensor 2

Throttle body assembly

Intake camshaft
position sensor

L

AK704064

AB

M

Knock sensor

AK704065

N

AB

Evaporative emission
purge solenoid

AK704066

AB

O

Engine oil
filter

Crankshaft
position sensor

AK704067AB

Engine control
module

P

Relay box

AK704068 AB

A/C compressor clutch relay

Q

Throttle actuator
control motor relay

MFI relay

Starter relay

Fuel pump relay 1

Injector relay

AK800001AC

Malfunction
indicator lamp
(SERVICE
ENGINE
SOON or check
engine lamp)

R

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-863

AK704070AB

S

ETACS-ECU

AK702848

AG

Clutch pedal
position switch

Clutch interlock switch

T

AK704072AB

Data link connector

Hood lock release
handle

U

AK704073AB

V

Accelerator pedal
position sensor

Accelerator
pedal

AK704074

AB

Fuel level
sensor (sub)

W

Fuel tank
assembly

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-864

AK704075

AB

Heated oxygen
sensor (front)
connector

Heated oxygen
sensor (rear)
connector

SRS-ECU

Rear heater
duct

X

Heated oxygen
sensor (front)

Heated oxygen
sensor (rear)

AK704076 AB

Fuel tank differential
pressure sensor

Fuel pump module (incorporating
fuel level sensor (main) and
fuel tank temperature sensor)

Y

AK704077

AB

Evaporative emission
ventilation solenoid

Z

Canister
assembly
