MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-793

STEP 20. Check harness connector B-109 at starter
connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 21.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 21. Measure the power supply voltage at starter
harness side connector B-109.
(1) Disconnect the connector B-109 and measure at the

harness side.

(2) Turn the ignition switch to the "START" position.
(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 26.
NO :  Go to Step 22.

STEP 22. Measure the power supply voltage at starter relay
harness side connector A-28X.
(1) Disconnect the connector A-28X and measure at the

harness side.

(2) Measure the voltage between terminal No. 4 and ground.

• Voltage should be battery positive voltage

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 23.
NO :  Repair harness wire between fusible link (24) and

starter relay connector A-28X (terminal No. 4)
because of open circuit or short circuit to ground.
Then confirm that the malfunction symptom is
eliminated.

AK704593

1

B-109 harness
connector:
component side

AB

2

1

3
4

AK700519AC

A-28X harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-794

STEP 23. Check for open circuit and short circuit to
ground between starter relay connector A-28X (terminal
No. 3) and starter connector B-109 (terminal No. 1)
NOTE: Check harness after checking intermediate connectors
A-39 and B-17. If intermediate connectors are damaged, repair
or replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then check that the malfunction is elimi-

nated.
Q: Is the harness wire in good condition?

YES : Go to Step 24.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 24. Check harness connector B-10 at ECM connector
and harness connector C-51 at clutch interlock switch
connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 25.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 25. Check for harness damage between ECM
connector B-10 (terminal No. 106) and clutch interlock
switch connector C-51 (terminal No. 2).
Q: Is the harness wire in good condition?

YES : Repair harness wire between clutch interlock switch

connector C-51 (terminal No. 2) and starter relay
connector A-28X (terminal No. 2) because of harness
damage. Then confirm that the malfunction symptom
is eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 26. Check for harness damage between starter relay
connector A-28X (terminal No. 3) and starter connector
B-109 (terminal No. 1)
NOTE: Check harness after checking intermediate connectors
A-39 and B-17. If intermediate connectors are damaged, repair
or replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then check that the malfunction is elimi-

nated.
Q:  Is the harness wire in good condition?

YES : Go to Step 27.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-795

STEP 27. Check for harness damage between fusible link
(24) and starter relay connector A-28X (terminal No. 4)
Q: Is the harness wire in good condition?

YES : Go to Step 28.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 28. Check harness connector B-108 at starter
connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 29.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 29. Check for open circuit and short circuit to
ground and harness damage between battery and starter
connector B-108 (terminal No. 1)
Q: Is the harness wire in good condition?

YES : Replace the starter.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-796

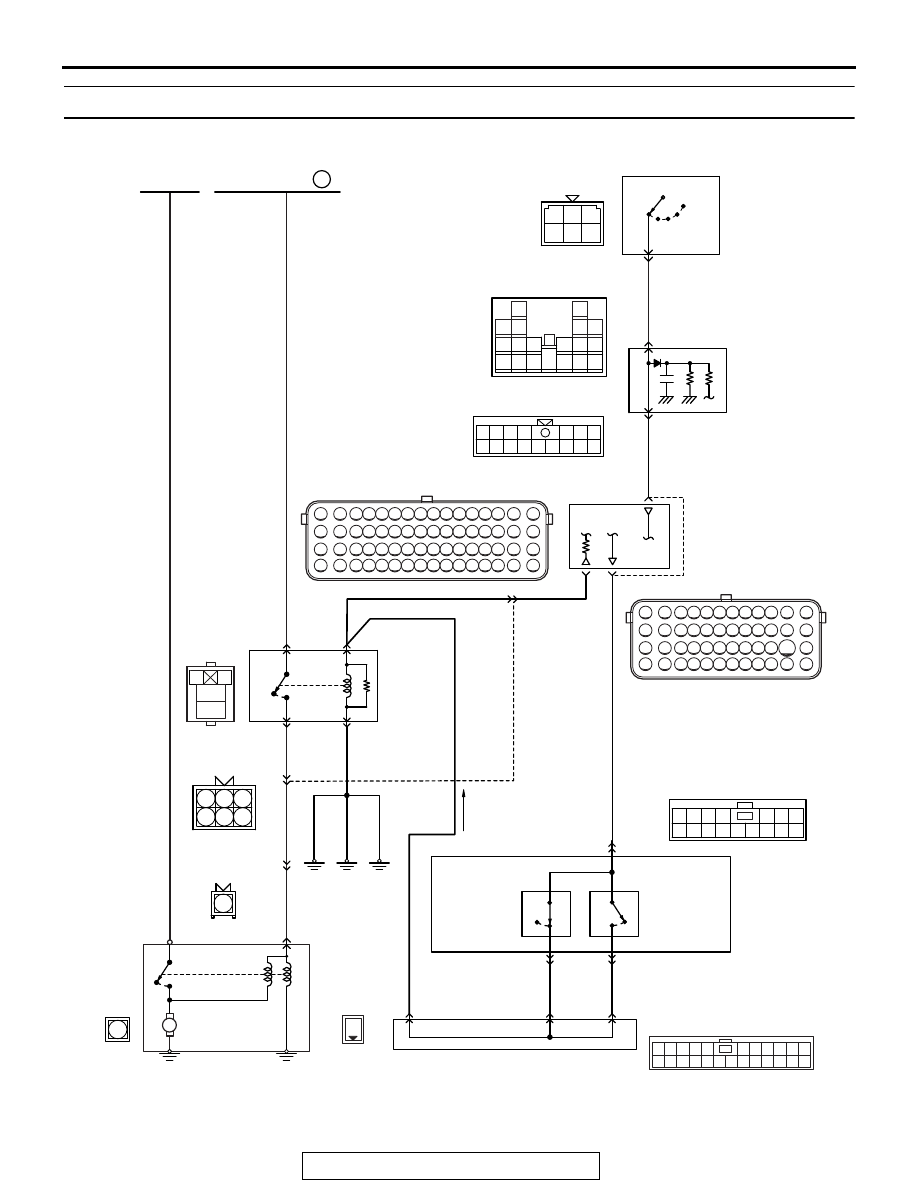

Inspection procedure 25: Ignition switch-ST system and starter relay system <TC-SST>
