MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-297

STEP 8. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

STEP 9. Check for harness damage between fuel tank
temperature sensor connector D-22 (terminal No. 3) and
ECM connector B-10 (terminal No. 115).
NOTE: Check harness after checking intermediate connector
C-47. If the intermediate connector is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 10.

Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 10.

NO :  Repair it. Then go to Step 10.

STEP 10. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function − OBD-II Drive Cycle − Pattern 23

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0183 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-298

DTC P0201: Injector Circuit-Cylinder 1

AK704254

1

3

2

4

1

2

3
4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2 3 4

5 6 7

15

14

13

12

11

9

8

10

1

6

4

5

9

8

10 11

13

15

14

12

16

7

2 3

2

1

1 2 3

4 5 6

1

12 13 14 15 16 1718 19 20 2122 2324

2 3 4 5

6 7 8 9 10 11

INJECTOR
NO. 1

B-101

(MU802062)

A-39

MU802607

1

2

2

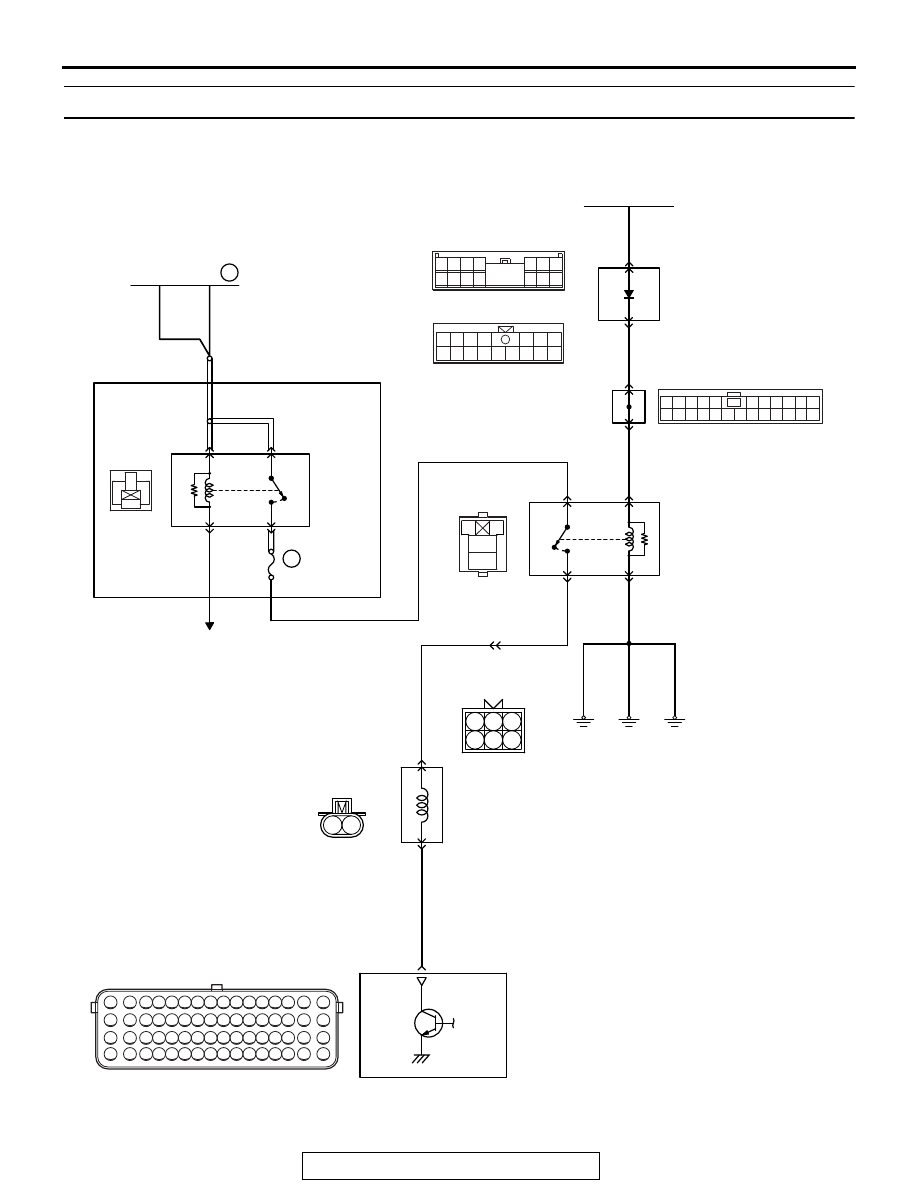

INJECTOR CIRCUIT-CYLINDER 1

RED-BLA

CK

RED-

BLA

CK

GREEN-WHITE

B-09

AC

20A

WHITE

WHITE

A-34X

MFI
RELAY

4

3

1

2

22

36

FUSIBLE LINK

OFF

ON

WHITE

WHITE

RED-

GREEN

RED-

GREEN

4

1

14

10

15

6

1

C-304

C-317

J-C (7)

C-50

A-25X

3

2

IGNITION
SWITCH (IG1)

ETACS-
ECU

INJECTOR
RELAY

OFF

ON

RELAY BOX
(ENGINE COMPARTMENT)

ENGINE CONTROL MODULE

TO ECM

BLA

CK

BLA

CK

BLA

CK

BLA

CK

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-299

.

CIRCUIT OPERATION

• The injector power is supplied from the injector

relay (terminal No. 3).

• The ECM controls the injector by turning the

power transistor in the ECM "ON" and "OFF".

.

TECHNICAL DESCRIPTION

• The amount of fuel injected by the injector is con-

trolled by the amount of continuity time the coil is
grounded by the ECM.

.

DESCRIPTIONS OF MONITOR METHODS

The ECM detects open circuit and short malfunction.

.

MONITOR EXECUTION

Continuous

.

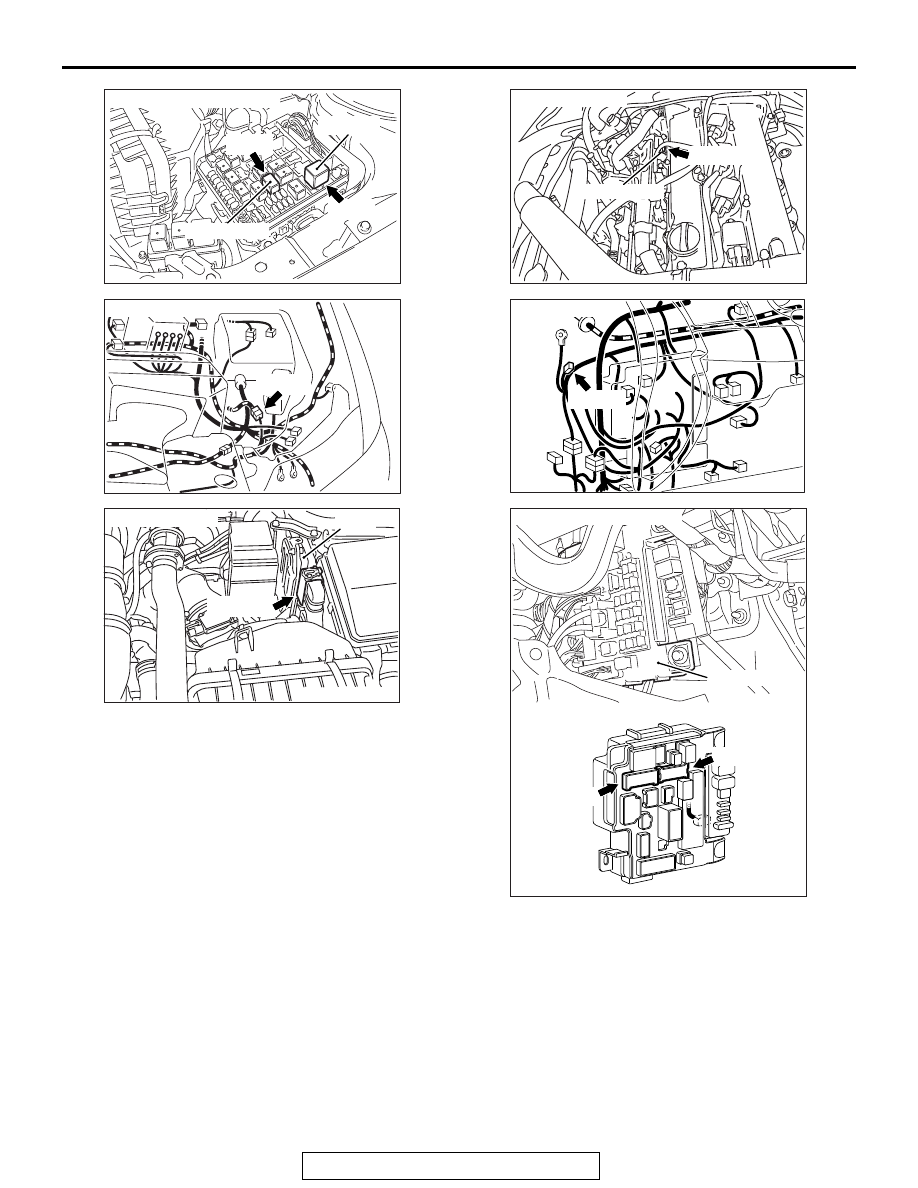

AK704256

Connectors: A-25X, A-34X

MFI relay

Injector relay

A-34X

A-25X

AB

AK704255AB

Connector: A-39

A-39 (B)

AK704227

Connector: B-09

ECM

B-09 (GR)

AB

AK704257AB

Connector: B-101

Injector No. 1

B-101 (GR)

AK704258 AB

Connector: C-50

C-50 (B)

AK704259AB

Connectors: C-304, C-317

ETACS-ECU

C-304

C-317

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-300

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DTC SET CONDITIONS <Circuit continuity − open circuit and shorted low>

Logic Flow Chart

Check Condition

• Engine is running.

Judgement Criterion

• The supply voltage is 3 volts or less without the

injector driving for 2 seconds.

.

Good

Malfunction

Injector voltage < = 3V

Start

Continuous

failure for 2secs

End

No

No

Yes

Yes

Yes

No

AK700479

Monitoring

condition
