PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-11

REMOVAL SERVICE POINT

.

<<A>> PARKING BRAKE REAR CABLE DISCON-
NECTION

Disconnect the parking brake rear cable according to the pro-
cedure below.
1. Release the parking brake, and loosen the adjusting nut.
2. Remove the floor console bracket rear mounting bolts.

3. Slide the floor console bracket rear, and disconnect the

parking brake rear cable from the hole shown by the arrows.

INSTALLATION SERVICE POINT

.

>>A<< PARKING BRAKE REAR CABLE CONNEC-
TION INSTALLATION

Install the parking brake rear cable connection, and then
tighten the floor console bracket rear mounting bolts to the
specified torque.

Tightening torque: 9.5 ± 3.5 N⋅ m (84 ± 30 in-lb)

AC609694AB

Floor console
bracket rear

AC609689AD

Floor console
bracket rear

AC609694AC

Floor console
bracket rear

9.5 ± 3.5 N·m
84 ± 30 in-lb

9.5 ± 3.5 N·m
84 ± 30 in-lb

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-12

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001901379

Pre-removal operation
• Floor console assembly removal (Refer to GROUP 52A −

Floor Console Assembly

P.52A-10

).

• Rear seat cushion assembly removal (Refer to GROUP

52A − Rear Seat Assembly

P.52A-27

).

• Shoe and lining assembly removal (Refer to

P.36-14

).

• Front floor under cover removal (Refer to GROUP 51 −

Under Cover

P.51-15

).

Post-installation operation
• Front floor under cover installation (Refer to GROUP 51 −

Under Cover

P.51-15

).

• Shoe and lining assembly installation (Refer to

P.36-14

).

• Rear seat cushion assembly installation (Refer to GROUP

52A − Rear Seat Assembly

P.52A-27

).

• Floor console assembly installation (Refer to GROUP 52A

− Floor Console Assembly

P.52A-10

).

• Parking brake lever stroke adjustment (Refer to

P.36-8

).

• Parking brake lining seating procedure (Refer to

P.36-9

).

AC807530AD

1

2

3

2

13 ± 2 N·m
111 ± 22 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

Removal steps

<<

A

>>

>>

A

<<

1.

Parking brake rear cable
connection

2.

Clip

3.

Parking brake rear cable

Removal steps (Continued)

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-13

REMOVAL SERVICE POINT

.

<<A>> PARKING BRAKE REAR CABLE CONNEC-
TION REMOVAL

Disconnect the parking brake rear cable according to the pro-
cedure below.
1. Release the parking brake, and loosen the adjusting nut.
2. Remove the floor console bracket rear mounting bolt.

3. Slide the floor console bracket rear, and disconnect the

parking brake rear cable through the hole indicated with an
arrow in the figure.

INSTALLATION SERVICE POINT

.

>>A<< PARKING BRAKE REAR CABLE CONNEC-
TION INSTALLATION

Connect the parking brake rear cable, and tighten the floor con-
sole bracket rear mounting bolt to the specified torque.

Tightening torque: 9.5 ± 3.5 N⋅ m (84 ± 30 in-lb)

AC609694AB

Floor console
bracket rear

AC609689AD

Floor console
bracket rear

AC609694AC

Floor console
bracket rear

9.5 ± 3.5 N·m
84 ± 30 in-lb

9.5 ± 3.5 N·m
84 ± 30 in-lb

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-14

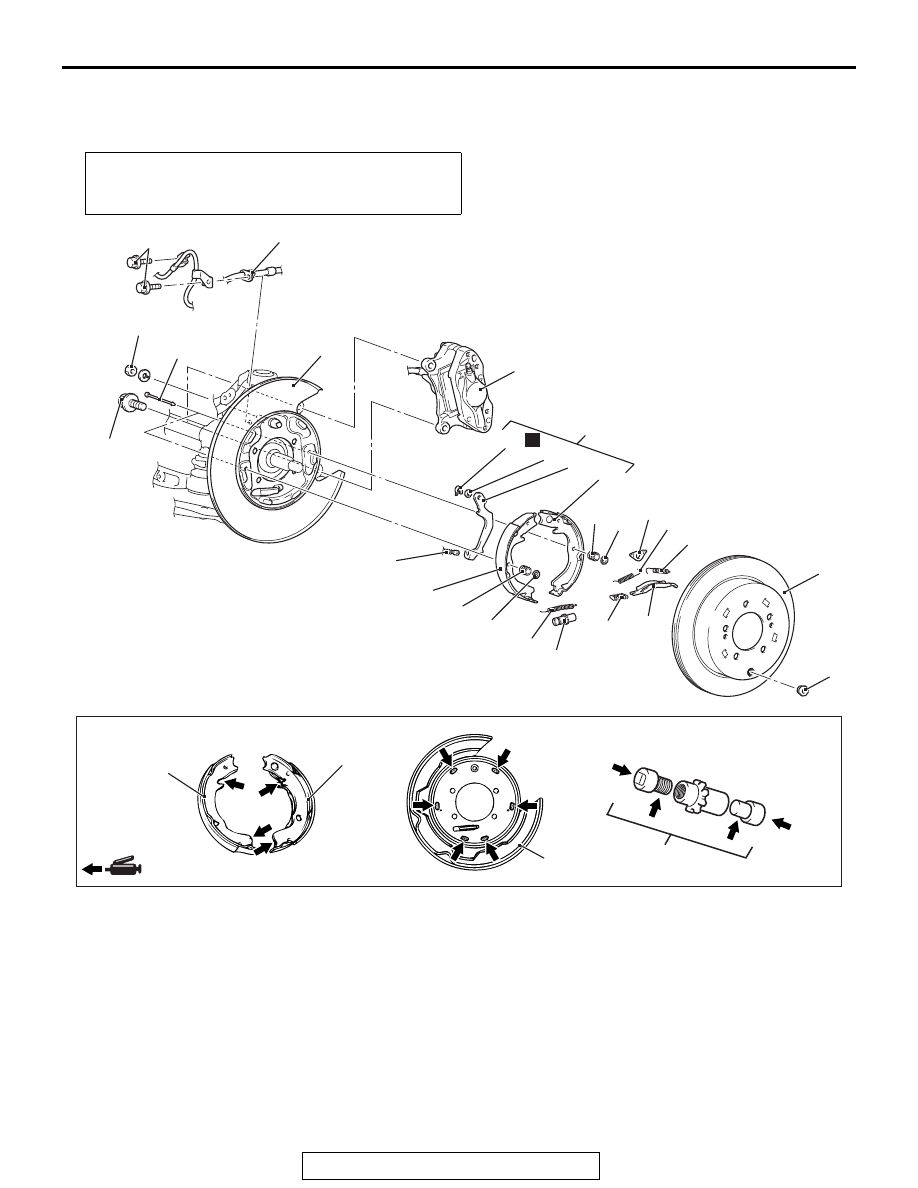

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500746

Post-installation Operation
• Parking brake lever stroke adjustment (Refer to

P.36-8

).

• Parking brake lining seating procedure (Refer to

P.36-9

).

AC712287

15

17

9

21

18

19

20

2

22

4

5

9

22

8

13

14

15

10

11

12

6

7

13

14

1

AB

3

17

16

11 ± 2 N·m
98 ± 17 in-lb

80 ± 10 N·m
59 ± 7 ft-lb

145 ± 15 N·m
107 ± 11 ft-lb

N

Removal steps

•

Release the parking brake lever.

1.

Adjusting hole plug

2.

Brake hose bracket connection

<<

A

>>

3.

Rear brake caliper assembly

<<

B

>>

4.

Rear brake disk

>>

D

<<

5.

Shoe-to-anchor spring

>>

D

<<

6.

Shoe-to-anchor spring

7.

Shoe guide plate

8.

Adjusting wheel spring

>>

C

<<

9.

Adjuster assembly

10. Strut
11. Strut shoe-to-spring

12. Shoe hold down pin
13. Shoe hold down cup
14. Shoe hold down spring
15. Shoe and lining assembly
16. Parking brake rear cable

connection

17. Shoe and lever assembly

>>

B

<<

18. Chamber retainer

>>

A

<<

19. Washer
20. Parking brake operating lever
21. Shoe and lining assembly

Removal steps (Continued)
