STEERING WHEEL SENSOR

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-305

STEERING WHEEL SENSOR

REMOVAL AND INSTALLATION

M1355005100221

CAUTION

• Always align the center of the clock spring before installing the steering wheel sensor. Otherwise,

the sensor can be damaged.

• If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully

or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or
operated incorrectly.

• Before removing the steering wheel assembly and driver's air bag module, always refer to GROUP

52B − Service Precautions

P.52B-24

 and Driver's Air bag Module and Clock Spring

P.52B-413

.

• When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn

the neutral point. (Refer to

P.35C-289

.)

Pre-removal operation
• Position the front wheels in a straight ahead direction.
• Driver's air bag module removal (Refer to GROUP 52B −

Driver's Air bag Module and Clock Spring

P.52B-413

.)

• Steering wheel assembly removal (Refer to GROUP 37 −

Steering Wheel

P.37-29

.)

• Steering column upper cover and steering column lower

cover removal (Refer to GROUP 37 − Steering Shaft

P.37-33

.)

• Paddle shift assembly removal (Refer to GROUP 37 −

Steering Shaft

P.37-33

.) <Vehicles with paddle shift>

Post-installation operation
• Paddle shift assembly installation (Refer to GROUP 37 −

Steering Shaft

P.37-33

.) <Vehicles with paddle shift>

• Steering column upper cover and steering column lower

cover installation (Refer to GROUP 37 − Steering Shaft

P.37-33

.)

• Steering wheel assembly installation (Refer to GROUP 37

− Steering Wheel

P.37-29

.)

• Driver's air bag module installation (Refer to GROUP 52B

− Driver's Air bag Module and Clock Spring

P.52B-413

.)

• Performing the steering wheel calibration (Refer to

P.35C-289

.)

AC707231

2

AB

1

2.5 ± 0.5 N·m
23 ± 4 in-lb

Removal steps

>>

A

<<

1. column switch assembly

>>

A

<<

2. Steering wheel sensor

STEERING WHEEL SENSOR

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-306

INSTALLATION SERVICE POINT

.

>>A<< NEUTRAL POSITIONING OF STEERING
WHEEL SENSOR

CAUTION

• Always align the center of the clock spring before

installing the steering wheel sensor. Otherwise, the
sensor can be damaged.

• If the center of the clock spring is not correctly aligned,

the steering wheel may not be turned fully or the cable
inside the clock spring may be broken, causing the
SRS air bag to be inoperative or operated incorrectly.

1. Align the mating marks of the clock spring.

<Alignment of mating marks>

(1) Turn the clock spring clockwise fully.
(2) Turn the clock spring counterclockwise approximately

three and 3/4 turns to align the mating marks.

(3) Check that the white roller is visible from the window for

checking the neutral point with the mating marks being
aligned.
NOTE: If the white roller is invisible, the neutral point is
not positioned correctly.

CAUTION

Always align three mating marks of the steering wheel
sensor simultaneously as shown in the figure. If these mat-
ing marks are not aligned correctly, the steering wheel
sensor may be damaged.

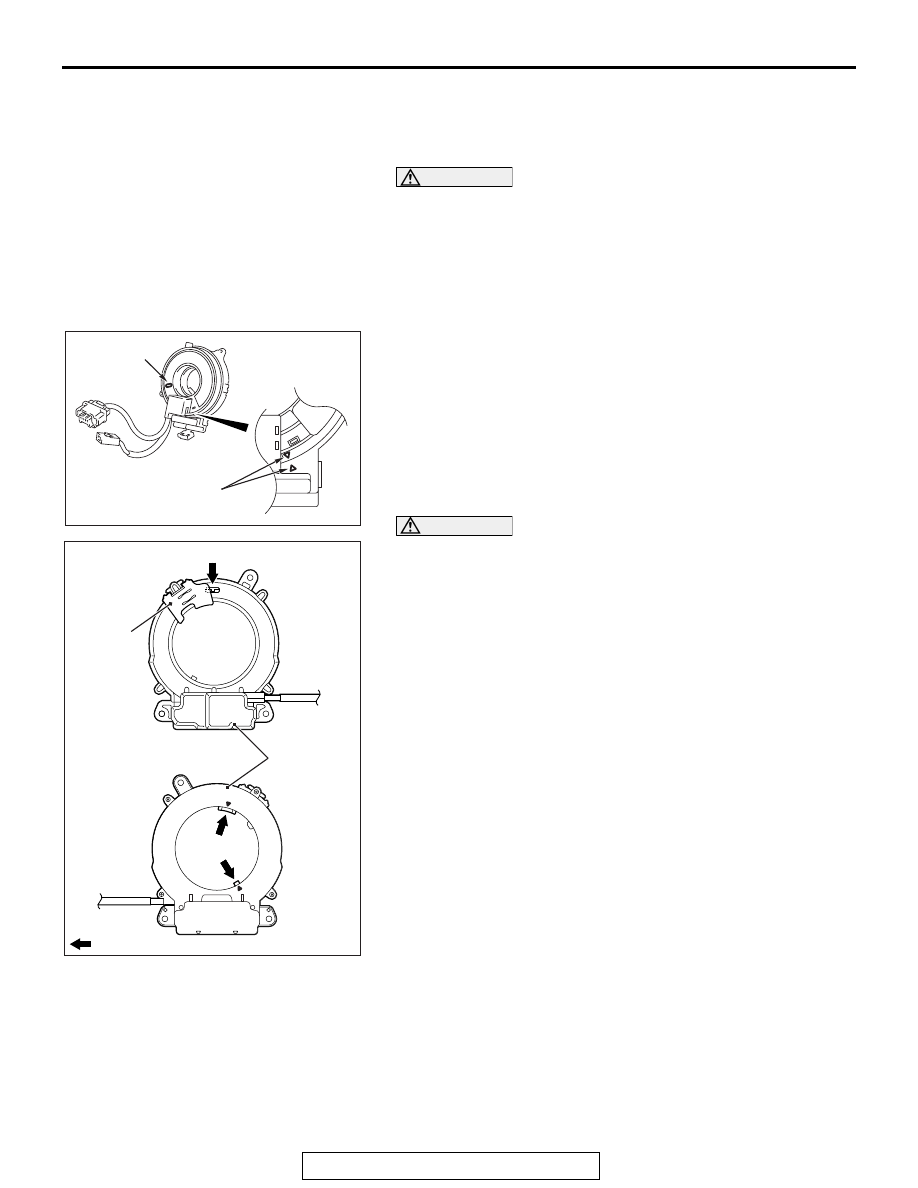

2. Align three mating marks of the steering wheel sensor

simultaneously as shown in the figure.
<Alignment of mating marks>

(1) Check the window for inspecting the neutral position of

the steering wheel sensor. If the mating marks cannot be
seen from the window, align the mating marks as shown
in the figure.

(2) Install the steering wheel sensor to the column switch

assembly, maintaining the neutral position correctly.
NOTE: A new steering wheel sensor has a lock clip for
preventing the rotation of (fixing) the steering wheel sen-
sor. After installing the column switch assembly, remove
this lock clip.

(3) Install the column switch assembly to the vehicle,

maintaining the neutral position correctly.

AC705283AB

Window for
checking the
neutral point

Neutral position mark

AC701416 AB

Steering
wheel sensor

; Neutral position mark

For the vehicles front

For vehicles back

Lock clip

36-1

GROUP 36

PARKING BRAKES

CONTENTS

GENERAL INFORMATION . . . . . . . .

36-2

SERVICE SPECIFICATIONS. . . . . . .

36-2

PARKING BRAKE DIAGNOSIS  . . . .

36-2

INTRODUCTION. . . . . . . . . . . . . . . . . . . . .

36-2

TROUBLESHOOTING STRATEGY . . . . . .

36-2

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

36-3

SYMPTOM PROCEDURES . . . . . . . . . . . .

36-3

SPECIAL TOOL . . . . . . . . . . . . . . . . .

36-7

ON-VEHICLE SERVICE. . . . . . . . . . .

36-8

PARKING BRAKE LEVER STROKE CHECK
AND ADJUSTMENT . . . . . . . . . . . . . . . . . .

36-8

PARKING BRAKE SWITCH CHECK. . . . . .

36-9

PARKING BRAKE LINING SEATING
PROCEDURE . . . . . . . . . . . . . . . . . . . . . . .

36-9

PARKING BRAKE LEVER . . . . . . . . .

36-10

REMOVAL AND INSTALLATION  . . . . . . . .

36-10

PARKING BRAKE CABLE. . . . . . . . .

36-12

REMOVAL AND INSTALLATION  . . . . . . . .

36-12

PARKING BRAKE LINING AND

DRUM . . . . . . . . . . . . . . . . . . . . . . . . .

36-14

REMOVAL AND INSTALLATION  . . . . . . . .

36-14

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

36-17

GENERAL INFORMATION

TSB Revision

PARKING BRAKES

36-2

GENERAL INFORMATION

M1361000100816

The parking brakes are a mechanical rear wheel
brake design and controlled by a lever.

CONSTRUCTION DIAGRAM

SERVICE SPECIFICATIONS

M1361000301006

PARKING BRAKE DIAGNOSIS

INTRODUCTION

M1361003700345

If the parking brake is faulty, parking brake effort will
become insufficient. The cause may be a malfunc-
tion of parking brake parts or the parking brake lever
being out of adjustment.

TROUBLESHOOTING STRATEGY

M1361003800353

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
parking brakes fault.
1. Gather Information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

AC703821AB

Parking brake
lever assembly

Parking brake
assembly

Parking brake rear cable

Item

Standard value

Limit

Parking brake lever stroke [Control force: approximately 200 N (45
pounds)]

3 to 5 notches

−

Brake lining thickness mm (in)

2.8 (0.11)

1.0 (0.04)

Brake drum inside diameter mm (in)

190.0 (7.48)

191.0 (7.52)
