CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-59

CAUTION

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code (DTC) may be set. Prior to this
diagnosis, diagnose the CAN bus lines (Refer to GROUP
54C, Trouble code diagnosis

P.54C-9

.)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

.)

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line (Refer to

P.17-10

.)

Q: Is the check result satisfactory?

YES : Go to Step 2
NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis − Can Bus Diagnostic Chart

P.54C-15

.)

Then go to Step 6.

STEP 2. Using scan tool MB991958, check for MFI system
DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

.)

(2) Turn the ignition switch to the "ON" position.
(3) Check for MFI system DTC (Refer to GROUP 13A,

Diagnosis − Diagnostic Function

P.13A-9

.)

Q: Is DTC U0141 set?

YES : Repair the MFI system (Refer to GROUP 13A,

Diagnosis, Diagnostic Trouble Code Procedures −

DTC U0141: ETACS-ECU CAN Communication Time
Out

P.13A-694

.) Then go to Step 6.

NO :  Go to Step 3.

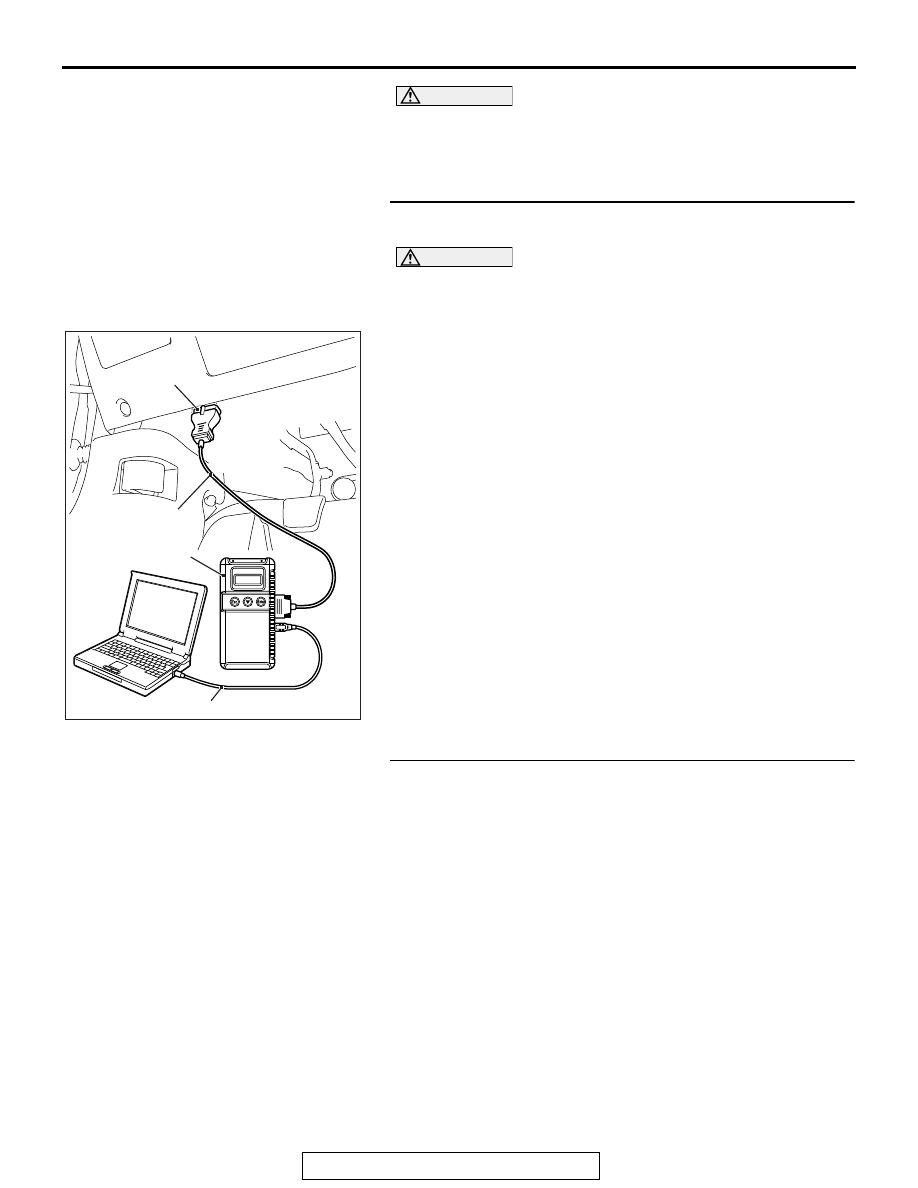

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-60

STEP 3. Using scan tool MB991958, check for ETACS
system DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

.)

(2) Turn the ignition switch to the "ON" position.
(3) Check for ETACS system DTC (Refer to GROUP 54A,

ETACS, Troubleshooting − Diagnostic Function

P.54A-643

.)

Q: Is DTC U0155 set?

YES : Repair the ETACS system (Refer to GROUP 54A,

ETACS, Troubleshooting, Diagnostic Trouble Code
Procedures − DTC U0155: Combination Meter-ECU

CAN Communication Time Out

P.54A-665

.) Then go

to Step 6.

NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check the combination
meter system actuator test item 7: Cruise indicator 1.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

.)

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check the actuator test for

combination meter system item 7: indicator 1 (Refer to
GROUP 54A, Combination Meter, Troubleshooting −

Actuator Teat Table

P.54A-96

.)

Q: Is the check result satisfactory?

YES : Go to Step 5.
NO :  Repair the combination meter system (Refer to

GROUP 54A, Combination Meter, Troubleshooting,
Symptom Procedures − Inspection Procedure 5: The

combination meter light does not illuminate normally
or the multi information display is not displayed
normally

P.54A-81

.) Then go to Step 6.

STEP 5. Check the symptoms.
Q: When the "ON/OFF" switch is turned ON, is the

"CRUISE" indicator light illuminated?
YES : It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunction

P.00-15

.)

NO :  Replace the ECM [Refer to GROUP 13A, Engine

Control Module (ECM)

P.13A-888

.] When the ECM is

replaced, register the encrypted code (Refer to
GROUP 42C, Diagnosis − ID Code Registration

Judgment Table

P.42C-9

.) Then go to Step 6.

STEP 6. Check the symptoms.
Q: When the "ON/OFF" switch is turned ON, is the

"CRUISE" indicator light illuminated?
YES : The procedure is complete.
NO :  Return to Step 1.

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-61

DATA LIST REFERENCE TABLE

M1172002401850

CAUTION

Driving tests always need two people: one driver and one observer.

Scan tool
display

Item
number

Inspection item

Inspection requirement

Normal condition

Brake light
switch

74

Stoplight switch
(for stoplight
circuit)

Ignition
switch: "ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Cancel
code

57

Cancel code

Ignition switch: "ON"

The cancel code,
which set when the
cruise control
system was
cancelled at the
last time.

Cancel
switch

75

Cruise control
switch
("CANCEL"
switch)

Ignition
switch: "ON"

"CANCEL" switch: Pressed

ON

"CANCEL" switch: Released

OFF

Clutch
switch

78

Clutch switch
<M/T>

Ignition
switch: "ON"

Clutch pedal: Depressed

ON

Clutch pedal: Released

OFF

Cruise
switch

81

Cruise control
system
operation

Cruise control system: active

ON

Cruise control system: Inactive

OFF

Main
switch

86

Cruise control
switch
("ON/OFF"
switch)

Ignition
switch: "ON"

"ON/OFF" switch: Pressed

ON

"ON/OFF" switch: Pressed
again

OFF

Neutral
switch

88

Shift lever
position
<TC-SST>

Ignition
switch: "ON"

Shift lever: "N", "P", "R" position ON
Shift lever: Other than "N", "P",
"R" position

OFF

Normally
closed
brake
switch

89

Stoplight switch
(for Cruise
control circuit)

Ignition
switch: "ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Resume
switch

91

Cruise control
switch
("ACC/RES"
switch)

Ignition
switch: "ON"

"ACC/RES" switch: Pressed

ON

"ACC/RES" switch: Released

OFF

Set switch

92

Cruise control
switch
("COAST/SET"
switch)

Ignition
switch: "ON"

"COAST/SET" switch: Pressed ON
"COAST/SET" switch: Released OFF

Vehicle
speed

04

Vehicle speed
signal

Road test the vehicle

The speedometer
and scan tool
MB991958 display
the same value.

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-62

ECM TERMINAL VOLTAGE REFERENCE CHART
FOR CRUISE CONTROL SYSTEM OPERATION

M1172002701583

Required Special Tool:

• MB992110: Power plant ECU check harness

Use special tool MB992110, check the ECM terminal voltage.
1. Remove the ECM [Refer to GROUP 13A, Engine Control

Module (ECM)

P.13A-888

.]

2. Connect special tool MB992110 between the ECM and the

body-side harness connector.

3. Measure the voltages between the check connector

terminals of special tool MB992044 and ground terminals
(ECM connector B-10 terminal number 81 or 93.)

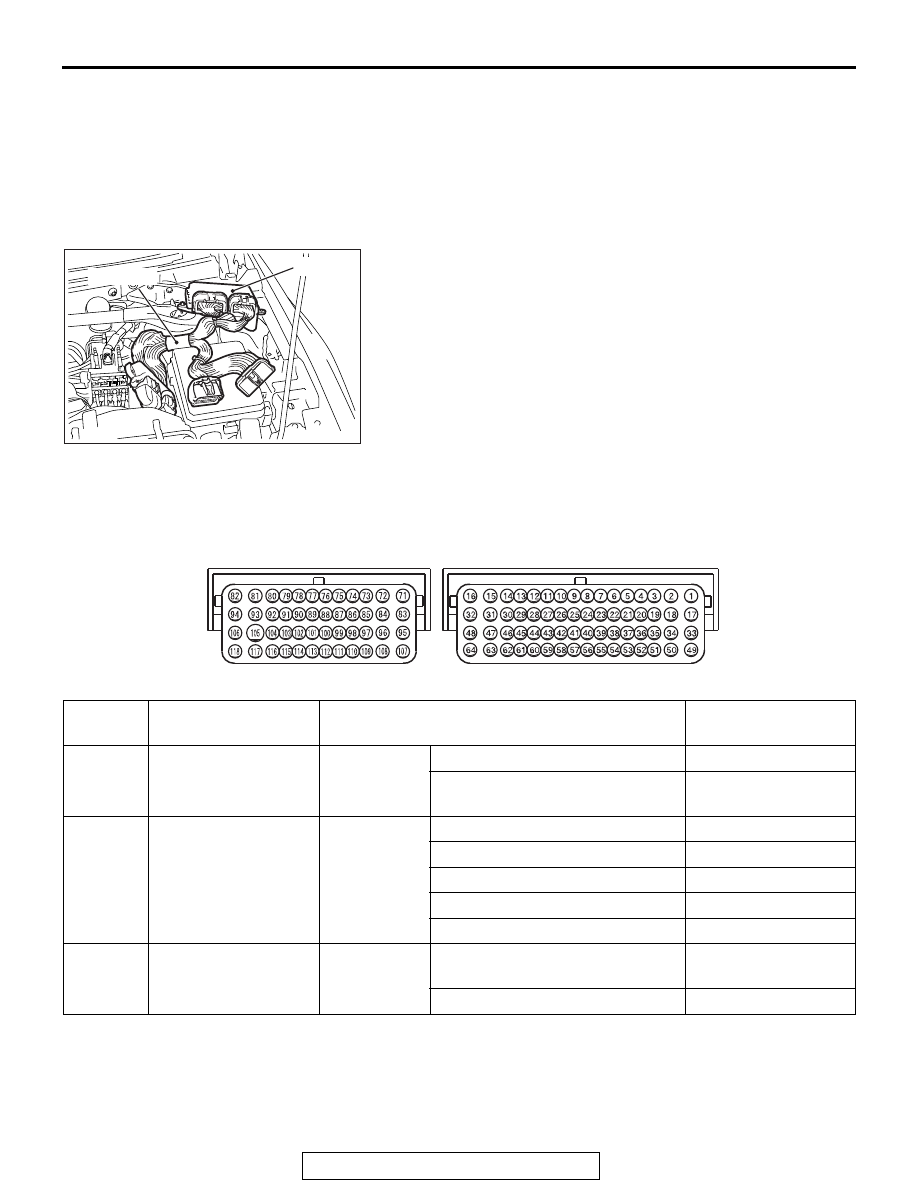

AC709324 AB

MB992110

ECM

AC601589 AJ

Special tool - Power plant ECU check harness (MB992110) connector: Component side

48-Pin connector
(ECM connector B-10)

64-Pin connector
(ECM connector B-09)

Terminal
number

Check item

Check condition

Normal condition

85

Clutch switch <M/T>

Ignition
switch: "ON"

Depress the clutch pedal.

1V or less

Release the clutch pedal.

Battery positive
voltage

107

Cruise control switch
power supply

Ignition
switch: "ON"

All switches: Released

4.7 - 5.0 V

"ON/OFF" switch: Pressed

0 - 0.5 V

"CANCEL" switch: Pressed

1.0 - 1.8 V

"COAST/SET" switch: Pressed

2.3 - 3.0 V

"ACC/RES" switch: Pressed

3.5 - 4.2 V

108

Stoplight switch
(brake switch)

Ignition
switch: "ON"

Depress the brake pedal.

Battery positive
voltage

Release the brake pedal.

1V or less
