DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-225

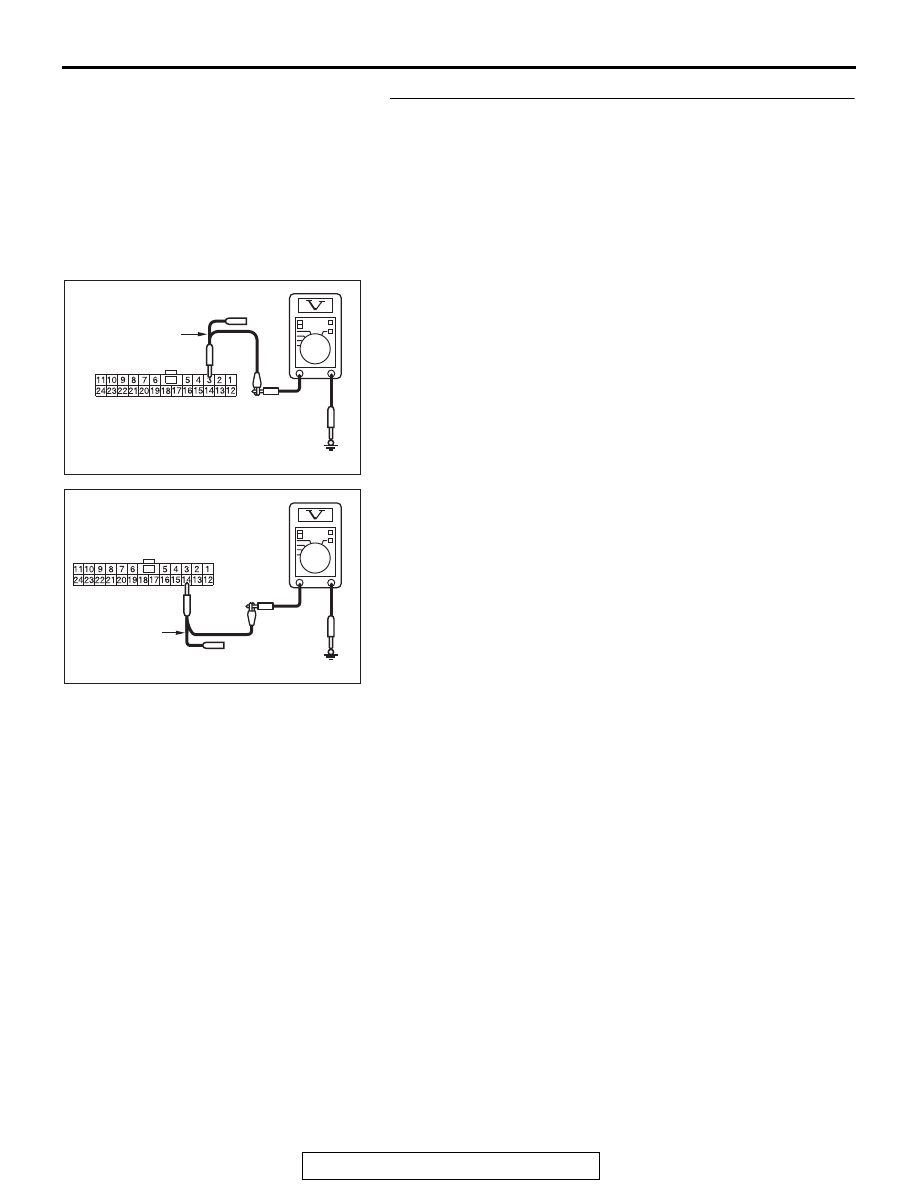

STEP 13. Check the wiring harness between ETACS-ECU
connector C-301 and body ground for a short to power
supply. Measure the voltage at ETACS-ECU connector
C-301.
(1) Disconnect ETACS-ECU connector C-301, and measure

the voltage at the wiring harness side of ETACS-ECU
connector.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between ETACS-ECU connector

terminal 6 and body ground.

OK: 4.7 V or less

(4) Measure the voltage between ETACS-ECU connector

terminal 7 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 25.
NO :  Go to Step 14.

AC608178

TEST
HARNESS

Harness side: C-301

AL

AC608178

TEST
HARNESS

Harness side: C-301

AM

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-226

STEP 14. Check the wiring harness between joint
connector (CAN1) C-105 and combination meter connector
C-04 for a short to power supply. Measure the voltage at
joint connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Connect the negative battery terminal.
(3) Turn the ignition switch to the ON position.
(4) Measure the voltage between joint connector (CAN1)

terminal 3 and body ground.

OK: 4.7 V or less

(5) Measure the voltage between joint connector (CAN1)

terminal 14 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES (vehicles with KOS) : Go to Step 15.
YES (vehicles with WCM) : Go to Step 16.
NO (vehicles with KOS and WCM) : Go to Step 48.

AC608178

TEST
HARNESS

Harness side: C-105

BH

AC608178

Harness side: C-105

BI

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-227

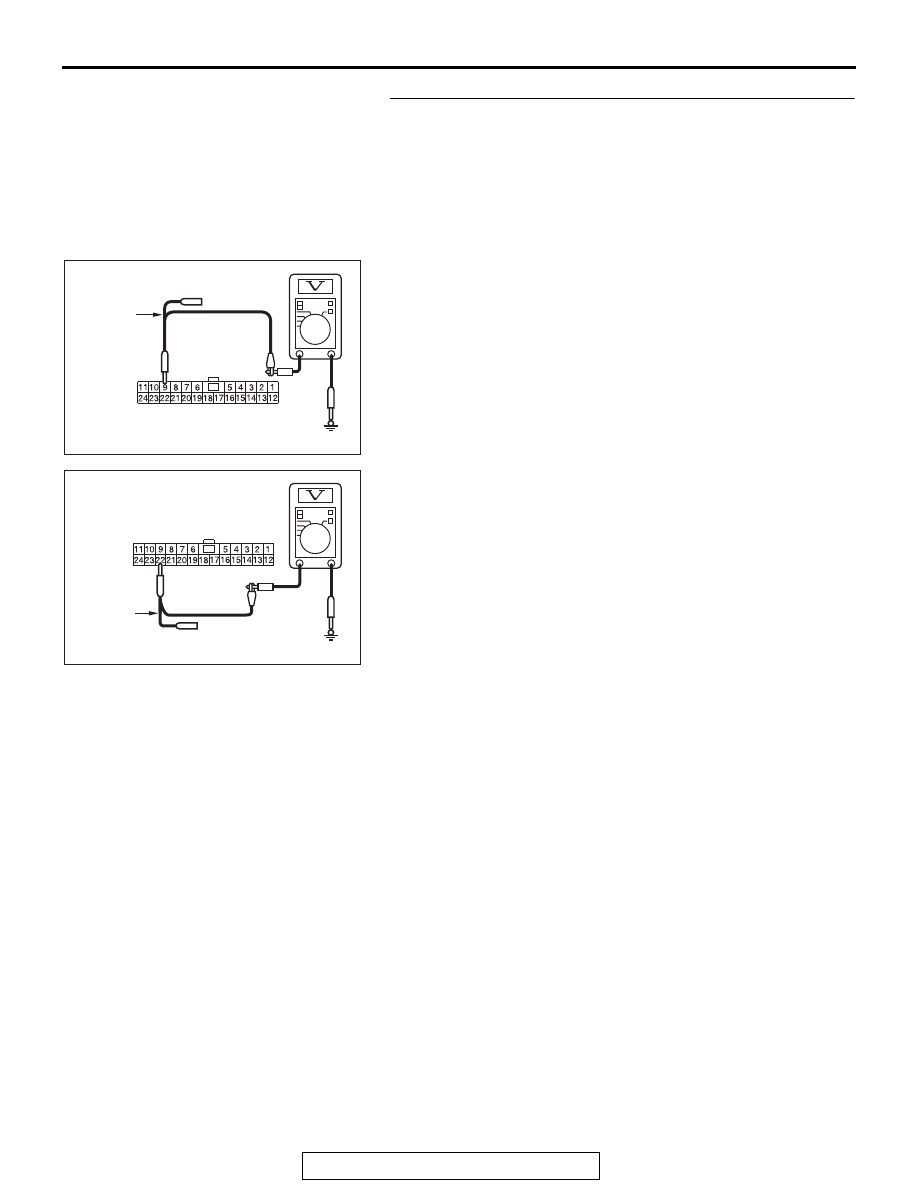

STEP 15. Check the wiring harness between joint
connector (CAN1) C-105 and KOS-ECU connector C-05 for
a short to power supply. Measure the voltage at joint
connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 9 and body ground.

OK: 4.7 V or less

(4) Measure the voltage between joint connector (CAN1)

terminal 22 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 17.
NO :  Go to Step 49.

AC608178

TEST
HARNESS

Harness side: C-105

BJ

AC608178

Harness side: C-105

BK

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-228

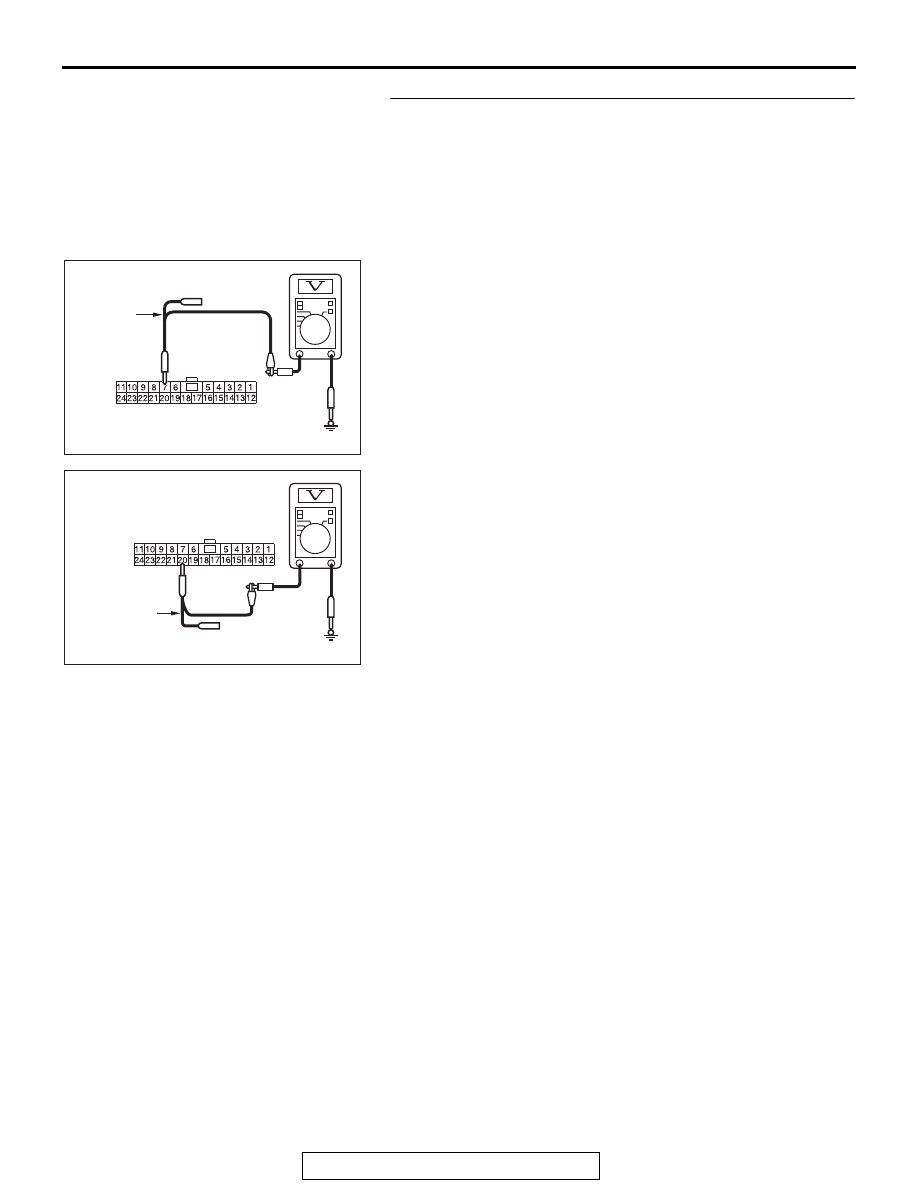

STEP 16. Check the wiring harness between joint
connector (CAN1) C-105 and WCM connector C-07 for a
short to power supply. Measure the voltage at joint
connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

voltage at the wiring harness side of joint connector
(CAN1).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN1)

terminal 7 and body ground.

OK: 4.7 V or less

(4) Measure the voltage between joint connector (CAN1)

terminal 20 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 17.
NO :  Go to Step 50.

AC608178

TEST
HARNESS

Harness side: C-105

BL

AC608178

Harness side: C-105

BM

TEST
HARNESS
