Mitsubishi Lancer Evolution X. Manual - part 36

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-169

STEP 5. Check the wiring harness between joint connector
(CAN1) C-105 and SRS-ECU connector C-37 for a short to
ground. Measure the resistance at joint connector (CAN1)
C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 8 and body ground.

OK: 1 kΩ or more

(3) Measure the resistance between joint connector (CAN1)

terminal 21 and body ground.

OK: 1 kΩ or more

Q: Do all the resistances measure 1 kΩ or more?

YES : Go to Step 6.
NO :  Go to Step 27.

AC608179

TEST
HARNESS

Harness side: C-105

CE

AC608179

Harness side: C-105

CF

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-170

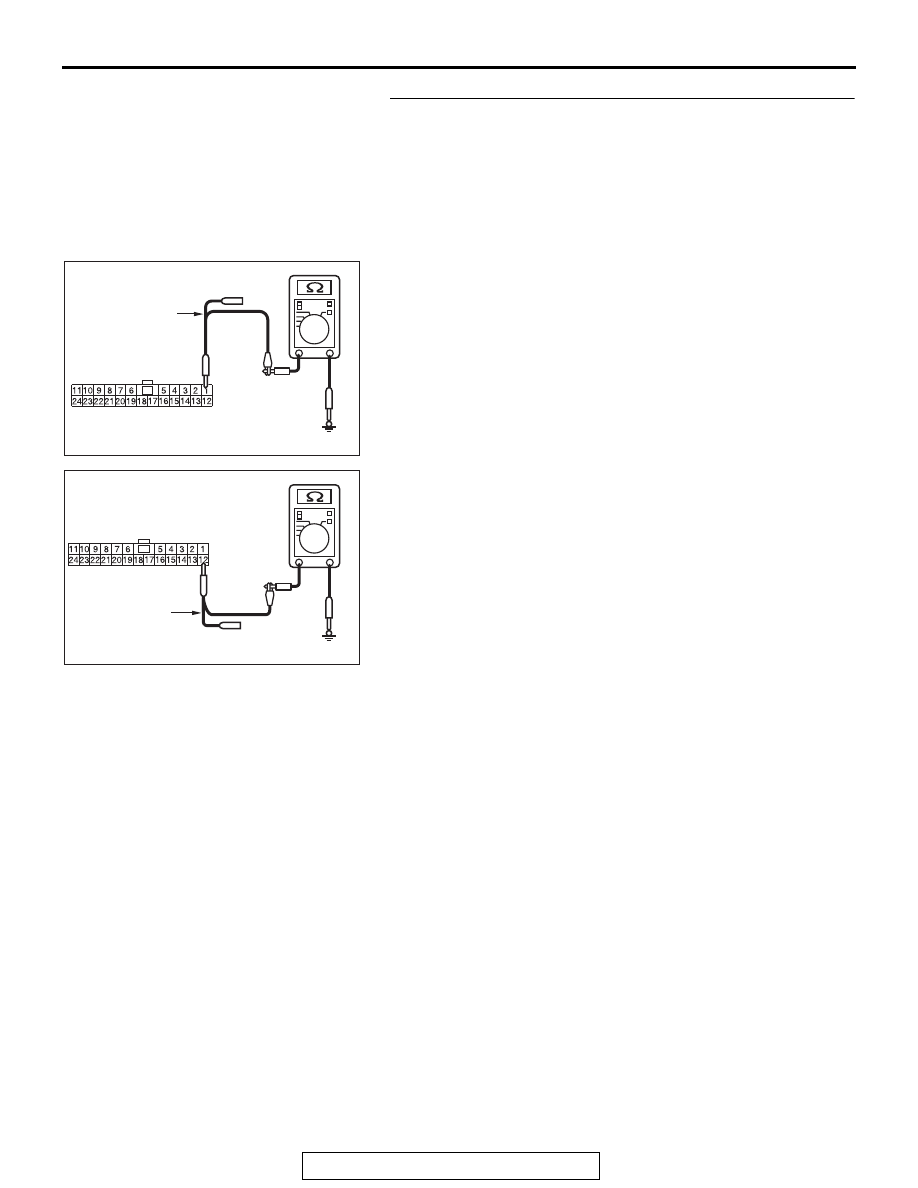

STEP 6. Check the wiring harness between joint connector
(CAN1) C-105 and occupant classification-ECU connector
D-39-2 for a short to ground. Measure the resistance at
joint connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 11 and body ground.

OK: 1 kΩ or more

(3) Measure the resistance between joint connector (CAN1)

terminal 24 and body ground.

OK: 1 kΩ or more

Q: Do all the resistances measure 1 kΩ or more?

YES (vehicles without hands free system) : Go to Step 8.
YES (vehicles with hands free system) : Go to Step 7.
NO  :  Go to Step 28.

AC608179

TEST
HARNESS

Harness side: C-105

CG

AC608179

Harness side: C-105

CH

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-171

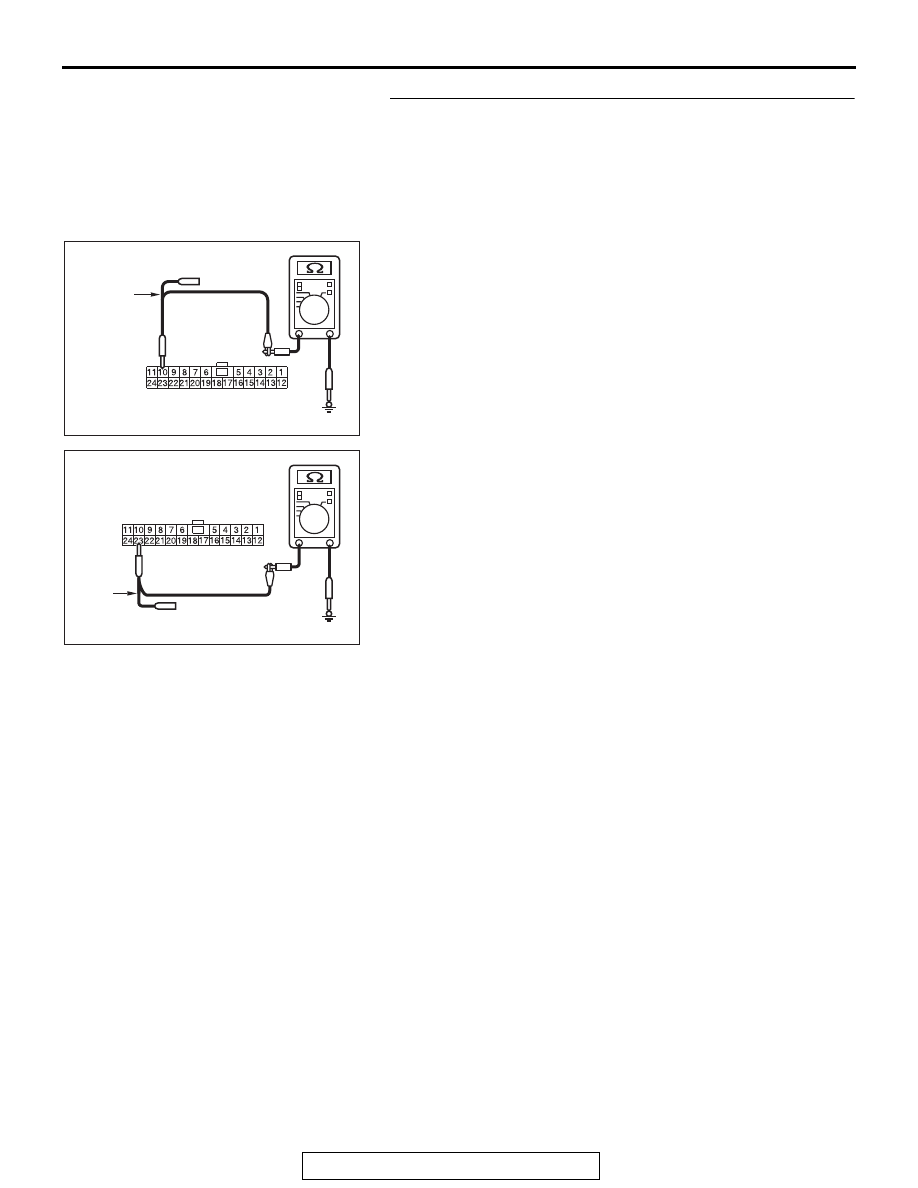

STEP 7. Check the wiring harness between joint connector
(CAN1) C-105 and hands free module connector C-11 for a
short to ground. Measure the resistance at joint connector
(CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 10 and body ground.

OK: 1 kΩ or more

(3) Measure the resistance between joint connector (CAN1)

terminal 23 and body ground.

OK: 1 kΩ or more

Q: Do all the resistances measure 1 kΩ or more?

YES : Go to Step 8.
NO :  Go to Step 29.

AC608179

TEST
HARNESS

Harness side: C-105

CI

AC608179

Harness side: C-105

CJ

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-172

STEP 8. Check the wiring harness between joint connector
(CAN1) C-105 and A/C-ECU connector C-22 <vehicles with
A/C> or heater control unit connector C-53 <vehicles
without A/C> for a short to ground. Measure the resistance
at joint connector (CAN1) C-105.
(1) Disconnect joint connector (CAN1), and measure the

resistance at the wiring harness side of joint connector
(CAN1).

(2) Measure the resistance between joint connector (CAN1)

terminal 1 and body ground.

OK: 1 kΩ or more

(3) Measure the resistance between joint connector (CAN1)

terminal 12 and body ground.

OK: 1 kΩ or more

Q: Do all the resistances measure 1 kΩ or more?

YES (vehicles without MMCS) : Go to Step 9.
YES (vehicles with MMCS) : Go to Step 10.
NO  :  Go to Step 30.

AC608179

TEST
HARNESS

Harness side: C-105

CK

AC608179

Harness side: C-105

CL

TEST
HARNESS
