CLUTCH PEDAL

CLUTCH

21A-5

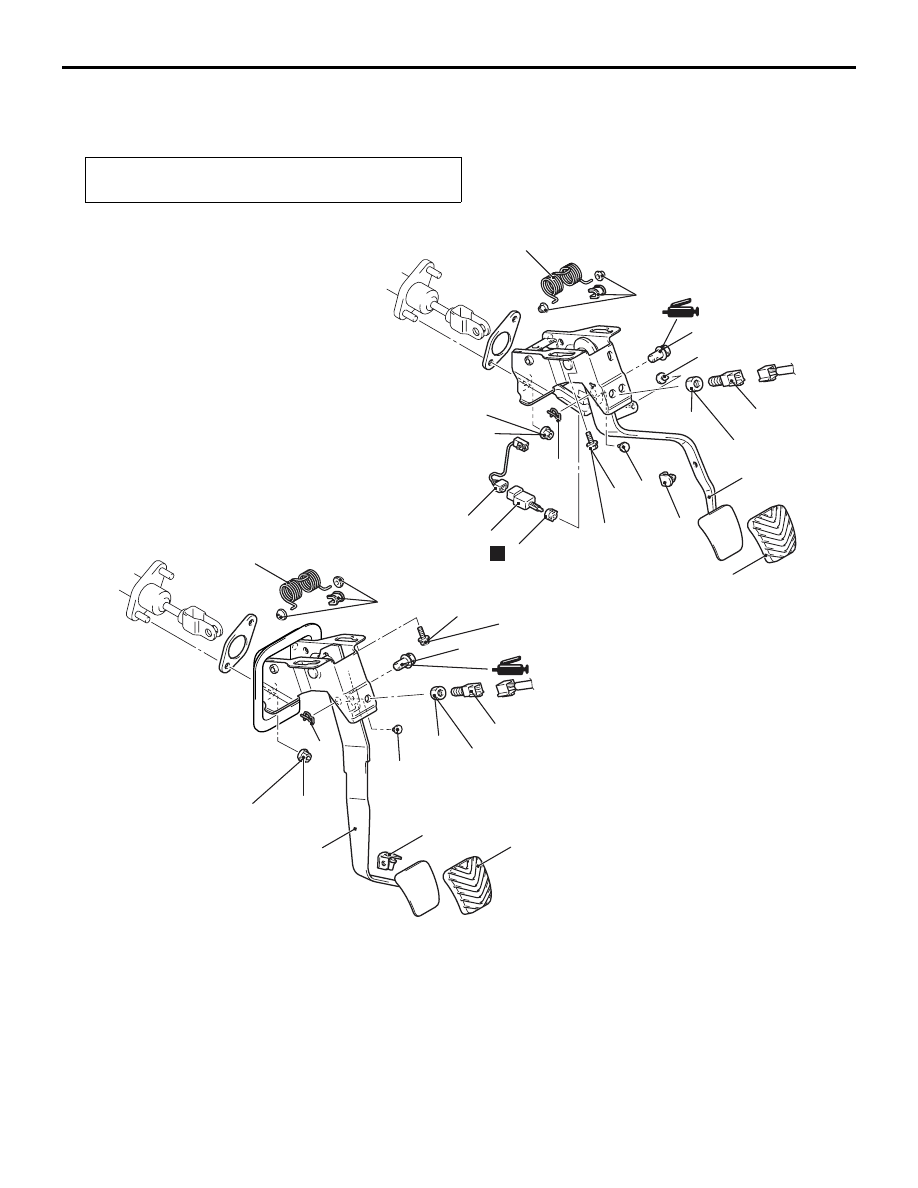

CLUTCH PEDAL

REMOVAL AND INSTALLATION

M1211001600340

Post-installation Operation
Clutch Pedal Adjustment (Refer to

P.21A-3

).

AC310323

8

7

10

11

9

1

2

3

4

5

6

12

13

14

N

15

12 ± 2 N·m

12 ± 2 N·m

12 ± 2 N·m

16

12 ± 2 N·m

8

7

10

9

4

5

6

12

13

14

15

12 ± 2 N·m

16

12 ± 2 N·m

<LH drive vehicles>

<RH drive vehicles>

AC

Removal steps

•

Instrument panel under cover
(Refer to GROUP 52A, Instrument
panel

P.52A-2

).

1.

Clutch pedal position switch

2.

Clutch pedal position switch
harness

3.

Clip

4.

Stopper

5.

Snap pin

6.

Clevis pin

7.

Clutch master cylinder mounting
nut

8.

Clutch pedal assembly mounting
bolt

>>A<<

9.

Clutch switch

10. Nut
11. Stopper
12. Pedal pad

Removal steps (Continued)

CLUTCH PEDAL

CLUTCH

21A-6

INSTALLATION SERVICE POINT

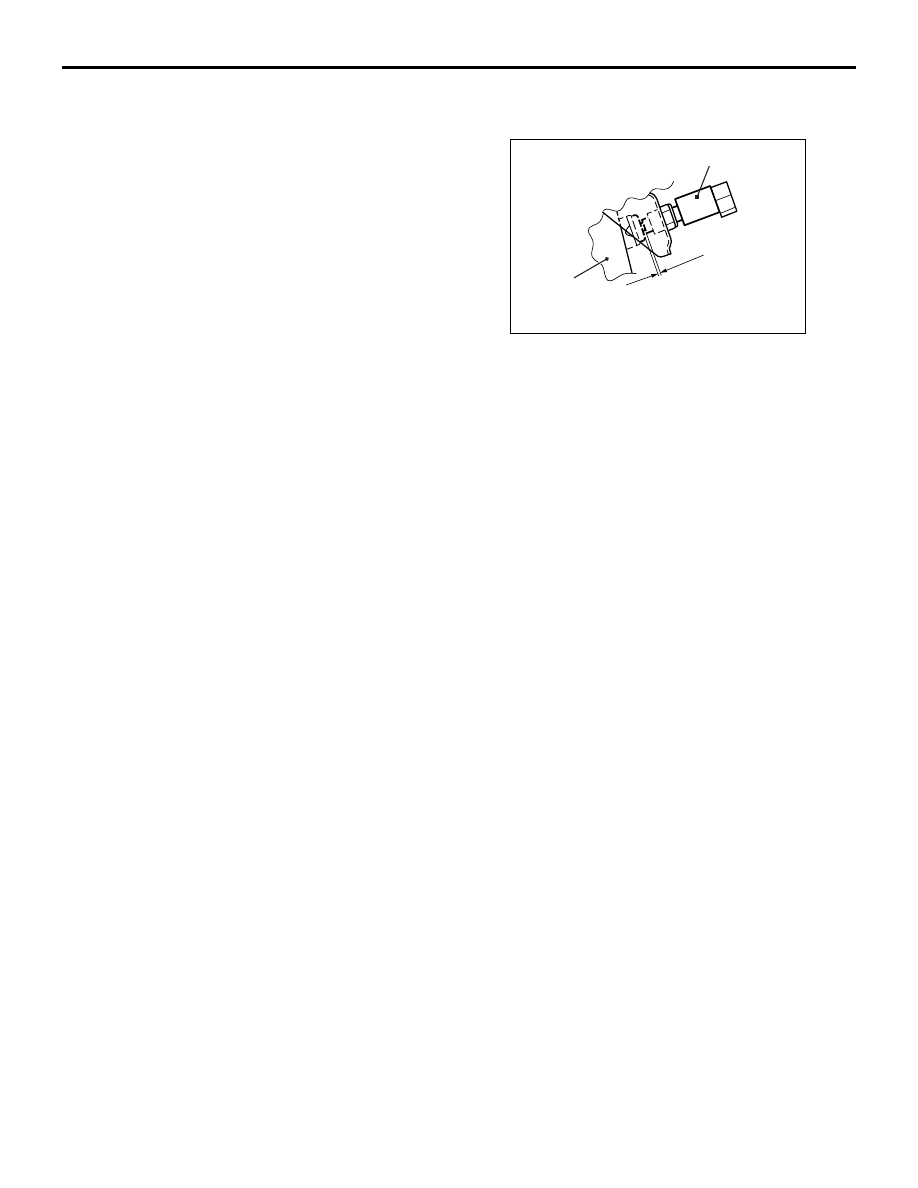

>>A<< CLUTCH SWITCH INSTALLATION

AC309757

AB

Clutch pedal

Clutch switch

0.5 – 1.5 mm

Install the clutch switch at the specified dimension
when the clutch pedal is released.

13. Pedal stopper
14. Clutch pedal assembly
15. Turn over spring
16. Bushing

Removal steps (Continued)

CLUTCH CONTROL

CLUTCH

21A-7

CLUTCH CONTROL

REMOVAL AND INSTALLATION

M1211001900396

Pre-removal Operation
• Clutch Fluid Draining
• Strut Tower Bar Removal (Refer to GROUP42, Strut

Tower Bar

P.42-9

 ).

Post-installation Operation
• Strut Tower Bar Removal (Refer to GROUP42, Strut

Tower Bar

P.42-9

 ).

• Clutch Fluid Supplying
• Clutch Line Bleeding (Refer to

P.21A-4

).

• Clutch Pedal Adjustment (Refer to

P.21A-3

).

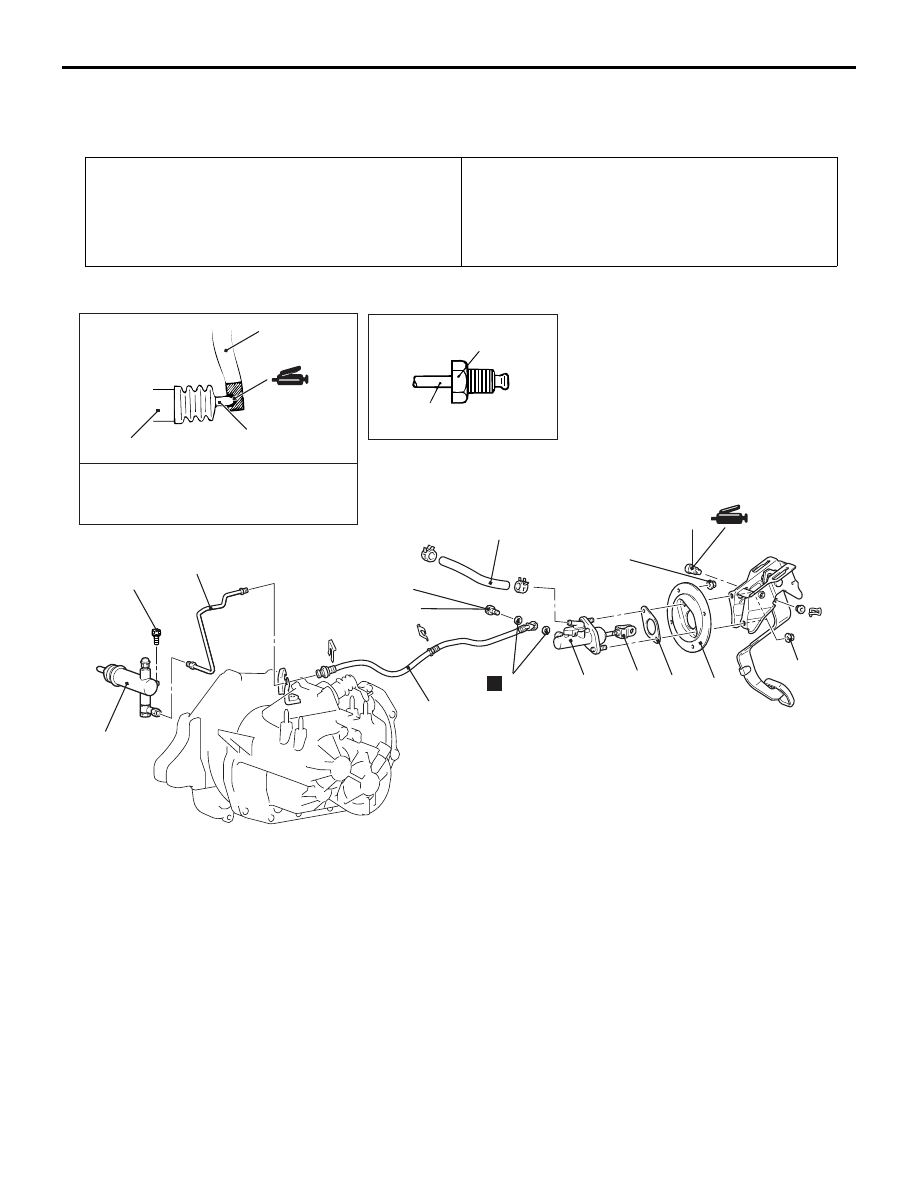

<LH drive vehicles>

AC211515

12 ± 2 N·m

15 ± 2 N·m

2

8

10

11

10

18 ± 3 N·m

30 ± 4 N·m

12 ± 2 N·m

AD

11

Release fork

Release cylinder
push rod

Specified grease:
MITSUBISHI genuine grease
PART No. 0101011 or equivalent

4

3

N

5

7

1

6

9

Clutch master cylinder removal
steps

1.

Clevis pin assembly

2.

Eye bolt

3.

Gasket

4.

Reservoir hose

5.

Clevis pin and pushrod assembly
connecting part

6.

Clutch master cylinder

7.

Sealer

8.

Retainer plate

Clutch release cylinder removal
steps

10. Clutch pipe
11. Clutch release cylinder

Clutch line removal steps

9.

Clutch hose

10. Clutch pipe

CLUTCH CONTROL

CLUTCH

21A-8

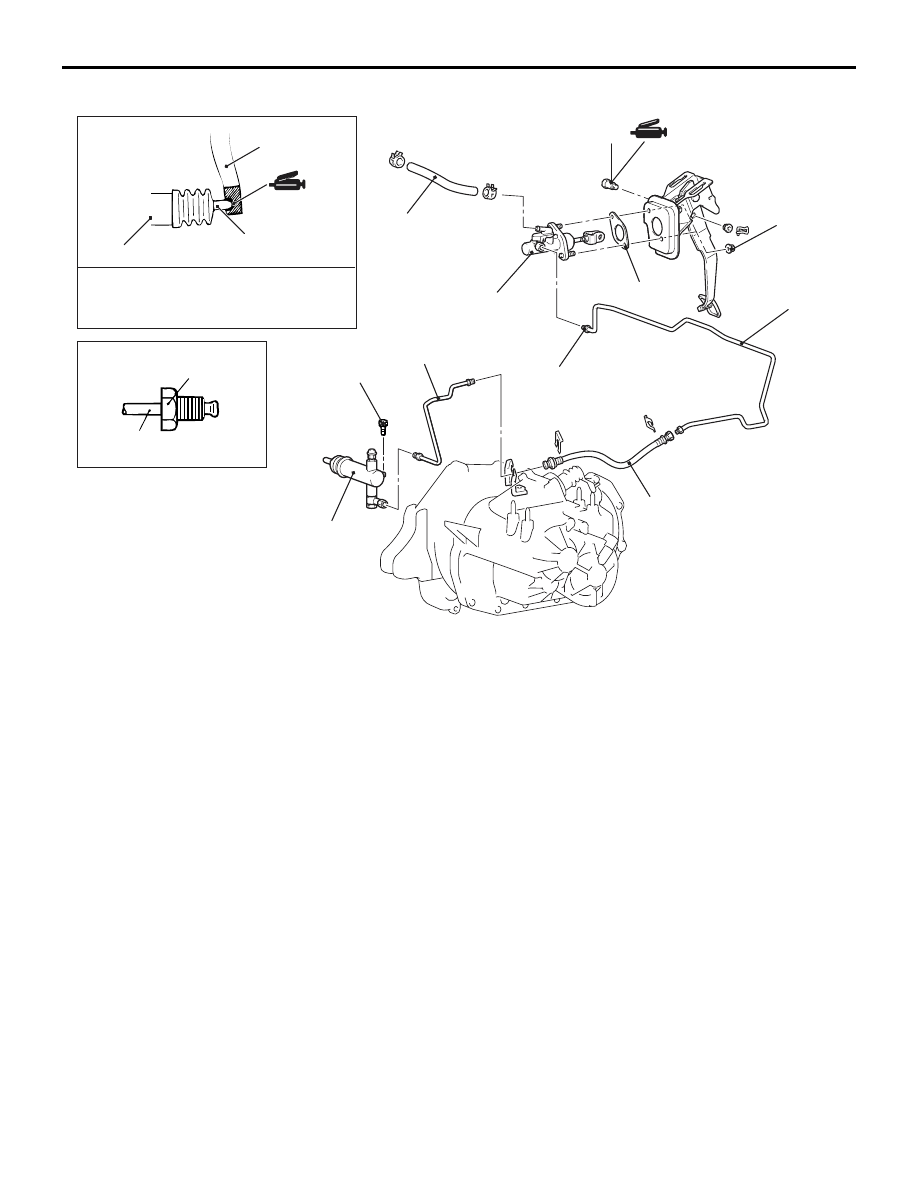

<RH drive vehicles>

AC310343

15 ± 2 N·m

6, 8

7

Release fork

Release cylinder
push rod

Specified grease:
MITSUBISHI genuine grease
PART No. 0101011 or equivalent

AB

2

8

18 ± 3 N·m

12 ± 2 N·m

4

3

5

7

1

6

9

Clutch master cylinder removal
steps

1.

Clevis pin assembly

2.

Clutch pipe connection

3.

Reservoir hose

4.

Clutch master cylinder

5.

Sealer
Clutch release cylinder removal
steps

6.

Clutch pipe

7.

Clutch release cylinder

Clutch line removal steps

8.

Clutch pipe

9.

Clutch hose

INSPECTION

M1211002000169

• Check the master cylinder or clutch hose for fluid

leakage.

• Check the clutch hose or tube for cracks or clog-

ging.
