TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-255

Inspection Procedure 5: Starting Impossible (No Initial Combustion)

OPERATION

• If the ignition switch is turned to "START" posi-

tion, battery voltage is applied to starter (terminal
No. 1).

• If the ignition switch is turned to "START" posi-

tion, battery voltage is applied to engine-ECU
(terminal No. 68) from ignition switch. Because of
this, engine-ECU detects that the engine is
cranked.

COMMENT ON TROUBLE SYMPTOM

• Failure is possibly caused by failed starter itself

or failed related circuit.

PROBABLE CAUSES

• Failed battery

• Failed starter motor

• Open/short circuit in starter associated circuit or

loose connector contact

AK501826

1

1

1 2 3
4 5 6

M

65

43
50

42
49

41
48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

Battery

OFF

ON

AB

Starter

B-19

B-21

(MU801211)

C-119

(MU803782)

C-208

B-R

B-R

B-R

B-R

B-Y

B-L

68

R

IG2

ST

LOCK

ACC

IG1

Ignition switch

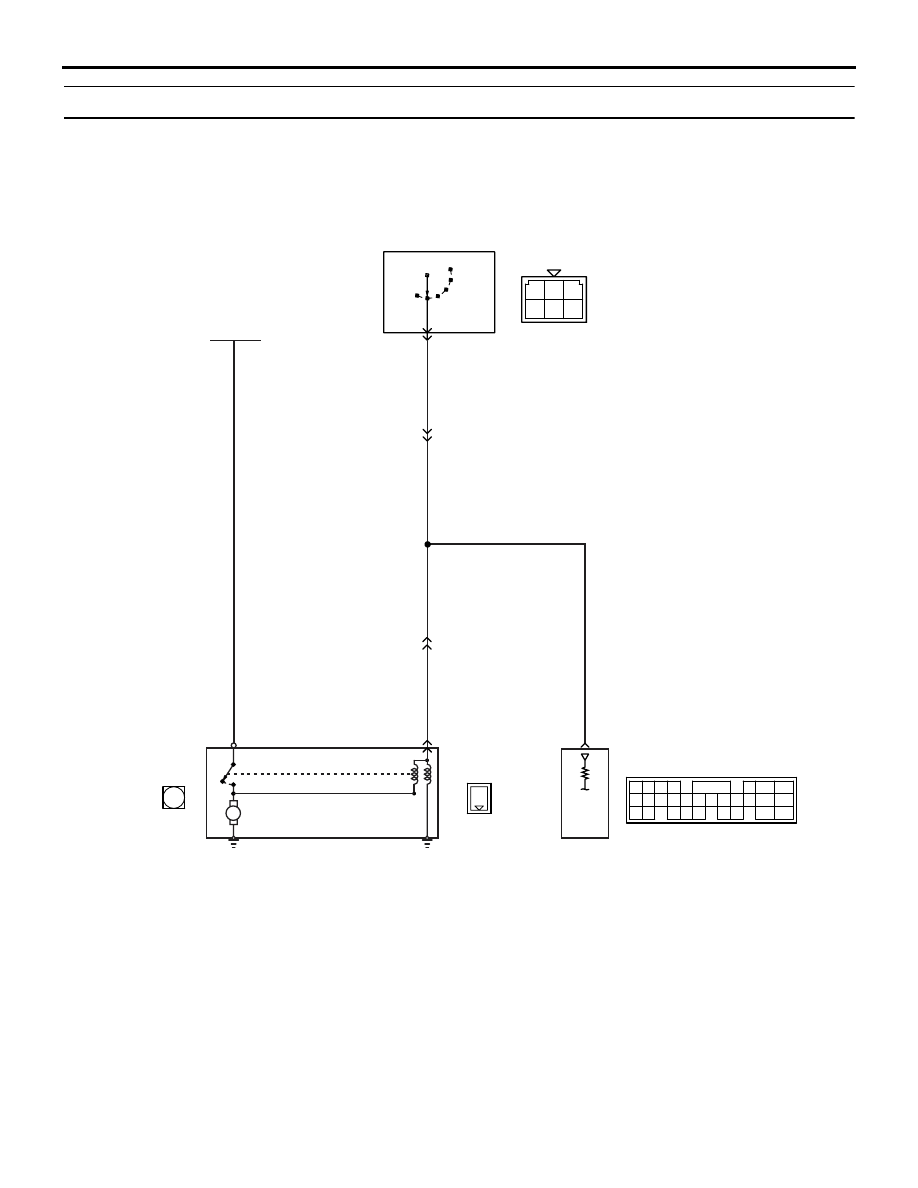

Starter circuit

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

Engine-ECU

5

7

C-123

3

B-14

1

B-21

1

B-19

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-256

DIAGNOSIS PROCEDURE

STEP 1. Check battery voltage.

• Measure battery voltage at cranking.

OK: 8 V or higher

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Check battery (Refer to GROUP 54A

−

Battery

− On-vehicle Service − Battery Test

P.54A-5

).

STEP 2. M.U.T.-II/III data list

• Item No. 18: Cranking signal

OK:

ON (Ignition switch: ST)
OFF (Ignition switch: ON)

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 3 .

STEP 3. Connector check: C-119 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace the connector.

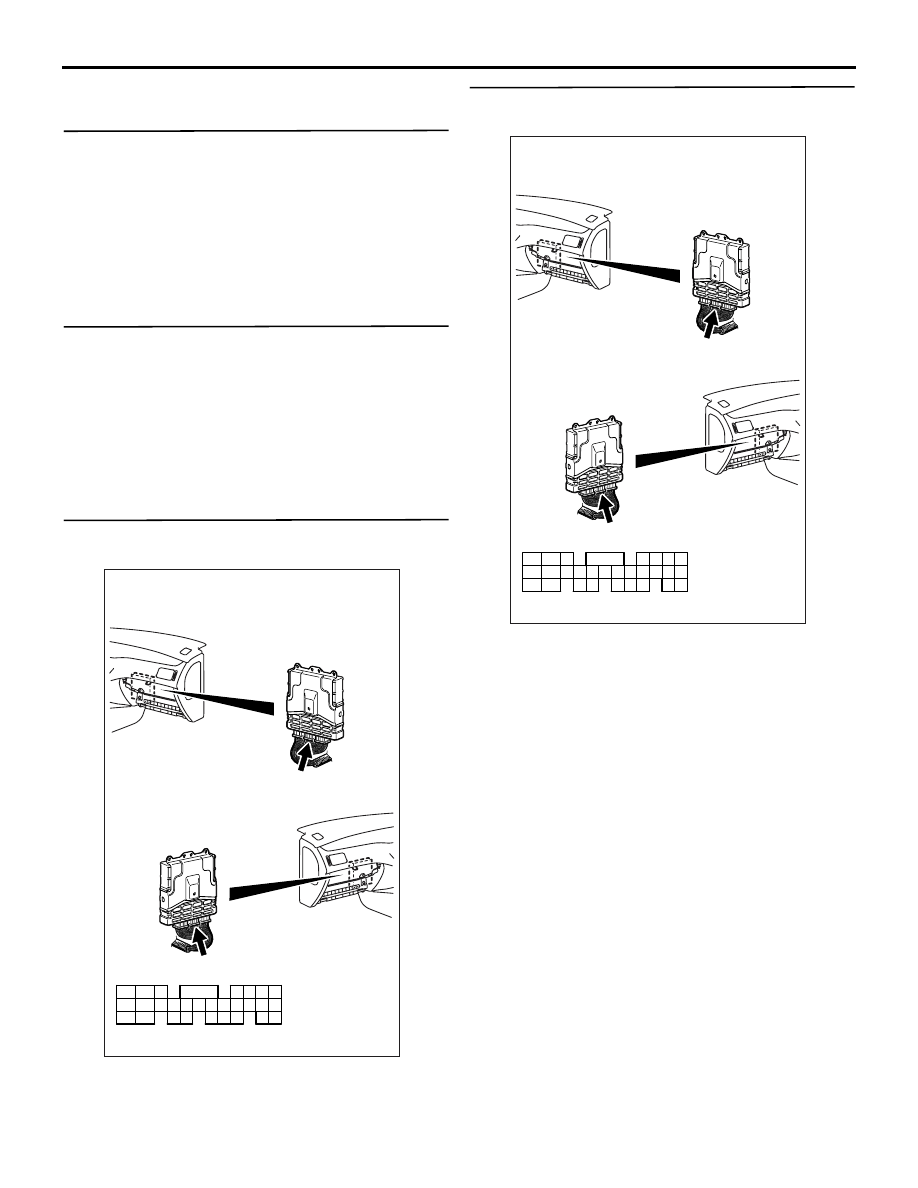

STEP 4. Perform voltage measurement at C-119
engine-ECU connector.

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: ST

• Voltage between terminal No. 68 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 5 .

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-257

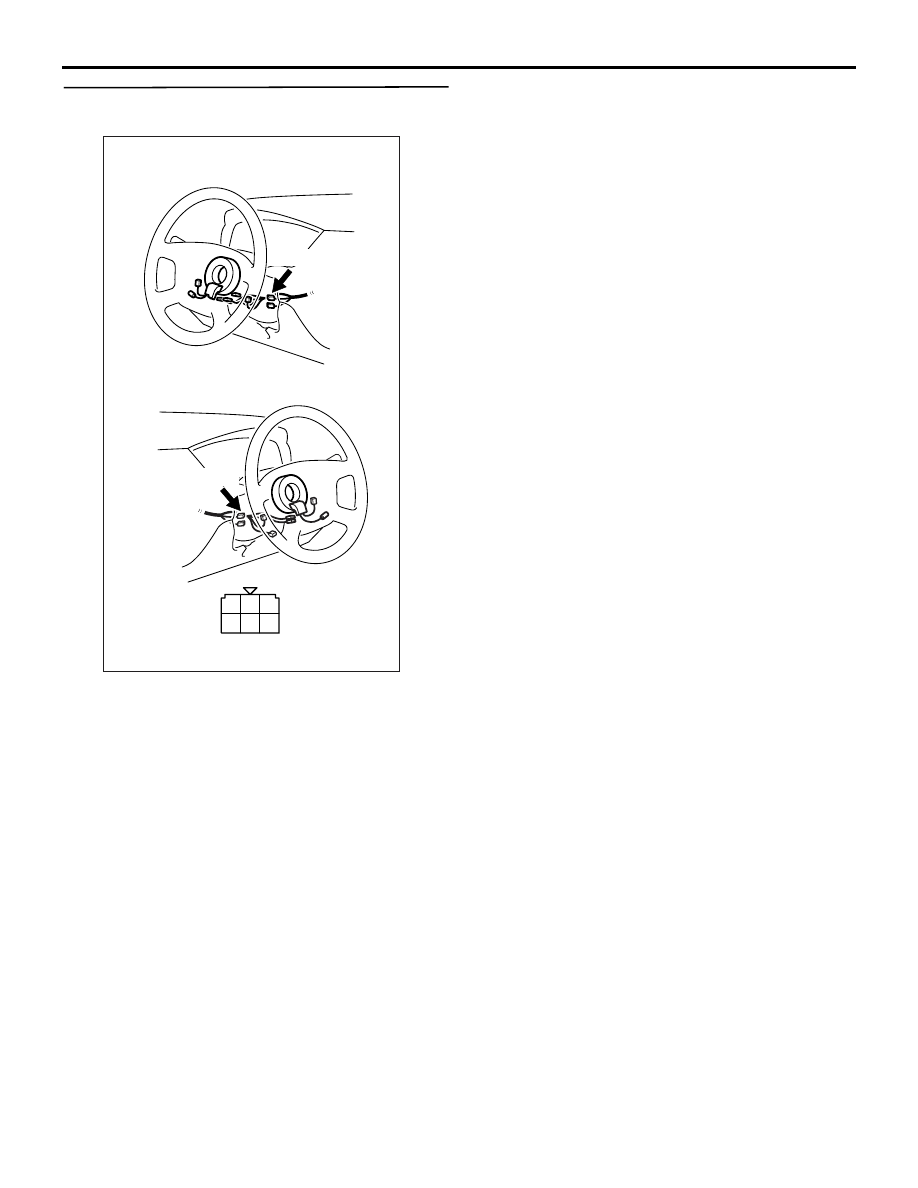

STEP 5. Connector check: C-208 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

AK305251

1

2

3

4

5

6

Harness side connector

Connector: C-208

C-208

<L. H. drive vehicles>

<R. H. drive vehicles>

C-208

AB

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-258

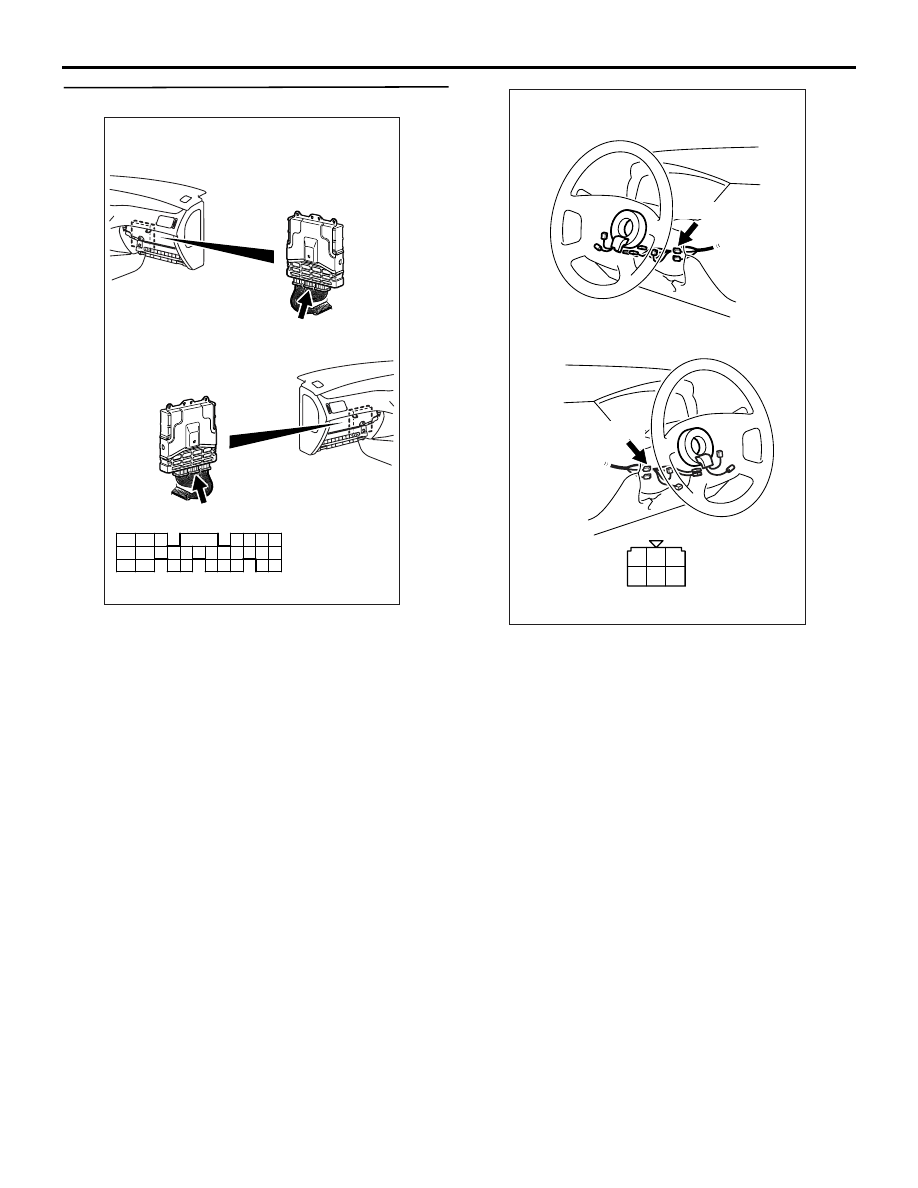

STEP 6. Check ignition switch.

• Check ignition switch (Refer to GROUP 54A −

Ignition Switch

− Ignition Switch − Inspection

P.54A-30

).

Q: Is the check result normal?

YES :

Check intermediate connectors C-123, and

repair if necessary. If intermediate
connectors are normal, check and repair
harness between C-119 (terminal No. 68)
inhibitor switch connector and C-208
(terminal No. 5) ignition switch connector.

• Check power supply line for

open/short circuit.

NO :

Replace the ignition switch.

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305251

1

2

3

4

5

6

Harness side connector

Connector: C-208

C-208

<L. H. drive vehicles>

<R. H. drive vehicles>

C-208

AB
