TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-251

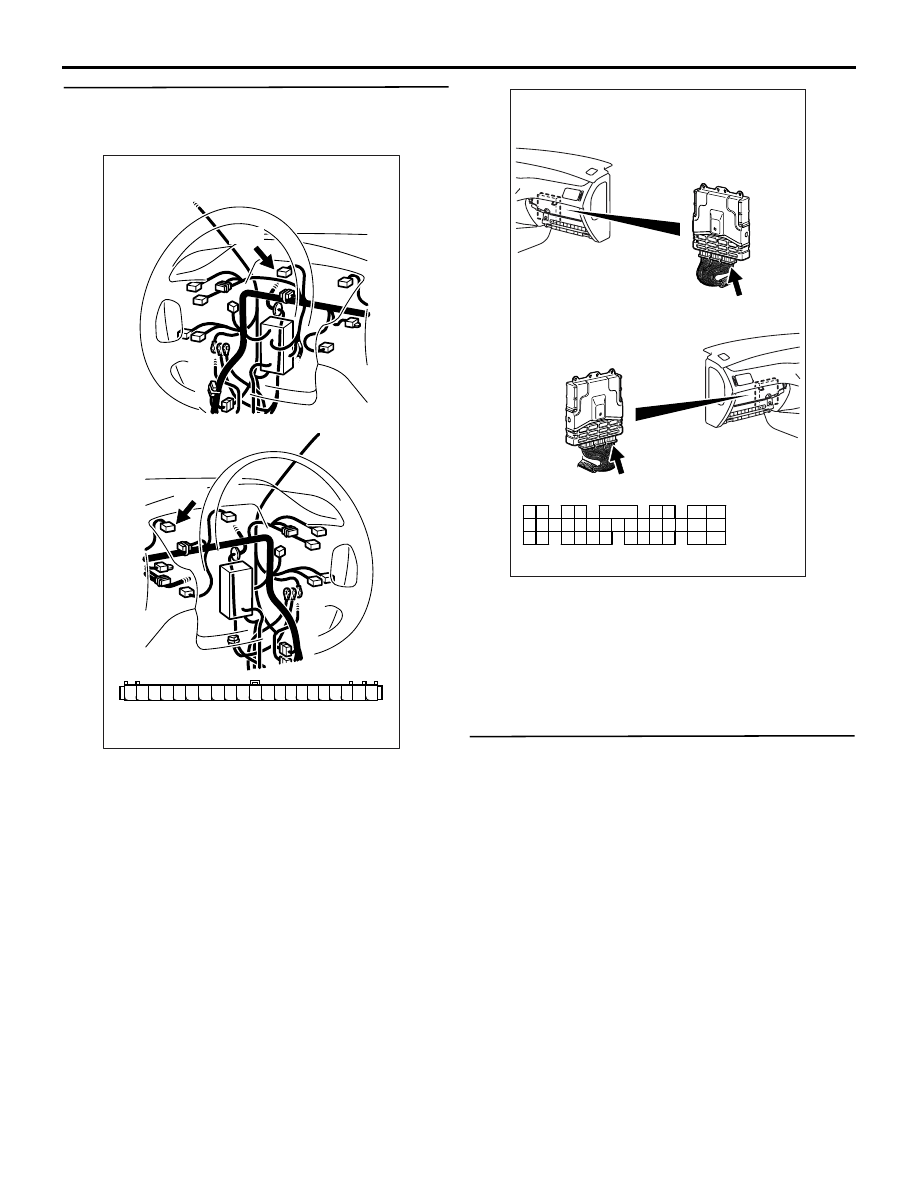

STEP 11. Check harness between C-01 (terminal
No. 17) combination connector and C-121
(terminal No. 22) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector C-124, and repair if necessary.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the damaged harness wire.

STEP 12. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AK301236

6 5 4 3 2 1

12 11 10

15

16

14 13

21

18 17

19

20

9 8 7

Harness side connector

Connector: C-01

C-01

<L. H. drive vehicles>

<R. H. drive vehicles>

C-01

AC

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-252

Inspection Procedure 4: The Engine Warning Lamp Remains Illuminating and never goes out

AK501825

6

5

4

3

2

1

12

11

10

15 16

14

13

17

20 21

19

18

9

8

7

1 2 3
4 5 6

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

R

IG2

ST

LOCK

ACC

IG1

2

7.5A

6

C-211

25

C-214

Ignition switch

C-208

2

B-W

Y-R

O

Y-R

W-L

W-L

19

17

J/B

C-01

Engine-ECU

9

22

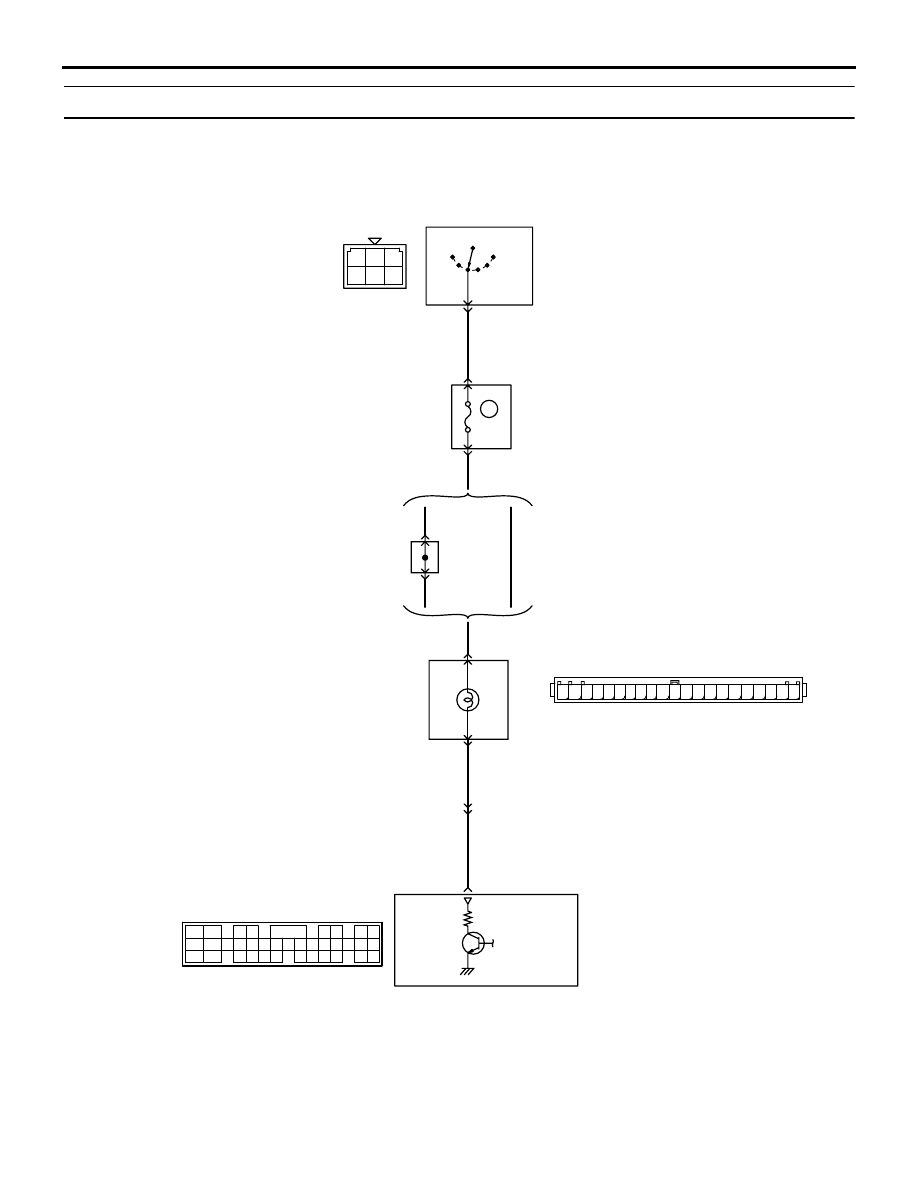

Engine warning lamp (check engine lamp) circuit

Engine warning lamp (check engine lamp)

9

17

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

AB

C-121

(MU803784)

NOTE

*1: L.H. drive vehicles
*2: R.H. drive vehicles

*1

*2

J/C (4)
C-23

Chec

k

engine

C-124

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-253

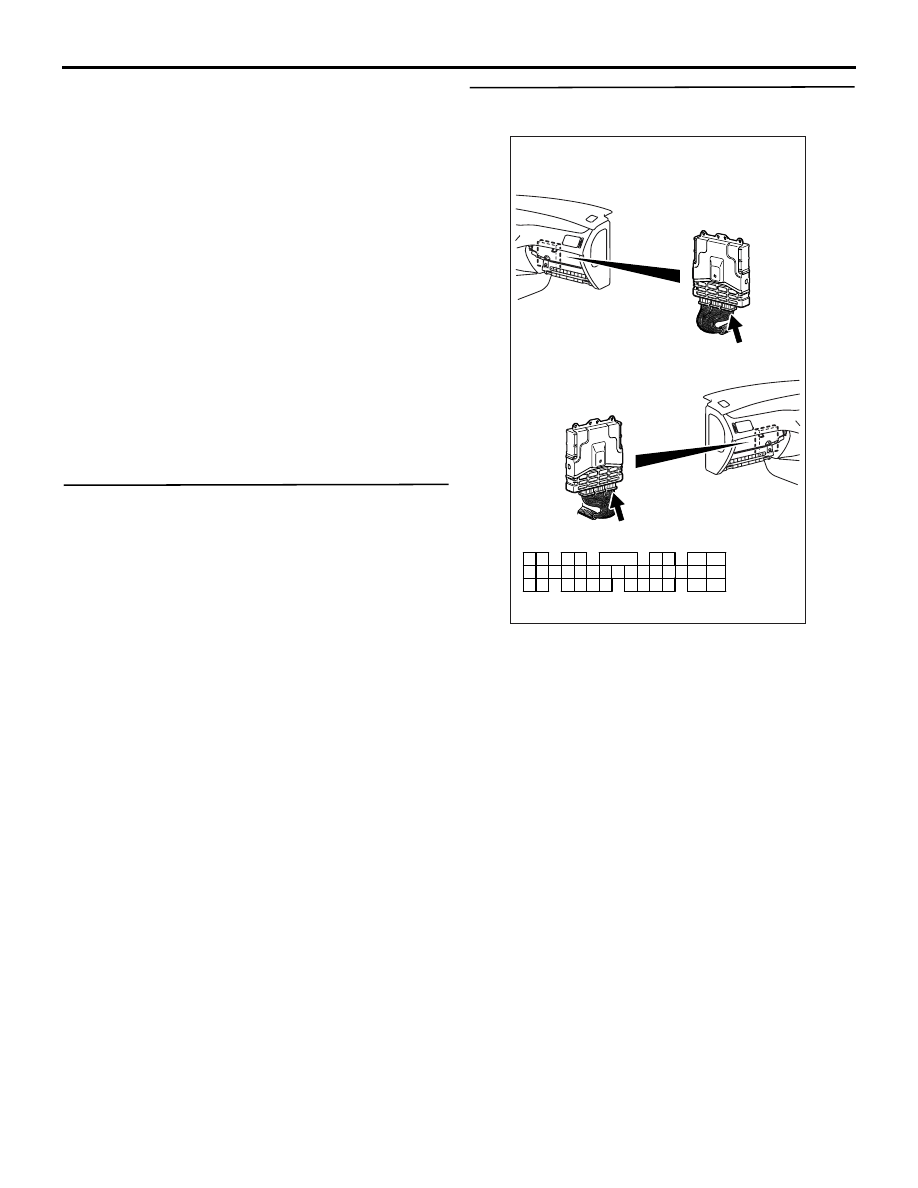

OPERATION

• Battery voltage is applied to engine warning lamp

(terminal No. 9) from ignition switch.

• Engine-ECU (terminal No. 22) makes power tran-

sistor in unit be in "ON" position, and that makes
currents go on engine warning lamp (terminal No.
17).

COMMENTS ON TROUBLE SYMPTOM

• Engine-ECU has detected failed sensor or failed

actuator. Or failure is possibly caused by short
circuit or other faults.

PROBABLE CAUSES

• Short circuit in between engine warning lamp and

engine-ECU circuit.

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-II/III diagnosis code

Q: Diagnosis code set?

YES :

Inspection chart for diagnosis code (Refer

to

P.13A-17

).

NO :

Go to Step 2 .

STEP 2. Connector check: C-121 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-254

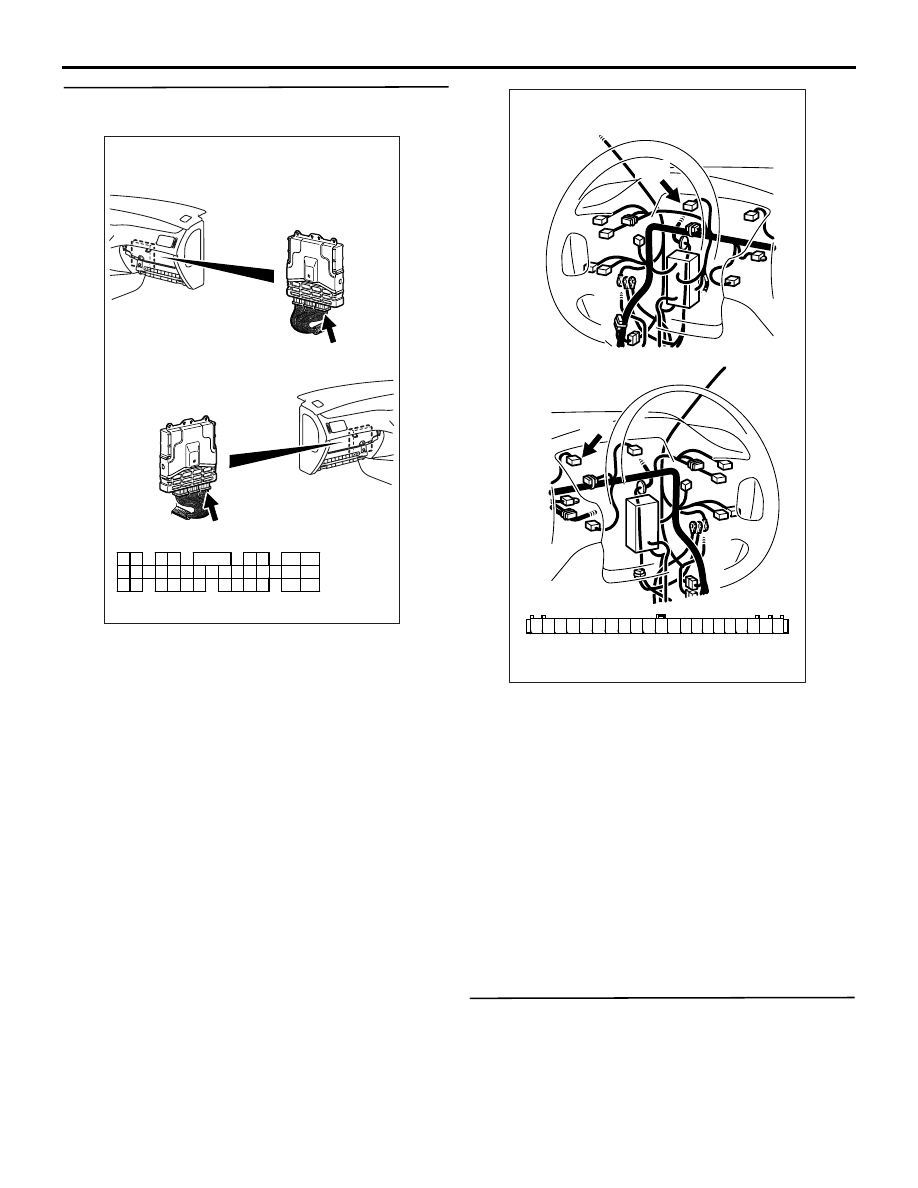

STEP 3. Perform voltage measurement at C-121
engine-ECU connector.

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: "ON"

• Voltage between terminal No. 22 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Check intermediate connector C-124, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between C-01 (terminal No. 17)
combination meter connector and C-121
(terminal No. 22) engine-ECU connector.

• Check output line for short circuit.

STEP 4. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK301236

6 5 4 3 2 1

12 11 10

15

16

14 13

21

18 17

19

20

9 8 7

Harness side connector

Connector: C-01

C-01

<L. H. drive vehicles>

<R. H. drive vehicles>

C-01

AC
