Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Go to Step 12.

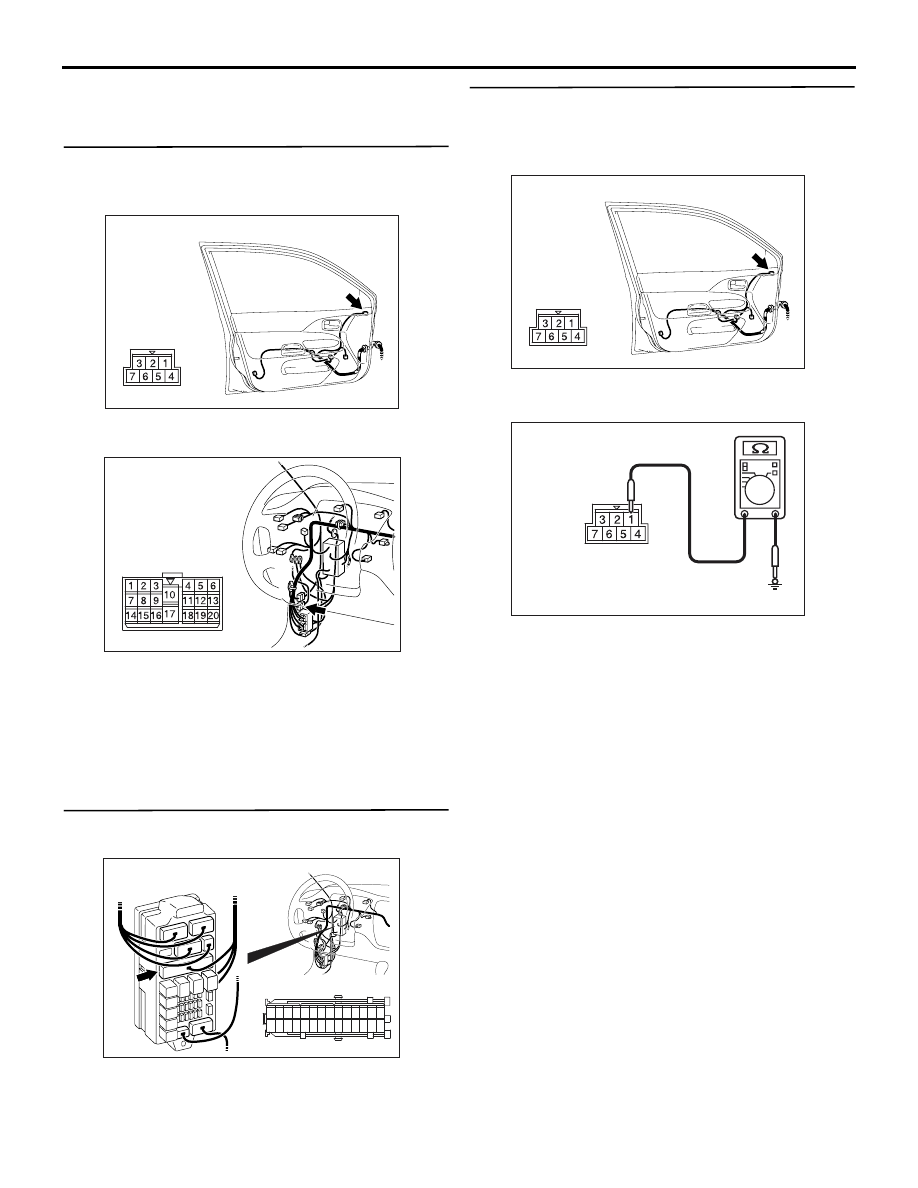

STEP 12. Check the wiring harness between E-03
door mirror assembly (LH) connector terminal
No.4 and body earth.

AC304818

Connector: E-03

Harness side

AC

• Check the earth wires for open circuit.

NOTE:

AC304820

Connector: C-17

AC

Prior to the wiring harness inspection, check interme-
diate connector C-17 and repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

STEP 13. Connector check: C-214 junction block
connector

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-214

Harness side

AD

Junction block (Front view)

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

STEP 14. Measure the voltage at the E-03 door
mirror assembly (LH) connector.
(1) Turn the ignition switch to the ON position.
(2) Rear window defogger switch: ON

AC304818

Connector: E-03

Harness side

AC

(3) Disconnect the connector, and measure at the

wiring harness side.

AC304828

Connector E-03

(harness side)

AC

(4) Voltage between E-03 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Go to Step 15.

DOOR MIRROR

EXTERIOR

51-34

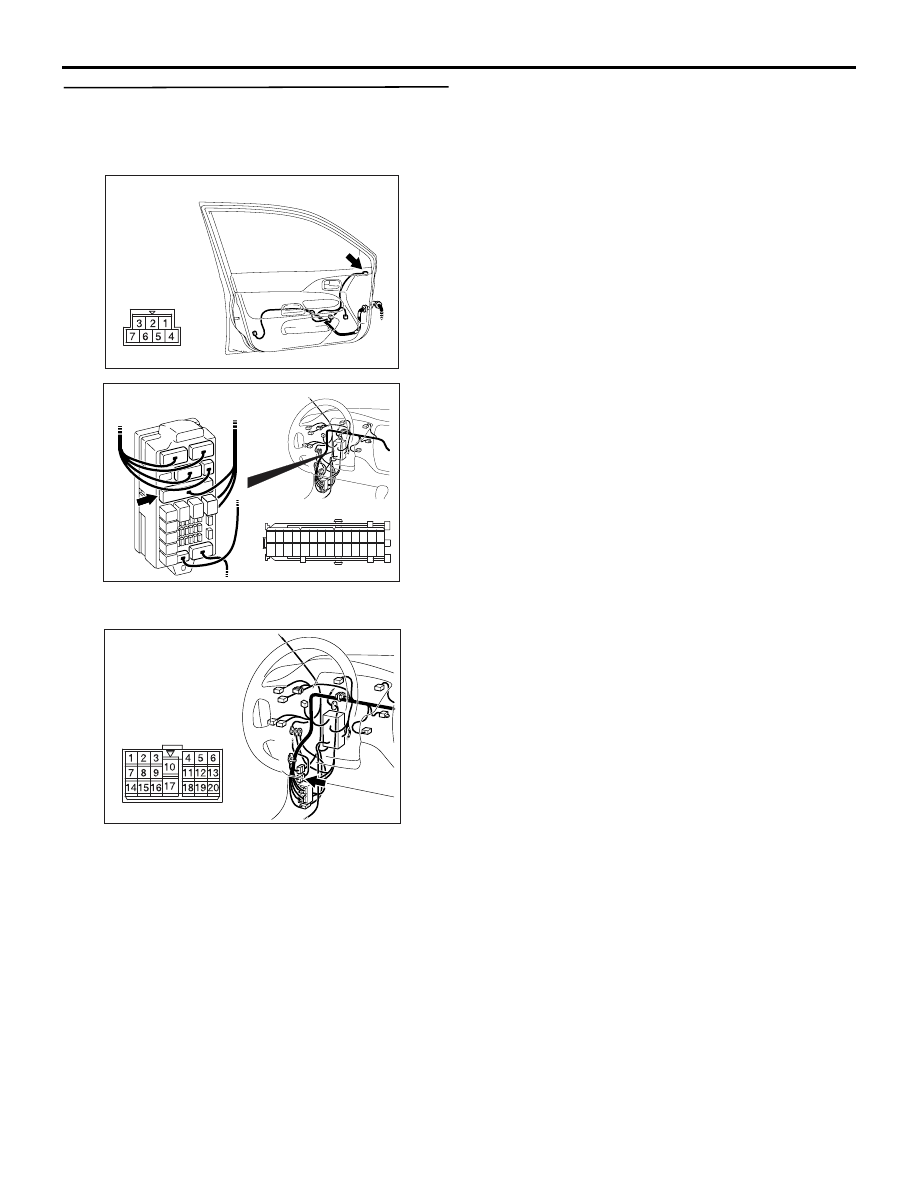

STEP 15. Check the wiring harness between E-03
door mirror assembly (LH) connector terminal
No.1 and C-214 junction block connector
terminal No.3.

AC304818

Connector: E-03

Harness side

AC

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-214

Harness side

AD

Junction block (Front view)

• Check the power supply line for open circuit.

NOTE:

AC304820

Connector: C-17

AC

Prior to the wiring harness inspection, check interme-
diate connector C-17 and repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

DOOR MIRROR

EXTERIOR

51-35

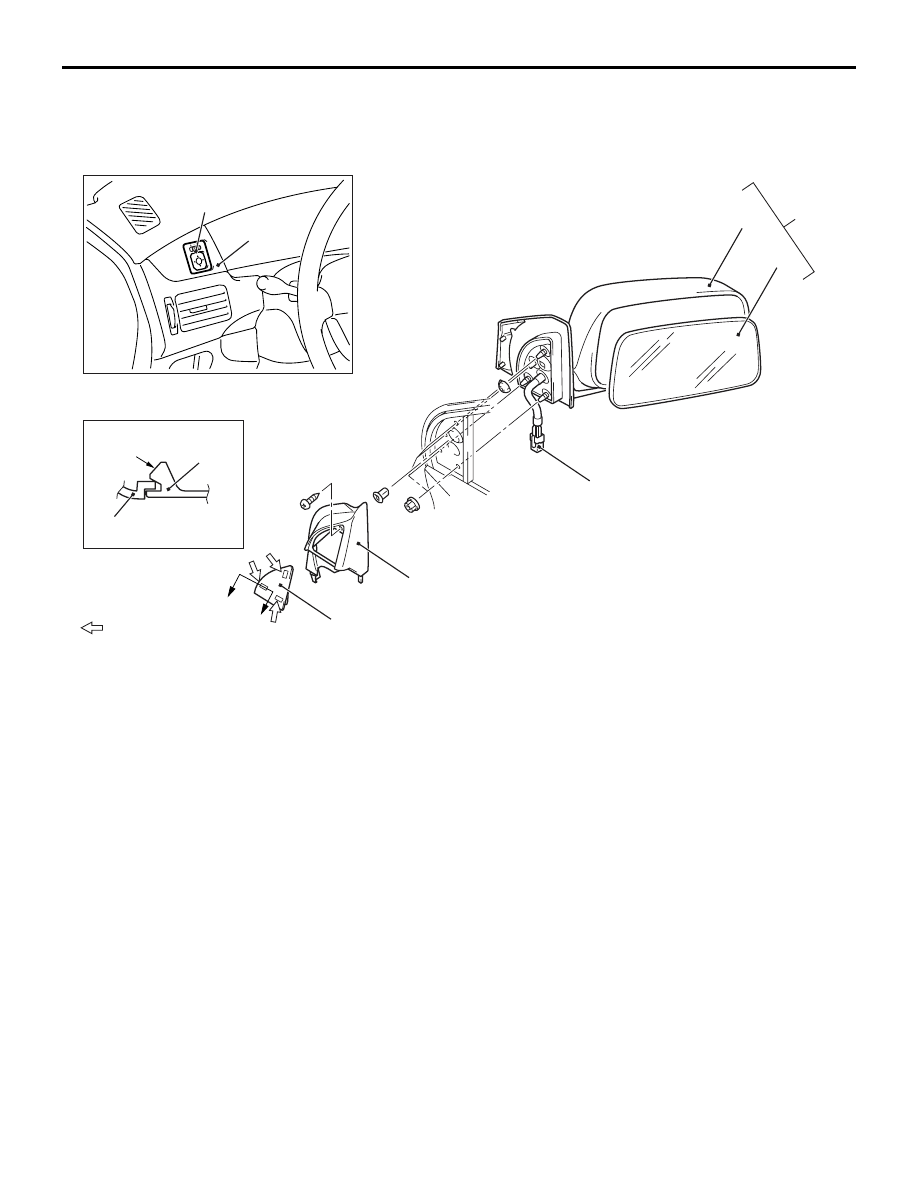

DOOR MIRROR

REMOVAL AND INSTALLATION

M1511006400461

AC304733

Note

        : Claw positions

AC

A

A

Section A – A

Claw

1

2

1

2

3

4

5

6

7

8

Door mirror removal steps
1. Cover
2. Delta inner cover
3. Harness connector
4. Door mirror assembly
5. Door mirror body assembly

<<

A

>> >>

A

<< 6. Mirror

Remote controlled mirror switch
removal steps
7. Instrument panel ornament (Refer to

GROUP 52A, Instrument Panel

P.52A-2

).

8. Remote controlled mirror switch

DOOR MIRROR

EXTERIOR

51-36

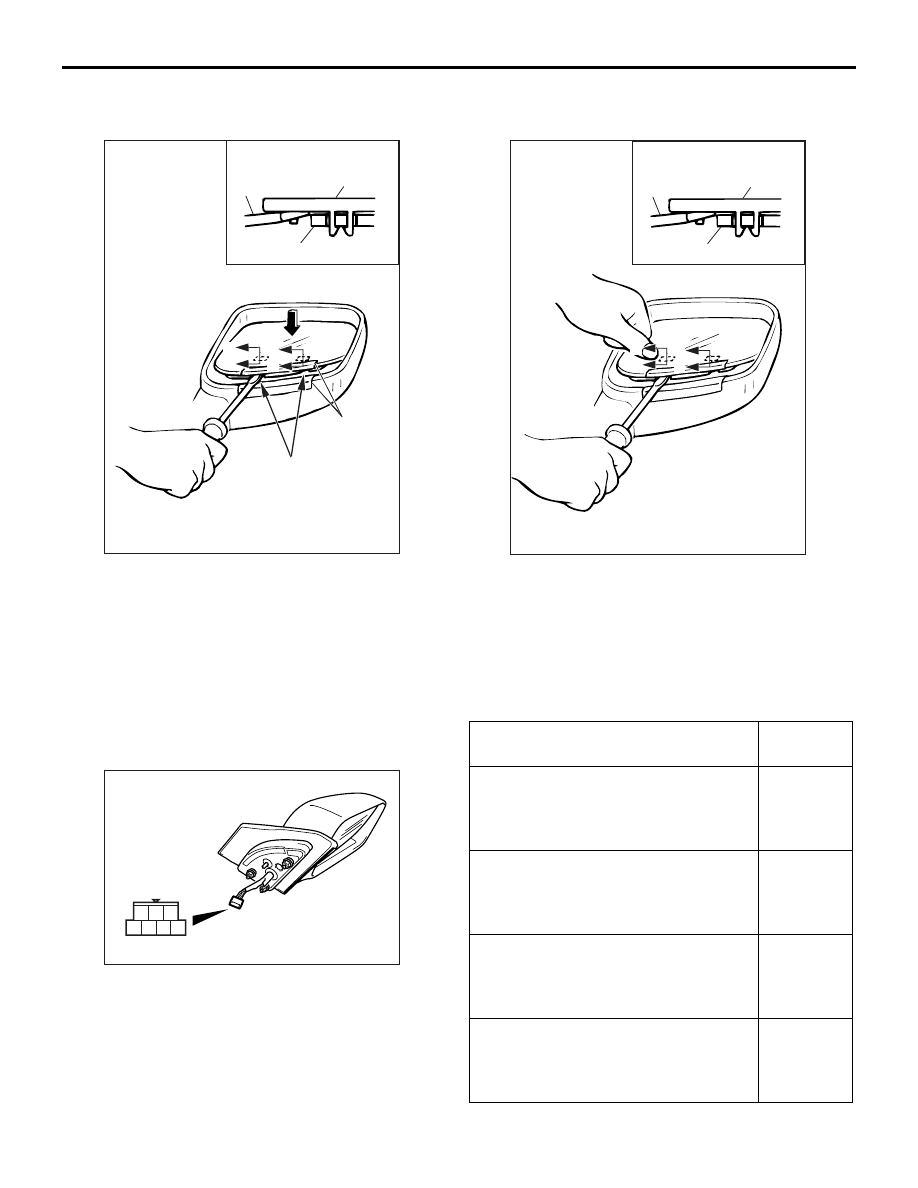

REMOVAL SERVICE POINT
<<A>> MIRROR REMOVAL

AC000441

00007256

Mirror

Flat-tipped
screwdriver

Section A – A

Pivot Plate

Notch

Protective
tape

A
A

A
A

AB

Push the top of the mirror with your hand to tilt it and
attach the protective tape as shown in the illustration.
Then insert a flat-tipped screwdriver in between the
notch at the rear of the mirror and the pivot plate, and
disengage the bottom of the mirror.

INSTALLATION SERVICE POINT
>>A<< MIRROR INSTALLATION

AC000442

00007258

Mirror

Flat-tipped
screwdriver

Section A – A

Pivot plate

A
A

A
A

AB

While supporting the clip position on the underside of
the pivot plate with a flat-tipped screwdriver, press
the clip at the front of the mirror to engage the bottom
of the mirror.

INSPECTION

M1511006500372

ELECTRIC REMOTE CONTROL MIRROR
OPERATION CHECK

AC202548

1

4 5 6 7

2 3

Check that the mirror moves as described in the
table when each terminal is connected to the battery.

Battery connection

Direction
operation

• Connect terminal 5 to the negative

battery terminal.

• Connect terminal 7 to the positive

battery terminal.

Mirror
glass
should face
upward

• Connect terminal 7 to the negative

battery terminal.

• Connect terminal 5 to the positive

battery terminal.

Mirror
glass
should face
downward

• Connect terminal 5 to the negative

battery terminal.

• Connect terminal 6 to the positive

battery terminal.

Mirror
glass
should face
to the right

• Connect terminal 6 to the negative

battery terminal.

• Connect terminal 5 to the positive

battery terminal.

Mirror
glass
should face
to the left
