SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-175

INSPECTION PROCEDURE H-6: Any of tail lamps, position lamps or licence plate lamps does not

illuminate. <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the input

and output signal circuits are normal.

TAIL LAMP
RELAY

REAR
COMBINATION
LAMP (RH)

LICENCE
PLATE
LAMP

(LH)

(RH)

COMBINATION
METER

REAR
COMBINATION
LAMP (LH)

FRONT-ECU

(LH)

(RH)

RELAY
BOX

HEADLAMP
ASSEMBLY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

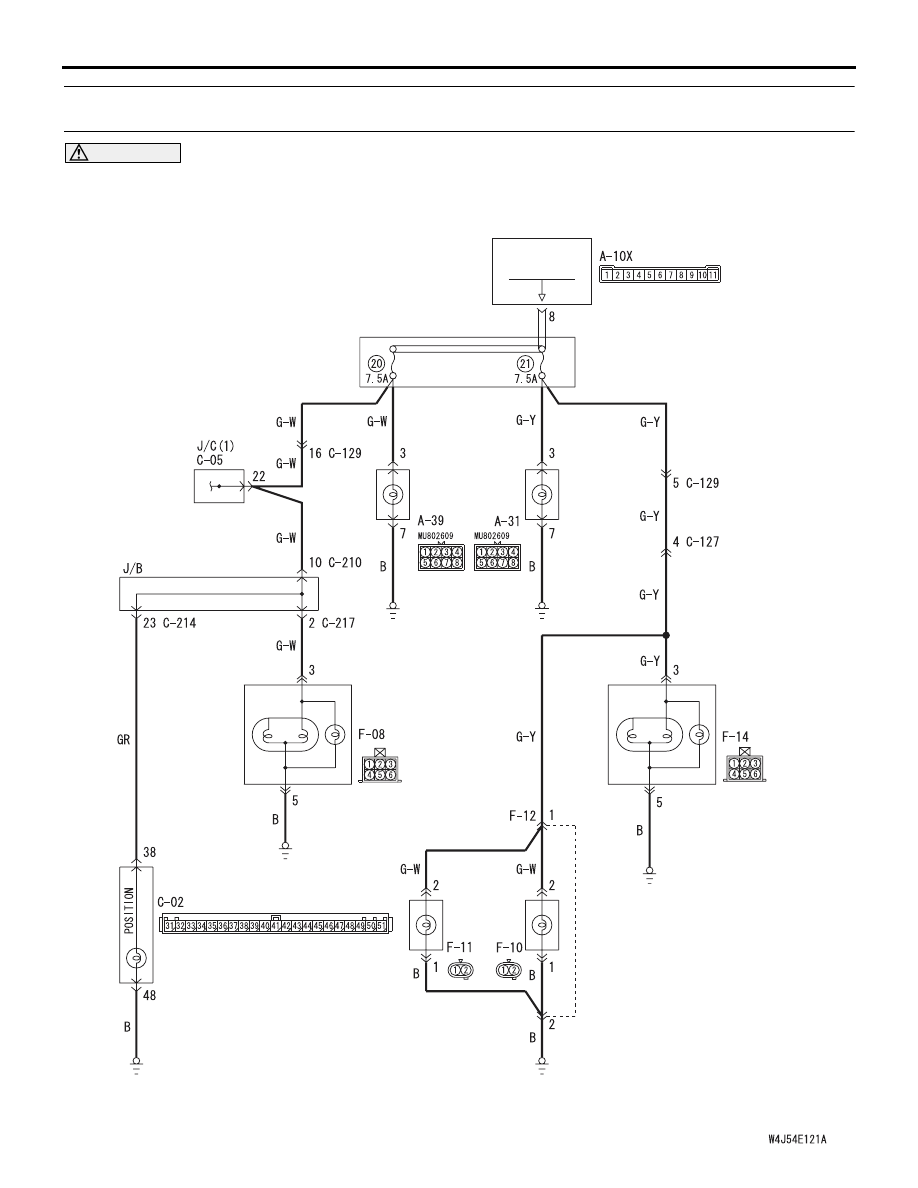

Taillamps, Position Lamps and License Plate Lamps Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-176

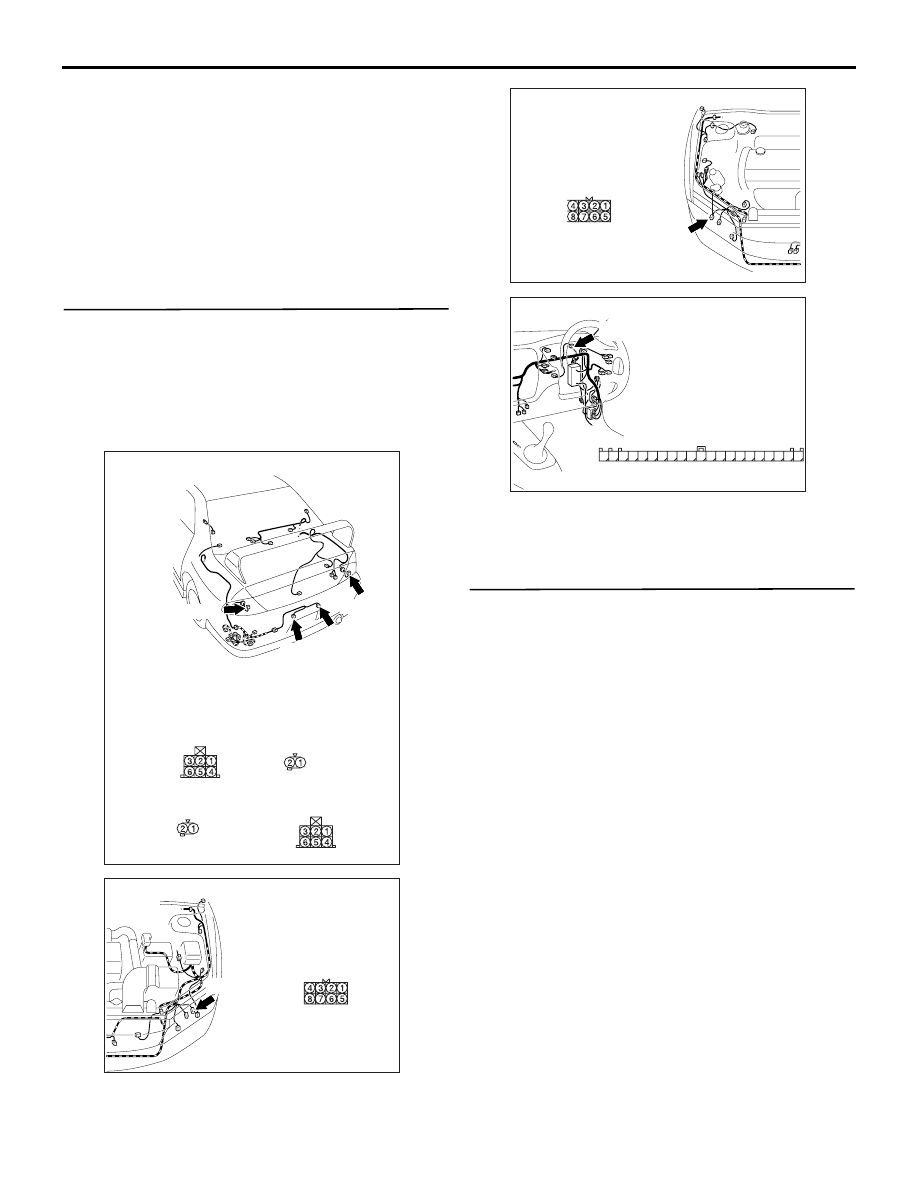

COMMENTS ON TROUBLE SYMPTOM

If the tail lamps, the position lamps or the licence
plate lamps do not illuminate, the wiring harness con-
nector(s), the bulb or the fuse may be defective or
burned out.

POSSIBLE CAUSES

• Burned-out bulb

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Connector check: F-14 <tail lamp LH> or

F-08 <tail lamp RH> rear combination lamp

connector, A-31 <position lamp LH> or A-39

<position lamp RH> headlamp assembly

connector, F-11 <licence plate lamp LH> or F-10

<licence plate lamp RH> licence plate lamp

connector, C-02 <tail lamp indicator>

combination meter connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the tail lamps, the
position lamp, the licence plate lamp or tail lamp
indicator.
Check the bulb of the lamp which does not illumi-
nate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb of the lamp which does not
illuminate.

AC310470

Connectors: F-08, F-10, F-11, F-14

<RHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310475

Connectors: A-31

AB

A-31(B)

Harness side

A-31

<RHD>

AC310433

Connectors: A-39

AD

A-39(B)

Harness side

A-39

<RHD>

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-177

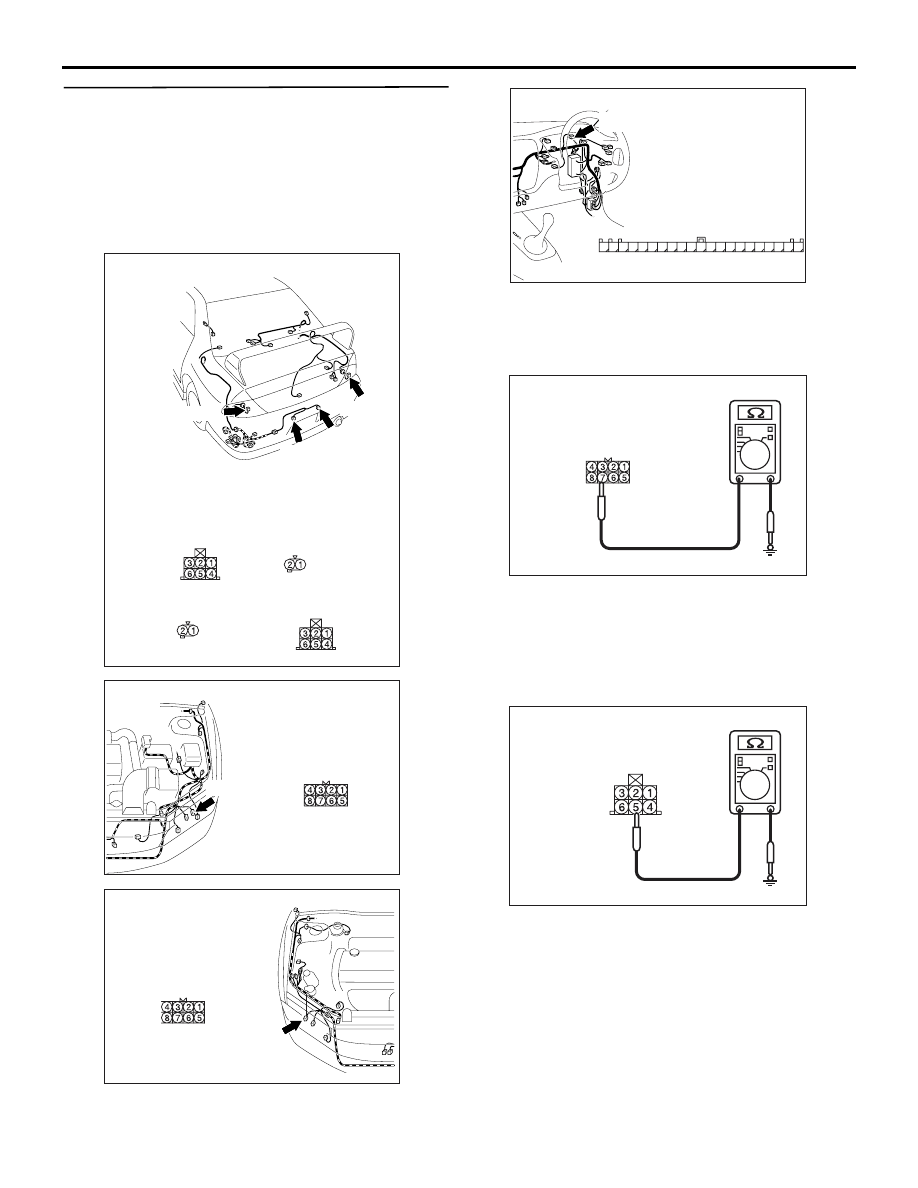

Step 3. Resistance measurement at the F-14 <tail
lamp LH> or F-08 <tail lamp RH> rear
combination lamp connector, the A-31 <position
lamp LH> or A-39 <position lamp RH> headlamp
assembly connector, the F-11 <licence plate lamp
LH> or F-10 <licence plate lamp RH> licence
plate lamp connector or C-02 <tail lamp
indicator> combination meter connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-31 <position lamp LH>

headlamp assembly connector terminal No.7
and body earth

• Resistance between A-39 <position lamp

RH> headlamp assembly connector terminal
No.7 and body earth

•

Resistance between F-14 <tail lamp LH> rear

combination lamp connector terminal No.5
and body earth

• Resistance between F-08 <tail lamp RH> rear

combination lamp connector terminal No.5
and body earth

AC310470

Connectors: F-08, F-10, F-11, F-14

<RHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310475

Connectors: A-31

AB

A-31(B)

Harness side

A-31

<RHD>

AC310433

Connectors: A-39

AD

A-39(B)

Harness side

A-39

<RHD>

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC301541HP

Connector A-31, A-39
(Harness side)

AC301541HN

Connector F-08, F-14
(Harness side)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-178

•

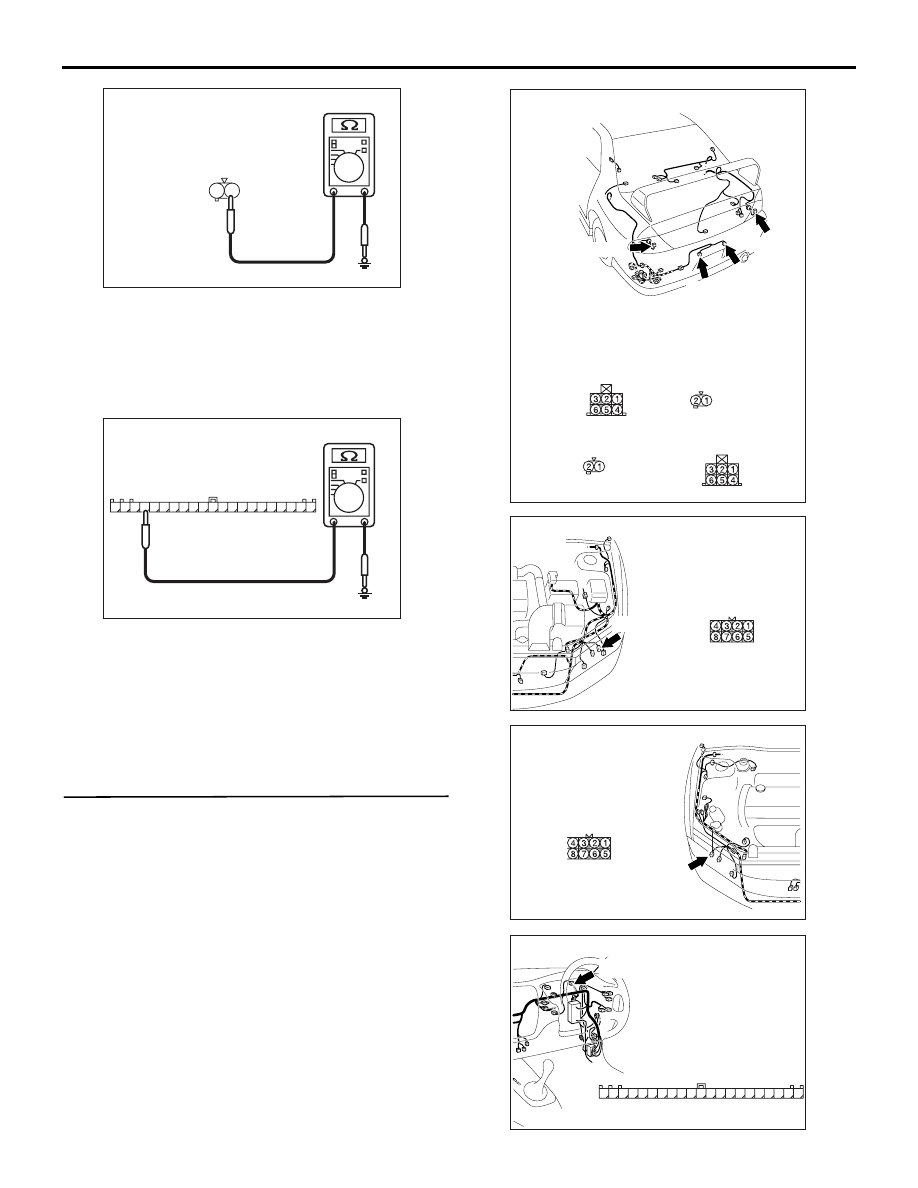

Resistance between F-11 <licence plate lamp

LH> licence plate lamp connector terminal
No.1 and body earth

• Resistance between F-10 <licence plate lamp

RH> licence plate lamp connector terminal
No.1 and body earth

•

Resistance between C-02 <tail lamp indicator>

combination meter connector terminal No.48
and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from F-14 <tail
lamp LH> or F-08 <tail lamp RH> rear
combination lamp connector terminal No.5, A-31
<position lamp LH> or A-39 <position lamp RH>
headlamp assembly connector terminal No.7,
F-11 <licence plate lamp LH> or F-10 <licence
plate lamp RH> licence plate lamp connector
terminal No.1 or C-02 <tail lamp indicator>
combination meter connector terminal No.48 to
body earth.

AC301541HO

Connector F-10, F-11
(Harness side)

2 1

AC301541HE

Connector C-02
(Harness side)

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

AC310470

Connectors: F-08, F-10, F-11, F-14

<RHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310475

Connectors: A-31

AB

A-31(B)

Harness side

A-31

<RHD>

AC310433

Connectors: A-39

AD

A-39(B)

Harness side

A-39

<RHD>

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)
