SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-171

Resistance between F-11 <licence plate lamp

LH> licence plate lamp connector terminal
No.1 and body earth

• Resistance between F-10 <licence plate lamp

RH> licence plate lamp connector terminal
No.1 and body earth

Resistance between C-02 <tail lamp indicator>

combination meter connector terminal No.48
and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from F-14 <tail

lamp LH> or F-08 <tail lamp RH> rear

combination lamp connector terminal No.5, A-31

<position lamp LH> or A-39 <position lamp RH>

headlamp assembly connector terminal No.7,

F-11 <licence plate lamp LH> or F-10 <licence

plate lamp RH> licence plate lamp connector

terminal No.1 or C-02 <tail lamp indicator>

combination meter connector terminal No.48 to

body earth.

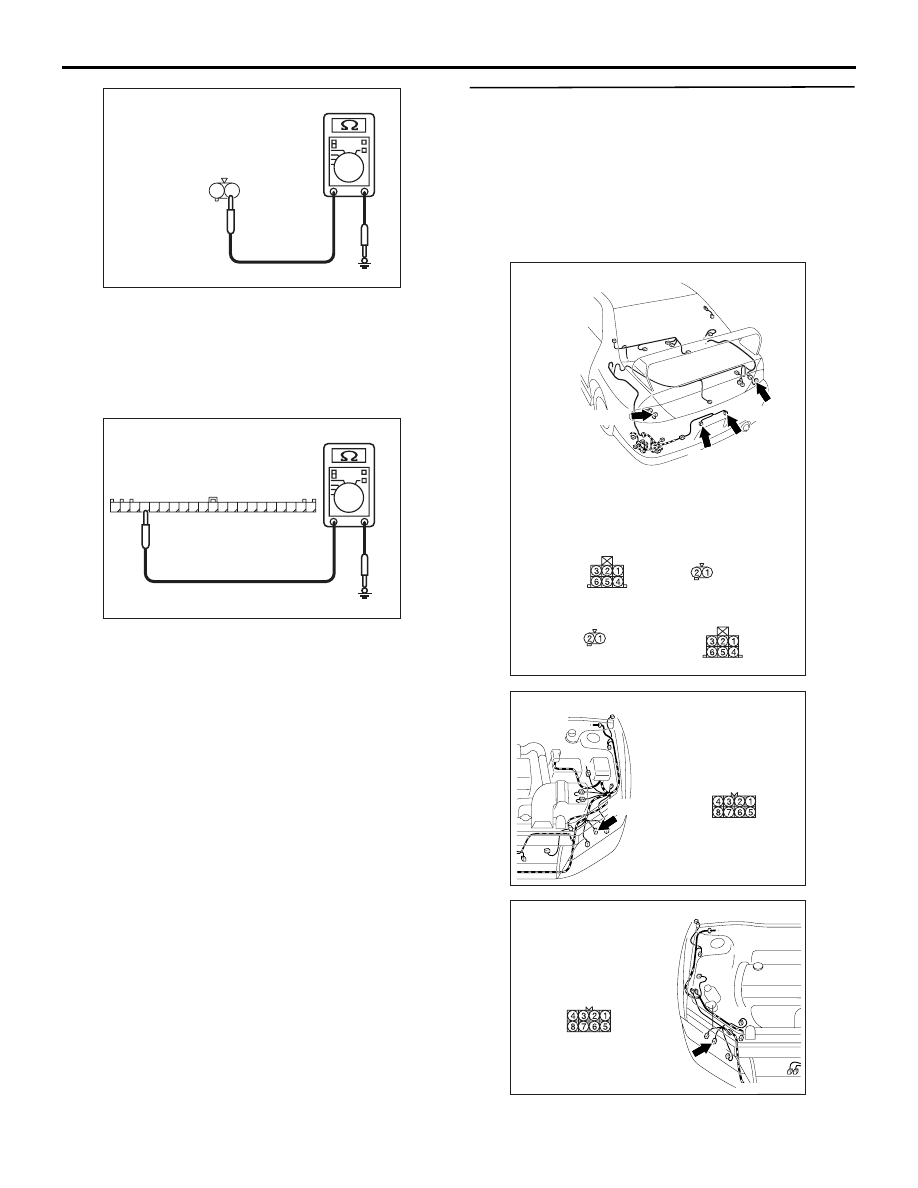

AC301541HO

Connector F-10, F-11
(Harness side)

2 1

AC301541HE

Connector C-02
(Harness side)

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

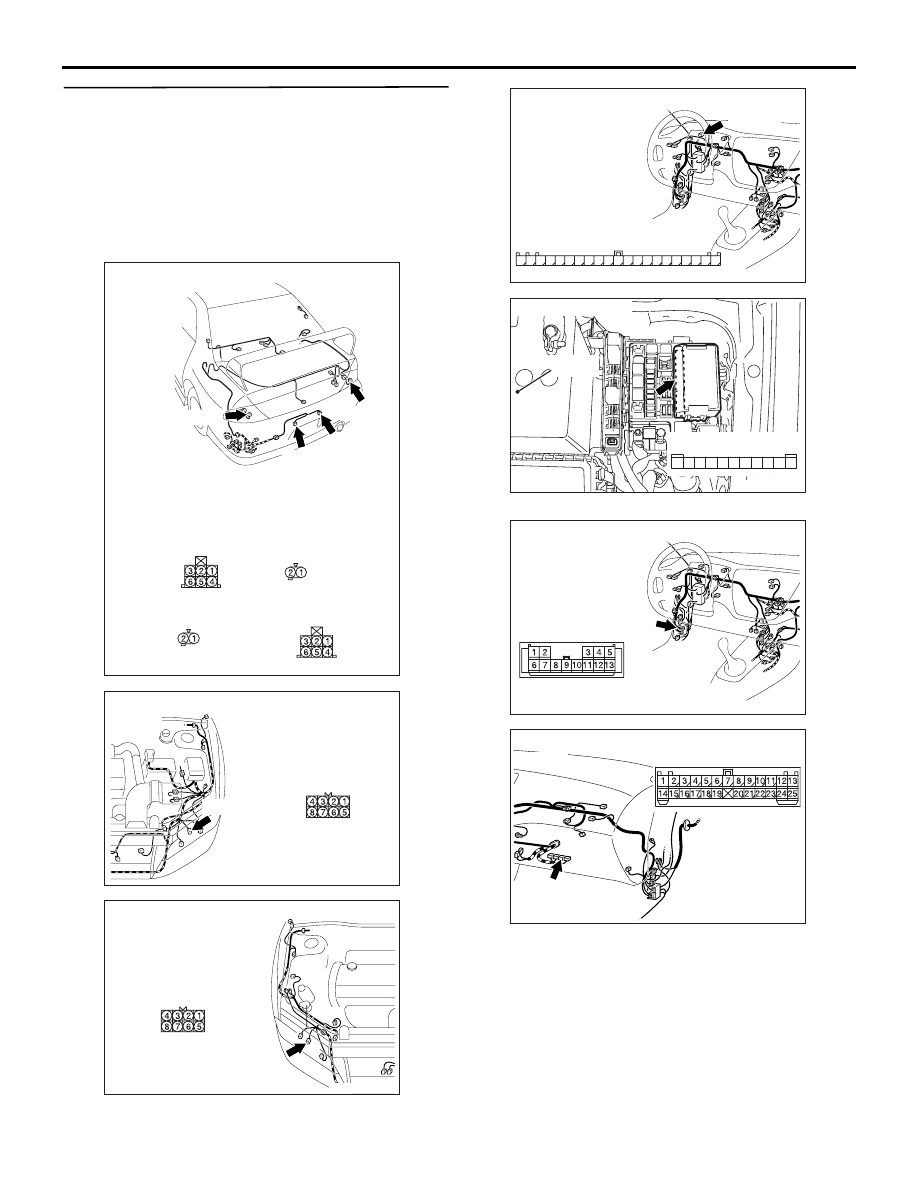

AC310468

Connectors: F-08, F-10, F-11, F-14

<LHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310542

Connectors: A-31

AD

A-31(B)

Harness side

A-31

<LHD>

AC310431

Connectors: A-39

AE

A-39(B)

Harness side

A-39

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-172

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector F-12 <licence plate lamp> and repair
if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 5. Connector check: A-10X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

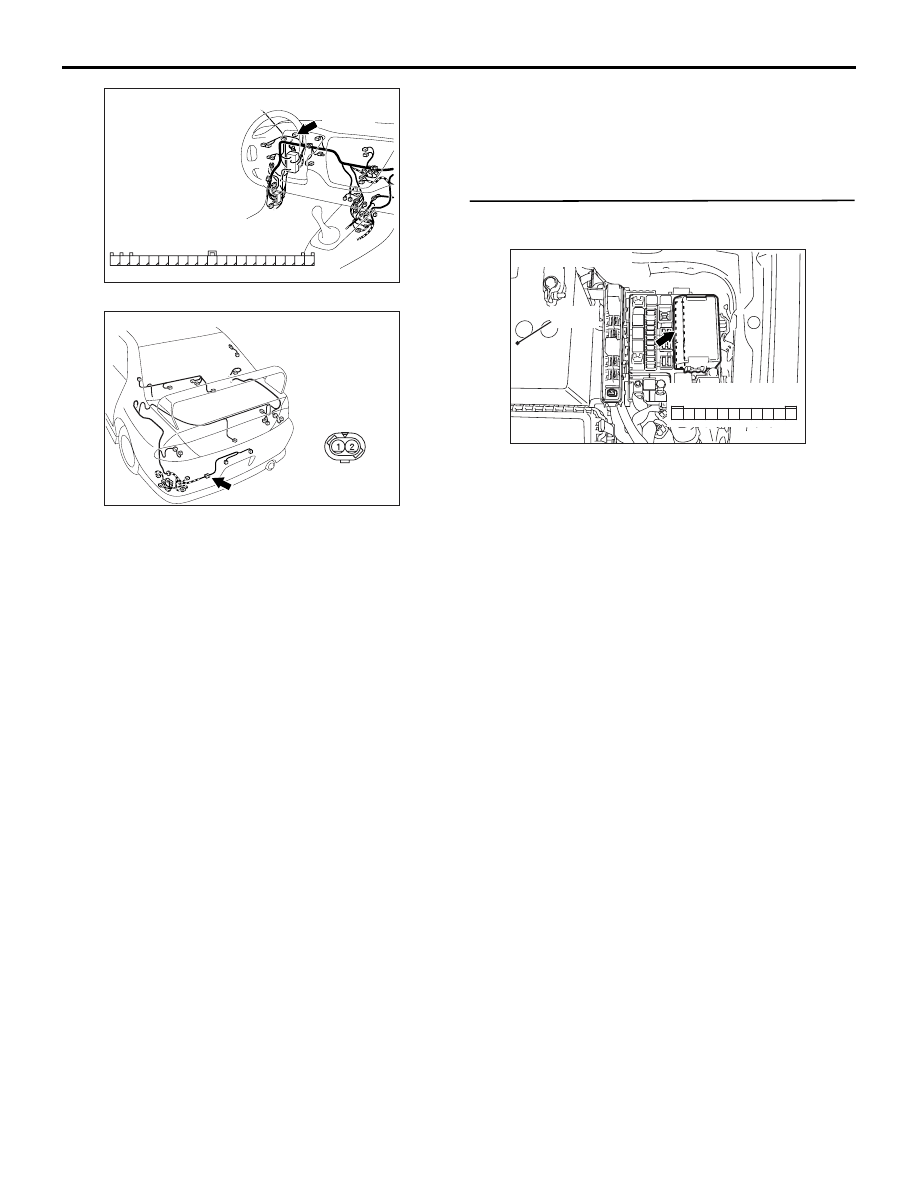

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

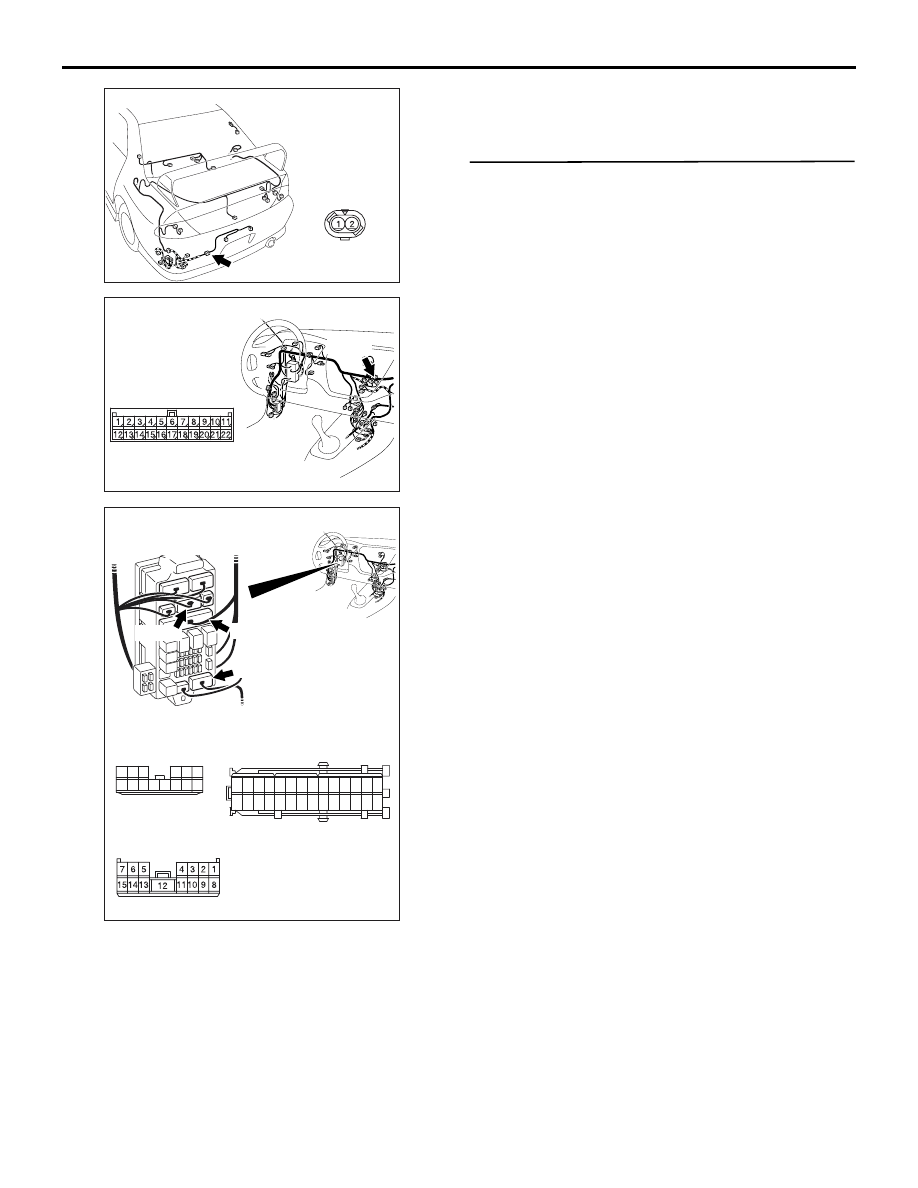

AC310467AG

Connector: F-12 <LHD>

F-12 (GR)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-173

Step 6. Check the wiring harness from F-14 <tail

lamp LH> or F-08 <tail lamp RH> rear

combination lamp connector terminal No.3, A-31

<position lamp LH> or A-39 <position lamp RH>

headlamp assembly connector terminal No.3,

F-11 <licence plate lamp LH> or F-10 <licence

plate lamp RH> licence plate lamp connector

terminal No.2, C-02 <tail lamp indicator>

combination meter connector terminal No.38 to

A-10X front-ECU connector terminal No.8.

NOTE:

AC310468

Connectors: F-08, F-10, F-11, F-14

<LHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310542

Connectors: A-31

AD

A-31(B)

Harness side

A-31

<LHD>

AC310431

Connectors: A-39

AE

A-39(B)

Harness side

A-39

<LHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

AC310446

C-129

Connectors: C-129

AP

<LHD>

AC310452

Connector: C-113

AF

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-174

Prior to the wiring harness inspection, check interme-
diate connector C-129 <tail lamp LH, licence plate
lamp or tail lamp indicator>, C-113 <tail lamp RH> or
F-12 <licence plate lamp>, joint connector C-05 <tail
lamp RH>, junction block connector C-210 <tail lamp
LH, licence plate lamp or tail lamp indicator>, C-214
<tail lamp indicator> or C-217 <tail lamp LH or
licence plate lamp> and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the tail lamps, the position lamps and the
licence plate lamps illuminate normally.

Q: Is the check result normal?

The all lamps illuminate normally :

The trouble can

be an intermittent malfunction (Refer to
GROUP 00

− How to Cope with Intermittent

Malfunction

P.00-5

).

When the tail lamps do not illuminate :

Replace

the rear combination lamp socket assembly.

When the position lamps do not illuminate :

Replace the position lamp socket.

When the licence plate lamps do not illuminate :

Replace the licence plate lamp socket.

When the tail lamp indicator do not illuminate :

Replace the combination meter assembly.

AC310467AG

Connector: F-12 <LHD>

F-12 (GR)

AC310446

Connectors: C-05

AV

<LHD>

C-05

C-05

AC310449

C-214
Harness side

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connectors: C-210, C-214, C-217

AE

C-214

Junction block (front view)

<LHD>

C-210

C-210
Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-217

C-217
Harness side
