SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-123

Step 29. Resistance measurement at E-09 rear
power window regulator motor (LH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-09 rear power window

regulator motor (LH) connector terminal No.5 and
body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 31.

NO :

Go to Step 30.

Step 30. Check the wiring harness from E-09 rear
power window regulator motor (LH) connector
terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector D-15, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 31.

NO :

Repair the wiring harness.

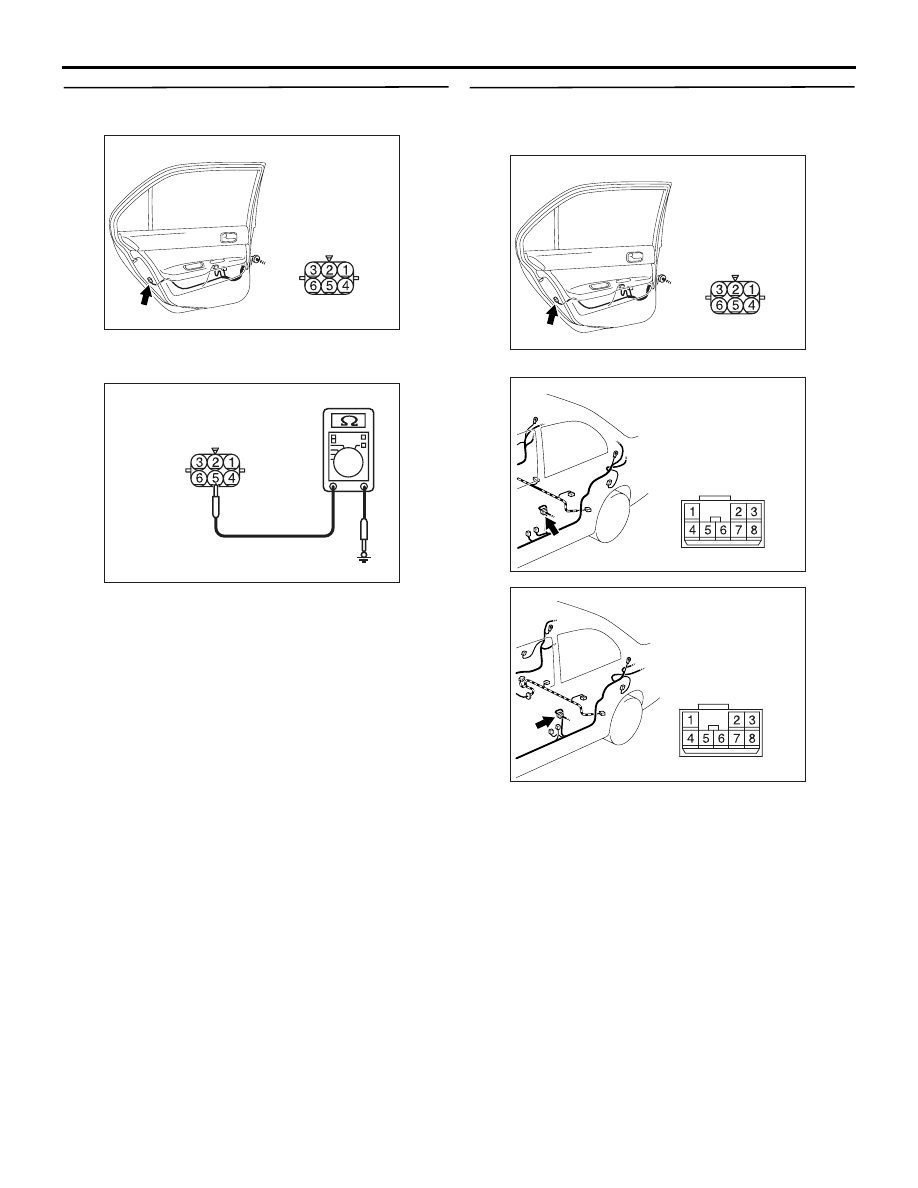

AC310486

Connector: E-09

Harness side

E-09 (GR)

Rear door (LH)

AC310506

Connector E-09
(Harness side)

AC310486

Connector: E-09

Harness side

E-09 (GR)

Rear door (LH)

AC310465

Connector: D-15 <LHD>

AC310473

Connector: D-15 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-124

Step 31. Connector check: E-08 rear power
window sub switch (LH) connector

Q: Is the check result normal?

YES :

Go to Step 32.

NO :

Repair the defective connector.

Step 32. Check the wiring harness from E-08 rear
power window sub switch (LH) connector
terminal Nos.8, 2 and 3 to E-09 rear power
window regulator motor (LH) connector terminal
Nos.3, 2 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 33.

NO :

Repair the wiring harness.

Step 33. Retest the system.
After the rear power window sub switch (LH) is
replaced, check that the rear left door anti-trap func-
tion can be operated by the power window sub
switch.
(1) Replace the rear power window sub switch (LH).
(2) Check that the rear left power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

NO :

Replace the rear power window regulator
motor assembly (LH).

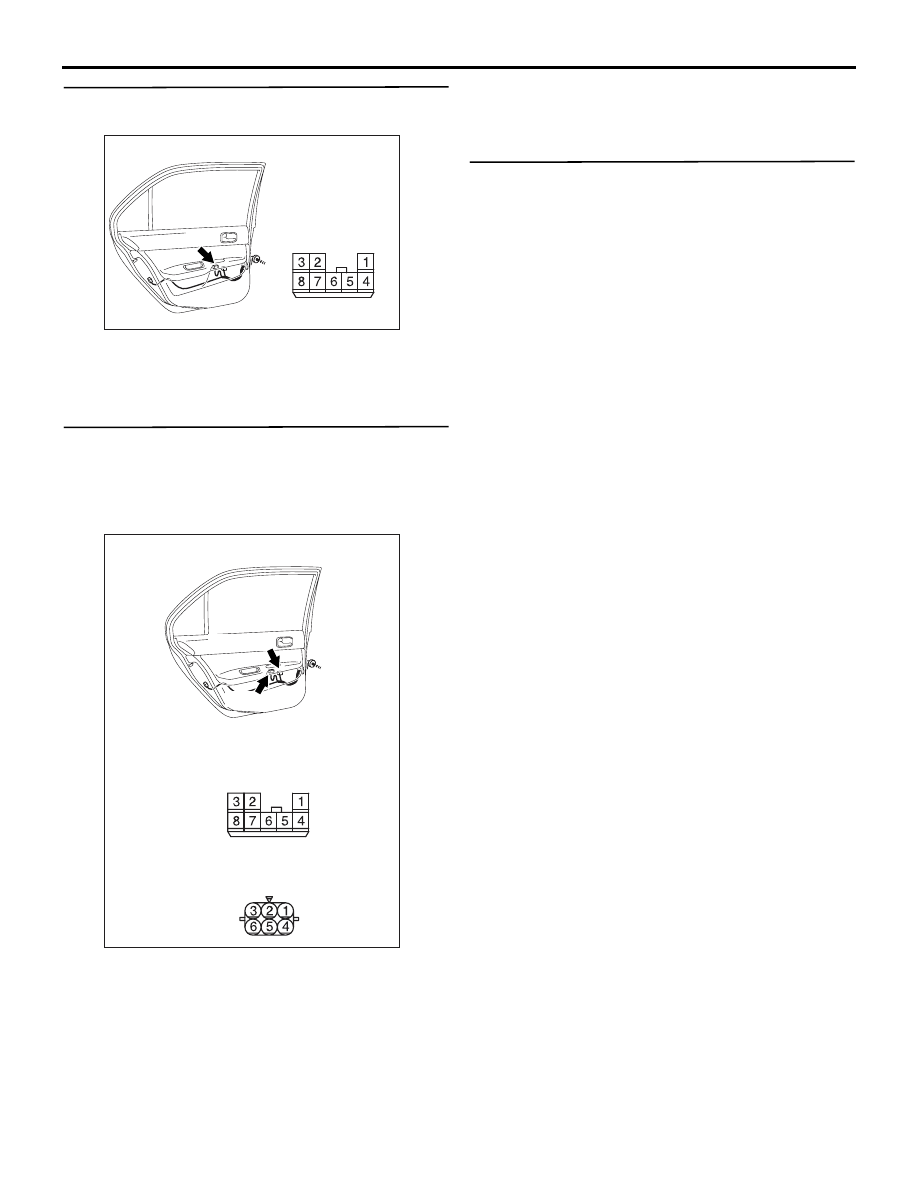

AC310486

Connector: E-08

Harness side

Rear door (LH)

AC310487

Connectors: E-08, E-09

E-09

E-08

Harness side

Rear door (LH)

Harness side

E-08

E-09 (GR)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-125

KEYLESS ENTRY SYSTEM

INSPECTION PROCEDURE E-1: Keyless entry system does not work.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the keyless entry system does not work normally,
the input signal circuits to the components below or
the ETACS-ECU may be defective.

• Key reminder switch

• All of the door switches

• Keyless entry transmitter

• Driver's door lock actuator

POSSIBLE CAUSES

• Malfunction of the key reminder switch

• Malfunction of the door switches

• Malfunction of the keyless entry transmitter

• Malfunction of the driver's door lock actuator

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit

P.54B-42

ETACS-ECU

INPUT SIGNAL

· ALL DOOR SWITCHES
· DRIVER'S DOOR LOCK ACTUATOR SWITCH
· KEYLESS ENTRY TRANSMITTER BUTTON
· KEY REMINDER SWITCH

KEYLESS ENTRY
RECEIVER

Keyless Entry System Function Circuit
