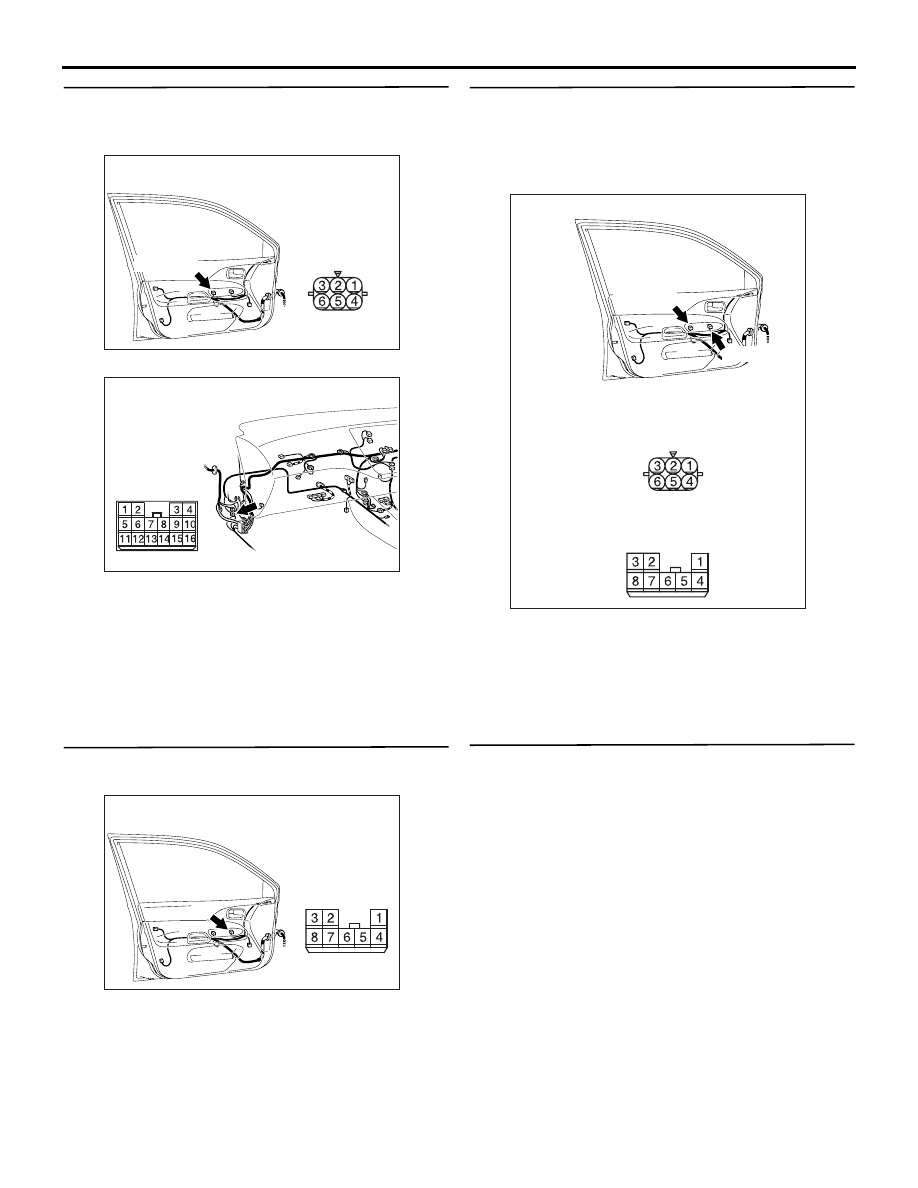

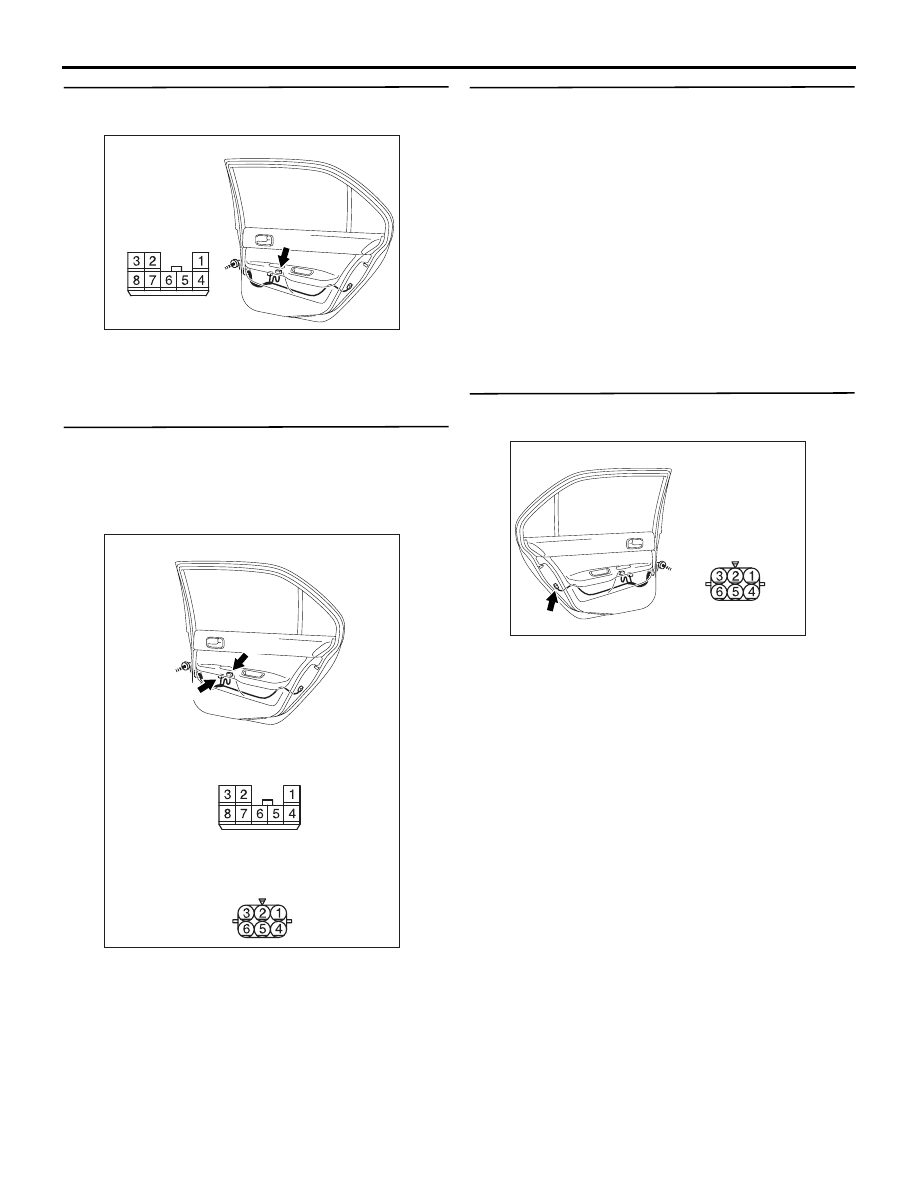

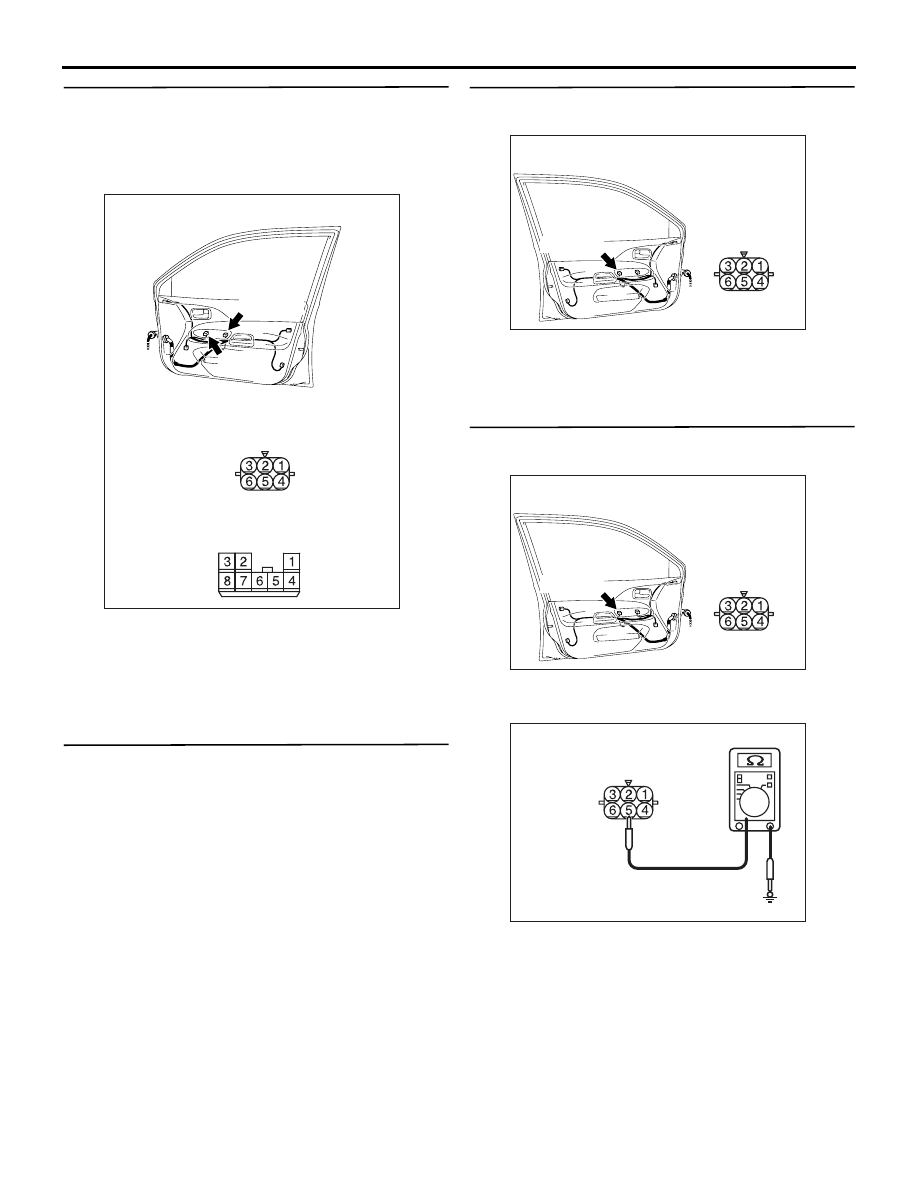

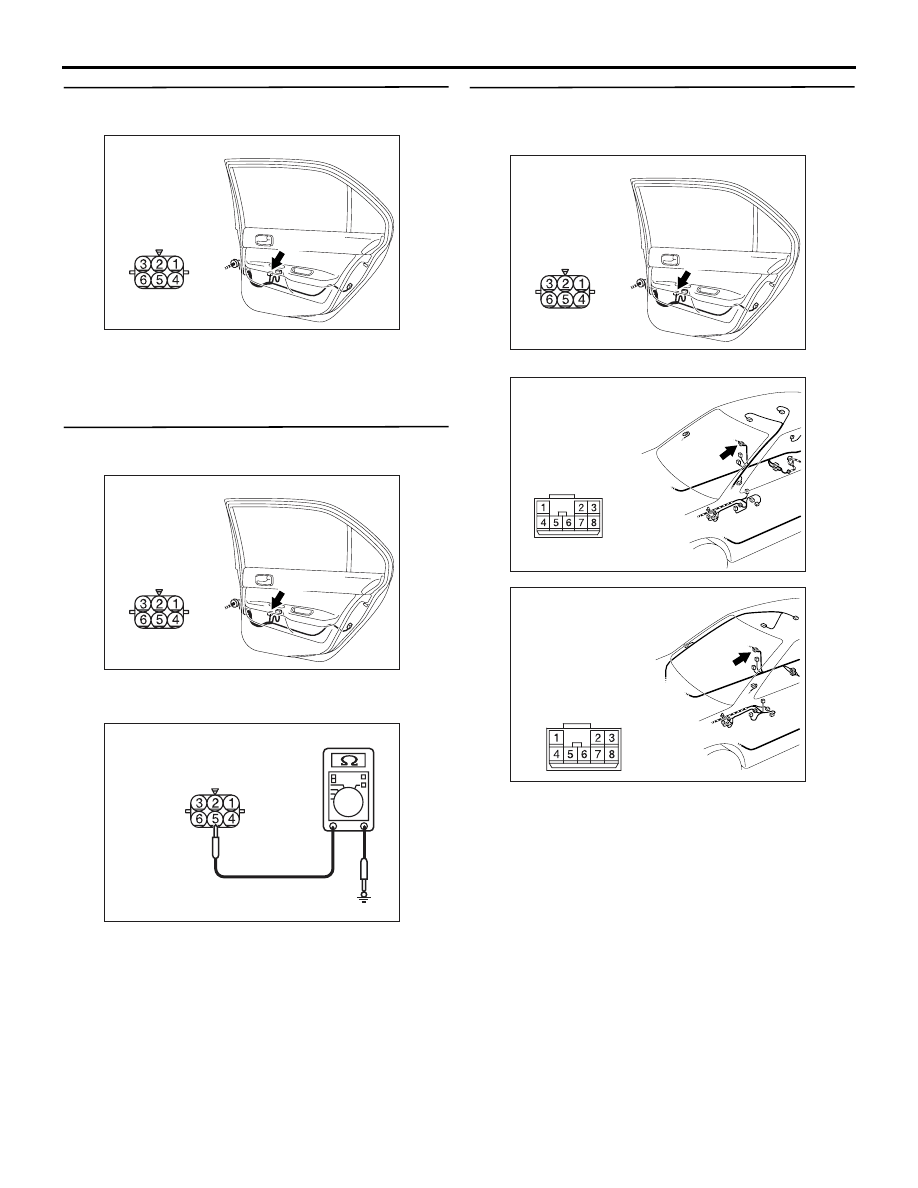

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-119 Step 14. Check the wiring harness from E-14 • Check the input and output lines to the revolution detection sensor for open or short circuit. Q: Is the check result normal? YES : Go to Step 15. NO : Repair the wiring harness. Step 15. Retest the system. anti-trap function works. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to Cope with Intermittent Malfunction NO : Replace the front power window regulator Step 16. Connector check: E-02 front power Q: Is the check result normal? YES : Go to Step 17. NO : Repair the defective connector. Step 17. Resistance measurement at E-02 front (1) Disconnect the connector, and measure at the wiring harness side. (2) Resistance between E-02 front power window regulator motor (LH) connector terminal No.5 and OK: 2 Ω or less Q: Is the check result normal? YES : Go to Step 19. NO : Go to Step 18. AC310489 Connectors: E-11, E-14 <LHD> E-14 E-11 Harness side Harness side E-14 E-11 (GR) AB Front door (RH) AC310498 Connector: E-02 <RHD> Harness side E-02 (GR) AD Front door (LH) AC310498 Connector: E-02 <RHD> Harness side E-02 (GR) AD Front door (LH) AC310506 Connector E-02 AG |
