SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-55

COMMENT ON TROUBLE SYMPTOM

If a door can not be locked or unlocked by the central
door locking system, the door lock actuator may be
defective.

POSSIBLE CAUSES

• Malfunction of the door lock actuator

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Confirm which door lock actuator is
defective.

Q: Which door fails to lock correctly?

Driver's door :

Go to Step 2.

Front passenger's door :

Go to Step 6.

Rear right door :

Go to Step 10.

Rear left door :

Go to Step 14.

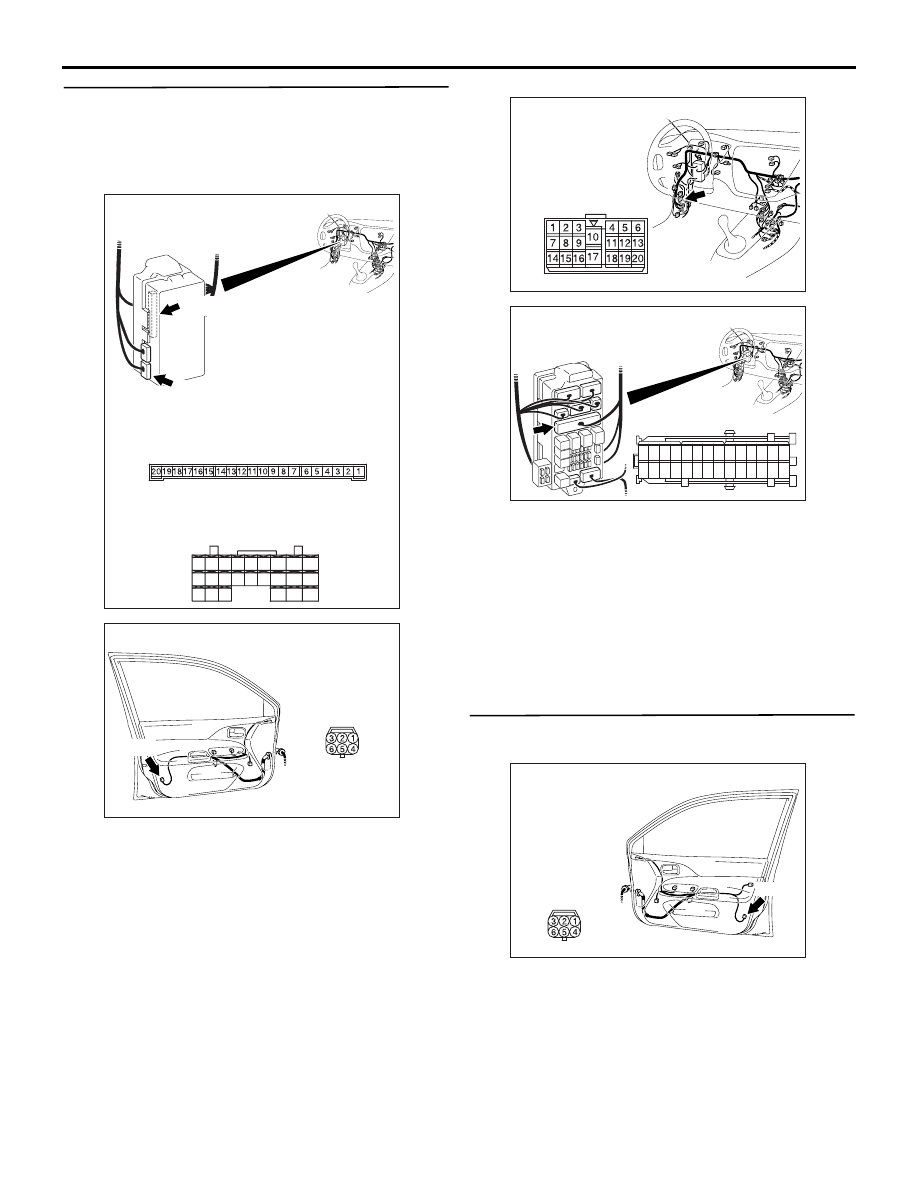

Step 2. Connector check: E-04 front door lock
actuator (LH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the front door lock actuator (LH)
Check that the front door lock actuator (LH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the front door lock actuator (LH).

Step 4. Connector check: C-226, C-227
ETACS-ECU connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC310484

Harness side

AB

Connector: E-04 <LHD>

E-04(B)

Front door (LH)

AC310451

Connectors: C-226, C-227 <LHD>

AB

Junction block (rear view)

Junction block side

C-227

C-226

C-227

Harness side

C-226

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

36 35

33

21

22

30

39

40

31

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-56

Step 5. Check the wiring harness from C-226
ETACS-ECU connector terminal No.12 and C-227
ETACS-ECU connector terminal No.22 to E-04
front door lock actuator (LH) connector terminal
Nos.4 and 6.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-17 and junction block connector
C-214, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

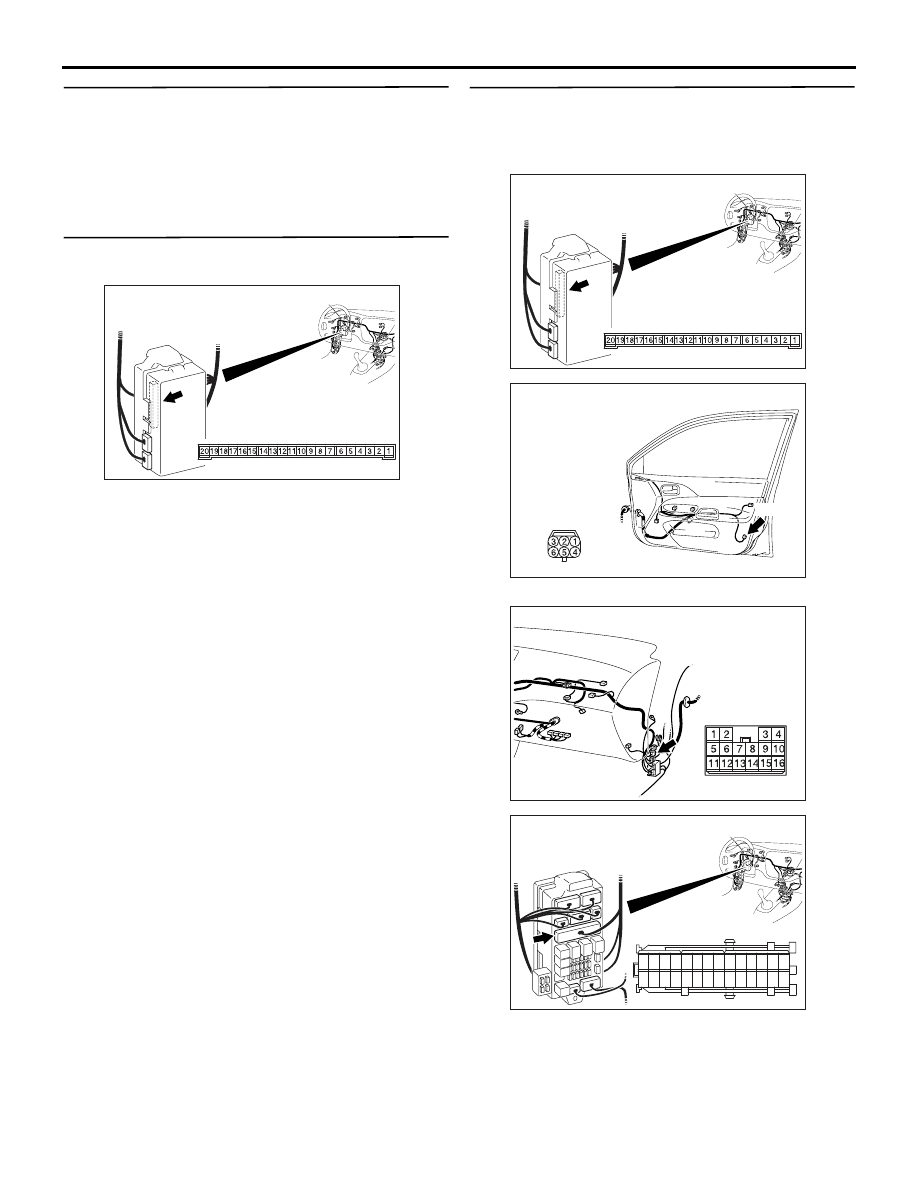

Step 6. Connector check: E-15 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

AC310451

Connectors: C-226, C-227 <LHD>

AB

Junction block (rear view)

Junction block side

C-227

C-226

C-227

Harness side

C-226

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

36 35

33

21

22

30

39

40

31

AC310484

Harness side

AB

Connector: E-04 <LHD>

E-04(B)

Front door (LH)

AC310446

Connector: C-17 <LHD>

AE

AC310448

Harness side

Junction block (front view)

Connector: C-214 <LHD>

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

AC310488

Harness side

AB

Connector: E-15 <LHD>

E-15(B)

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-57

Step 7. Check the front door lock actuator (RH).
Check that the front door lock actuator (RH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the front door lock actuator (RH).

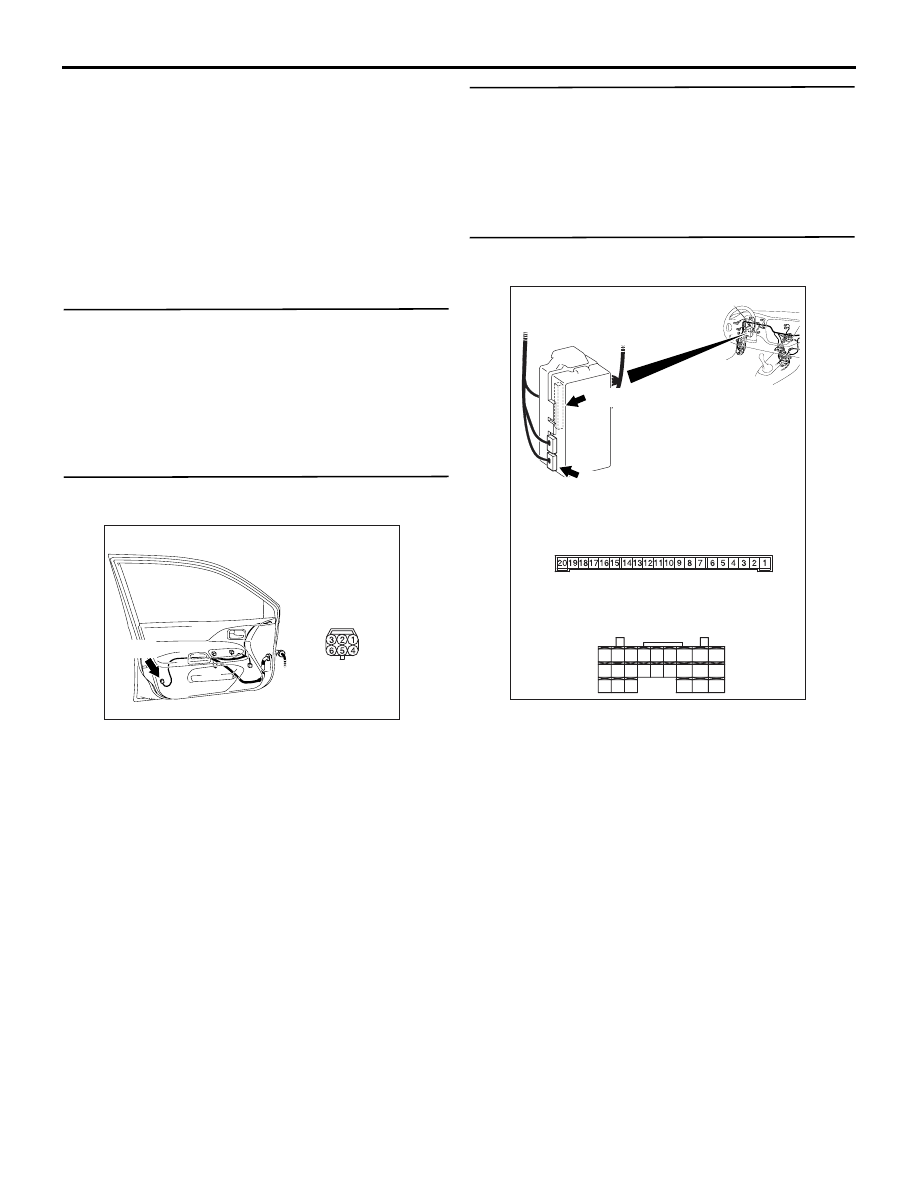

Step 8. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

Step 9. Check the wiring harness from C-226
ETACS-ECU connector terminal Nos.12 and 13 to
E-15 front door lock actuator (RH) connector
terminal Nos.4 and 6.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-110 and junction block connector
C-214, and repair if necessary.

• Check the input and output lines for open circuit.

AC310450

Connector: C-226 <LHD>

AB

Junction block side

Junction block (rear view)

AC310450

Connector: C-226 <LHD>

AB

Junction block side

Junction block (rear view)

AC310488

Harness side

AB

Connector: E-15 <LHD>

E-15(B)

Front door (RH)

AC310452

Connector: C-110 <LHD>

AC

AC310448

Harness side

Junction block (front view)

Connector: C-214 <LHD>

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-58

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

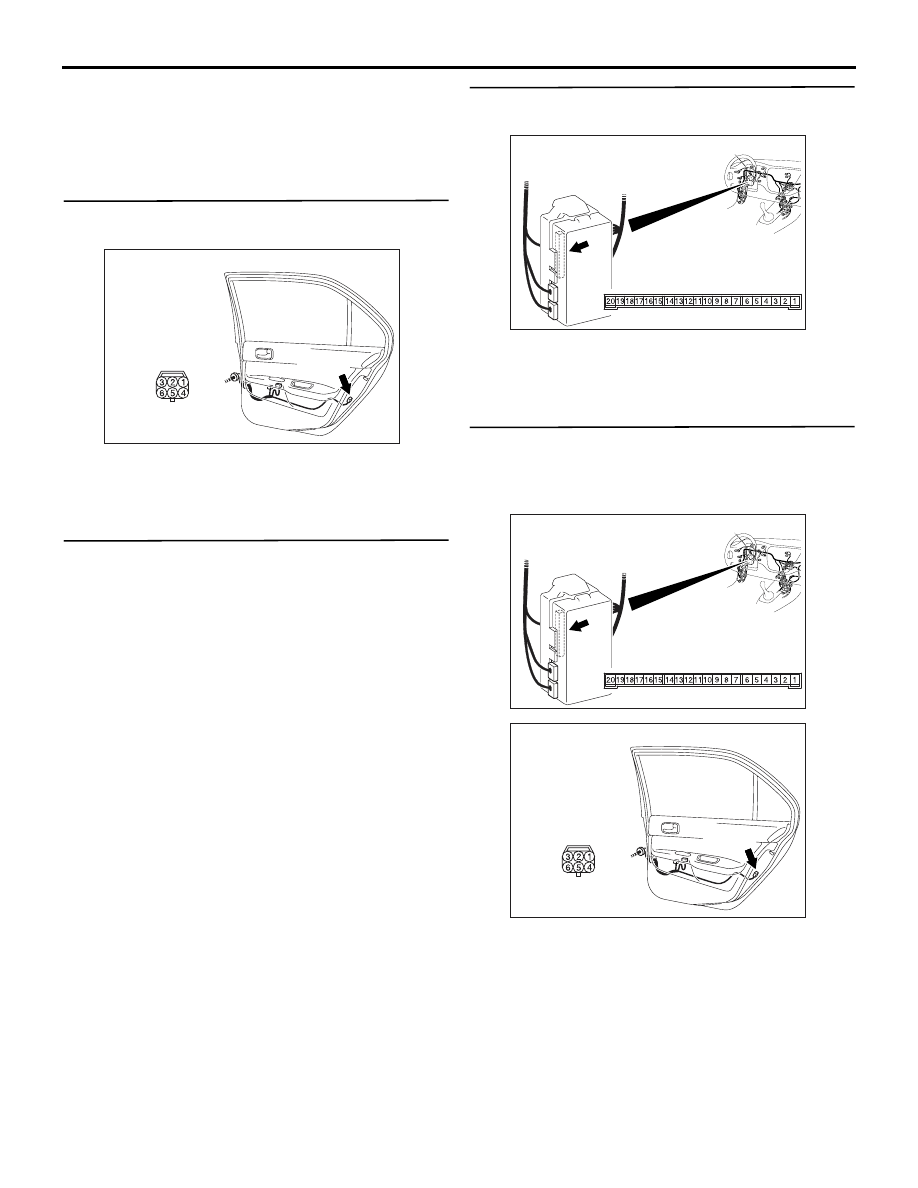

Step 10. Connector check: E-18 rear door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

Step 11. Check the rear door lock actuator (RH).
Check that the rear door lock actuator (RH) is in
good condition. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the rear door lock actuator (RH).

Step 12. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

Step 13. Check the wiring harness from C-226
ETACS-ECU connector terminal Nos.12 and 13 to
E-18 rear door lock actuator (RH) connector
terminal Nos.4 and 6.

AC310491

Harness side

AB

Connector: E-18

E-18 (B)

Rear door (RH)

AC310450

Connector: C-226 <LHD>

AB

Junction block side

Junction block (rear view)

AC310450

Connector: C-226 <LHD>

AB

Junction block side

Junction block (rear view)

AC310491

Harness side

AB

Connector: E-18

E-18 (B)

Rear door (RH)
