Mitsubishi Lancer Evolution IX. Manual - part 122

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-51

INSPECTION PROCEDURE C-1: Central door locking system does not work. <RH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

DOOR LOCK
ACTUATOR
(FRONT: RH)

1

FUSIBLE
LINK

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

J/B SIDE

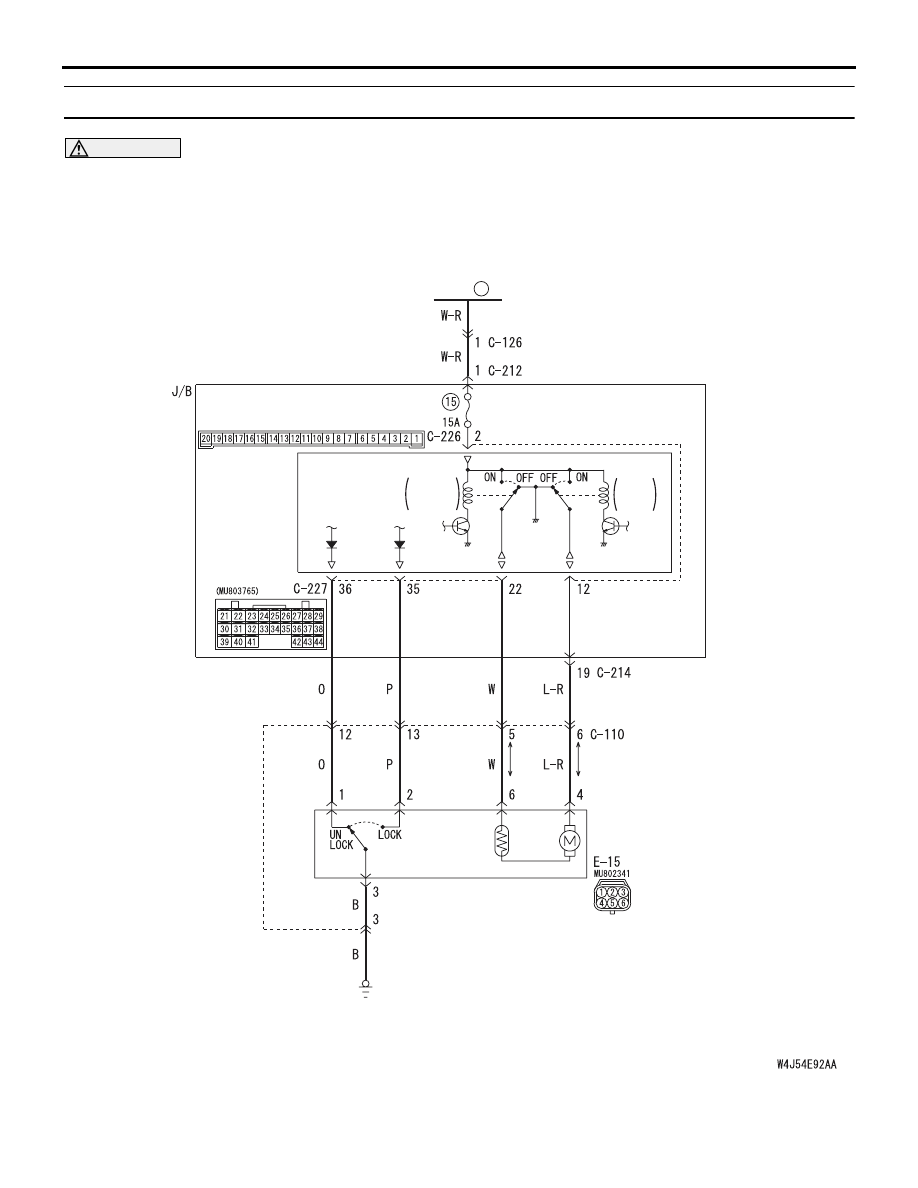

Central Door Lock Power Supply Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-52

COMMENT ON TROUBLE SYMPTOM

If the central door locking system does not work at
all, the front door lock actuator (RH) or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the front door lock actuator (RH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit"

P.54B-42

.

Step 2. Pulse check
Check the input signal from the driver's door lock
actuator switch.

OK: The M.U.T.-II/III sound or the voltmeter
needle fluctuate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure L-11 "The
front door lock actuator (RH) switch signal is
not received <RH drive vehicles>

P.54B-275



."

Step 3. Connector check: E-15 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the front door lock actuator (RH)
Check that the front door lock actuator (RH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the front door lock actuator (RH).

Step 5. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

System switch

Check condition

Driver's door lock
actuator switch

When the driver's key
cylinder or inside lock
knob is unlocked or
locked

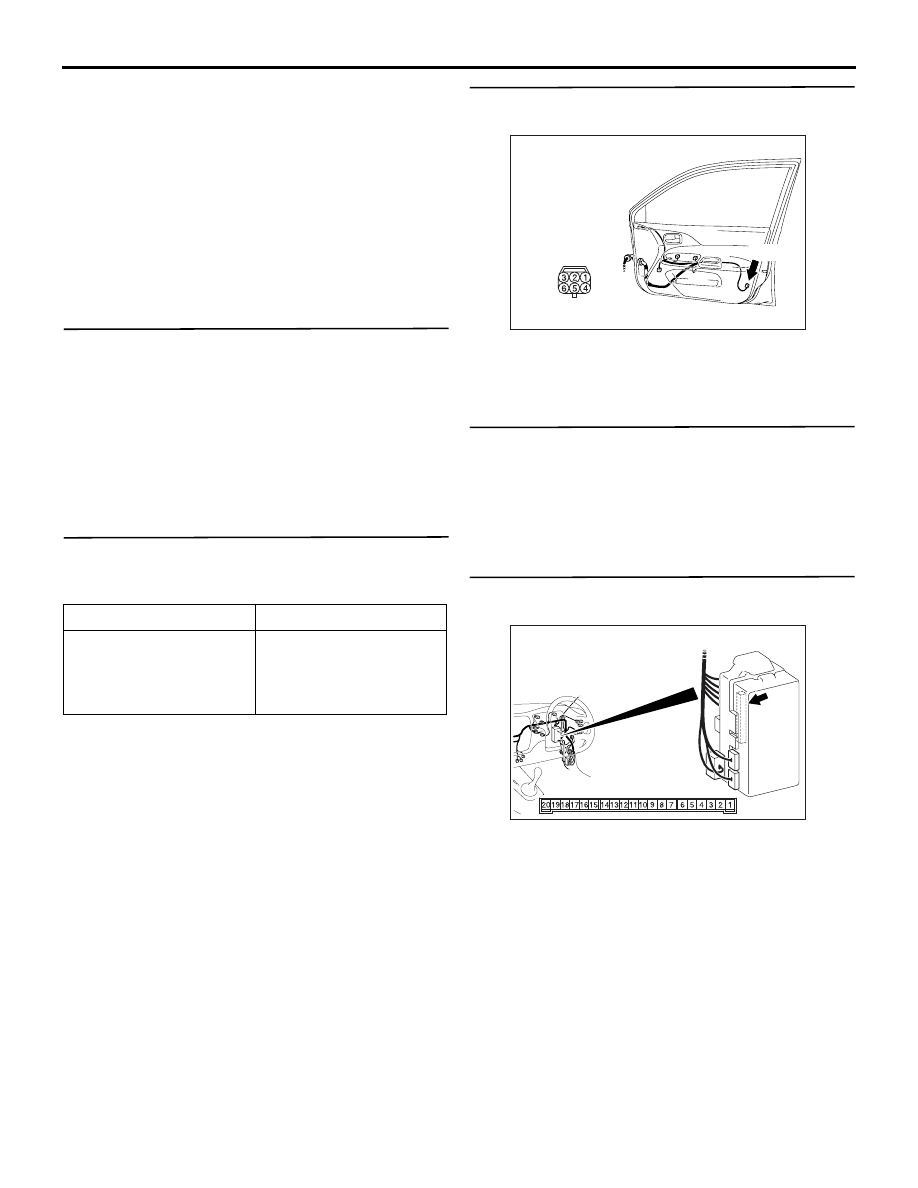

AC310493

Harness side

AF

Connector: E-15 <RHD>

E-15 (B)

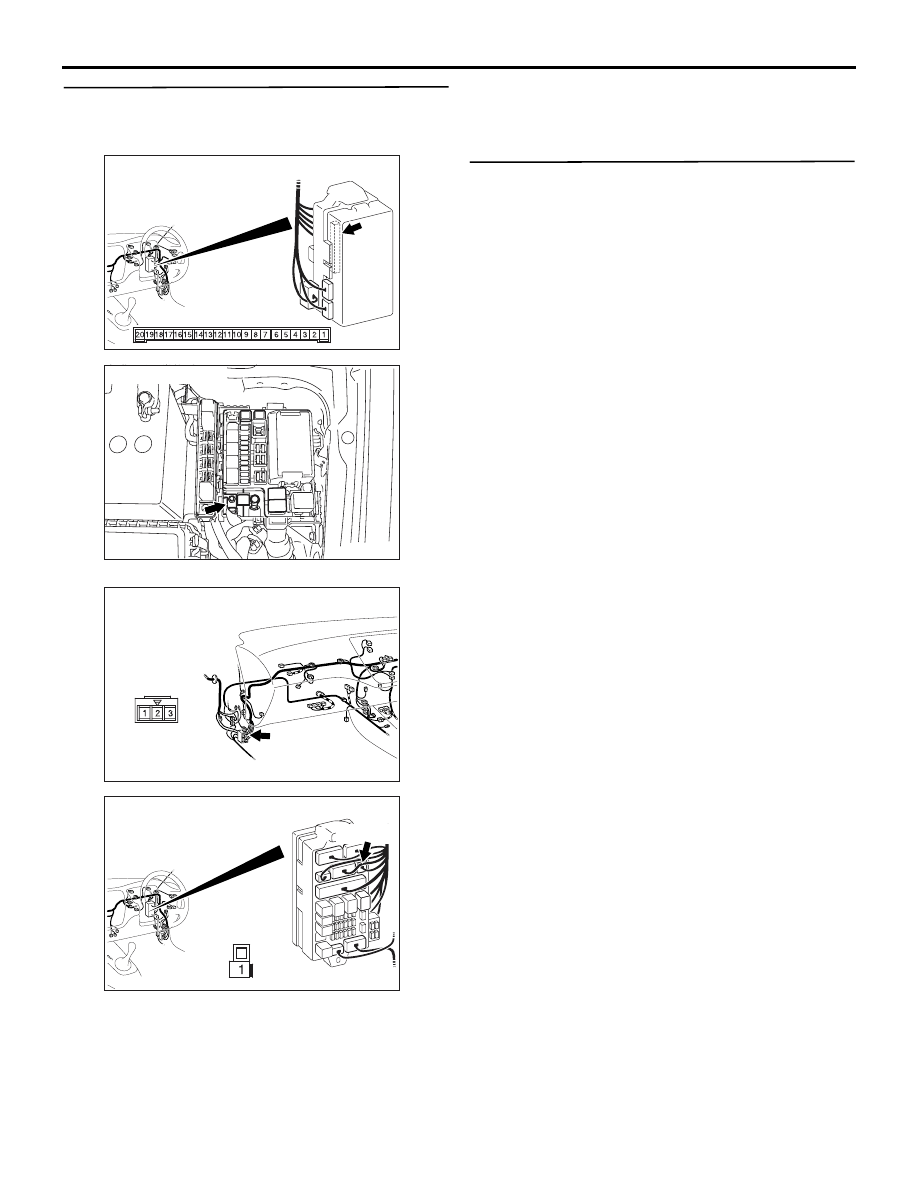

AC310461

Connector: C-226 <RHD>

AE

Junction block side

Junction block
(rear view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-53

Step 6. Check the wiring harness between C-226
ETACS-ECU connector terminal No.2 and fusible
link (1).

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-126 and junction block connector
C-212, and repair if necessary.

• Check the power supply line for open or short cir-

cuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the central door locking system works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310461

Connector: C-226 <RHD>

AE

Junction block side

Junction block
(rear view)

AC310523AB

Fusible link: No.1

AC310454

Connector: C-126 <RHD>

AF

AC310458

Junction block (front view)

Connector: C-212 <RHD>

AF

Harness side

C-212 (B)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-54

INSPECTION PROCEDURE C-2: A Door or a tailgate can not be locked or unlocked by the central door
locking system. <LH drive vehicles>

DOOR LOCK
ACTUATOR

(

REAR

: RH)

DOOR LOCK
ACTUATOR

(

REAR

: LH)

ETACS-ECU

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

DOOR LOCK
ACTUATOR

(FRONT: LH)

DOOR LOCK
ACTUATOR

(FRONT:RH)

J/B SIDE

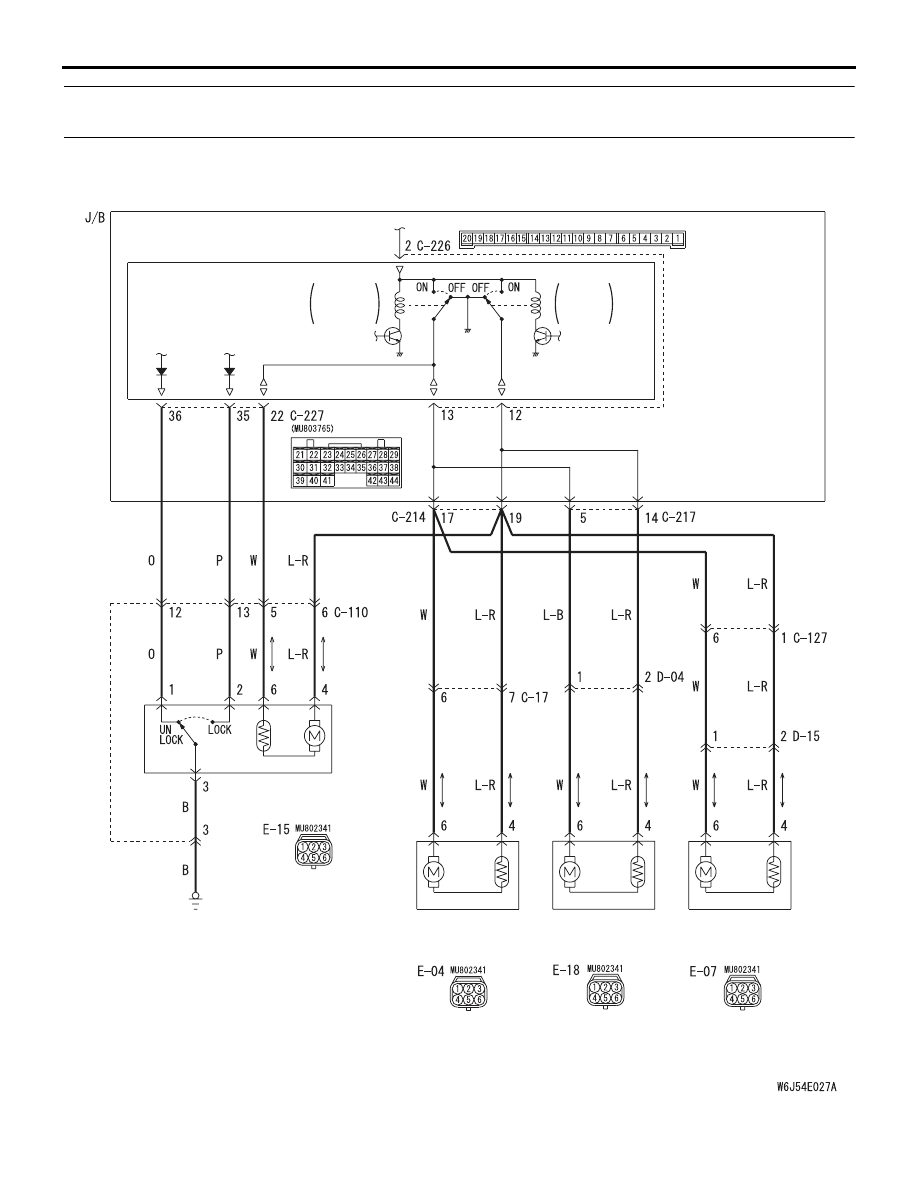

Central Door Lock Circuit <LHD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
