Mitsubishi Lancer Evolution IX. Manual - part 74





TRUNK (LUGGAGE COMPARTMENT)

CONFIGURATION DIAGRAMS

80-37

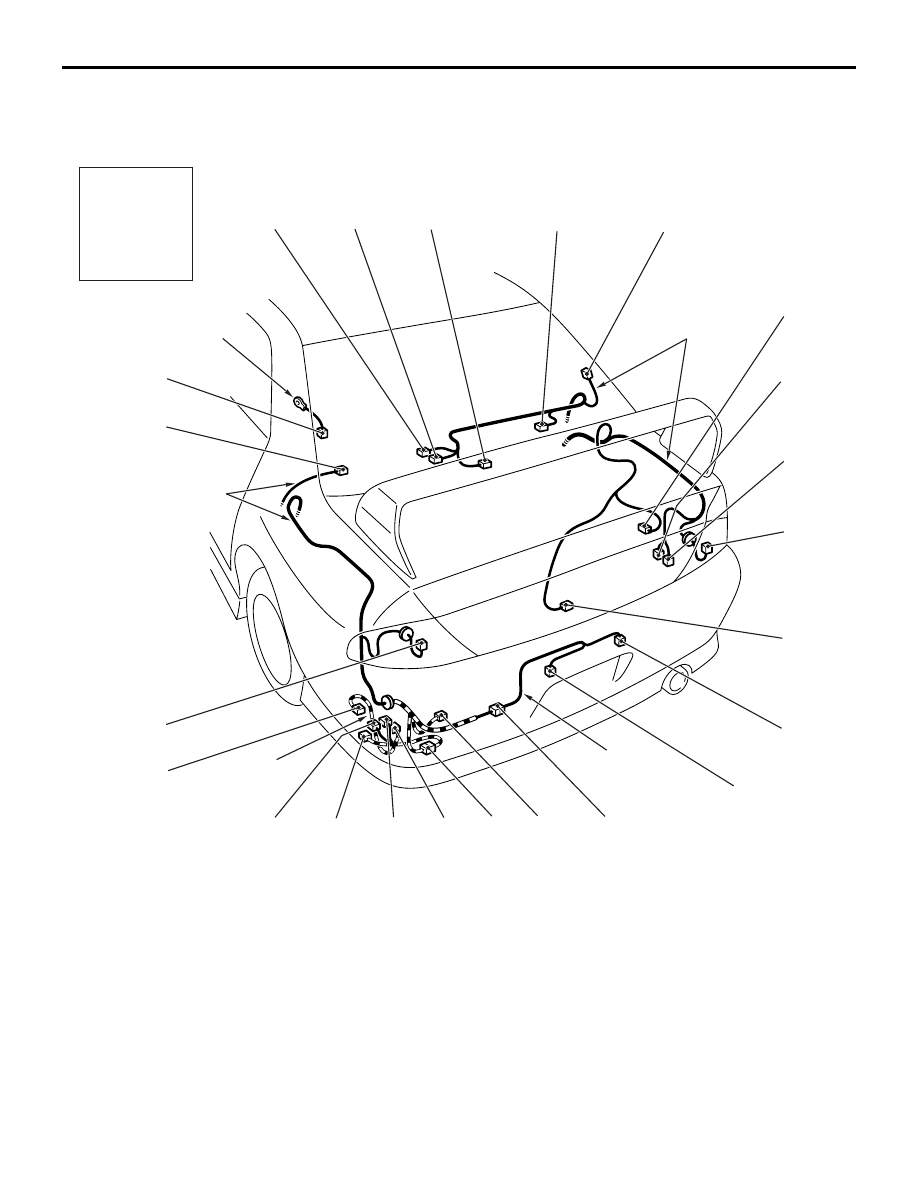

TRUNK <RH drive vehicles>

M1801001500571

AC211091

AC310175

F-02

F-17

F-15

F-08

F-09

F-10

F-11

F-12

F-20

F-26

F-01

Floor wiring
harness (LH)

AB

F-04

F-05

F-07

F-16

F-21

F-22

F-23

F-24

F-25

F-14

F-06

Bumper
wiring
harness

F-18

Floor wiring
harness (RH)

4WD wiring
harness

Connector
symbol

F

Defogger
earth

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

F-01

(2)

Rear speaker (LH)

F-02

(2)

Luggage compartment lamp

F-04

(2-B)

High mounted stop lamp <rear shelf>

F-05

(4)

No connection

F-06

(1-B)

Defogger (

−)

F-07

(2)

Rear speaker (RH)

F-08

(6-B)

Rear combination lamp (RH)

F-09

(1)

Luggage compartment lamp switch

F-10

(2-GR)

Licence plate lamp (RH)

F-11

(2-GR)

Licence plate lamp (LH)

F-12

(2-GR)

Floor wiring harness (LH) and bumper
wiring harness combination

F-14

(6-B)

Rear combination lamp (LH)

F-15

(2)

High mounted stop lamp <rear
spoiler>

F-16

(1)

Defogger (+)

F-17

(2-G)

No connection

F-18

(2)

Windshield washer motor

F-20

(2-B)

Electric pump

F-21

(8-B)

Floor wiring harness (LH) and 4WD
wiring harness combination

F-22

(2-B)

Direction valve (LH)

F-23

(2-B)

Direction valve (RH)

F-24

(3-B)

Proportioning valve (for ACD control)

F-25

(3-B)

Proportioning valve (for AYC control)

F-26

(3-B)

Pressure sensor

NOTES

00E-1

GROUP 00E

GENERAL



<ELECTRICAL>

CONTENTS

HOW TO READ WIRING DIAGRAMS

00E-2

COMPOSITION AND CONTENTS OF WIRING
DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . .

00E-2

HOW TO READ CONFIGURATION



DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . .

00E-3

HOW TO READ CIRCUIT DIAGRAMS . . . .

00E-4

MARKINGS FOR CONNECTOR AND



EARTHING  . . . . . . . . . . . . . . . . . . . . . . . . .

00E-6

WIRE COLOUR CODE . . . . . . . . . . . . . . . .

00E-9

ABBREVIATION SYMBOLS . . . . . . . . . . . .

00E-9

HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-2

HOW TO READ WIRING DIAGRAMS

COMPOSITION AND CONTENTS OF
WIRING DIAGRAMS

M1001012800150

In each section, all specifications are listed, including optional specifications. Accordingly, some specifica-
tions may not be applicable for individual vehicles.

Section

Basic contents

Component
locations

Locations are shown for each point of relays, ECUs, sensors, solenoid valves,
inspection connectors, fusible links, fuses, etc. In the part’s lists, parts are listed in
alphabetical order.

Configuration
diagrams

Connector locations and harness wiring configurations on actual vehicles are
illustrated.

Circuit diagrams

Circuits from power source to earth are shown completely, classified according to
system. There is a main division into power source circuits and circuits classified by
system.

• Junction block

The entire circuit for the junction block is described, because only the part of the
junction block needed is normally shown in each circuit diagram.

• Joint connectors

The internal circuits for all joint connectors are described, because only the part
needed is shown in each circuit diagram.

• Power source circuits

Circuits from the battery to fusible link, fuse, ignition switch, etc are shown.

• Circuits classified by system

For each system, the circuits are shown from fuse to earth, excluding the power
source sections.
