Mitsubishi Lancer Evolution IX. Manual - part 72

AC208216

AC310170

AE

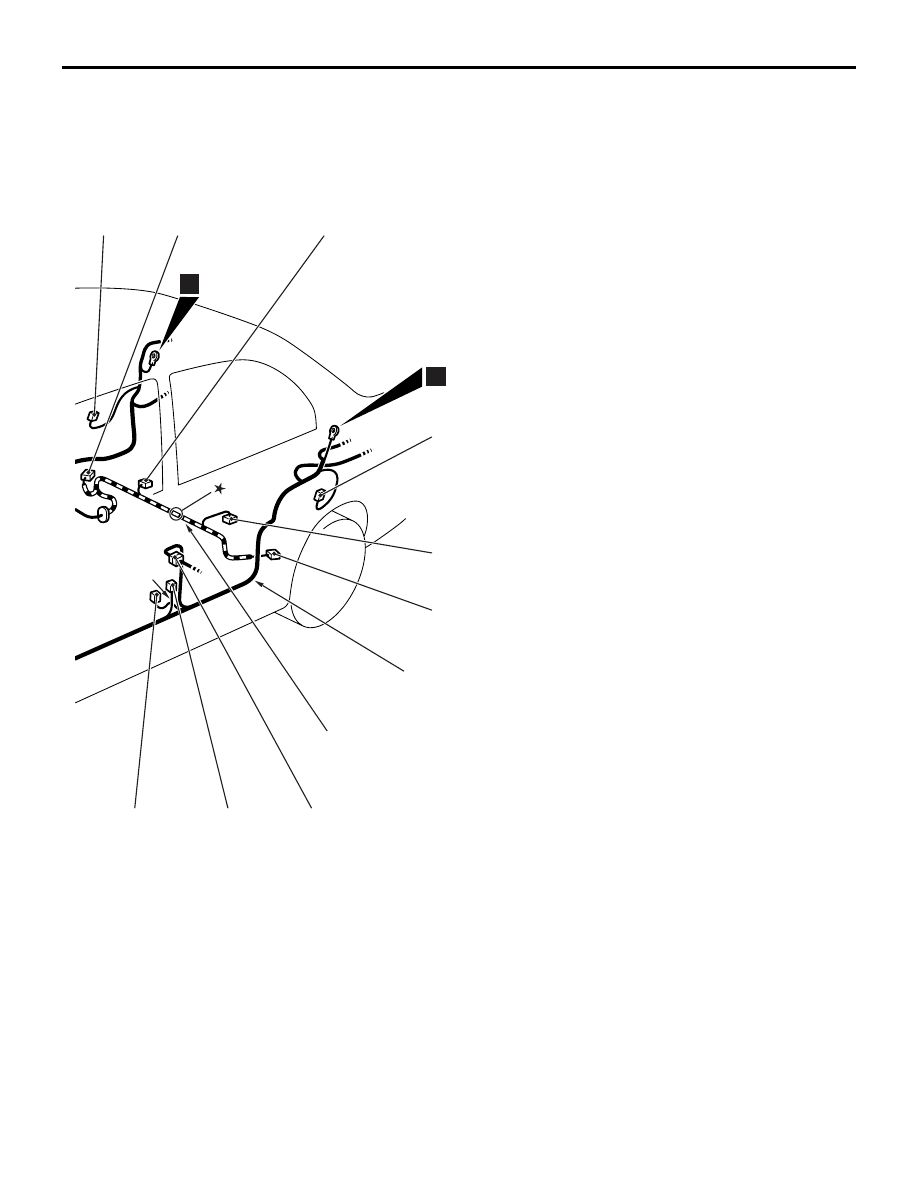

D-15

D-16

D-18

D-11

D-12

D-13

8

9

Y

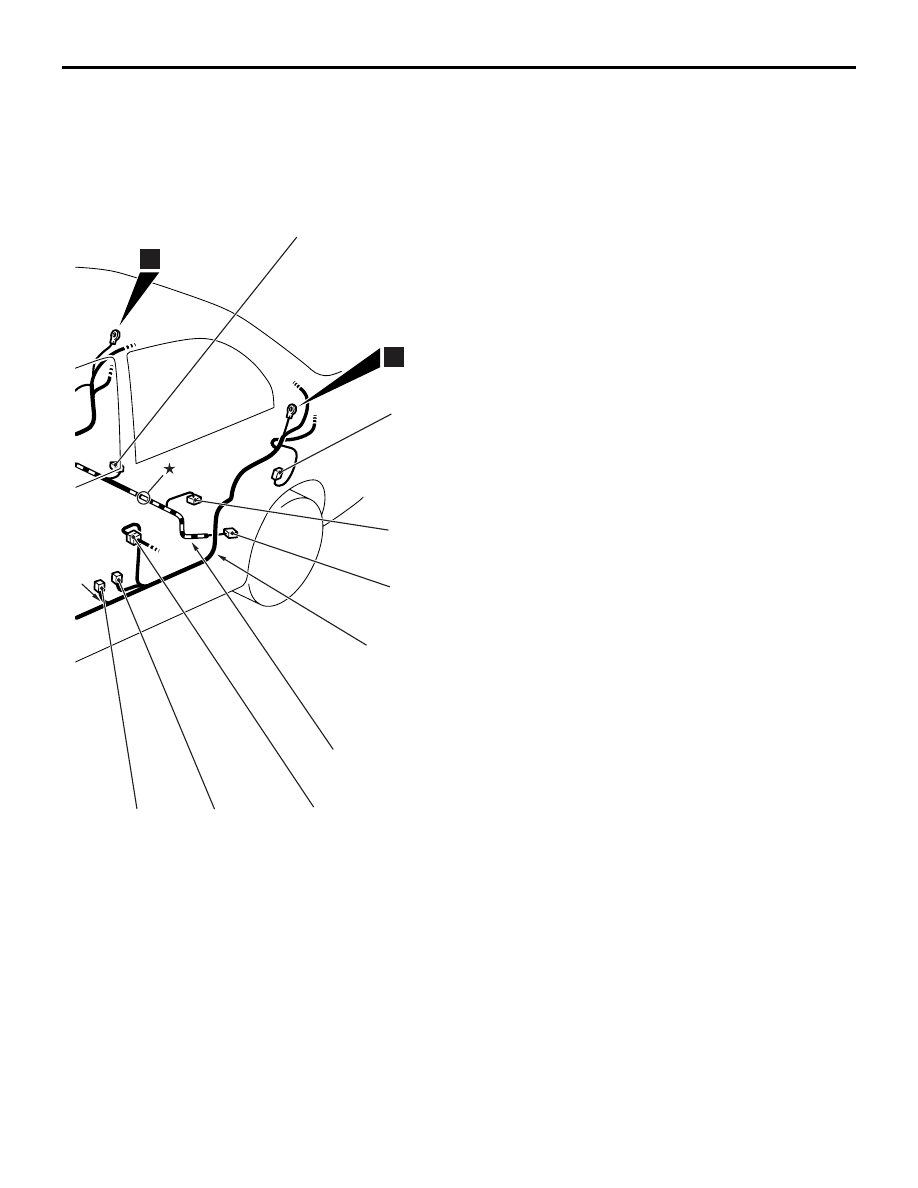

Fuel wiring
harness

Floor wiring
harness (LH)

D-10

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-23

(1)

Cigarette lighter

D-24

(1-B)

Cigarette lighter

D-25

(2-B)

Ashtray illumination lamp

D-26

(2-B)

Cigarette lighter illumination lamp

D-28

(1-B)

Parking brake switch

D-29

(2)

Tweeter (LH)

D-30

(2)

Tweeter (RH)

D-33

(1)

Floor wiring harness (RH) and fuel
wiring harness combination

D-34

(8)

Floor wiring harness (RH) and fuel
wiring harness combination

D-37

(3-B)

G-sensor (lateral)

D-38

(3-B)

G-sensor (longitudinal)

D-39

(6)

No connection

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-29

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-30

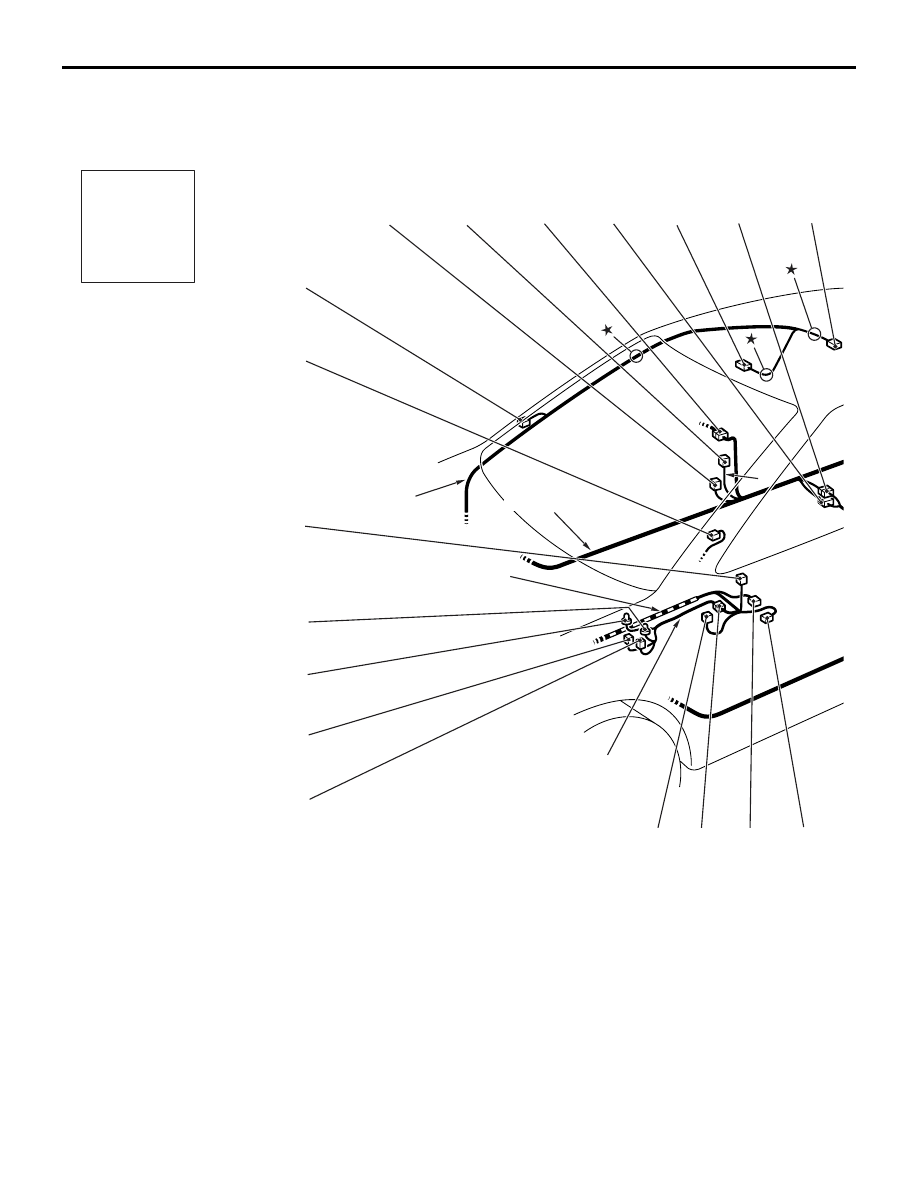

FLOOR AND ROOF <RH drive vehicles>

M1801000901397

AC211087

AC310176

AC

Connector
symbol

D

Y

D-04

D-33

D-07

D-25

D-26

D-24

D-23

D-21

D-38

D-37

D-05

D-34

D-03

D-01

D-39

D-28

D-30

D-29

Roof wiring
harness

Instrument panel
wiring harness

Floor wiring
harness (RH)

Console wiring
harness

D-01

(3)

Front door switch (RH)

D-03

(2-B)

Seat belt pre-tensioner (RH)

D-04

(8)

Floor wiring harness (RH) and rear
door wiring harness (RH) combination

D-05

(2)

Front room lamp

D-06

(2-B)

Wheel speed sensor (Rear: RH)

D-07

(2-GR)

Rear room lamp

D-08

(3)

Rear door switch (RH)

D-10

(2)

Fuel gauge unit (sub)

D-11

(3)

Rear door switch (LH)

D-12

(5-GR)

Fuel pump and gauge unit (main)

D-13

(2-B)

Wheel speed sensor (Rear: LH)

D-15

(8)

Floor wiring harness (LH) and rear
door wiring harness (LH) combination

D-16

(2-B)

Seat belt pre-tensioner (LH)

D-18

(3)

Front door switch (LH)

D-21

(4)

Instrument panel wiring harness and
console wiring harness combination

AC211088

AC310177

D-15

D-16

D-18

D-11

D-12

D-13

8

9

Y

Fuel wiring
harness

Floor wiring
harness (LH)

D-10

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-06

D-08

AD

D-23

(1)

Cigarette lighter

D-24

(1-B)

Cigarette lighter

D-25

(2-B)

Ashtray illumination lamp

D-26

(2-B)

Cigarette lighter illumination lamp

D-28

(1-B)

Parking brake switch

D-29

(2)

Tweeter (LH)

D-30

(2)

Tweeter (RH)

D-33

(1)

Floor wiring harness (RH) and fuel
wiring harness combination

D-34

(8)

Floor wiring harness (RH) and fuel
wiring harness combination

D-37

(3-B)

G-sensor (lateral)

D-38

(3-B)

G-sensor (longitudinal)

D-39

(6)

No connection

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-31

DOOR

CONFIGURATION DIAGRAMS

80-32

DOOR

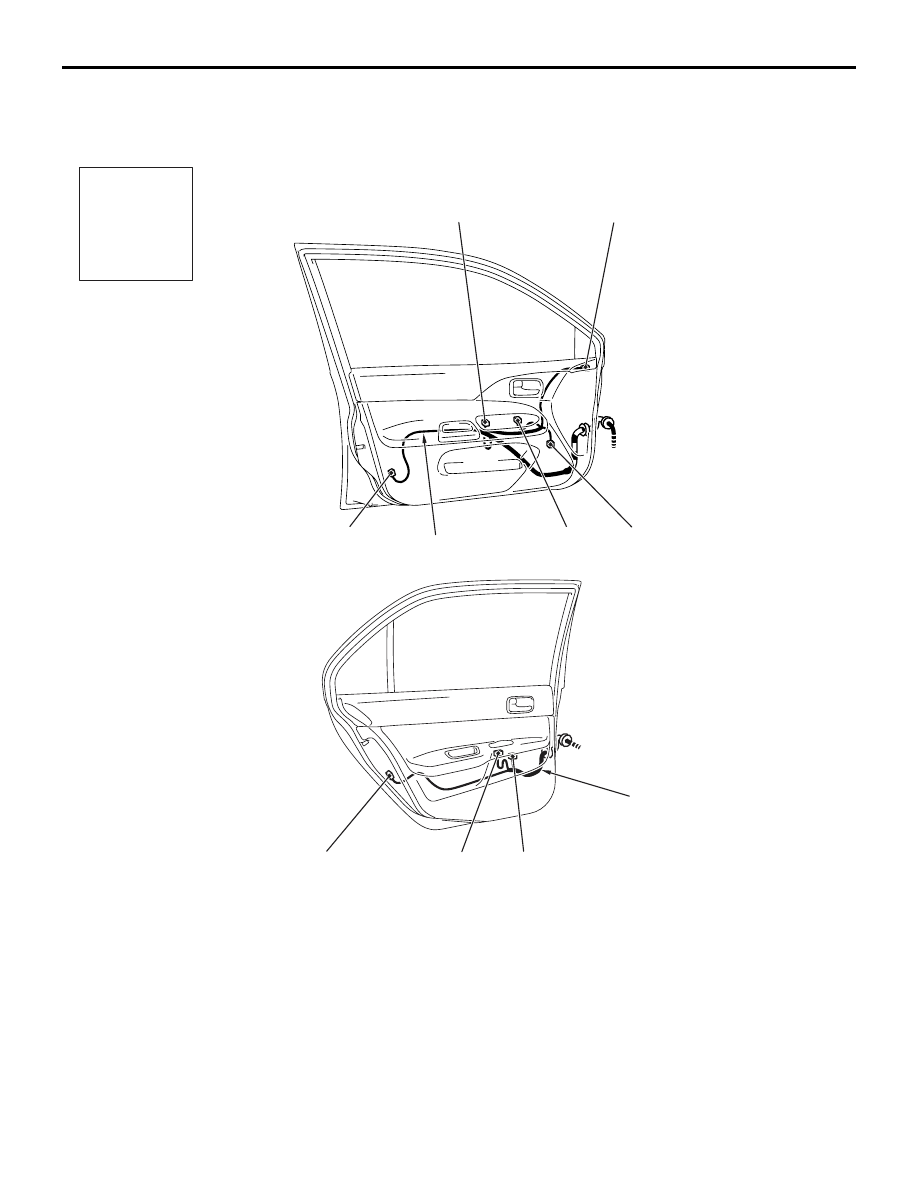

DOOR <LH drive vehicles>

M1801001401276

AC310171AB

Connector
symbol

E

Driver's side

E-04

E-05

E-06

E-02

E-03

E-07

E-08

E-09

Front

Rear

Front door
wiring harness (LH)

Rear door
wiring harness (LH)

E-02

(6-GR)

Power window motor (Front: LH)

E-03

(7)

Remote controlled mirror (LH)

E-04

(6-B)

Door lock actuator (Front: LH)

E-05

(14)

Power window main switch

E-06

(2)

Door speaker (LH)

E-07

(6-B)

Door lock actuator (Rear: LH)

E-08

(8)

Power window sub switch (Rear: LH)

E-09

(6-GR)

Power window motor (Rear: LH)

E-10

(7)

Remote controlled mirror (RH)
