Mitsubishi Lancer Evolution IX. Manual - part 53

ANTI-SKID BRAKING SYSTEM (ABS)

CIRCUIT DIAGRAMS

90-191

STOP LAMP

HYDRAULIC UNIT

SOLENOID VALVE

MOTOR

BATTERY

RELAY
BOX

STOP LAMP
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

ANTI-SKID BRAKING SYSTEM (ABS)

CIRCUIT DIAGRAMS

90-192

ANTI-SKID BRAKING SYSTEM (ABS) <LH drive vehicles> (CONTINUED)

ACD AND AYC

ABS-ECU

IGNITION
SWITCH (IG2)

STEERING
WHEEL
SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

CIRCUIT DIAGRAMS

90-193

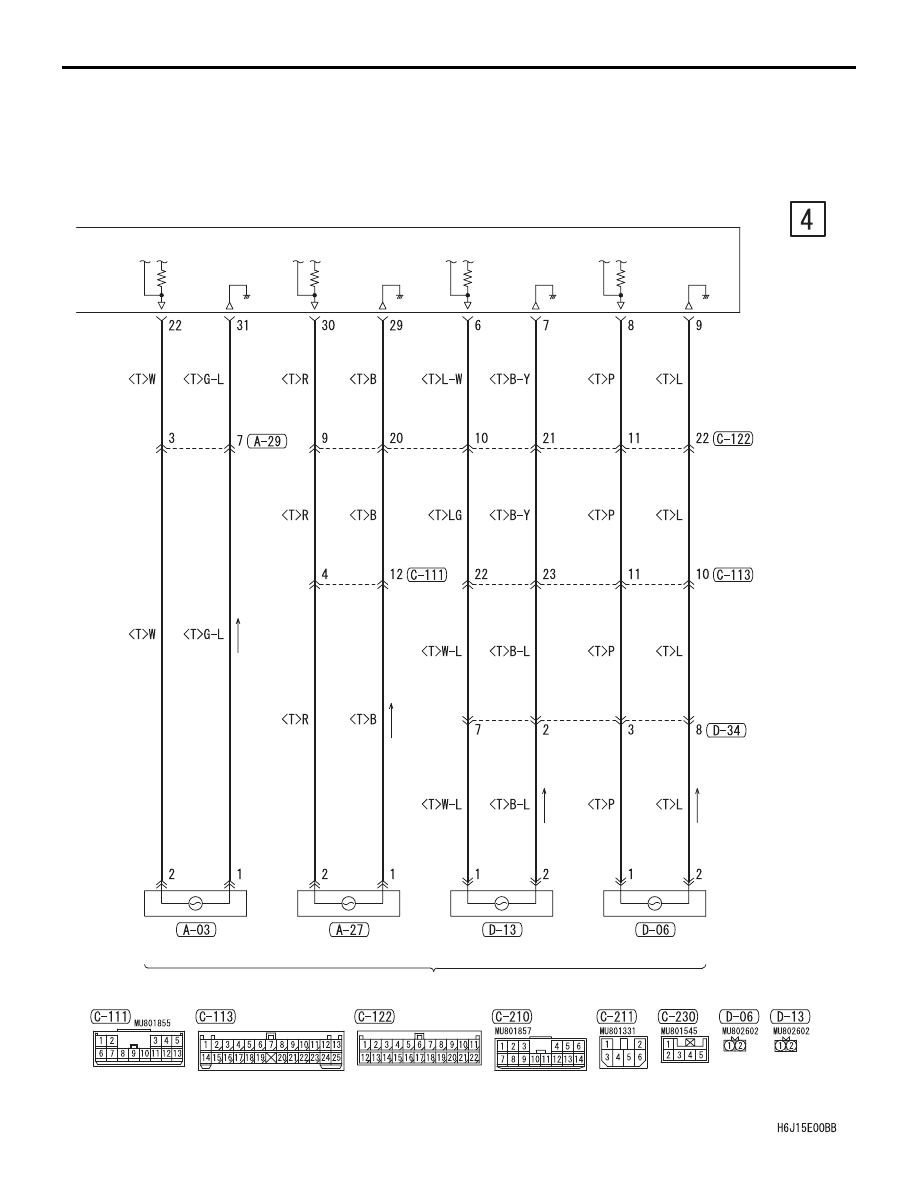

WHEEL SPEED SENSOR

(FRONT: LH)

(FRONT: RH)

(REAR: LH)

(REAR: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ANTI-SKID BRAKING SYSTEM (ABS)

CIRCUIT DIAGRAMS

90-194

ANTI-SKID BRAKING SYSTEM (ABS) <LH drive vehicles> (CONTINUED)

ABS-ECU

G-SENSOR
(LONGITUDINAL)

G-SENSOR
(LATERAL)

ACD AND AYC

ACD AND AYC

IGNITION
SWITCH (IG2)
