SRS AIRBAGS

–

52B-29

Servicing of SRS airbags and seat belt pre-tensioner components

SRS airbag and seat belt pre-tensioner components must be removed and installed by means of the following procedure.
(p.52B-29 – 33). Apart from the items described below, servicing is the same as that for the previous model.

Caution

1. If temperatures in excess of 93°C are likely to be reached during painting work, then the front impact sensors
must be removed in advance.
2. The removed front impact sensors must be stored in a clean and dry place.

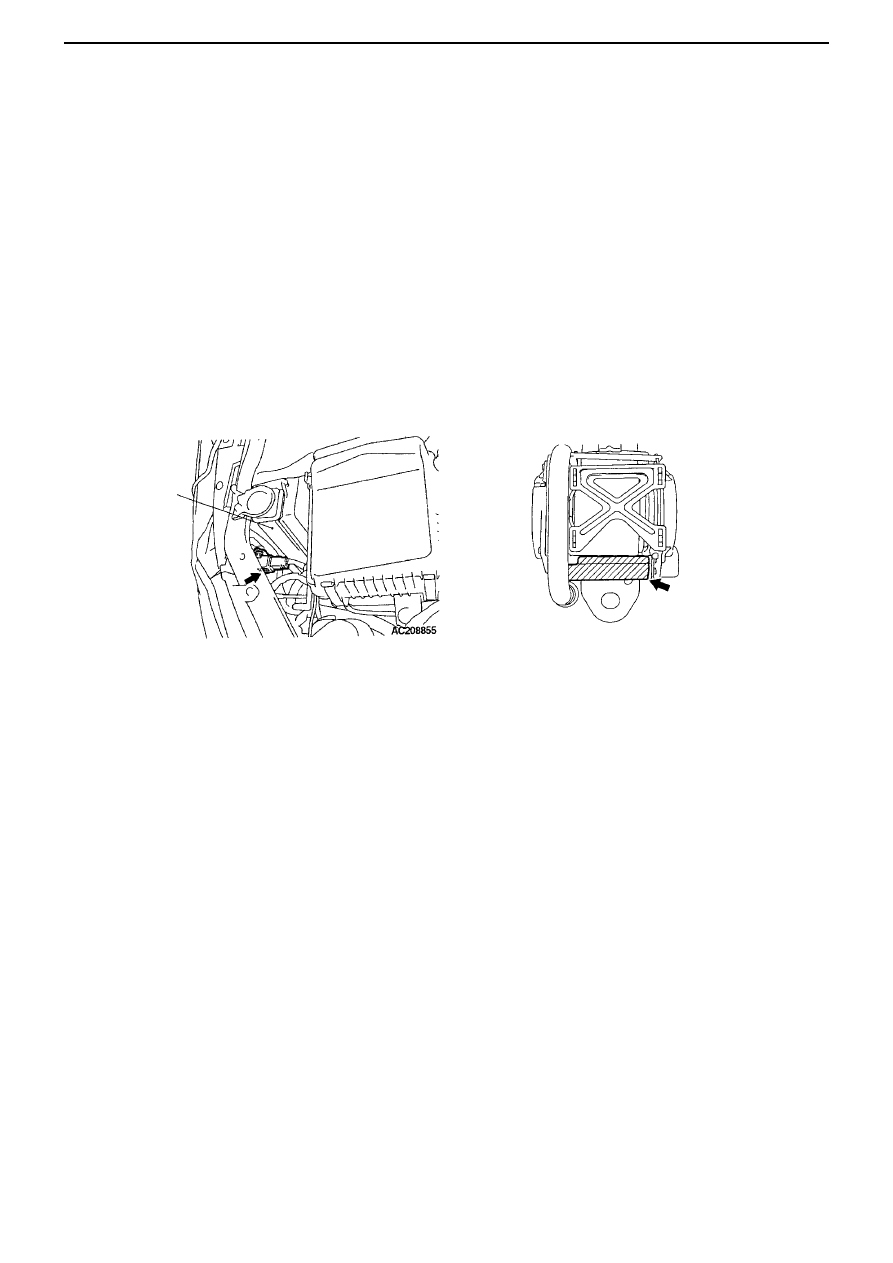

Caution labels

Labels indicating caution items relating to the handling or servicing of SRS airbags are located in the positions indicated
below.
If the labels are damaged or soiled, they should be replaced with new labels.

SERVICING OF SRS AIRBAG / SEAT BELT PRE-TENSIONER
COMPONENTS; CAUTION LABELS

Front impact sensors

Seat belt pre-tensioner

Radiator

AC100830

SRS AIRBAGS – FRONT IMPACT SENSORS

52B-30

Front Impact Sensors

(Vehicle not fitted with front passenger’s seat airbag)

Caution

1. After disconnecting the (–) terminal of the battery, wait for at least 60 seconds before starting work. Isolate the
disconnected (–) terminal by winding tape around it.
2. The front impact sensors must never be taken apart or repaired. In the event of a fault, they must be replaced
with a new front impact sensor.
3. Handle the front impact sensors with care, and avoid dropping them or subjecting them to vibrations or shocks.
If there is any dent, fracture, or deformation, etc. in a front impact sensor, then it must be replaced with a new one.
4. The front impact sensors must always be replaced after the airbags have deployed.

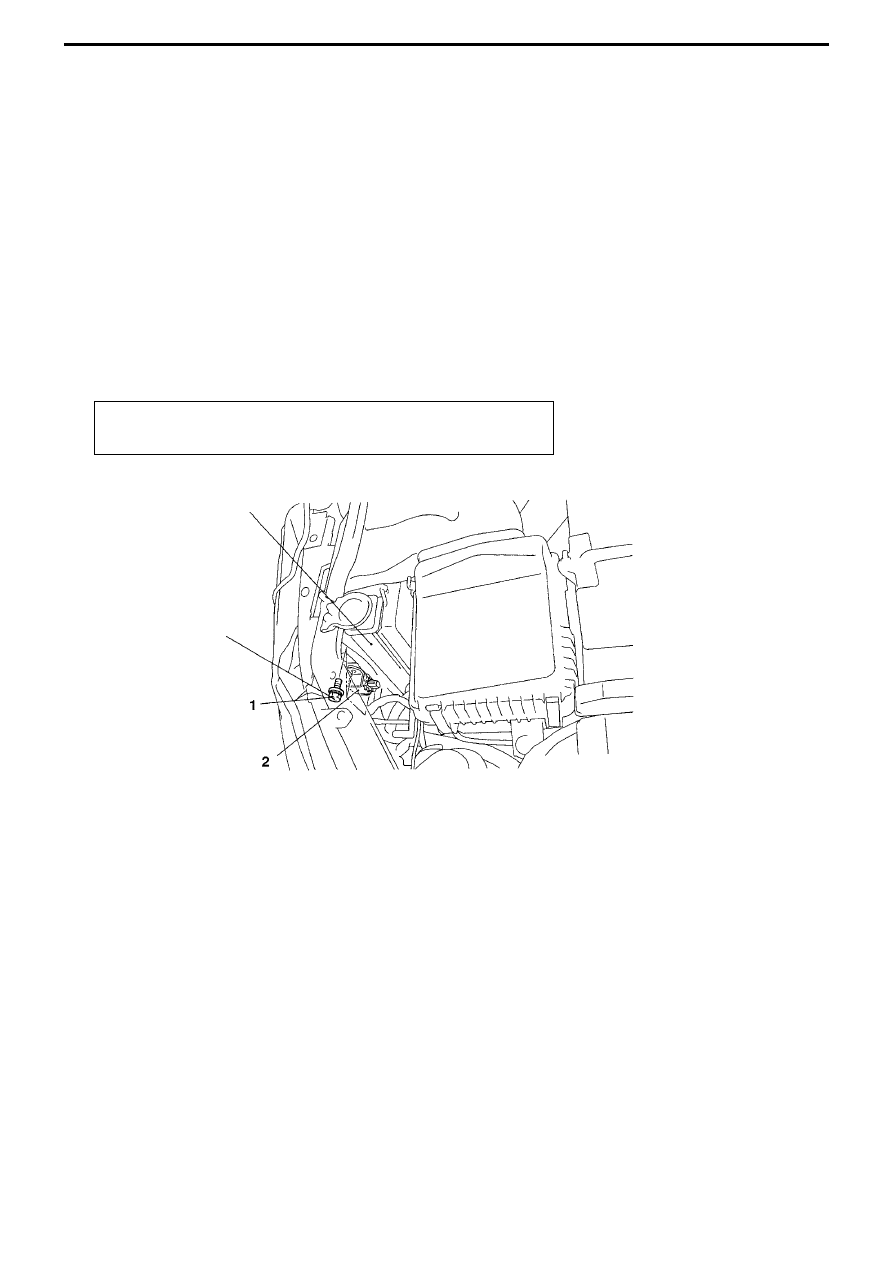

Removal and Installation

Steps prior to removal
• Turn the ignition switch to the LOCK (OFF) position.
• Disconnect the (–) terminal of the battery.

Removal procedure
1. Earth bolt
2. Front impact sensor

Installation procedure
• Pre-installation check
2. Front impact sensor
1. Earth bolt
• Connect (–) terminal of battery
• Post-installation check

Remarks
The diagram above shows the left-side front impact sensor.

Radiator

5.0 ± 1.0 N·m

AAC211681





A









B









C





SRS AIRBAGS – FRONT IMPACT SENSORS

52B-31

Installation Service Points





A





Pre-installation check

When installing a new front impact sensor, a check must be carried
out before installation. (see Check items)





B





Installing front impact sensors

1.  Attach the connectors securely.
2.  Place the arrow indicated on the front impact sensor label towards

the front of the vehicle, and install securely.

Caution
Insecure or inaccurate installation of a front impact sensor
will impede proper operation of the front airbags.





C





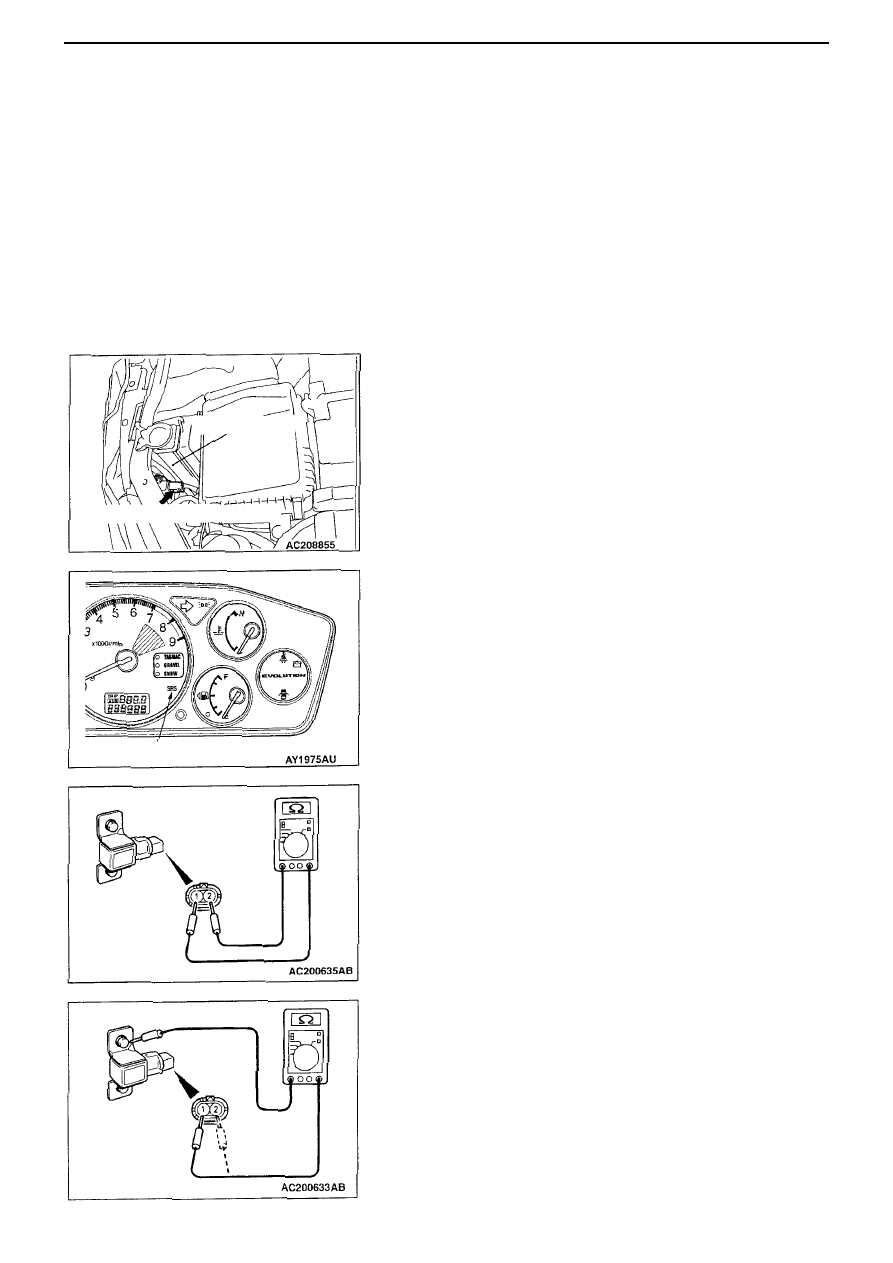

Post-installation check

1.  Set the ignition switch to the ON position.
2.  Verify that the SRS warning light lights up for 6 – 8 seconds and

then switches off for at least 5 seconds.

3.  If the light does not switch off, then troubleshooting must be

performed. (See p.52B-4)

Check procedures
1.  Dents, fractures, deformations or corrosion in front impact sensors

Caution
In the event of any dents, fractures, deformations, or the like,
the sensor must be replaced with a new one.

2.  Checking for shorting or disconnection between front impact

sensor terminals
If shorted : 2Ω or lower
If disconnected : 2MΩ or above
Caution
If the resistance value indicates shorting or a disconnection,
then the front impact sensor must be replaced with a new
sensor.

3.  Checking connectivity between terminal and bracket

If there a current is flowing, then this indicates an insulation fault in
the sensor. Replace the sensor with a new one.

4.  Deformation and corrosion of headlight support panel

Radiator

Front impact sensor

SRS warning light

SRS AIRBAGS –  AIRBAG MODULE AND CLOCK SPRING

52B-32

Airbag module and clock spring

Apart from the following items, removal, installation and inspection
procedures are the same as those for the previous model.

Installation service points





B





Installation of clock spring

1. Check that the steering wheel is in the straight ahead position.
2. Perform centre alignment of the clock spring as instructed below, and
then install the clock spring on the column switch.

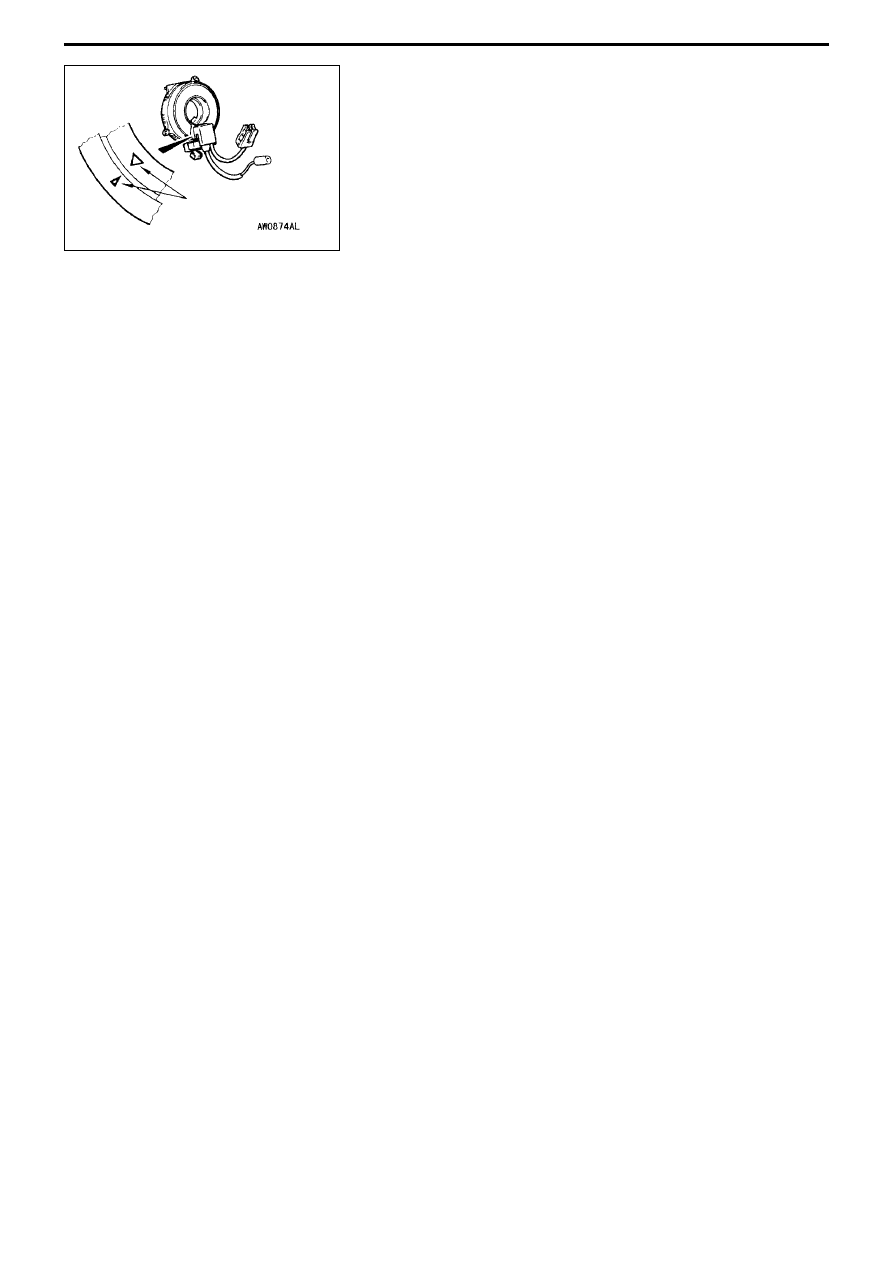

Centre alignment of clock spring

Turn the clock spring fully in the clockwise direction, then turn it back in the
opposite direction by about 3 3/4 turns, to line up the alignment marks.

Caution
If the clock spring is not centre aligned, then problems may occur,
such as jamming of the steering wheel during use, or severing of the
internal cables of the clock spring, thus impeding the proper operation
of the SRS airbag.

Alignment marks
